out of catch and remove from instrument panel. See Fig. 8

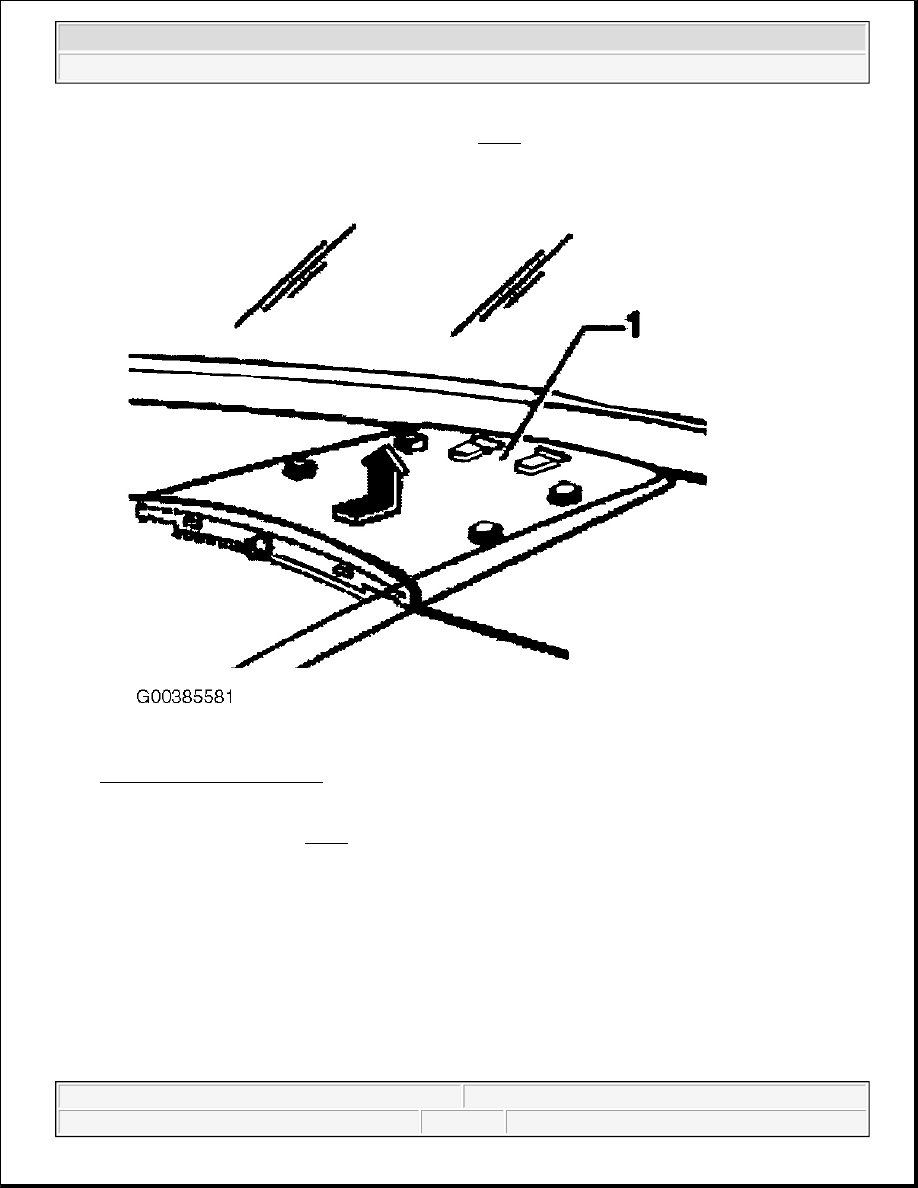

Fig. 8: Removing Dash Panel
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2. Remove three bolts -1-. See Fig. 9 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



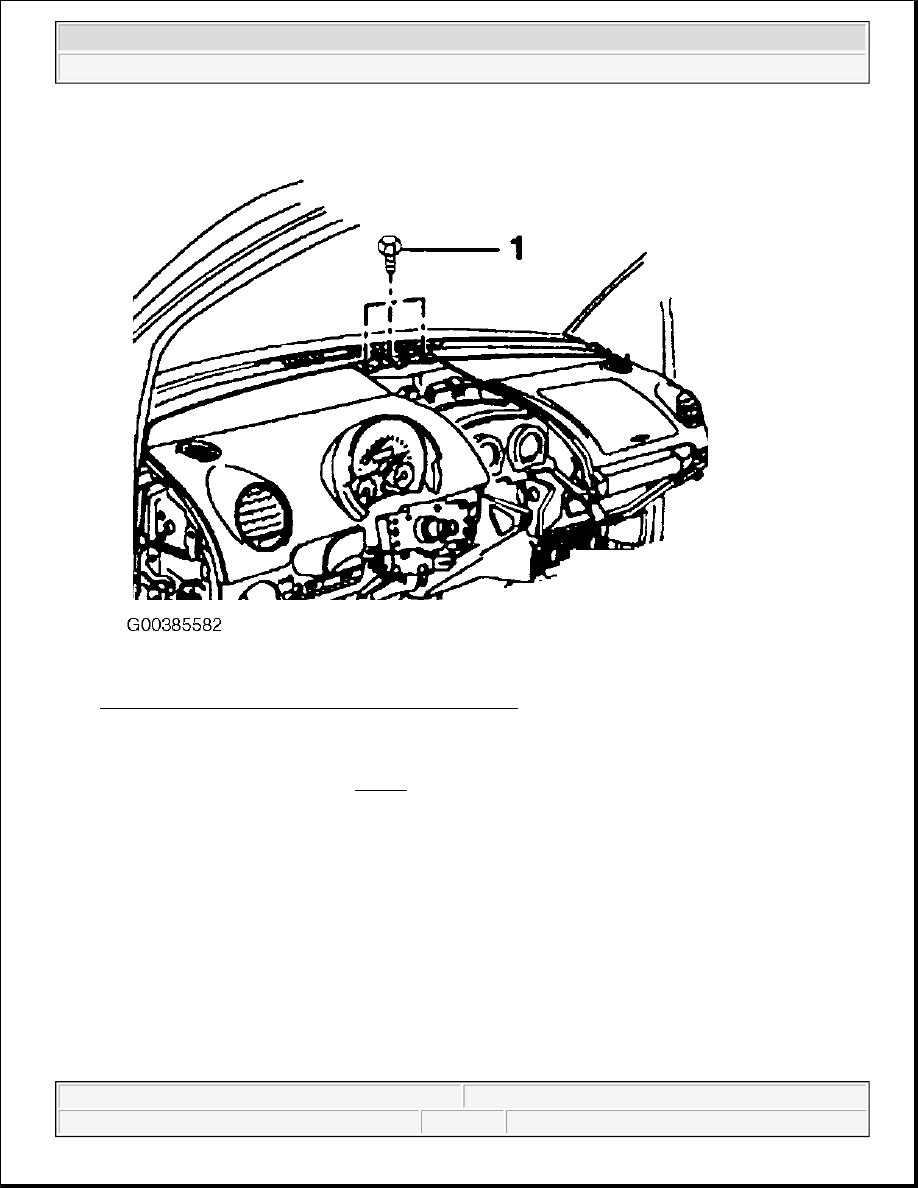

Fig. 9: Locating Plenum Cover Center Mounting Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Lift left cover -1- of plenum chamber in center of instrument panel (arrow A) and thereby unclip (front

edge clips, back edge clamps). See Fig. 10



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



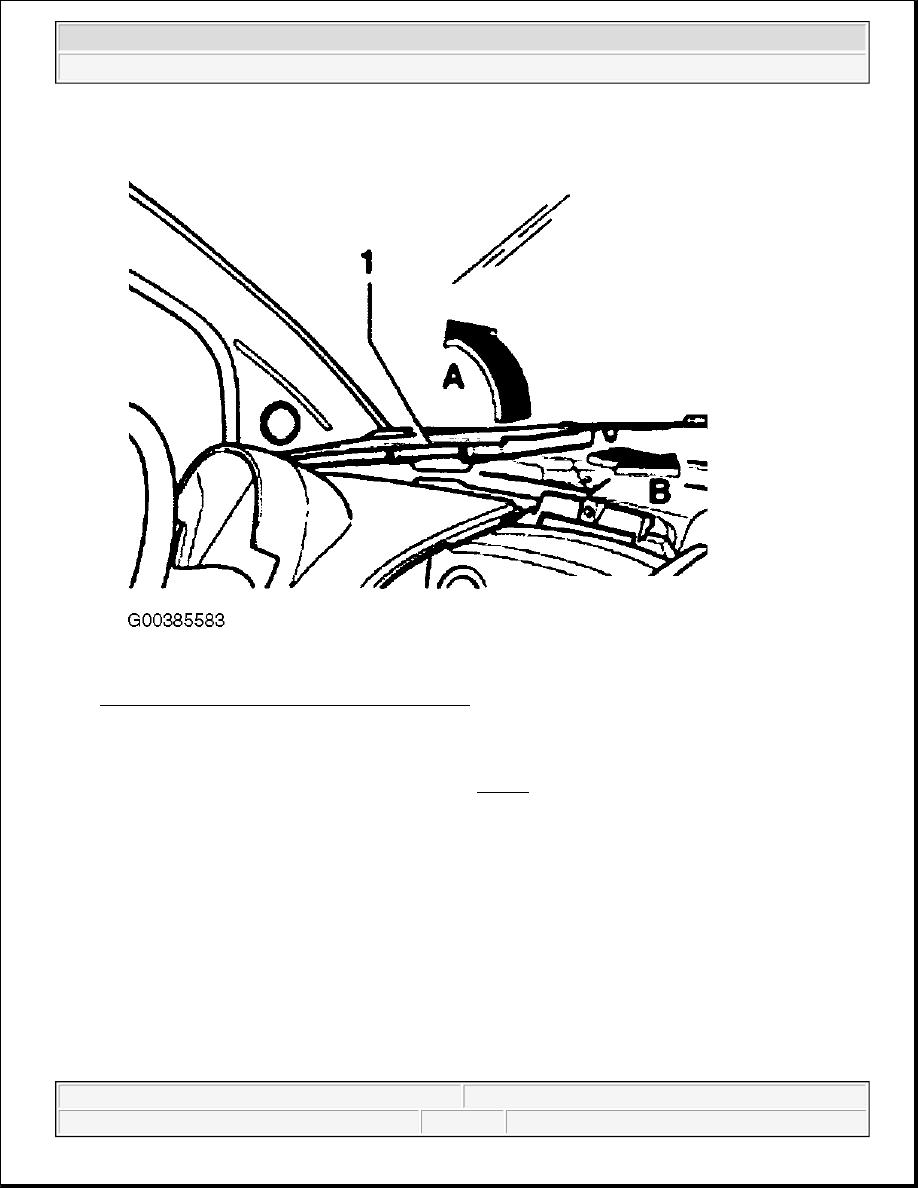

Fig. 10: Removing Left Plenum Chamber Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. Pull cover -1- toward vehicle center out of bracket underneath A-pillar (arrow B).

5. Carefully press back mounting bracket (arrow). See Fig. 11



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



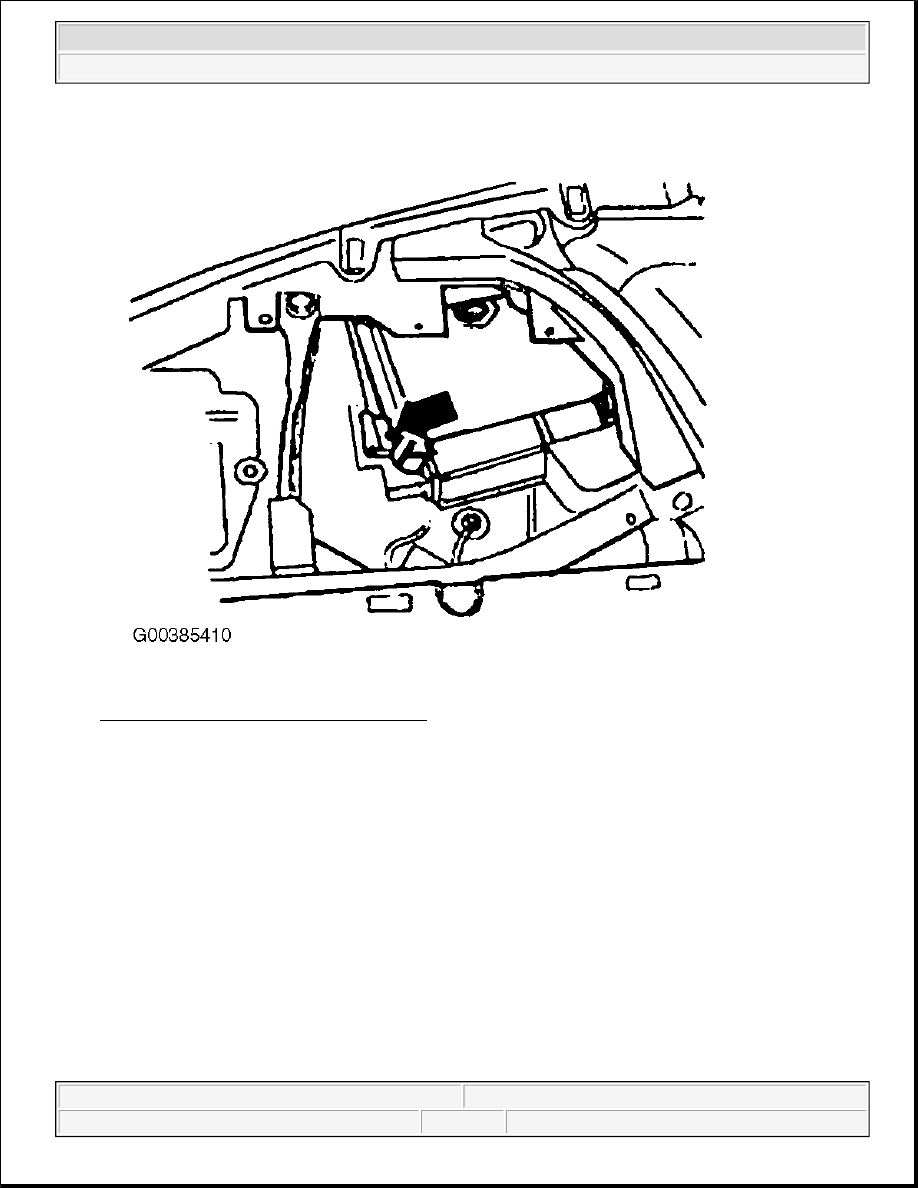

Fig. 11: Removing Engine Control Module
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. Disengage connector from control module and then disconnect it.

7. Pull control module out of mounting frame.

8. Installation is the reverse of removal, noting the following:

z

Check whether the new control module identification matches the old control module
identification.

z

Generate readiness code. See appropriate SELF-DIAGNOSTIC article in ENGINE
PERFORMANCE.

Data Link Connector (DLC)

Location: Left of steering column.

NOTE:

DLC may be found in center console on some vehicles.
