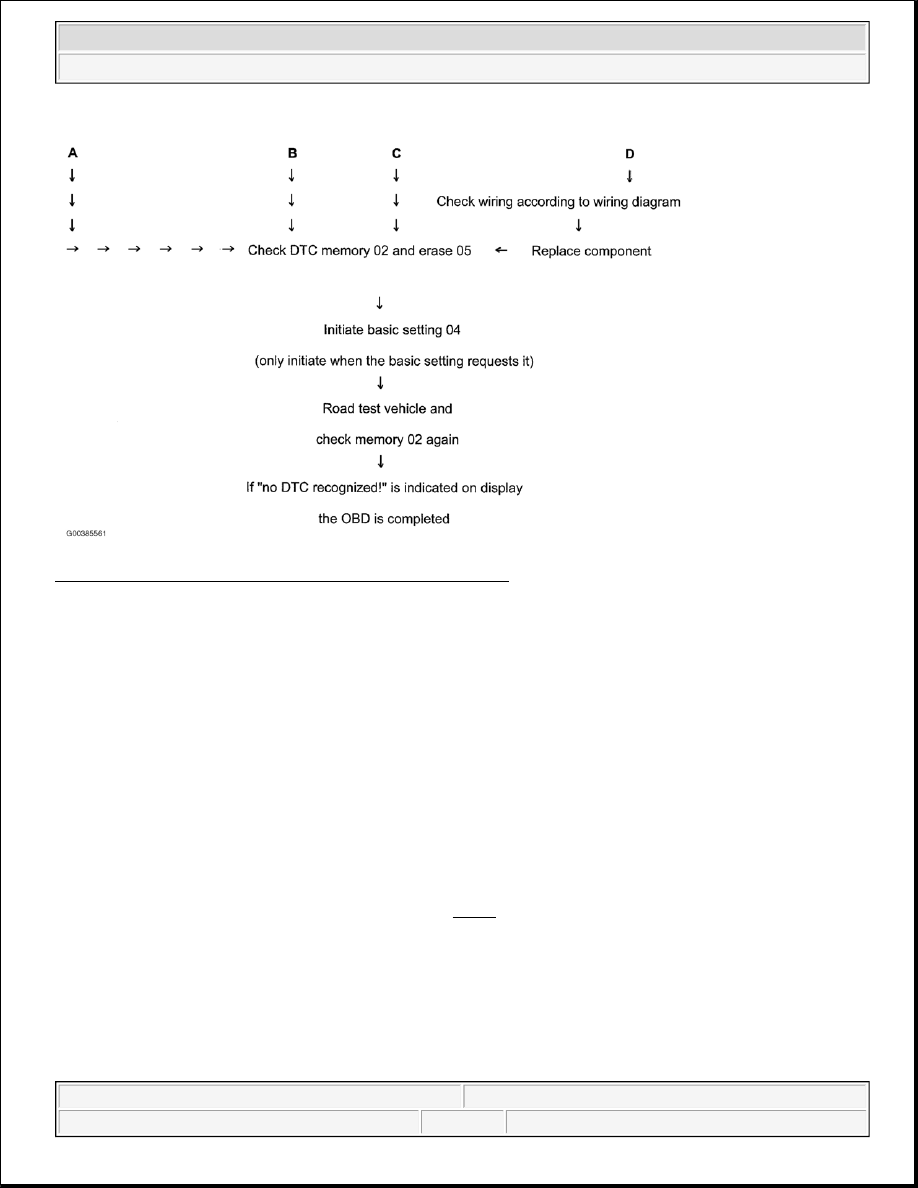

Fig. 4: Troubleshooting With VAG 1551 Scan Tool (2 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

ELECTRICAL/ELECTRONIC COMPONENTS

BATTERY DISCONNECTING & RECONNECTING

For work steps required after reconnecting battery, see Fig. 5 .

CAUTION: Before beginning repairs on the electrical system:

z

Obtain anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.

z

Do not loosen or remove ground strap from body. Disconnect
terminal from battery only.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M

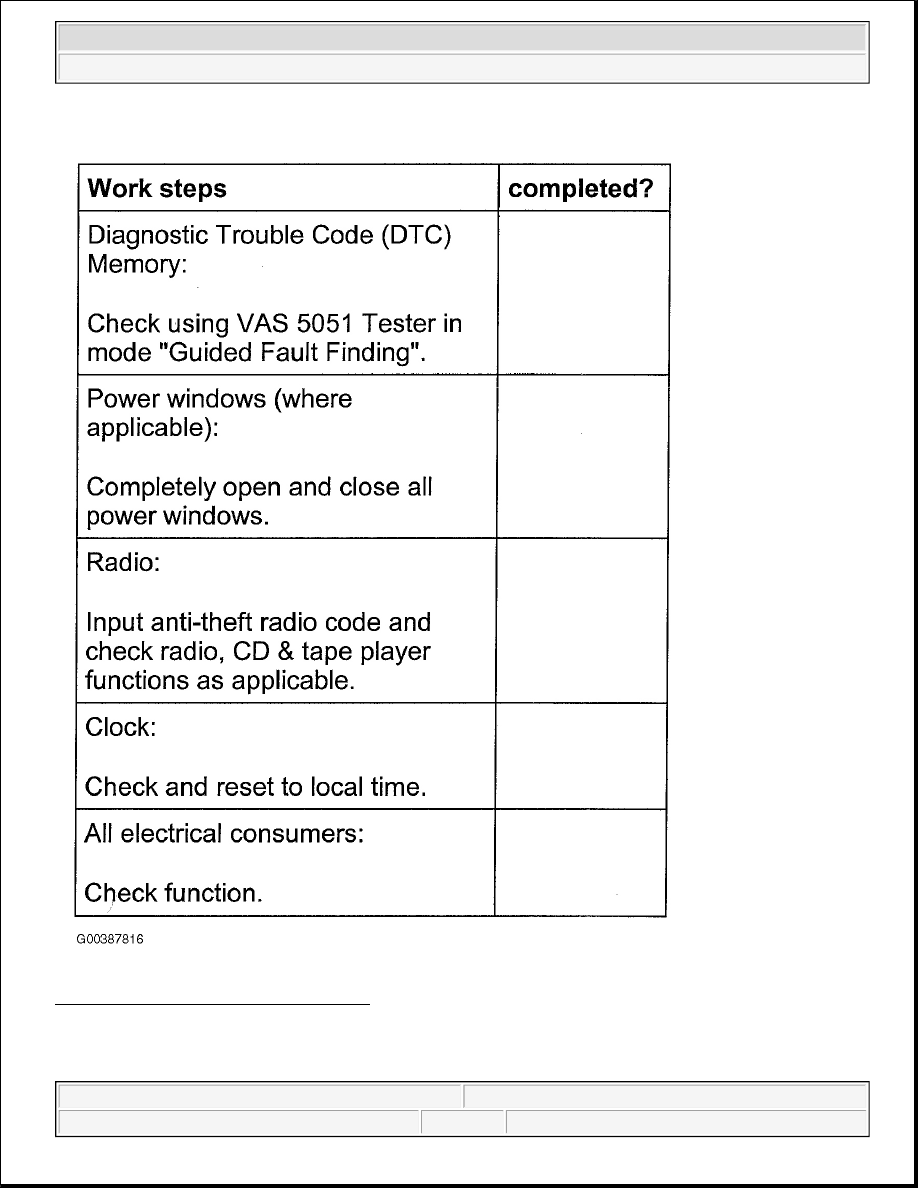

Fig. 5: Reconnecting Battery Work Steps
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

If desired, print this page and use the table above as a checklist.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



COMPONENT IDENTIFICATION

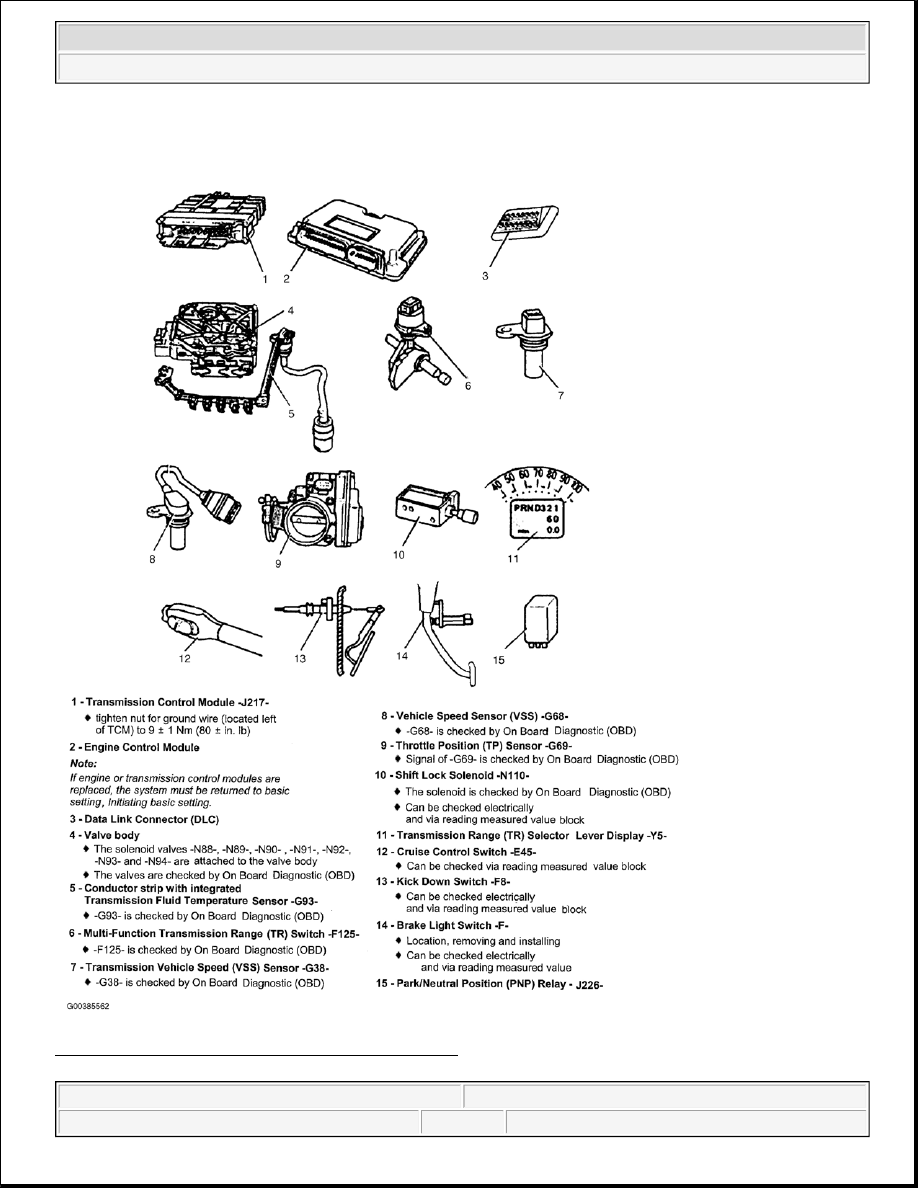

Fig. 6: Identifying Electrical/Electronic Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



COMPONENT LOCATION

Engine Control Module

Location: plenum chamber under windshield.

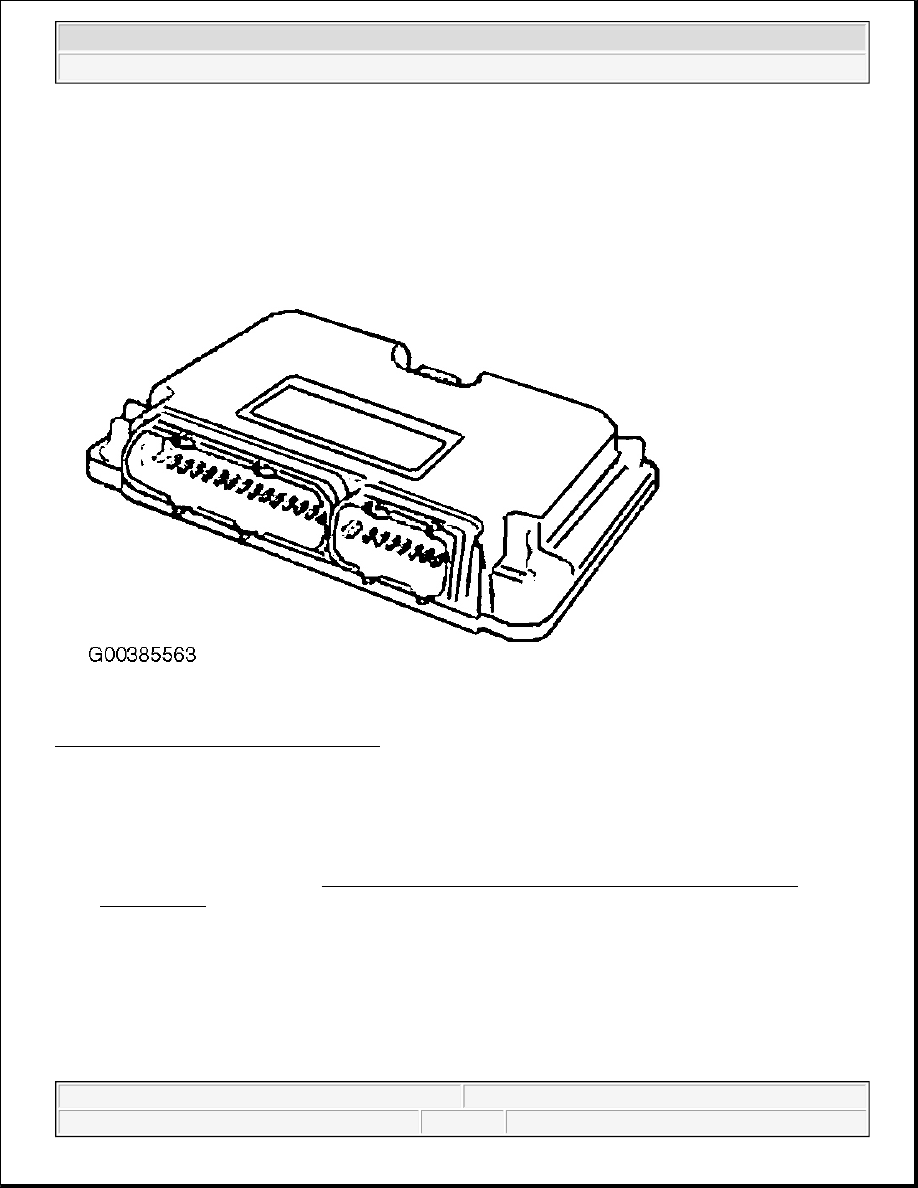

Fig. 7: Identifying Engine Control Module
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation

First, check control module identification of the previous Engine Control Module (ECM) as follows:

z

Connect diagnostic tester. See VAG 1551 SCAN TOOL, CONNECTING AND SELECTING
FUNCTIONS
 .

z

Switch ignition on.

z

Under address word 33, select "Diagnostic mode 9: vehicle information".

z

Select the vehicle information "Test-ID 04: Calibration Identification". Control module identification will
be indicated (e.g.: 06A906032KC 4795).

z

End diagnosis and switch ignition off.

1. Remove inner cover, left plenum chamber, to do this, slide center cover -1- of plenum chamber forward
