Volkswagen New Beetle. Manual - part 2130





Beetle

Caster

(3)(4)

Front

7° 50'

7° 20' To 8° 20'

Rear

(5)

(5)

Camber (Wheels In Straight-Ahead Position)

(4)

Front

-33'

-1° 3' To 3'

Rear

-1° 27'

-1° 17' To -1° 37'

Toe

Front (Wheels Not Pressed)

0'

0' To 10'

Rear

(6)(7)

25'

15' To 35'

Toe Out On Turns At 20° (Steering Angle To Left & Right)

Front

-1° 31'

-1° 11' To -1° 51'

(1)

G87 suspension specifications are for vehicle built from July, 2000.

(2)

Measurement is in degrees(°) and minutes (').

(3)

Not adjustable.

(4)

Maximum allowable difference between sides 30'.

(5)

Specification not available.

(6)

Total toe at specified camber.

(7)

Maximum allowable difference from straight-ahead running position is 20'.



2003 Volkswagen New Beetle GLS

1998-2004 WHEEL ALIGNMENT Specifications & Procedures - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:57:27 AM

Page 16

© 2004 Mitchell Repair Information Company, LLC.

Safety Problems & Issues

Safety Problems & Issues



1-888-DASH-2-DOT



This page lists search engines which retrieve information from the available

Database Files from the National Highway Traffic Safety Administration. Each

search engine has a brief description of what it does.



Compliance Testing



Vehicle and equipment testing to assure compliance with Federal Motor Vehicle Safety

Standards (FMVSS). The compliance database contains testing results from 1994 to the

present and is searchable by either FMVSS or Make/Brand, Model and Year.



Consumer Complaints



The Consumer Complaints Search Engine will allow searches of consumer complaints

regarding safety related motor vehicle and motor vehicle equipment by make, model

and year. Selection of these three items is mandatory to perform a search. An optional

item of Vehicle Component may be selected to help narrow the focus of the search.



Defect Investigations



The Investigations Search Engine will allow searches of current and past NHTSA

Investigations of vehicles, tires and equipment opened since 1972, by single year, make

or model. An optional item of Vehicle Component may be selected to help narrow the

focus of the search.



Recalls



The Recalls Search Engine will allow searches of the NHTSA Recall Campaigns by single

year, make or model. As an option, Vehicle Component may be selected to help narrow

the focus of the search.



Technical Service Bulletins



The Technical Service Bulletins Search Engine will allow searches of summaries of the

Manufacturers' Technical Service Bulletins by single year, make and model. An optional

item of Vehicle Component may be selected to help narrow the focus of the search.

(The data does not contain all the service bulletins generated by a manufacturer.

Bulletins for safety recalls in general are not included, and also bulletins which may not

http://www.nhtsa.dot.gov/cars/problems/ (1 of 2) [18/09/2007 4:39:12 PM]

Safety Problems & Issues

pertain to a defect may not be included.)



Database List Document



Database list and download directory. Flat file copies of NHTSA's databases.



Equipment Information



General information regarding the safety of equipment associated with motor vehicles.



Monthly Defect Investigations





Recall and Quarterly Guide/Form



Guide for vehicle or equipment manufacturer's to use in filing a Defect or

Noncompliance Information Report, and quarterly recall status reports. The forms are

available for downloading and can either be used as a model for the report or simply

printed, completed and submitted to the agency.



Safety Studies & Reports



Studies and reports about safety issues.



Technical Information Services & Request Form



A description of information available from Technical Information Services (TIS). A form

to request a computer search of TIS's Defect Collection and/or Docket Collection is also

provided.



Test Vehicles for Salvage



Vehicles destructively tested by NHTSA - disposition for salvage only.



Vehicle Owners' Questionnaire (VOQ)



Form to submit vehicle and equipment problems to NHTSA electronically.



http://www.nhtsa.dot.gov/cars/problems/ (2 of 2) [18/09/2007 4:39:12 PM]

1998-2004 AUTOMATIC TRANSMISSIONS

Diagnosis - 01M

APPLICATION

TRANSMISSION APPLICATION

IDENTIFICATION

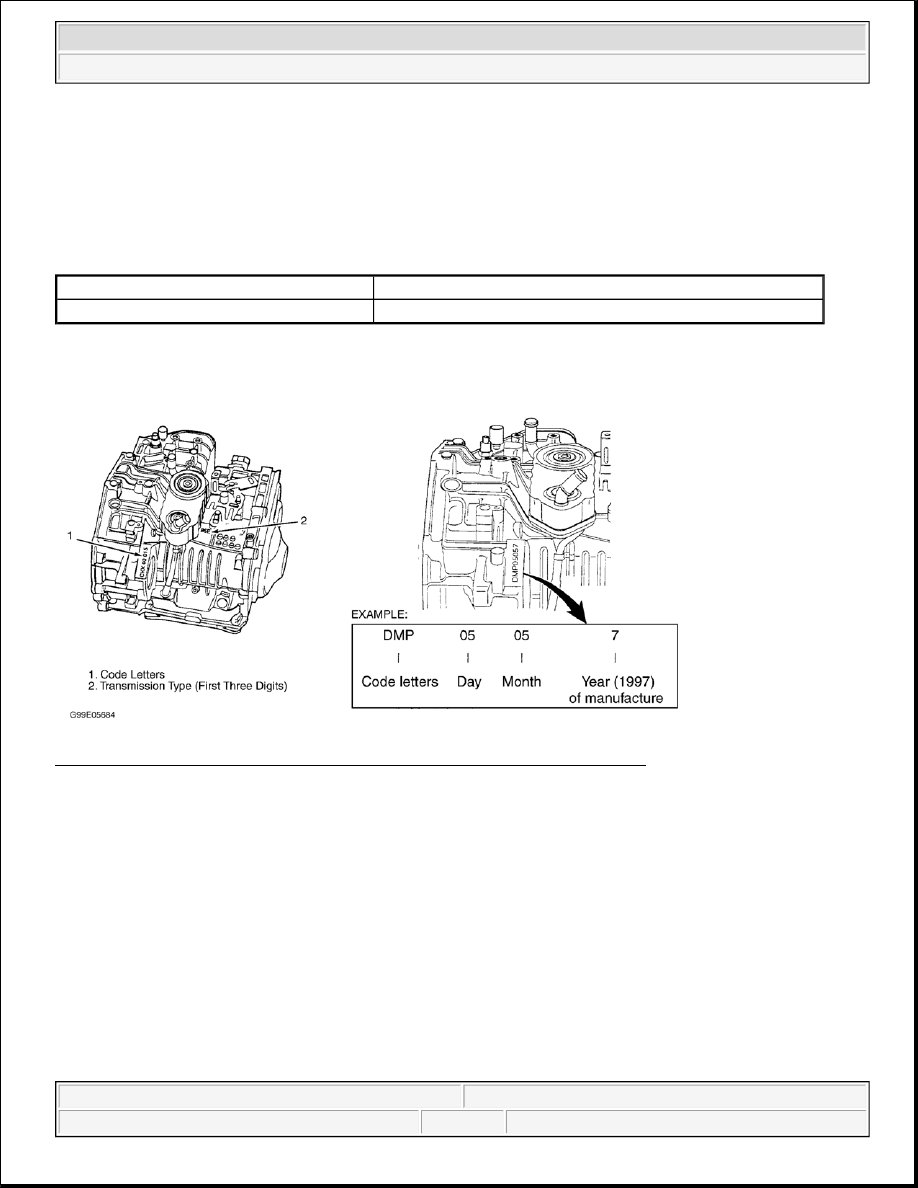

Fig. 1: Identification Of Transmission Type & Code Letters (01M Transaxle)
