WHEEL ALIGNMENT PROCEDURES

When performing wheel alignment procedures, observe following work sequence:

CONDITIONS FOR CHECKING WHEEL ALIGNMENT

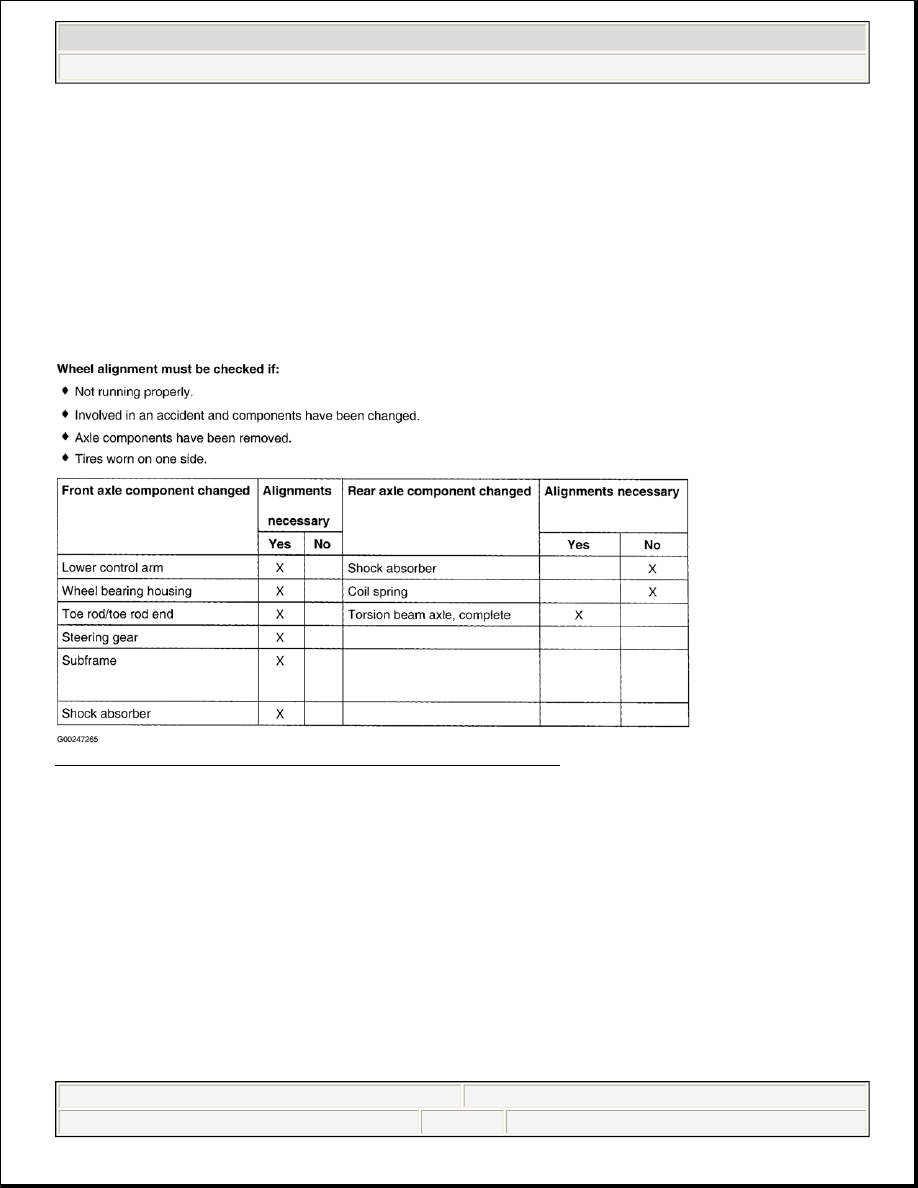

Fig. 5: Conditions For Which Wheel Alignment Must Be Checked
Courtesy of VOLKSWAGEN UNITED STATES, INC.

WHEEL ALIGNMENT WORK SEQUENCE

z

Using appropriate adapters connect VAG 1813 wheel alignment computer or equivalent to vehicle.
Alignment is to always include both front and rear axles.

z

The lateral run-out of the wheel must be compensated. Otherwise the result of the measurement will be
incorrect. If the wheel run-out compensation is not performed it is not possible to adjust toe-in correctly!

z

Check wheels for excessive out-of-balance condition. Balance or repair wheels as necessary.

z

Check front axle camber and even out if necessary.

z

Check camber at rear axle. Camber on rear axle cannot be adjusted.

z

Check rear axle toe. Rear axle toe on cannot be adjusted.

z

Check front axle toe with vehicle in initial position. Adjust as necessary.

NOTE:

While limited information is available, vehicle manufacturer does not support
alignment information using aftermarket alignment equipment. To properly
align vehicle, it is recommended to use VAG 1813 alignment computer. All
procedures in this article are written using VAG 1813 alignment computer.



2003 Volkswagen New Beetle GLS

1998-2004 WHEEL ALIGNMENT Specifications & Procedures - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:57:27 AM

Page 8

© 2004 Mitchell Repair Information Company, LLC.

z

If suspension adjustments were changed, and vehicle is equipped with Electronic Stability Program
(ESP), zeroing of steering angle sensor must be performed. For zero position of steering angle sensor
procedure, see FUNCTION 04 - BASIC SETTING in appropriate ANTI-LOCK BRAKES article in
BRAKES.

CENTERING STEERING WHEEL ON STEERING COLUMN

If the installation position of the rear axle (which affects the direction of travel of the vehicle) is not taken into
account, the steering wheel may not be centered. The steering wheel and steering column are marked. See Fig.
6
 .


Line on steering wheel


Punch mark on steering column

When removing steering wheel, a basic setting of the steering angle sensor must be performed. For zero
position of steering angle sensor procedure, see FUNCTION 04 - BASIC SETTING in appropriate ANTI-
LOCK BRAKES article in BRAKES.

CAUTION: Steering wheel to column positions must not be changed! Only then the

center position on the rack can be guaranteed.



2003 Volkswagen New Beetle GLS

1998-2004 WHEEL ALIGNMENT Specifications & Procedures - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:57:27 AM

Page 9

© 2004 Mitchell Repair Information Company, LLC.

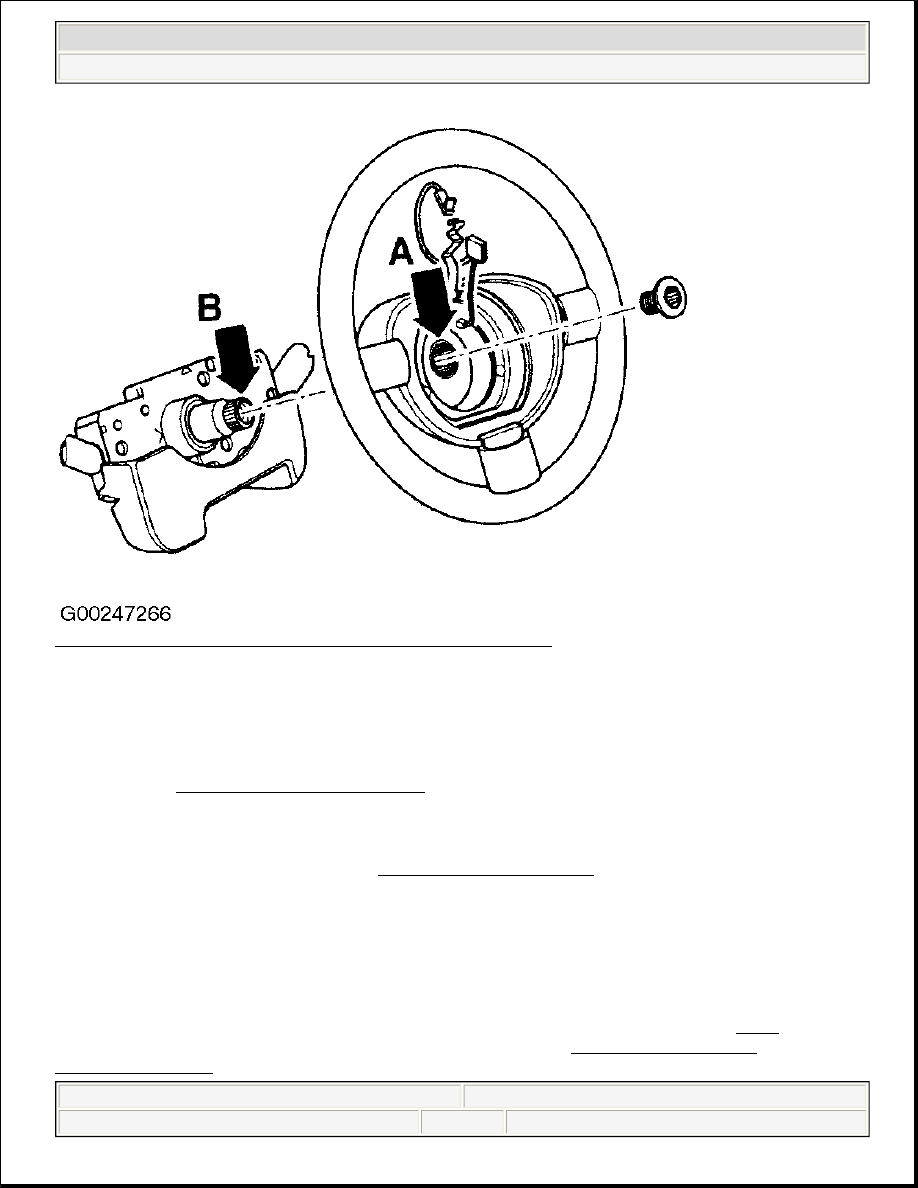

Fig. 6: Installed Position Of Steering Wheel On Steering Column
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CAMBER ADJUSTMENT

Front Axle

Before attempting any adjustments, perform PRELIMINARY CHECKS . Front wheel camber cannot be set
separately. Camber can be evened out uniformly, by loosening subframe bolts and shifting subframe position
until correct camber range is obtained.

Working under vehicle, remove sound-deadening pan. Loosen subframe bolts (1) and (2). See Fig. 7 . Press
subframe from side to side until camber is equalized on both sides. See WHEEL ALIGNMENT
SPECIFICATIONS
. Using NEW subframe bolts, torque bolts to 74 ft. lbs. (100 N.m) plus an additional 90°

NOTE:

If the values are outside the tolerance, the vehicle inclination to side must be
checked and if necessary compensated before performing adjustments. See
RIDE HEIGHT ADJUSTMENT .

CAUTION: Manufacturer recommends replacing front subframe bolts if they are

loosened or removed.



2003 Volkswagen New Beetle GLS

1998-2004 WHEEL ALIGNMENT Specifications & Procedures - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:57:27 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.

turn. After subframe bolts are torqued, recheck all wheel alignment settings including caster, readjusting as
necessary.

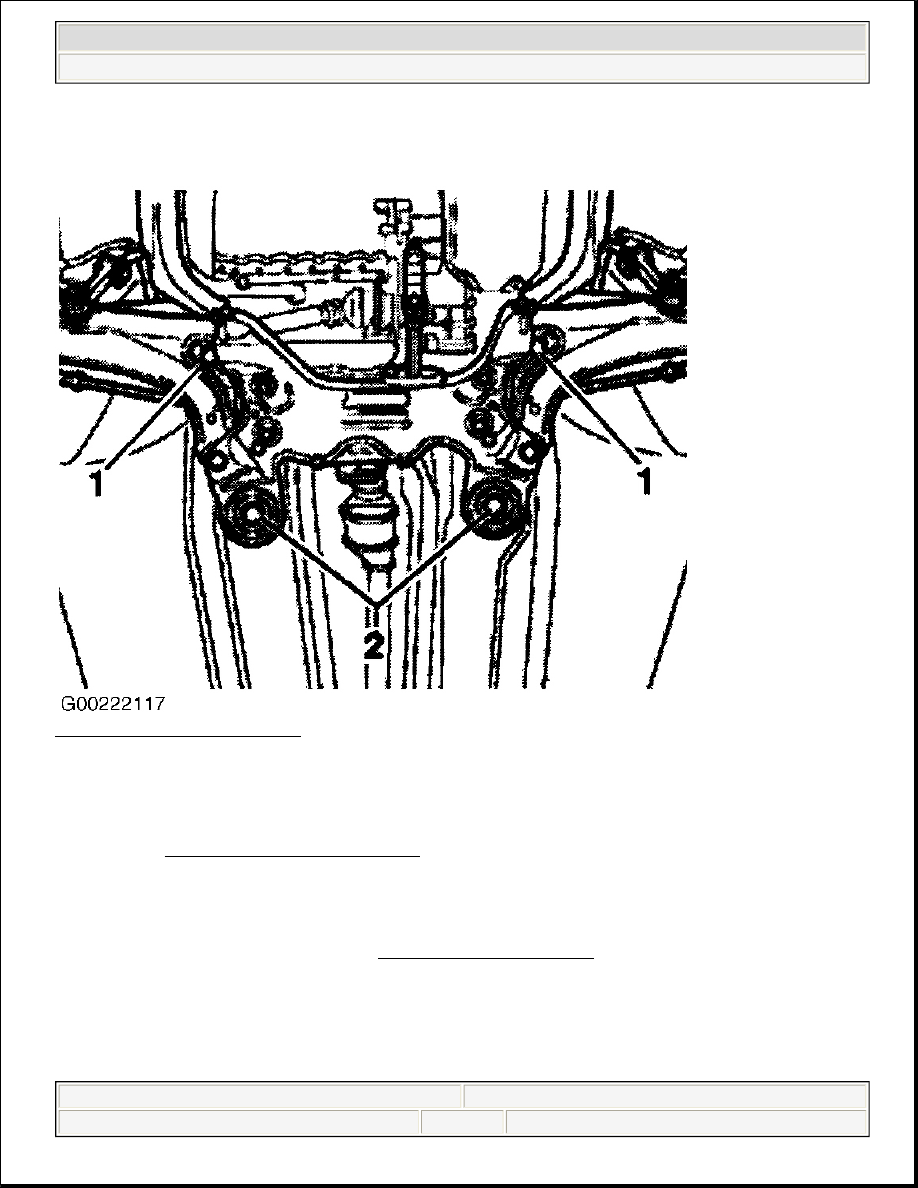

Fig. 7: Locating Subframe Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Rear Axle

Camber on rear axle cannot be adjusted. If a value lies outside the tolerances, check ride height and adjust if
necessary. See RIDE HEIGHT ADJUSTMENT . If the measured values lie outside allowed tolerances, axle
beam must be checked for damage and if necessary replaced.

CASTER ADJUSTMENT

Before attempting any adjustments, perform PRELIMINARY CHECKS . Front and rear caster are not
adjustable. If caster is not as specified, locate and replace damaged or worn suspension parts.

TOE ADJUSTMENT - REAR

NOTE:

If the values are outside the tolerance, the vehicle inclination to side must be
