Volkswagen New Beetle. Manual - part 2129





Before attempting any adjustments, perform PRELIMINARY CHECKS . Rear axle total toe is not adjustable.
Only by sliding the mounting brackets is it possible to balance the individual toe values. If measured values lie
outside the allowed tolerances, check axle beam for damage and replace, if necessary. To balance rear axle toe,
perform following:

1. Loosen all bolts on bearing bracket (1). See Fig. 8 . Slide bearing bracket laterally until toe is balanced on

both sides.

2. After balancing toe, using NEW bolts, tighten mounting bracket bolts to specification. See TORQUE

SPECIFICATIONS . After bolts are torqued, recheck all wheel alignment settings readjusting as
necessary.

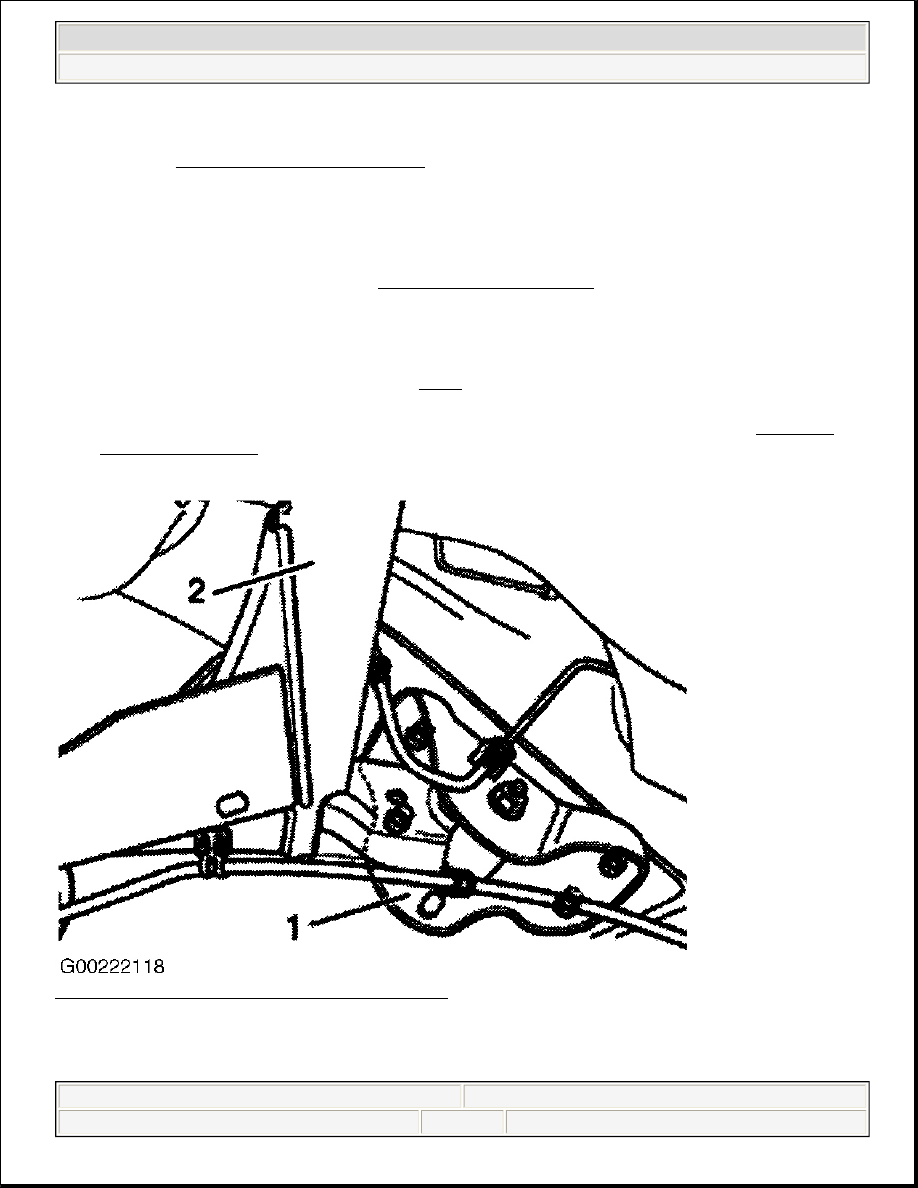

Fig. 8: Locating Rear Axle Bearing Mounting Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TOE ADJUSTMENT - FRONT

checked and if necessary compensated before performing adjustments. See
RIDE HEIGHT ADJUSTMENT .

CAUTION: Manufacturer recommends replacing rear axle beam mounting bracket

bolts if they are loosened are removed.



2003 Volkswagen New Beetle GLS

1998-2004 WHEEL ALIGNMENT Specifications & Procedures - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:57:27 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

Before attempting any adjustments, perform PRELIMINARY CHECKS . To adjust toe, loosen lock nut "1"
on tie rod. See Fig. 9 . Also, loosen rack boot outer clamp. Adjust toe by turning tie rod until proper setting is
reached. Do not allow boot to twist during adjustment, straighten twisted boots when toe in is set. Tighten tie
rod lock nuts and clamps. Recheck toe adjustment.

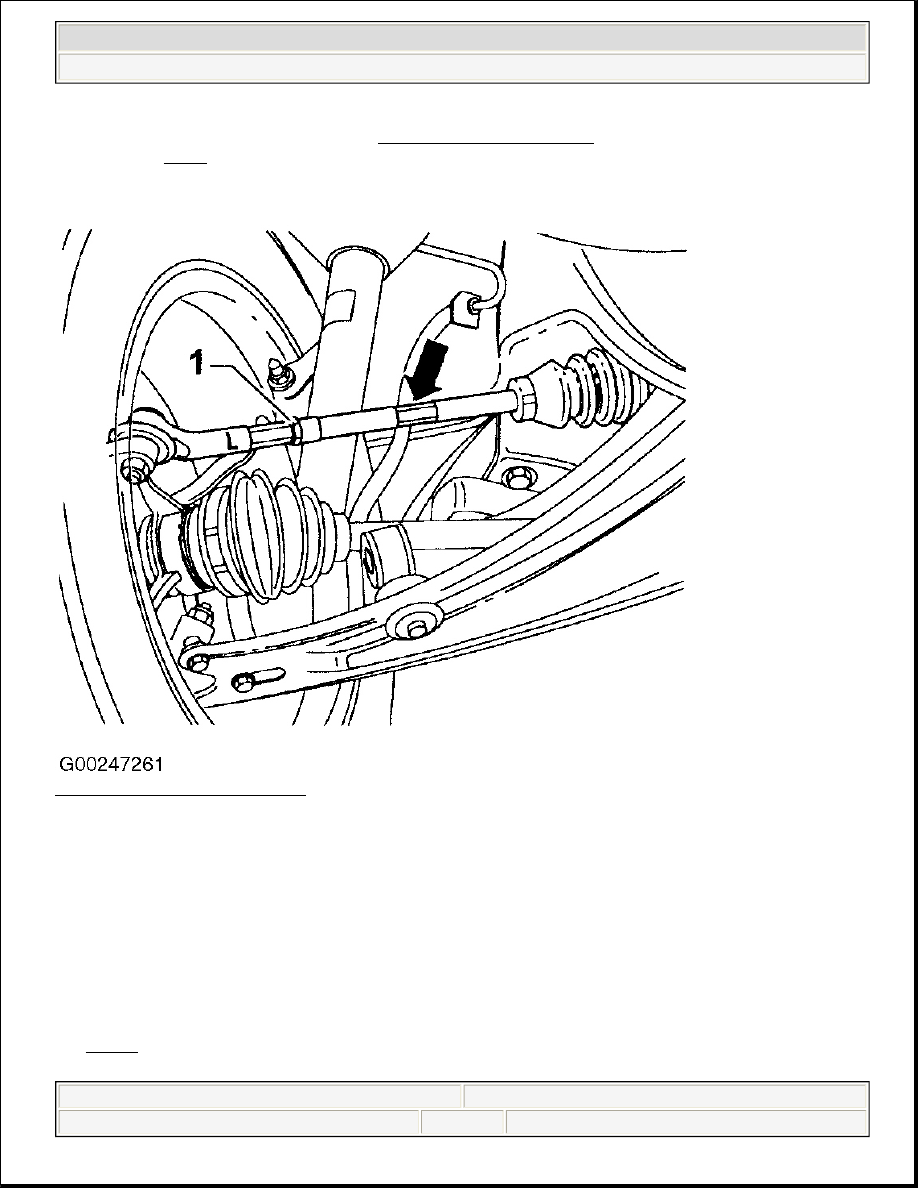

Fig. 9: Adjusting Front Axle Toe
Courtesy of AUDI OF AMERICA, INC.

LEFT & RIGHT WHEEL LOCK CHECKING

This test is only necessary if:

z

The steering locks differ by more than 2 degrees from one another from the steering center point

z

One side has contact between tire and a front axle component or body at full lock

z

Turning circles left/right differ.

The distance between front axle components and tires (arrow) must be the same at full lock (full turn left/right).
See Fig. 10 . If the distances are unequal, this can be corrected by turning left/right tie rod.



2003 Volkswagen New Beetle GLS

1998-2004 WHEEL ALIGNMENT Specifications & Procedures - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:57:27 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.

For example, if the right steering lock is smaller than the left:

z

Loosen toe rod lock nuts

z

Turn left tie rod counterclockwise (unscrew tie rod end)

z

Turn tie rod, right side equal amount to left but in opposite direction (turns tie rod end in)

z

Check total toe

Check total toe is still set to prescribed specifications after completing adjustments. Tighten tie rod lock nuts.
After tightening tie rod lock nut it is possible that the value will change slightly. If the set value does not deviate
by more than 2' from specification, the setting is OK.

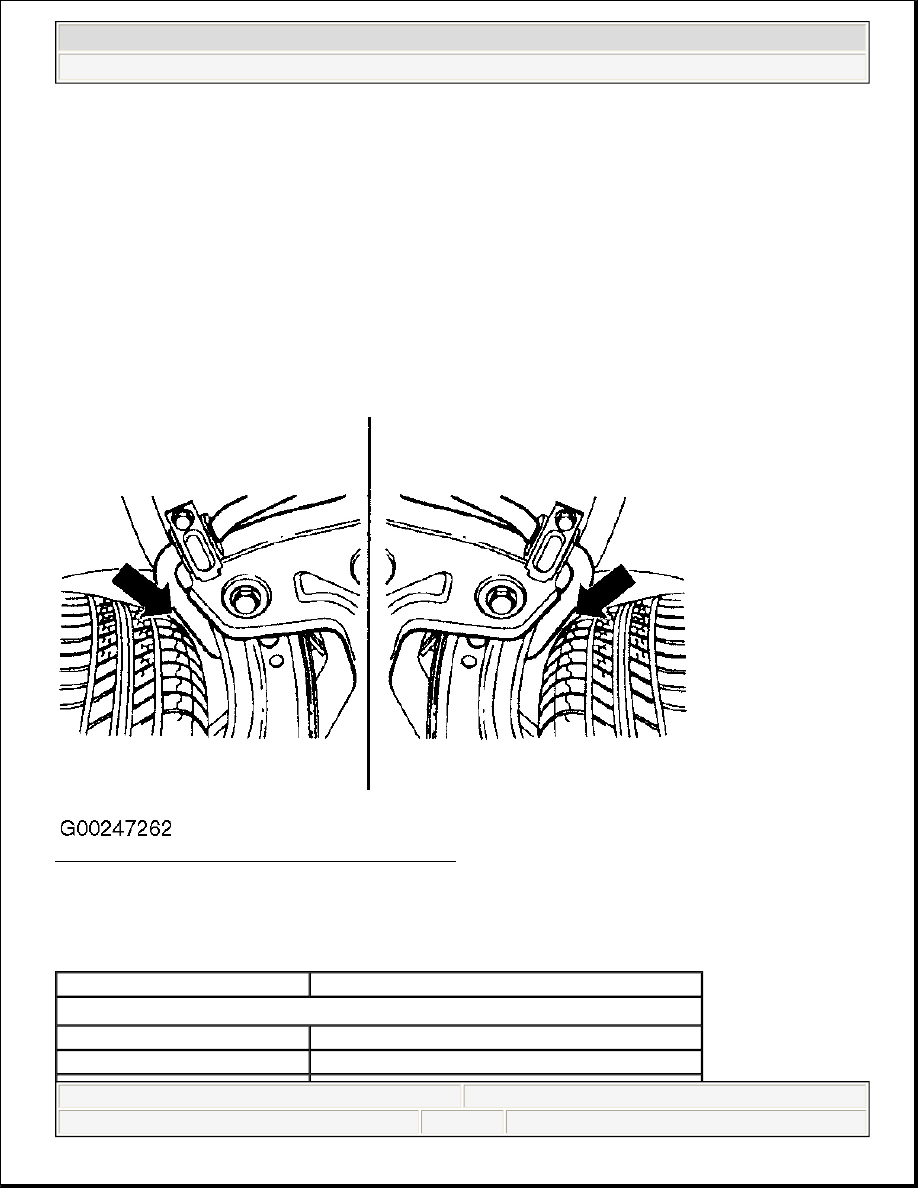

Fig. 10: Identifying Front Axle Components & Tires
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

NOTE:

After turning tie rods, make sure that the tie rod boots are not twisted.

Application

Ft. Lbs. (N.m)

Rear Axle Beam Mounting Bracket Bolts

(1)

Step 1

22 (30)

Step 2

Tighten additional 90 degrees



2003 Volkswagen New Beetle GLS

1998-2004 WHEEL ALIGNMENT Specifications & Procedures - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:57:27 AM

Page 14

© 2004 Mitchell Repair Information Company, LLC.

WHEEL ALIGNMENT SPECIFICATIONS

WHEEL ALIGNMENT SPECIFICATIONS (BASIC SUSPENSION - 1GJ)

WHEEL ALIGNMENT SPECIFICATIONS (SPORT SUSPENSIONS - 1GD &

(1)

 G87)



Steering Wheel Nut

37 (50)

Subframe Bolts

(1)

Front

Step 1

74 (100)

Step 2

Tighten additional 90 degrees

Tie Rod Lock Nut

37 (50)

Wheel Bolts

89 (120)

(1)

Manufacturer recommends replacing fasteners if loosened or removed.

NOTE:

To identify suspension variation, see MODEL IDENTIFICATION .

Application

Preferred

(1)

(1)

 Range

Beetle

Caster

(2)(3)

Front

7° 40'

7° 10' To 8° 10'

Rear

(4)

(4)

Camber (Wheels In Straight Ahead Position)

(3)

Front

-30'

-1° To 0°

Rear

-1° 27'

-1° 17' To -1° 37'

Toe

Front (Wheels Not Pressed)

0'

0' To 10'

Rear

(5)(6)

20'

10' To 30'

Toe Out On Turns At 20° (Steering Angle To Left & Right)

Front

-1° 30'

-1° 10' To -1° 50'

(1)

Measurement is in degrees(°) and minutes (').

(2)

Not adjustable.

(3)

Maximum allowable difference between sides 30'.

(4)

Specification not available.

(5)

Total toe at specified camber.

(6)

Maximum allowable difference from straight-ahead running position is 20'.

Application

Preferred

(2)

(2)

 Range



2003 Volkswagen New Beetle GLS

1998-2004 WHEEL ALIGNMENT Specifications & Procedures - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:57:27 AM

Page 15

© 2004 Mitchell Repair Information Company, LLC.
