(3)

22 (30)

Vibration Damper Bolt

(1)

(4)

15 (20)

Wheel Bearing Hub Nut

(1)

129 (175)

Wheel Lug Bolt

89 (120)

INCH Lbs. (N.m)

ABS Wheel Sensor Bolt

70 (8)

(1)

Always replace with NEW fasteners.

(2)

Final tighten bolt with rear axle at normal ride height.

(3)

Tighten to specification plus an additional 90° turn.

(4)

Tighten to specification plus an additional 45° turn.



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:45 AM

Page 33

© 2004 Mitchell Repair Information Company, LLC.

1998-2004 WHEEL ALIGNMENT

Specifications & Procedures - New Beetle

MODEL IDENTIFICATION

Various suspensions options are offered. Suspension variations are identified by the PR. numbers (they are also
known as factory codes). Running gear version installed in vehicle is indicated by the factory weight code on
the vehicle data plate. See Fig. 1 .

Vehicle data plate is in the service booklet. The location on the vehicle depends on model year.

z

Up to March, 2000 the vehicle data plate is in the spare tire wheel well.

z

From April, 2000 the vehicle data plate is next to the spare tire wheel well, near the left rear
wheelhousing.

The New Beetle is available with the following suspension options:

1GJ
Base suspension (2nd version)

1GD
Sport Suspension, comfort version

G87
Sport Suspension, from July, 2000



2003 Volkswagen New Beetle GLS

1998-2004 WHEEL ALIGNMENT Specifications & Procedures - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 WHEEL ALIGNMENT Specifications & Procedures - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:57:26 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:57:30 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

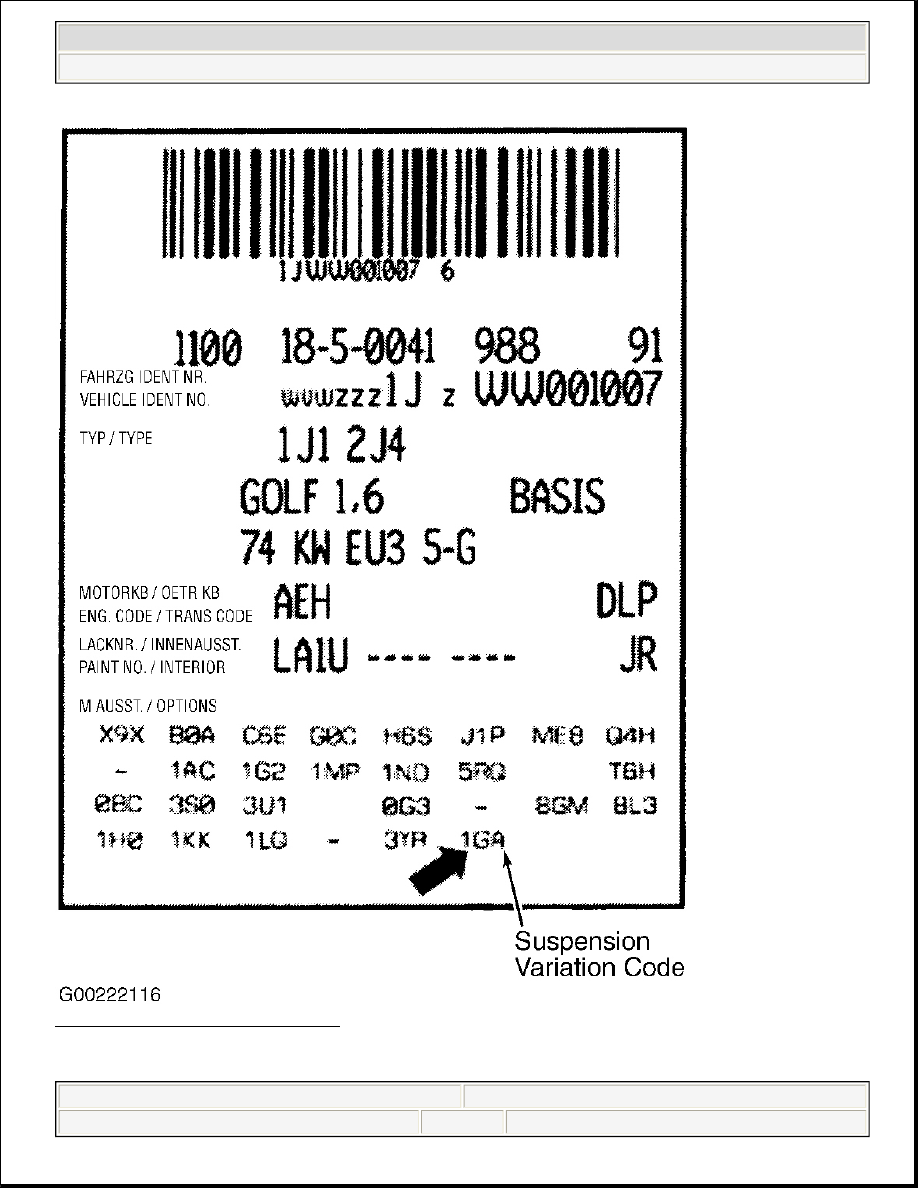

Fig. 1: Identifying Vehicle Data Plate
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 WHEEL ALIGNMENT Specifications & Procedures - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:57:26 AM

Page 2

© 2004 Mitchell Repair Information Company, LLC.

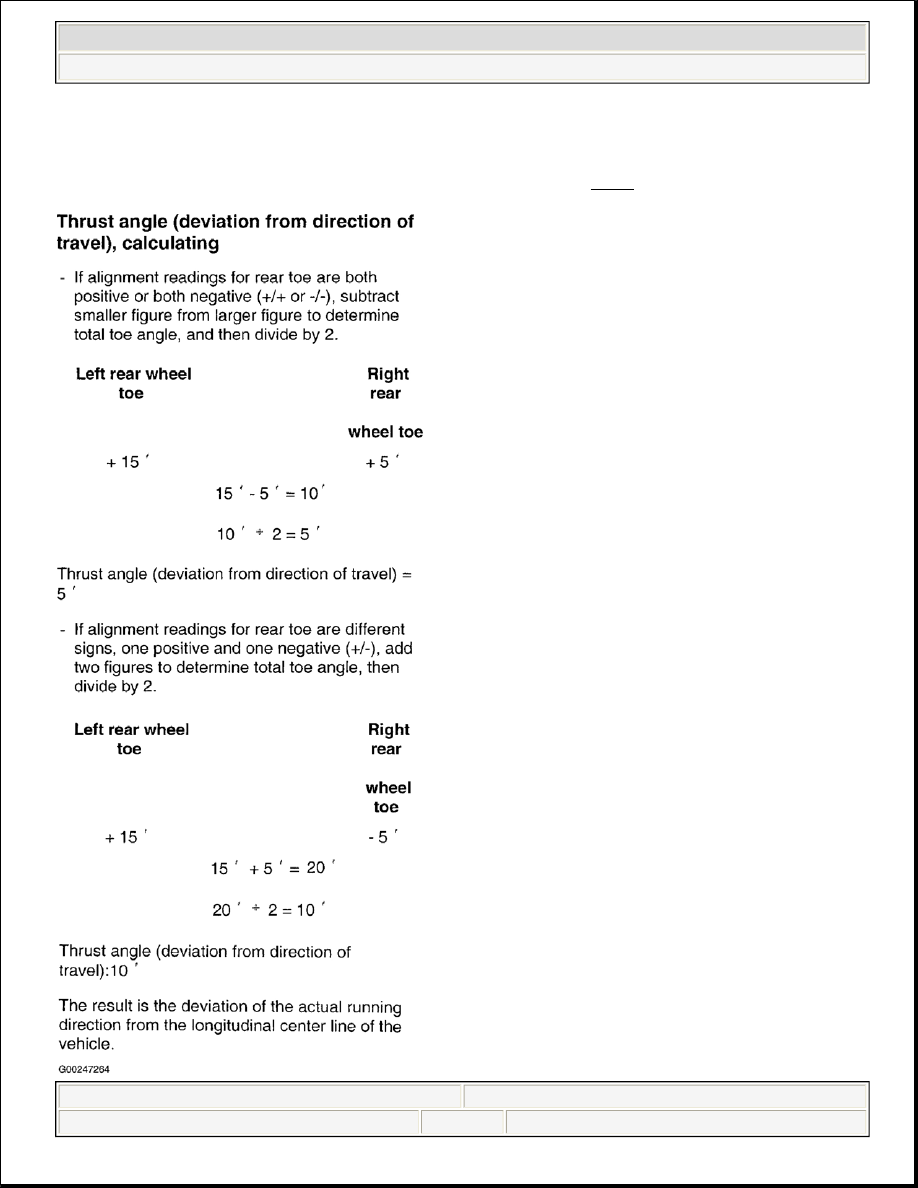

THRUST ANGLE

To calculate the actual thrust angle from the vehicle longitudinal axis, see Fig. 2 .



2003 Volkswagen New Beetle GLS

1998-2004 WHEEL ALIGNMENT Specifications & Procedures - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:57:26 AM

Page 3

© 2004 Mitchell Repair Information Company, LLC.
