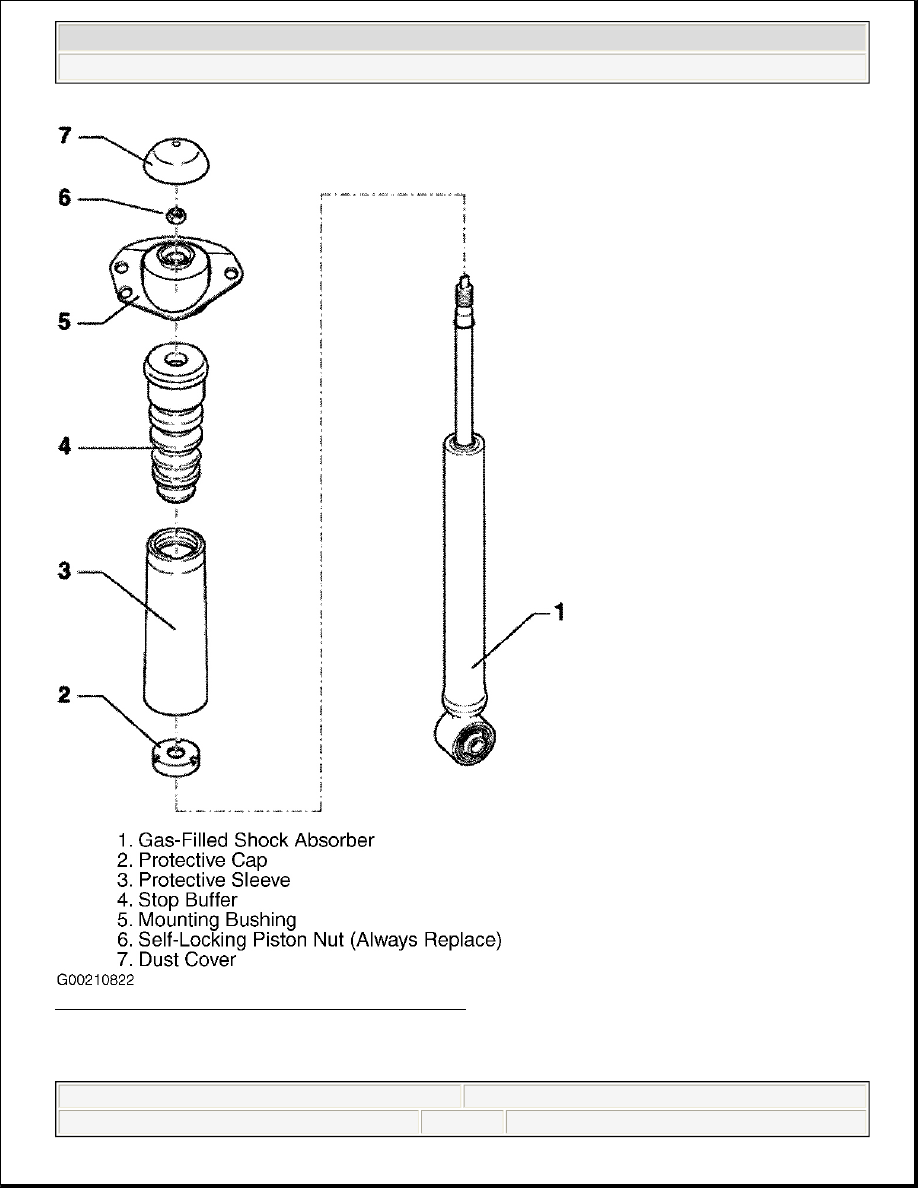

Fig. 22: Exploded View Of Shock Absorber Assembly
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Inspection



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:45 AM

Page 29

© 2004 Mitchell Repair Information Company, LLC.

With shock absorber disassembled, press shock absorber together by hand. When doing this the piston rod must
move over its complete length smoothly and with even force. When the shock absorber has sufficient gas
pressure the piston rod returns to its original starting position. If the piston rod does not return to its starting
position and there is no loss of oil then the shock absorber is still OK.

WHEEL BEARING

Removal

1. Raise and support vehicle. Remove wheel. Remove dust cap. Remove brake caliper, and support aside.

Remove brake disc.

2. Using a wheel bearing/hub puller i.e. (Kukko Puller 20/2). See Fig. 23 . Pull bearing inner race off stub

axle using Leg Clamp Puller (Kukko 204-2).



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:45 AM

Page 30

© 2004 Mitchell Repair Information Company, LLC.

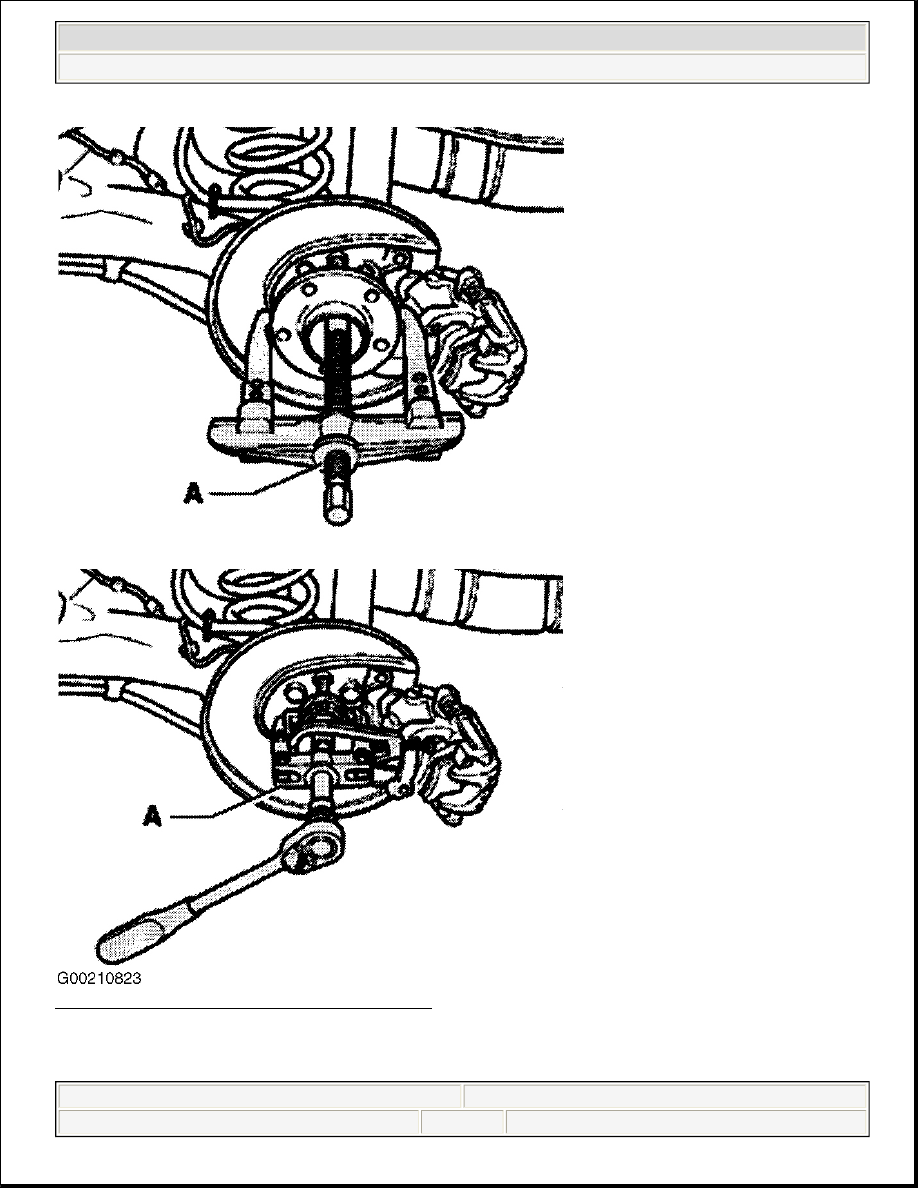

Fig. 23: Removing Wheel Bearing/Hub Assembly
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installation



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:45 AM

Page 31

© 2004 Mitchell Repair Information Company, LLC.

1. Install wheel bearing/hub unit as far as possible onto stub axle. Attach Assembler (3420) and pull wheel

bearing/hub unit to stop. Remove installer.

2. Install NEW 12-point nut and tighten to specification. See TORQUE SPECIFICATIONS . To complete

installation, reverse remaining removal procedure.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

NOTE:

A perfect seal is only achieved using a new dust cap. Only then is an optimum
function and long service life guaranteed.

WARNING:

Do not re-use any fasteners that are worn or deformed in normal use.

WARNING:

Some fasteners are designed to be used only once, and are unreliable
and may fail if used a second time. This includes, but is not limited to
nuts, bolts, washers, circlips and cotter pins. Always follow the
recommendations. Replace these fasteners with new parts where
indicated, and any other time it is deemed necessary by inspection.

NOTE:

Bonded rubber mountings have a limited turning range. The axle parts with
bonded rubber mountings must be positioned in the driving position before
being tightened (unladened vehicle state). The bonded rubber bushing will be
stressed, resulting in a reduced service life.

Application

Ft. Lbs. (N.m)

Brake Backing Plate Bolt (Splash Shield)

44 (60)

Brake Caliper-Carrier Bolt

26 (35)

Brake Caliper Carrier-To-Axle Bolt

48 (65)

Coil Spring Retainer-To-Piston Rod Nut

11 (15)

Shock Absorber Piston Rod Nut

(1)

18 (25)

Shock Absorber-To-Axle Beam Bolt

(2)

(3)

30 (40)

Shock Absorber-To-Body Bolts

(1)

Except Beetle

55 (75)

Beetle

(3)

22 (30)

Stub Axle-To-Control Arm Bolt

(1)

44 (60)

Rear Axle-To-Mounting Bracket Bolt

(1)

(2)

60 (80)

Rear Axle Mounting Pad-To-Body Bolt

(1)

Except Beetle

55 (75)

Beetle
