Volkswagen New Beetle. Manual - part 2124





z

3 - VAS6180/4 long

z

4 - VAS6180/5

z

5 - VAS6180/8

z

6 - V.A.G1383A with V.A.G1359/2

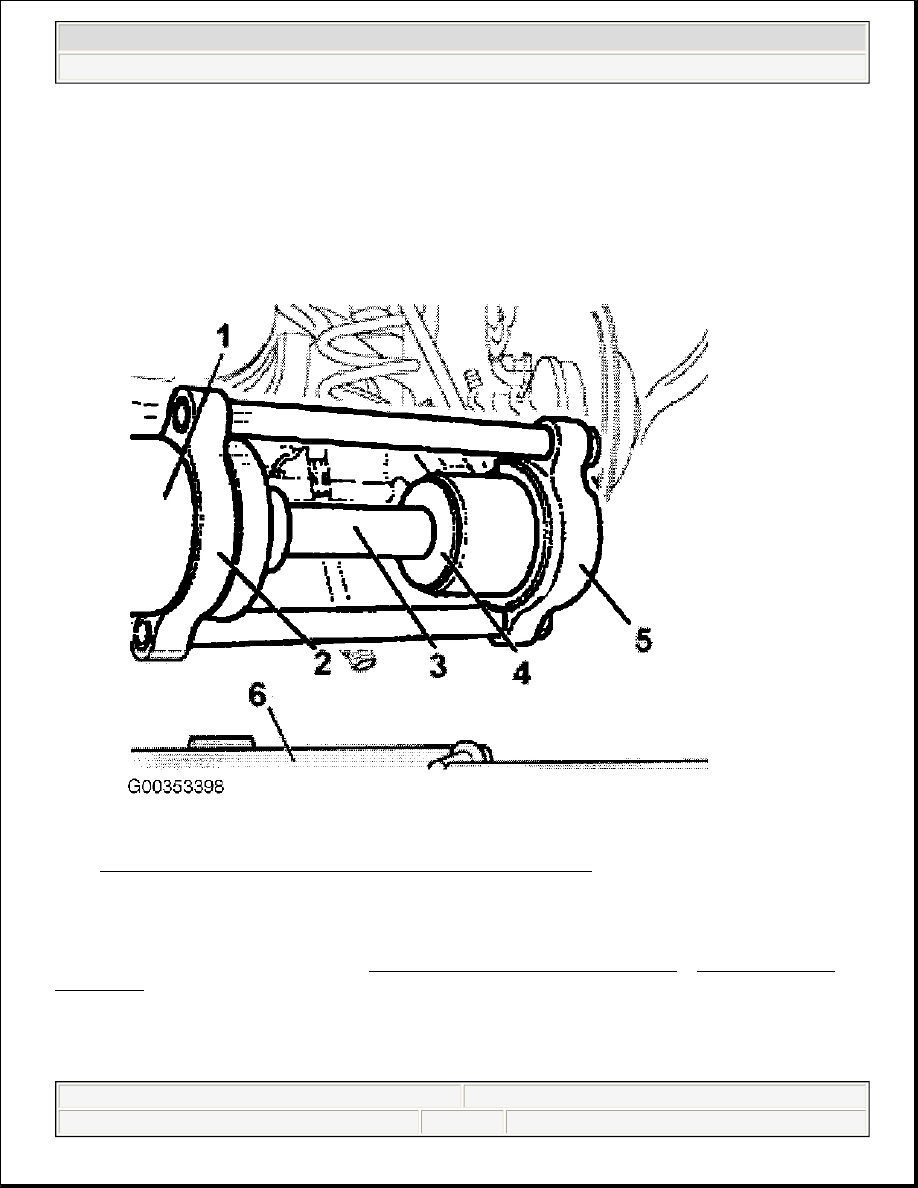

Fig. 19: Pressing Out Hydraulic Bonded Rubber Bushing Sleeve
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installation

To install new non-hydraulic bushings, see INSTALLATION (EXCEPT BEETLE) or INSTALLATION
(BEETLE)
under BONDED RUBBER BUSHING (NON-HYDRAULIC).

COIL SPRING

NOTE:

Coil springs can be removed by loosening rear shock absorbers and lowering



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:45 AM

Page 25

© 2004 Mitchell Repair Information Company, LLC.

Removal & Installation

Raise and support vehicle. Remove wheels. Install spring compressor to coil spring. See Fig. 20 . Compress
spring until it can be removed from vehicle. To install, reverse removal procedure. Ensure zinc spacer bushing
is not damaged. Replace as necessary. Install spring together with spring seat. End of spring must rest against
stop on spring seat when installed. See Fig. 21 .

Fig. 20: Compressing Coil Spring
Courtesy of VOLKSWAGEN UNITED STATES, INC.

axle beam, or using spring compressor.



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:45 AM

Page 26

© 2004 Mitchell Repair Information Company, LLC.

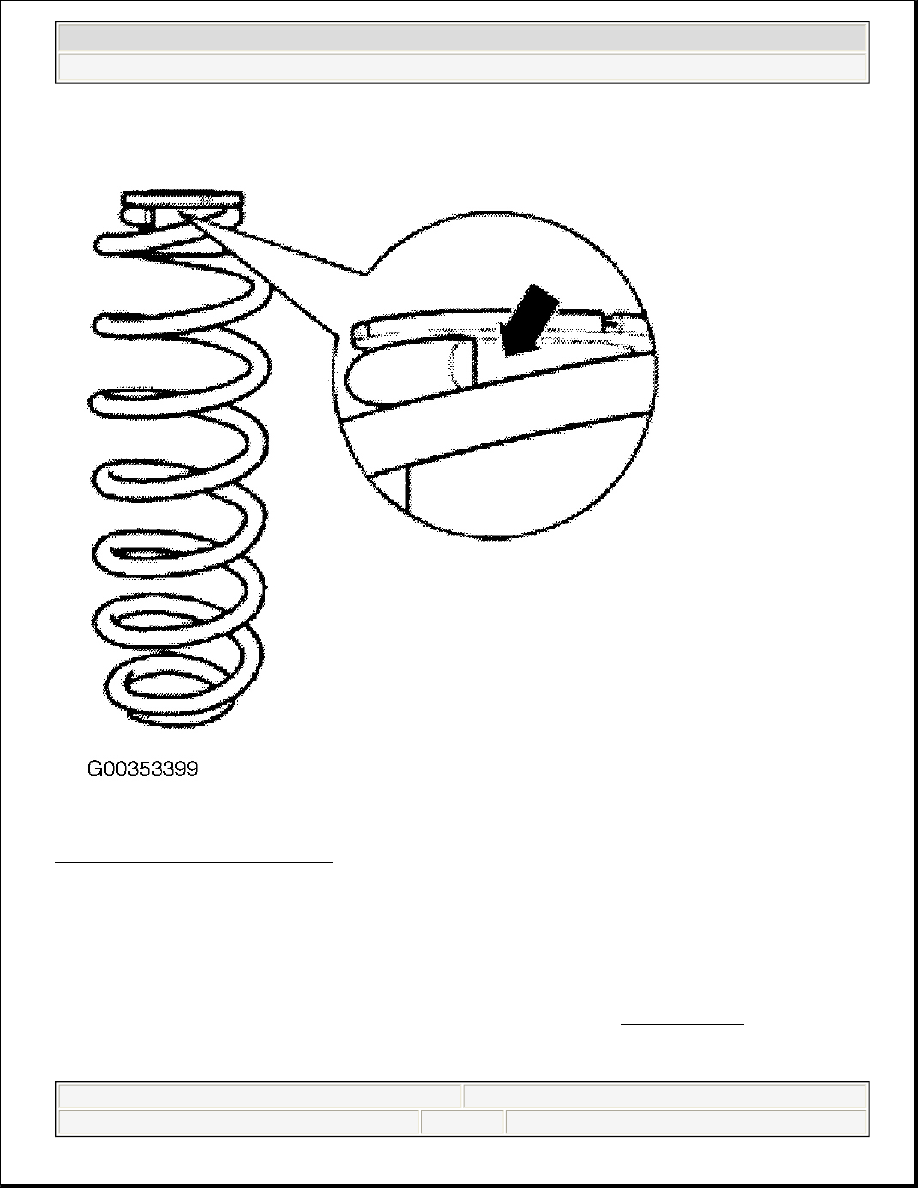

Fig. 21: Locating Upper Spring Seat
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SHOCK ABSORBER

Removal & Installation

1. Raise vehicle so that rear wheels still contact the ground, but upper shock mount bolts are accessible.

Remove upper shock absorber mounting bolts. Remove coil spring. See COIL SPRING .

2. Remove lower shock absorber mounting bolts. Remove shock absorber.

3. Install shock absorber and coil springs, leave upper and lower shock absorber mount bolts finger tight.



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:45 AM

Page 27

© 2004 Mitchell Repair Information Company, LLC.

Install wheels. Lower vehicle to ground. Preload rear of vehicle with the approximate weight of one
person. Tighten shock absorber mounting bolts to specification. See TORQUE SPECIFICATIONS .

Disassembly & Assembly

Use illustration to disassemble and assemble shock absorber. See Fig. 22



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:45 AM

Page 28

© 2004 Mitchell Repair Information Company, LLC.
