Volkswagen New Beetle. Manual - part 2122





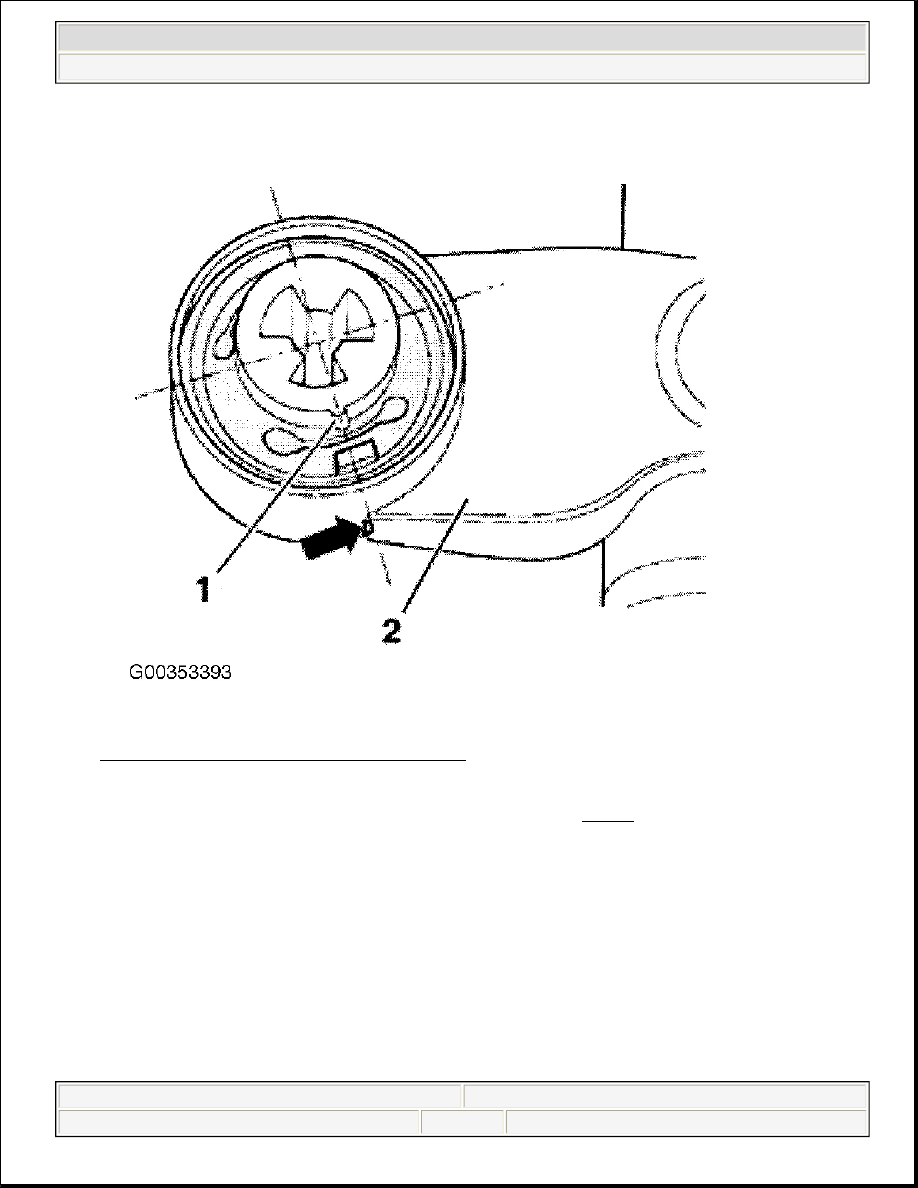

Fig. 14: Aligning Rear Bonded Rubber Bushing
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2. Install bonded rubber bushing using special tools on rear axle. See Fig. 15 .

z

1 - VAS6178

z

2 - VAS6180/1

z

3 - VAS6180/6

z

4 - VAS6180/7

z

5 - Bonded rubber bushing

z

6 - VAS6180/8

z

7 - V.A.G1383A with V.A.G1359/2

NOTE:

The note "Top" on the device VAS6180/8 points to the control arm.



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:45 AM

Page 17

© 2004 Mitchell Repair Information Company, LLC.

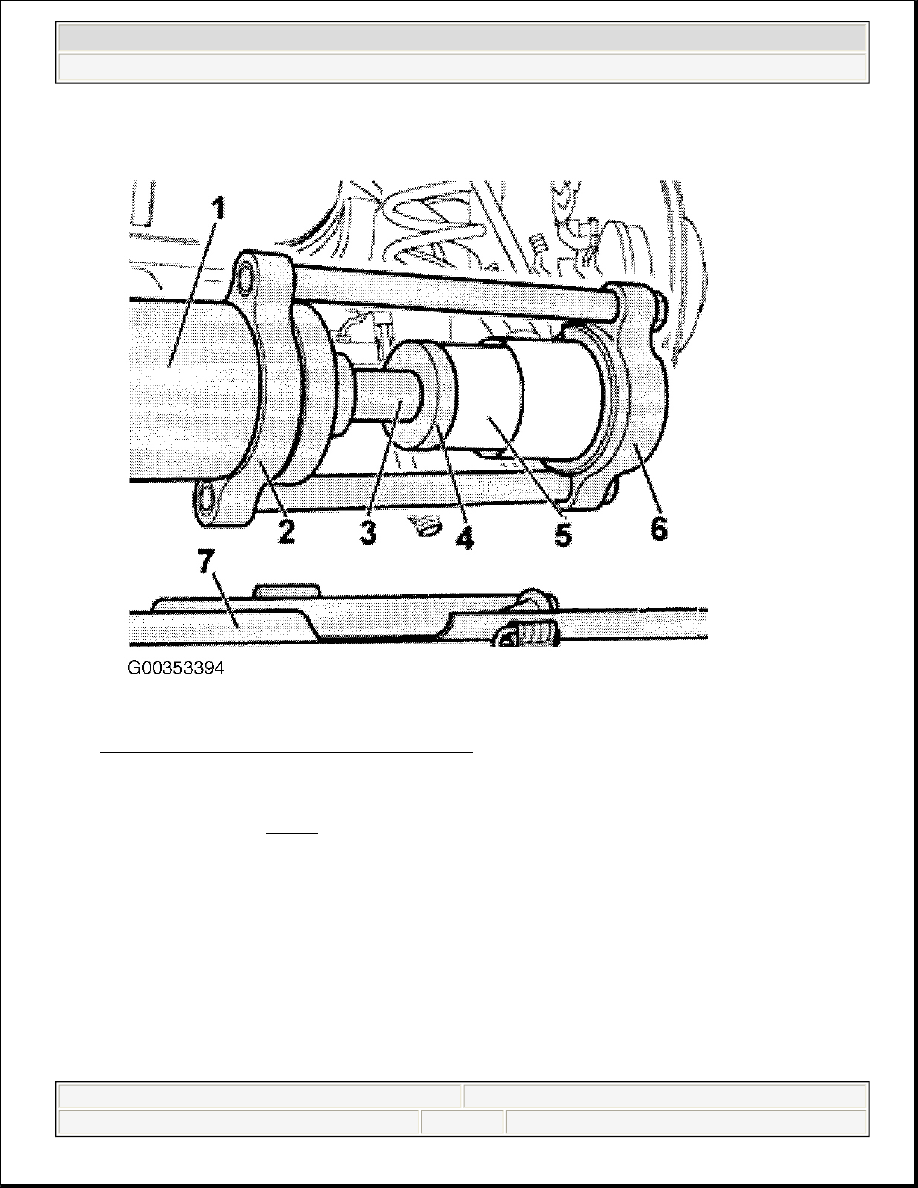

Fig. 15: Installing Rear Bonded Rubber Bushing
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. BEFORE installing bonded rubber bushing, make sure that the mark (arrow A) align with the edge (arrow

B) of trailing arm. See Fig. 16 .



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:45 AM

Page 18

© 2004 Mitchell Repair Information Company, LLC.

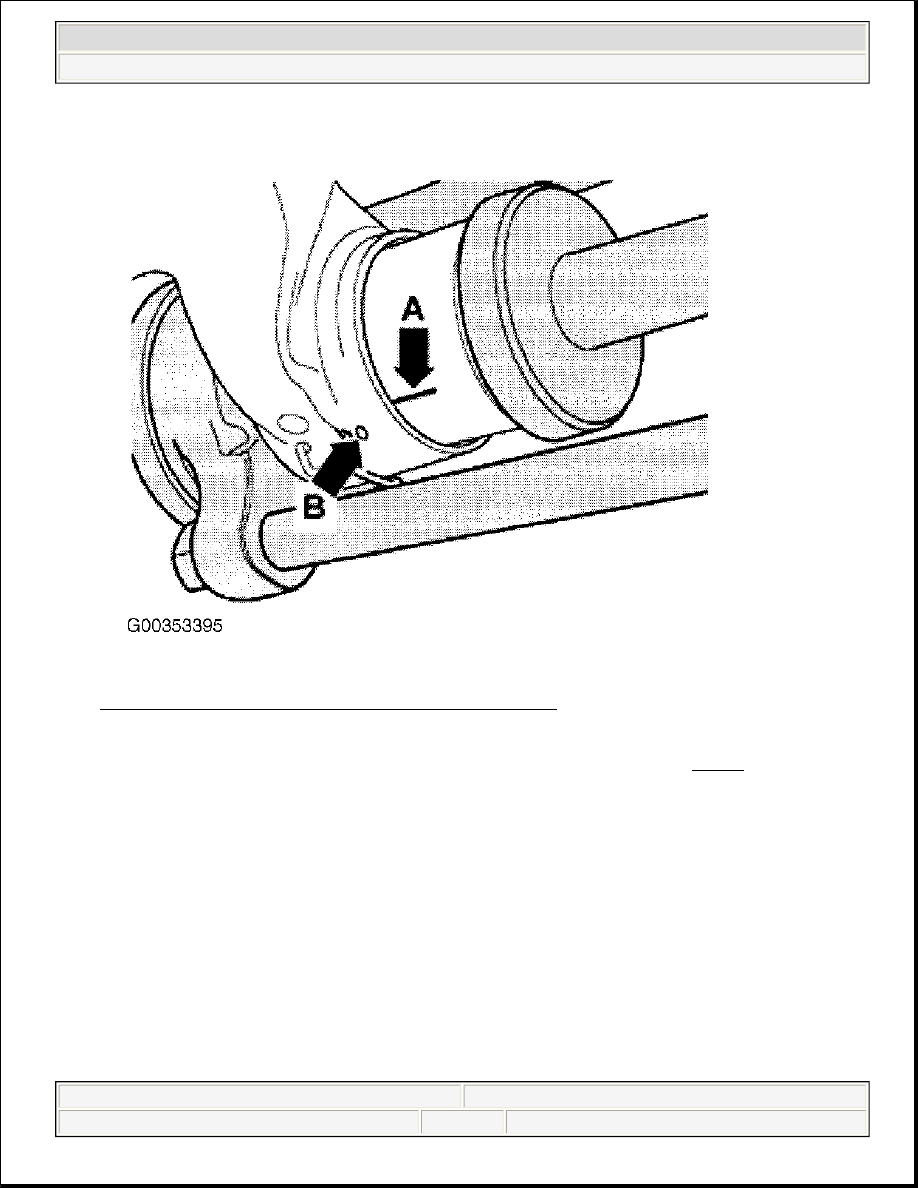

Fig. 16: Aligning Bonded Rubber Bushing To Trailing Arm
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. Press in bonded rubber bushing until a gap of 0.008 in. (0.2 mm) is available. See Fig. 17 . Measure this

gap (arrow) with a measure gauge (A). Check position of bonded rubber bushing after installing.



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:45 AM

Page 19

© 2004 Mitchell Repair Information Company, LLC.

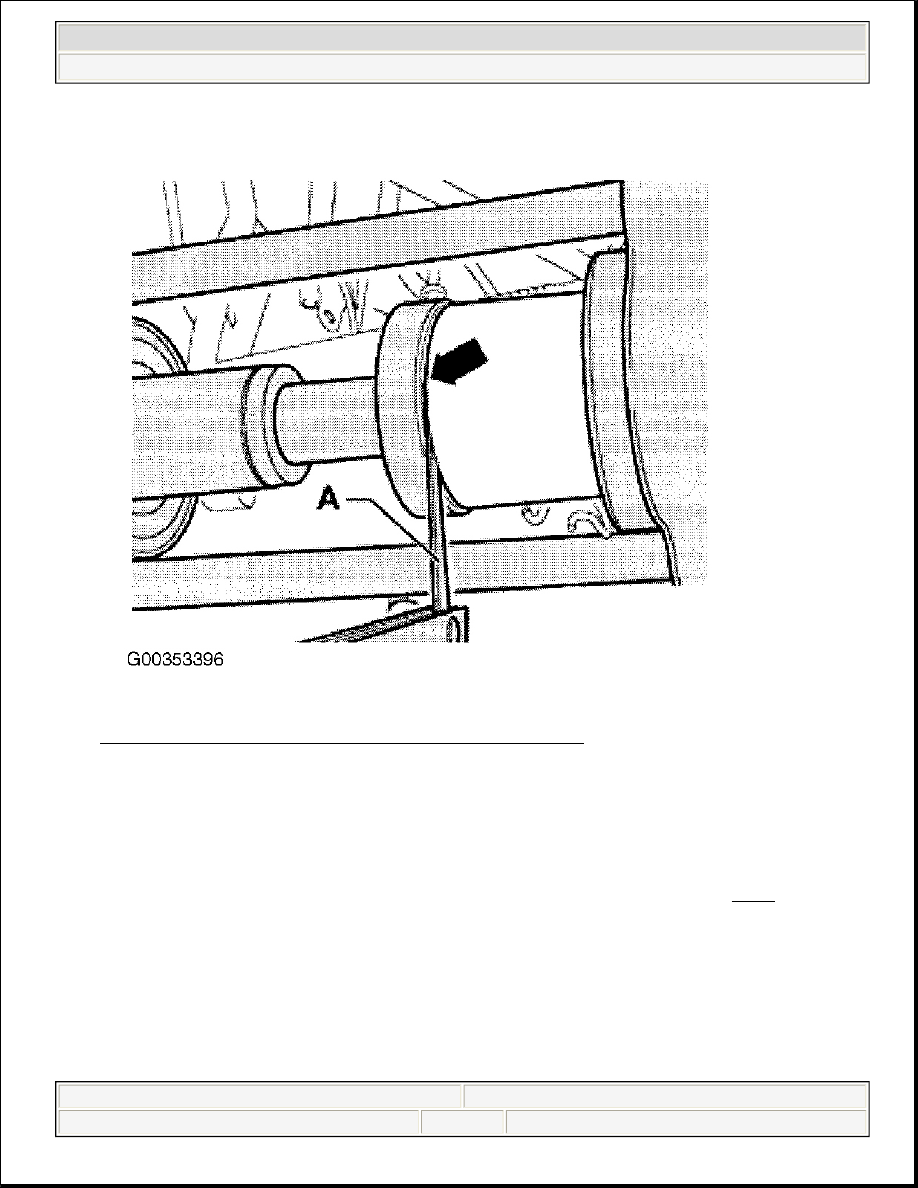

Fig. 17: Checking Bonded Rubber Bushing Installed Clearance
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5.

Tighten vehicle to the lifting platform. Remove the plugs from the trailing arm (3). See Fig. 4 . Tighten
the tensioning strap (1). Support arm of lifting platform (2). Tightening strap T10038. The vehicle must
be tightened with the tensioning straps on left and right side.

6. Grease bonded rubber bushing kidney shaped cavity with assembly paste G052150A2 before installing

rear axle. If the rear axle is not "lubricated" when installed, it will be noisy while driving.

7.

CAUTION: If the vehicle is not secured, there is a risk that it may slip off the

hoist.

CAUTION: Do not raise or lower vehicle while engine and transmission jack is

under vehicle. Do not leave engine and transmission lift under the



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:45 AM

Page 20

© 2004 Mitchell Repair Information Company, LLC.
