Volkswagen New Beetle. Manual - part 2135





5. Replace seal.

6. Installation is performed in the reverse order.

7. Tighten bolt to 10 Nm (7 ft lb).

Transmission Range (TR) Selector Lever Display -Y5-

Location: in instrument cluster

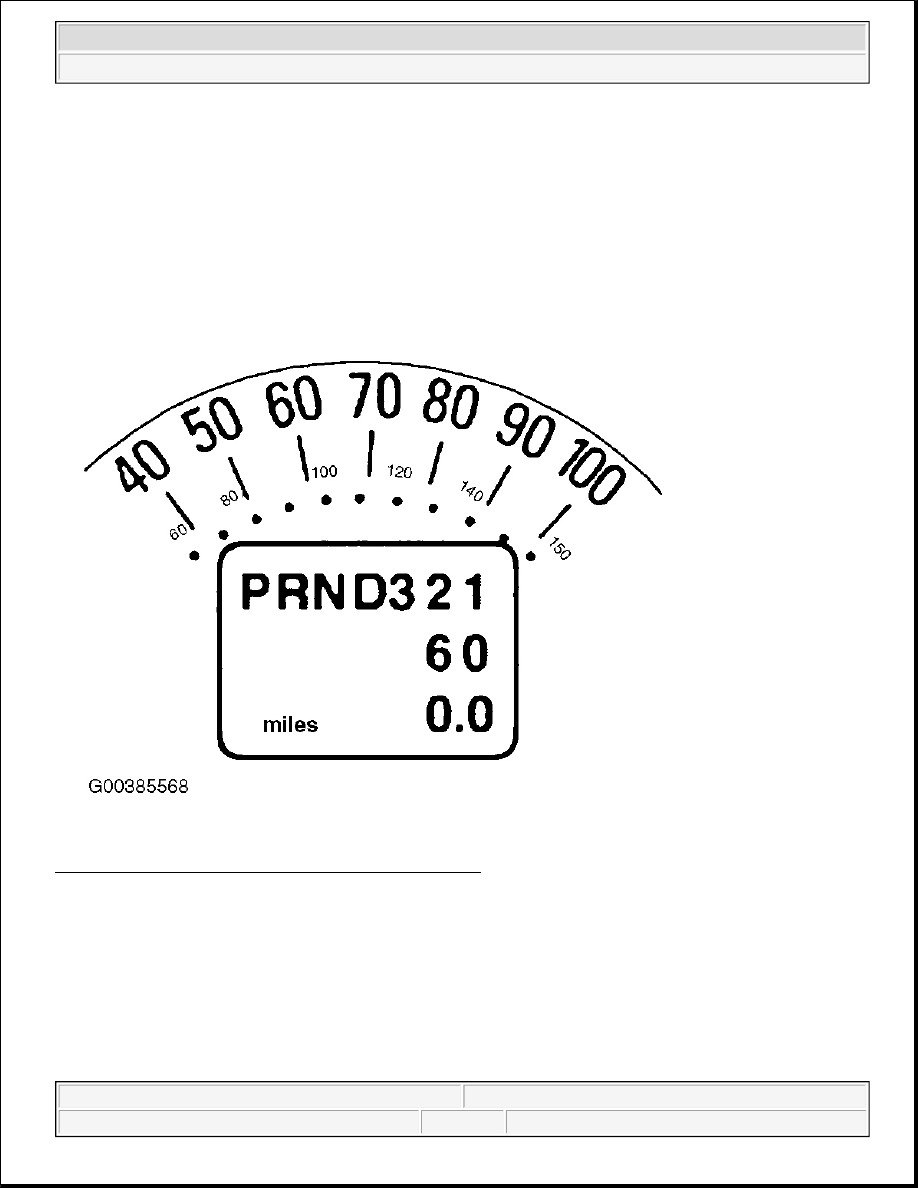

Fig. 16: Identifying Transmission Range Selector Lever
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation

For selector lever display removal and installation, see appropriate GAUGES & INSTRUMENT PANEL article
in ACCESSORIES & EQUIPMENT.

Throttle Position (TP) Sensor -G69-

Locations:



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



z

On gasoline engines the TP sensor is a component part of the Throttle Valve Control Module -J338-
located on the throttle valve housing (engine).

z

On Diesel engines the "throttle valve signal" is generated in the Throttle Position (TP) Sensor -G79-
located near the accelerator pedal.

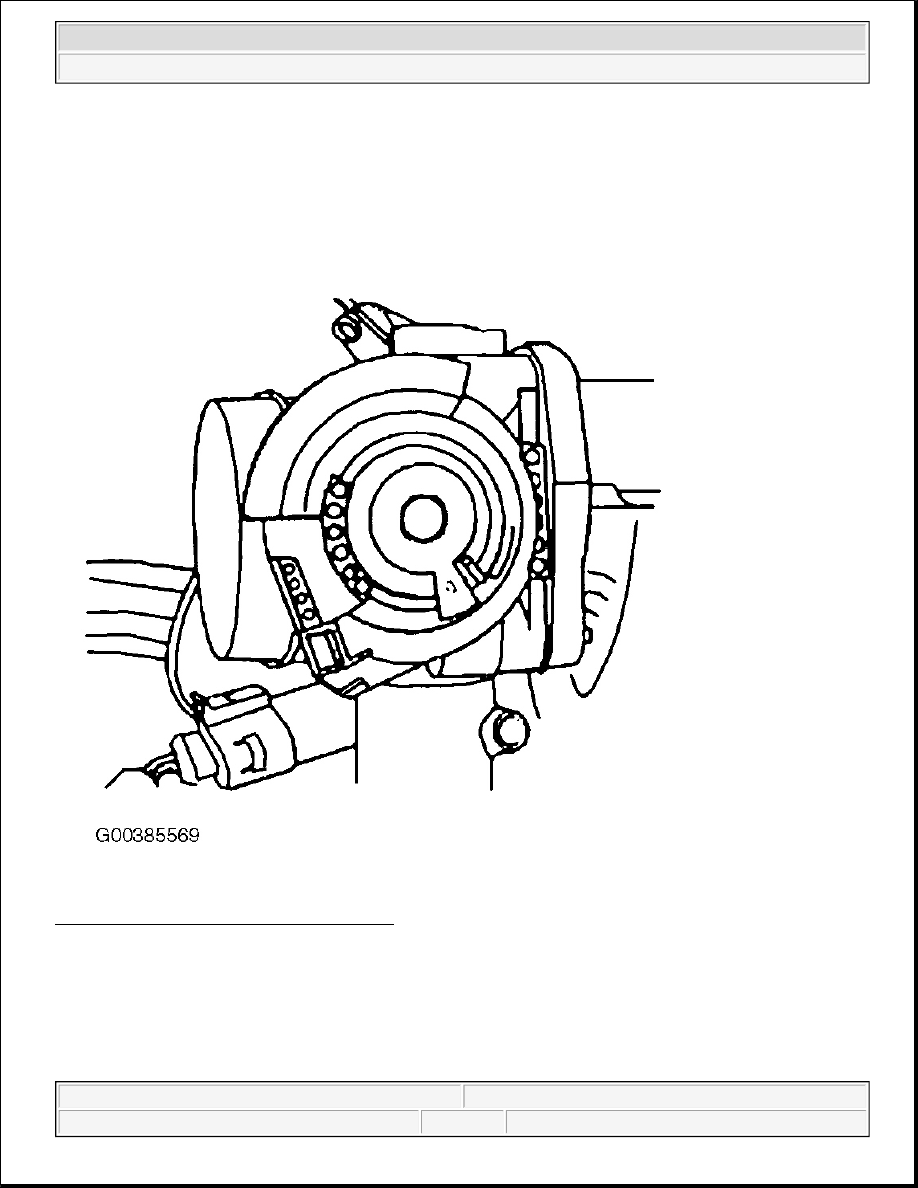

Fig. 17: Identifying Throttle Position Sensor
Courtesy of VOLKSWAGEN UNITED STATES, INC.

For On Board Diagnostic (OBD): The TP sensor is an engine control module sensor. However, the transmission
control module also requires the TP signal. On vehicles with CAN-Bus, the automatic transmission control

NOTE:

Always check the engine OBD when the transmission OBD indicates that the TP
sensor is faulty.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



module receives the TP signal from the CAN-Bus.

The On Board Diagnostic (OBD) of the automatic transmission only checks the signal, not the sensor. On
vehicles without CAN-Bus, the wire for the signal is also checked. The signal can only be read in the Measured
Value Block.

Kickdown Switch -F8-

Locations: Integrated into accelerator cable and is located on bulkhead in engine compartment. On vehicles
which do not have an accelerator cable the kickdown signal is generated in the Throttle Position (TP) Sensor -
G79- located near the accelerator pedal.

For On Board Diagnostic (OBD): On vehicles without an accelerator cable, the kickdown switch signal is
transmitted from the engine control module to the transmission control module.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M

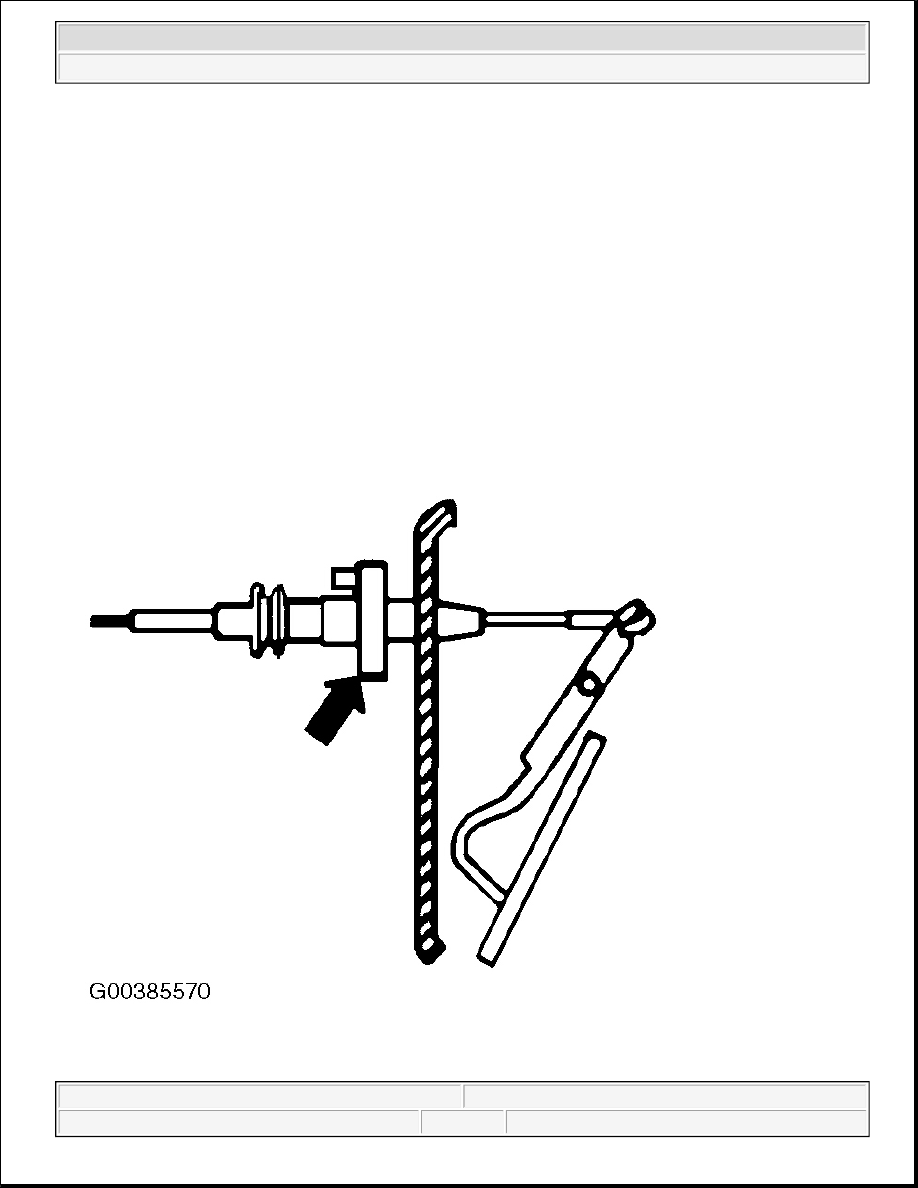

Fig. 18: Identifying Kickdown Switch
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing & Installing (2.0L, Engine Code AEG)

The accelerator cable must be removed to be able to remove and install the kick down switch. Readjust the
cable after installing the switch.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M
