Volkswagen New Beetle. Manual - part 2019

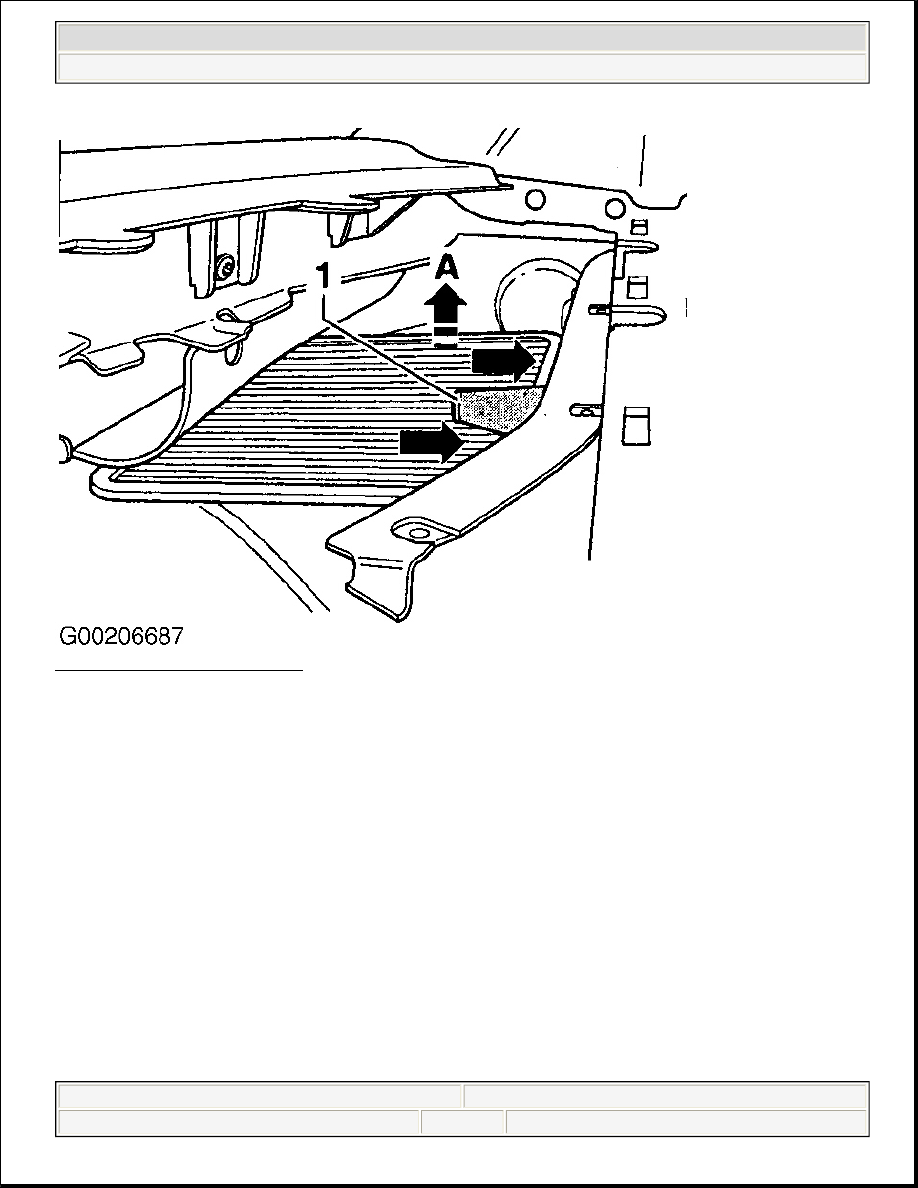

Fig. 4: Removing Filter Housing
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CABIN AIR FILTERS Dust & Pollen Filter - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:52:50 AM

Page 4

© 2004 Mitchell Repair Information Company, LLC.

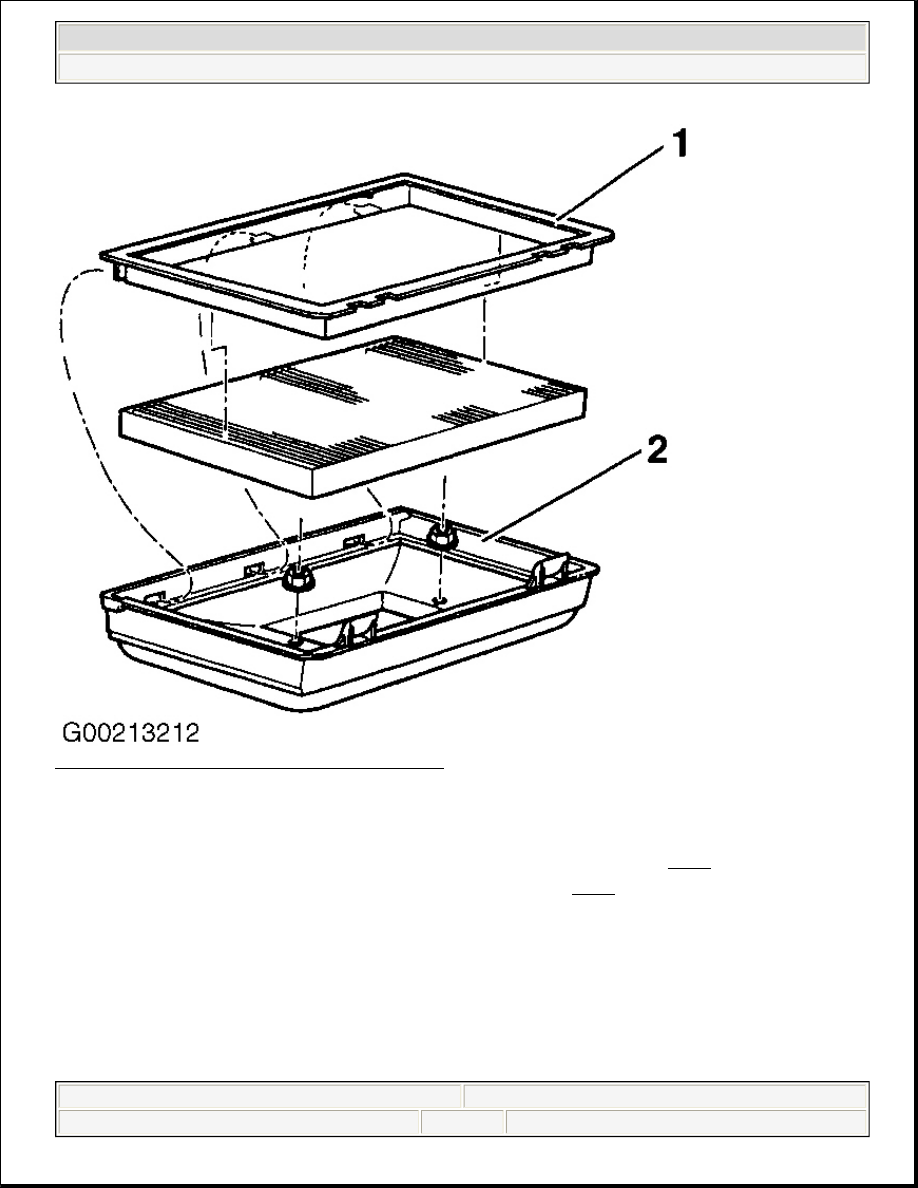

Fig. 5: Removing & Installing Dust & Pollen Filter
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installation

1. Guide frame (1) into first slot on left and right sides of new filter element. See Fig. 5 .

2. Press frame with filter into housing (2) and engage retainers. See Fig. 5



2003 Volkswagen New Beetle GLS

1998-2004 CABIN AIR FILTERS Dust & Pollen Filter - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:52:50 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.

1998-2004 HVAC

Heating, Ventilation - New Beetle

HEATING AND VENTILATION SYSTEM

HEATING AND VENTILATION SYSTEM, ASSEMBLY

1. Heating and ventilation controls

z

With fresh air blower switch -E9- and switch for fresh air blower and recirculating air -E184-

z

Removing and installing, See Heating and ventilation controls, removing and installing

z

Assembly, See Heating and ventilation controls, assembly

z

Installing and adjusting cables, See Heating and ventilation cables, installing and adjusting

2. Dust and pollen filter

z

Removing and installing, See Dust and pollen filter, removing and installing

3. Side window air outlet

z

Removing, See Air outlets, removing

4. Side air outlets

z

Removing, See Air outlets, removing

5. Center air outlet console

z

Removing, See Center air outlet console, removing

6. Instrument panel cross member

z

Loosening and tightening, See Fig. 3

7. Servo motor for fresh/recirculating air door-V154-

z

Removing and installing, See Servo motor for fresh/recirculating air door -V154-, removing
and installing


8. Fresh air blower -V2-

z

Removing, See Fig. 2

9. Fresh air blower series resistance with fuse -N24-

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch the ignition off.

z

Disconnect the battery Ground (GND) strap.

z

After reconnecting battery, re-code and check operation of anti-theft
radio. Also check operation of clock and power windows according
to service information and/or Owner's Manual.

NOTE:

The following list refers to items in Fig. 1 .



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Heating, Ventilation - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 HVAC Heating, Ventilation - New Beetle



z

Removing Fresh air blower -V2-, See Fig. 2

10. Intermediate duct

11. Cables

z

Installing and adjusting, See Heating and ventilation cables, installing and adjusting

12. Rear footwell air outlet duct

13. Gasket

14. Connecting duct

z

With front footwell air outlet

z

Removing, See Connecting duct, removing

15. Heating and ventilation unit

z

Removing:

„

Remove instrument panel

See INSTRUMENT PANEL, REMOVING AND INSTALLING .

„

Carefully pinch off both coolant hoses to heater core and disconnect hoses.

„

Loosen instrument panel cross member, See Fig. 3

„

Remove unit

z

Disassembly and assembly, See Heating and ventilation unit, assembly

16. Heater core

z

Always use new coolant after replacement

z

Replacing, See Heating and ventilation unit, assembly

17. Heater core/bulkhead seal

z

Note installation position, See Fig. 23

18. Defroster duct

z

Replacing:

„

Remove instrument panel

See INSTRUMENT PANEL, REMOVING AND INSTALLING .

„

Loosen instrument panel cross member, See Fig. 3

19. Instrument panel

z

Removing and installing

See INSTRUMENT PANEL, REMOVING AND INSTALLING .

20. Center air outlet duct

21. Defroster air outlet panel

z

Removing, See Defroster air outlet panel, removing



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Heating, Ventilation - New Beetle
