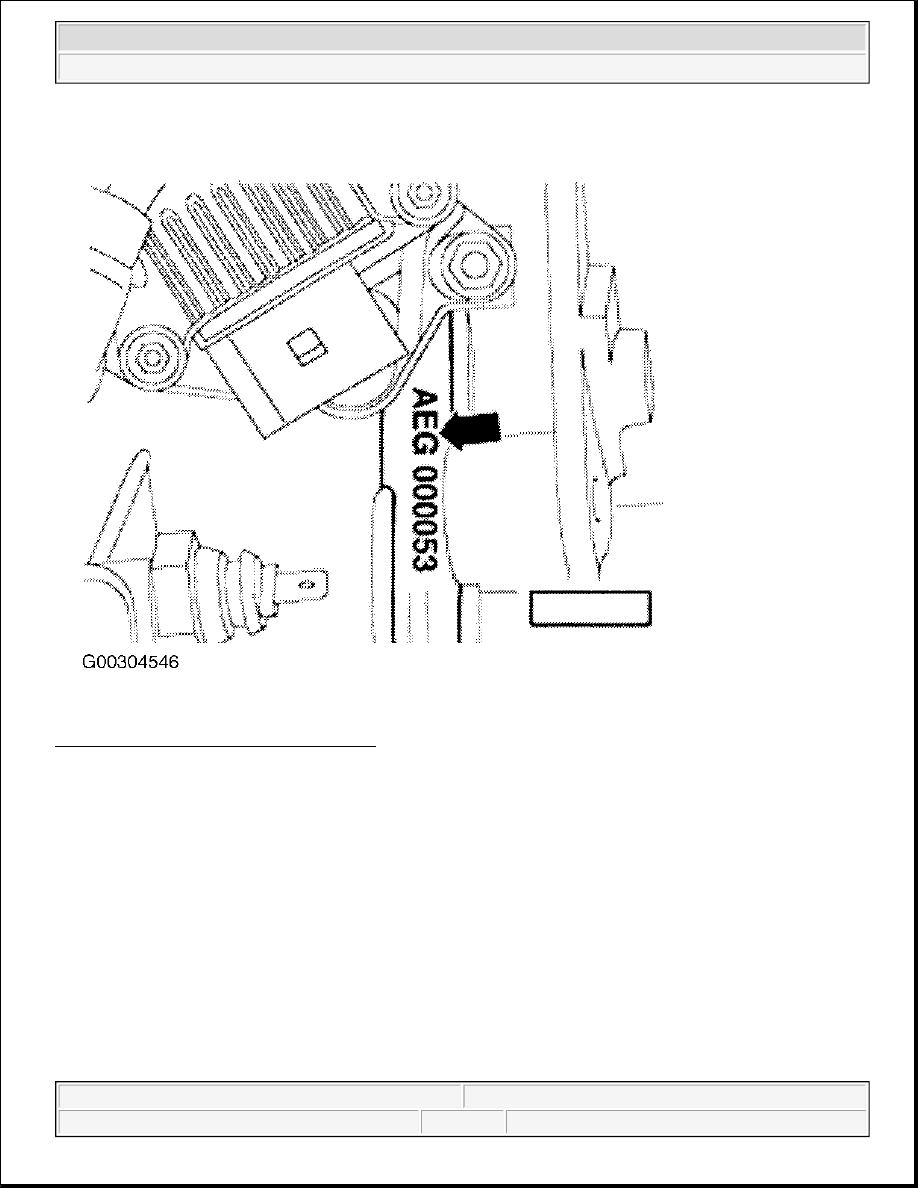

Fig. 42: Identifying Idler Pulley Assembly
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Serpentine Drive (Ribbed) Belt Routing



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Air Conditioning - New Beetle



Fig. 43: Serpentine Drive (Ribbed) Belt Routing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

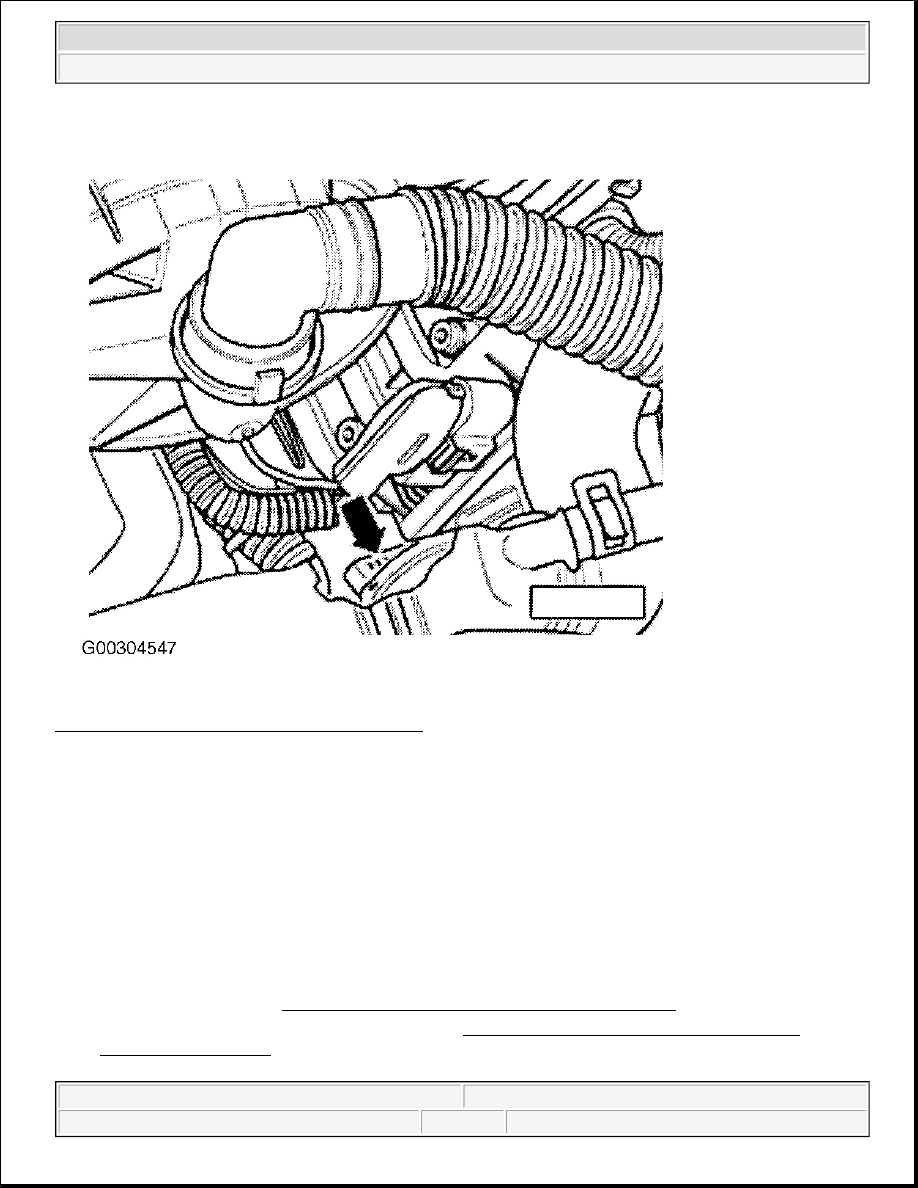

A/C CLUTCH -N25-, SERVICING (SANDEN)

Notes

If A/C clutch is to be serviced with compressor installed, first do the following:

z

Remove ribbed belt. See RIBBED BELT, REMOVING AND INSTALLING .

z

Remove intercooler (engine code ALH only). See CHARGE AIR COOLER COMPONENTS,
REMOVING AND IN
 .

NOTE:

When installing the belt ensure it is correctly seated in the pulley.

NOTE:

Refrigerant circuit does not need to be discharged to service A/C clutch.



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Air Conditioning - New Beetle



If A/C clutch is to be serviced with compressor removed, first do the following:

z

Discharge refrigerant system. See A/C refrigerant system, discharging .

For A/C clutch removing and installing, See A/C clutch -N25-, removing and installing .

For A/C refrigerant system servicing, See A/C refrigerant system, servicing .

A/C clutch -N25-



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Air Conditioning - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 HVAC Air Conditioning - New Beetle
