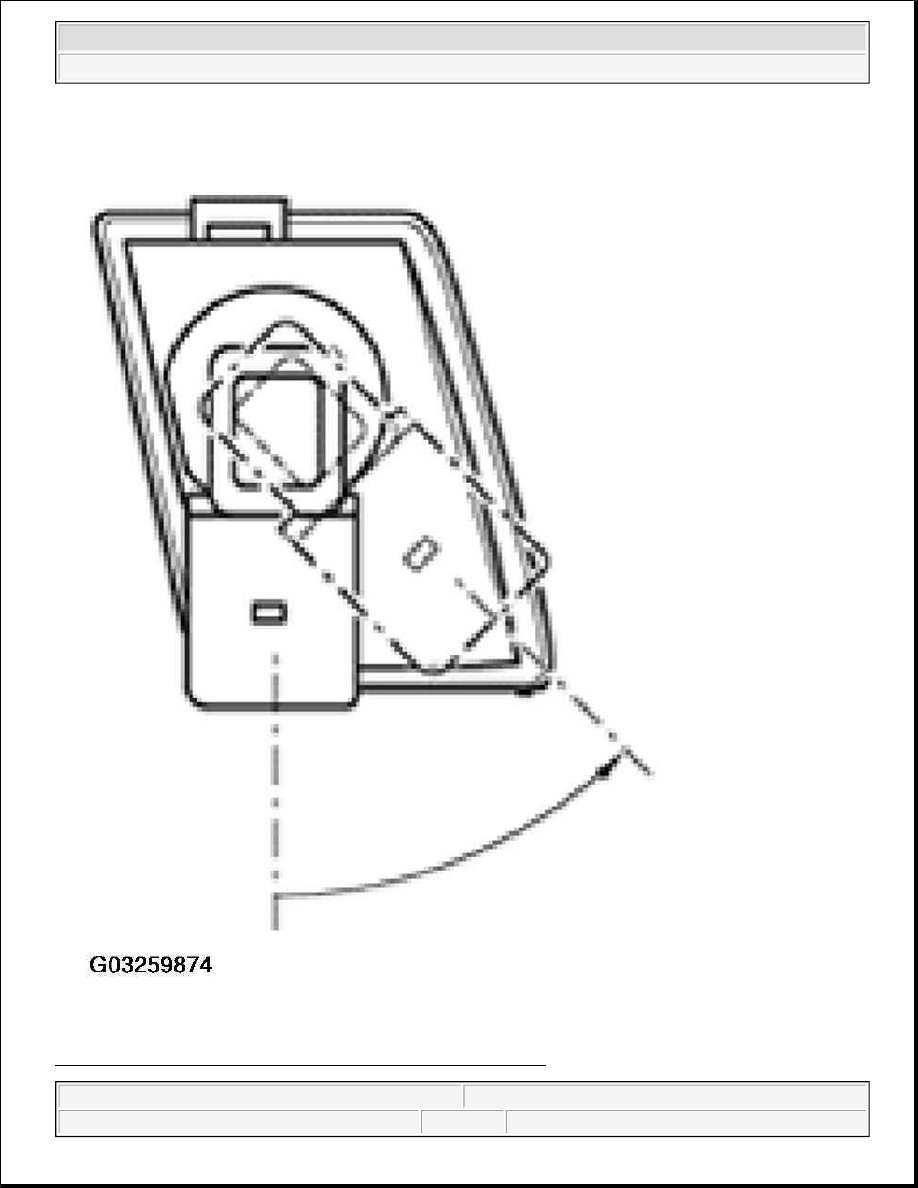

Fig. 39: Evaporator Water Drain Valve - Models From 06.00 And Up
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Design of new evaporator drain valve from 06.00 is essentially maintenance



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Air Conditioning - New Beetle



COMPRESSOR BRACKET, REMOVING AND INSTALLING

2.0L 4-CYLINDER GASOLINE ENGINE

Special tools, testers, measuring instruments and auxiliary items required

z

Torque wrench (5-50 N.m)

free.

NOTE:

The compressor bracket and related components can be removed and installed
without having to open the refrigerant circuit.



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Air Conditioning - New Beetle



Fig. 40: Compressor Bracket (2.0L 4-Cylinder Gasoline Engine)



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Air Conditioning - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Tensioning roller

2. Generator (GEN)

z

Removing:

See GENERATOR .

3. Bracket

Mounting for:

z

Generator

z

Compressor

z

Power steering pump

z

Removing:

„

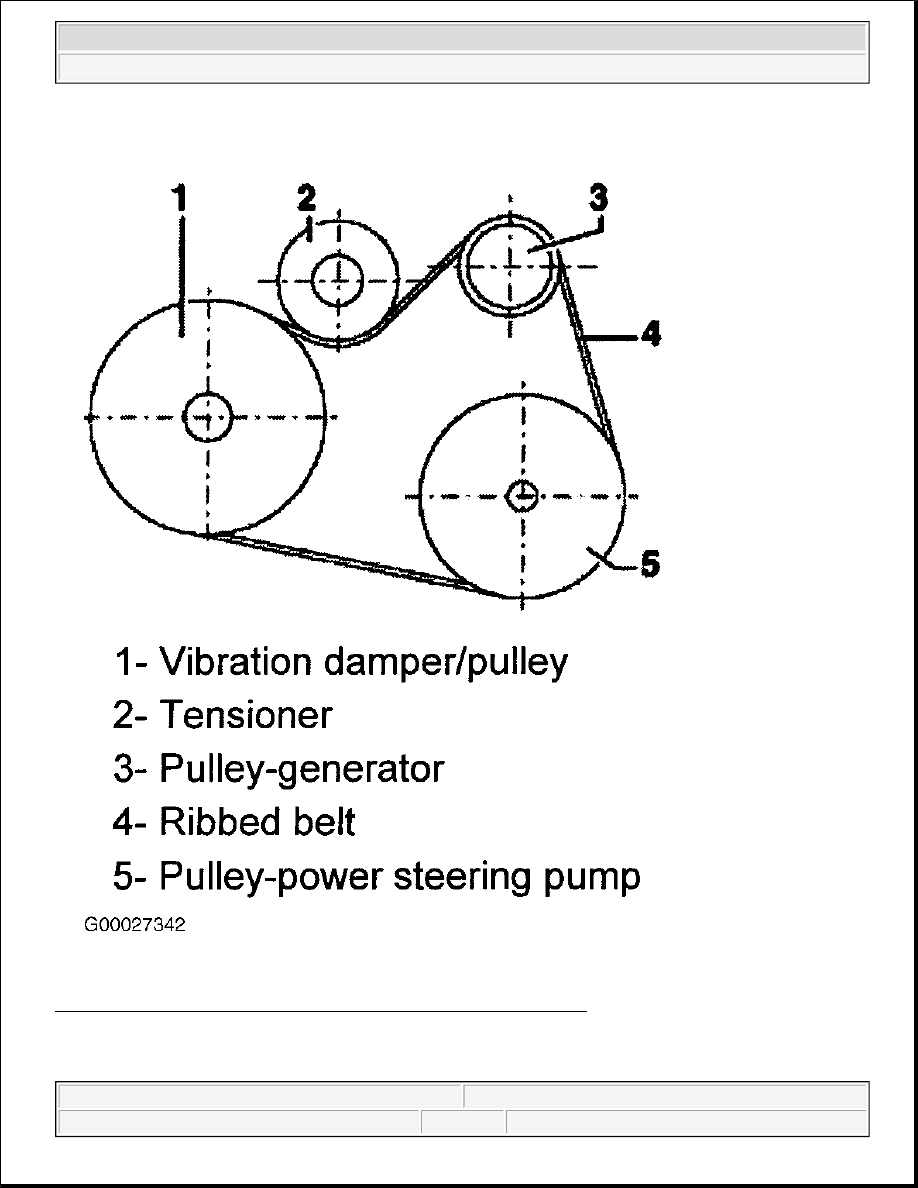

Remove ribbed belt

See RIBBED BELT, REMOVING AND INSTALLING .

„

Remove Generator (GEN)

See GENERATOR .

„

Remove power steering pump

See POWER STEERING PUMP: VEHICLES WITH POWER STEERING PUMP IN
LOWER SECTION, REMOVING AND INSTALLING
 or POWER STEERING
PUMP: VEHICLES WITH POWER STEERING PUMP IN UPPER SECTION,
REMOVING AND INSTALLING
 .

„

Remove bolts -7-.

„

Remove compressor from bracket, swing away and secure in engine compartment with wire.

„

Remove bolts -4-(Qty. 4).

„

Remove compressor bracket from engine.

4. Hex head bolt

z

Qty. 4

z

M10X55

z

50 N.m (37 ft. lb)

5. Power steering pump

NOTE:

The following list refers to items in Fig. 40 .



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Air Conditioning - New Beetle
