Volkswagen New Beetle. Manual - part 1878





4. Erase DTC memory. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE

If DTC(s) reset, replace faulty knock sensor(s). After repairs, erase DTC memory. Verify repair. Test is
complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

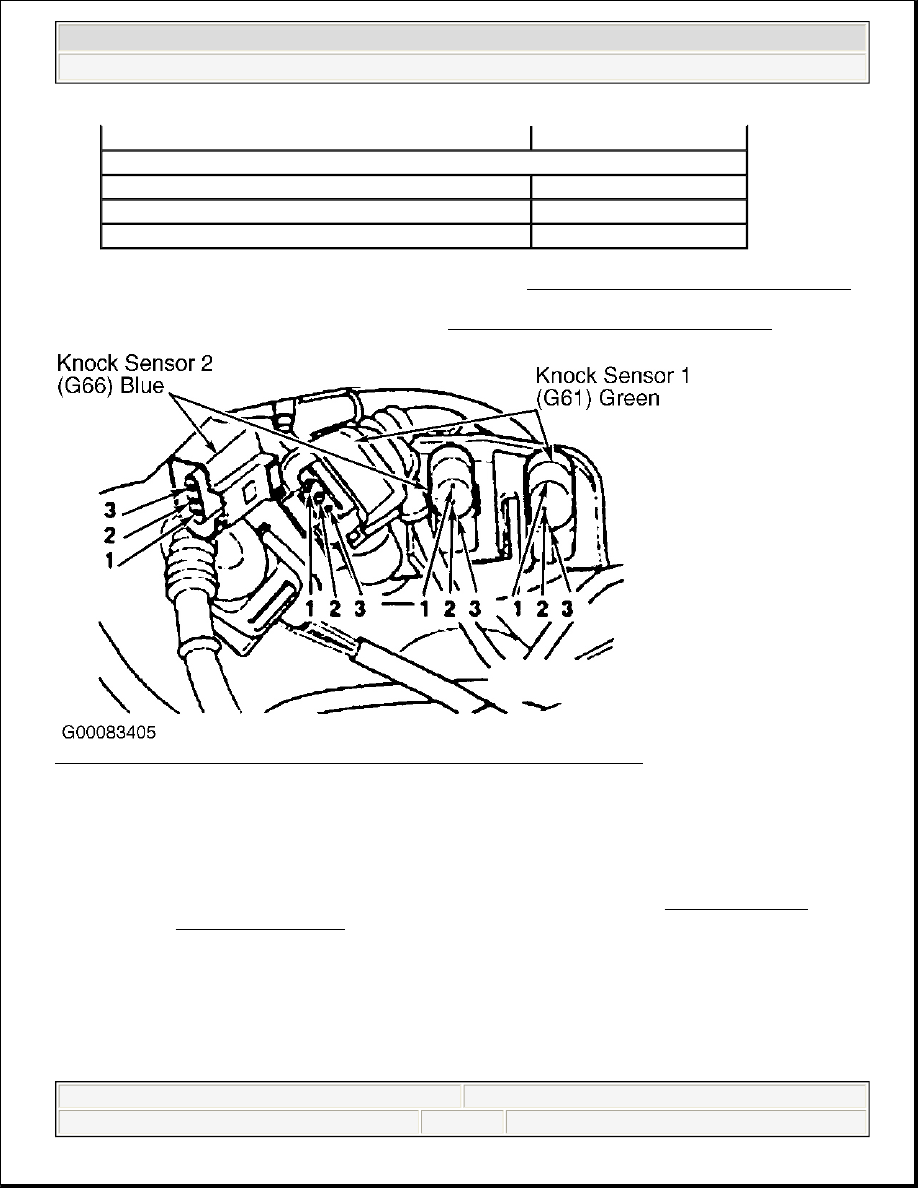

Fig. 47: Identifying Knock Sensor & Harness Connector Test Points (Passat)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC P0340/16724, DTC P0341/16725, DTC P0342/16726 & DTC P0343/16727

Code Definition

z

DTC P0340/16724: Camshaft Position Sensor (G163) - Malfunction

z

DTC P0341/16725: Camshaft Position Sensor (G163) - Implausible Signal

z

DTC P0342/16726: Camshaft Position Sensor (G163)  - Signal Too Low

3 (Wire Shielding)

108

Knock Sensor No. 2 (G66 - Cylinders 3 & 4)

1 (Signal)

107

2 (Ground)

99

3 (Wire Shielding)

108

NOTE:

If a test ends with ECM replacement. Before replacing ECM be certain that, all
wiring, power and ground supplies are okay. See ENGINE PERFORMANCE in
SYSTEM WIRING DIAGRAMS article in ELECTRICAL and ECM GROUND &
VOLTAGE SUPPLY .



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:40 AM

Page 134

© 2004 Mitchell Repair Information Company, LLC.

z

DTC P0343/16727: Camshaft Position Sensor (G163) - Signal Too High

Test Requirement

Ensure all fuses are okay, battery voltage is at least 11.5 volts and fuel pump relay is okay. Ensure all electrical
accessories are off and A/C is off. Ensure engine is mechanically sound. Ensure no intake or exhaust system
leaks exist. Ensure engine coolant temperature is at least 176°F (80°C). Ensure Camshaft Position (CMP) sensor
is bolted on tightly.

Test Procedure

1. Disconnect CMP sensor 3-pin harness connector. See Fig. 48 . Turn ignition on. Using DVOM measure

voltage between terminals No. 1 and 3 of CMP sensor 3-pin harness connector. See Fig. 49 or Fig. 50 .
Voltage should be a minimum of 4.5 volts. Turn ignition off. If readings are okay, go to next step
(additional testing is needed). If readings are not okay, go to next step.

2. Disconnect ECM harness connector, leave ECM disconnected from test box. Connect Test Box (VAG

1598/31) to ECM harness connector. See CONNECTING VAG TEST BOX . Using DVOM, check
resistance between the following CMP sensor harness connector terminals and test box sockets. See Fig.
49
 or Fig. 50 .

z

CMP sensor harness connector terminal No. 1 and test box socket No. 98.

z

CMP sensor harness connector terminal No. 2 and test box socket No. 86.

z

CMP sensor harness connector terminal No. 3 and test box socket No. 108.

Resistance should be a maximum of 1.5 ohms for each reading. Check wiring in CMP sensor 3-pin
harness connector for short circuits to one another.

3. If CMP sensor harness connector circuits are okay and 4.5 volts minimum is present between terminals

No. 1 and 3 of CMP sensor 3-pin harness connector, replace faulty CMP sensor. Erase DTC memory.
Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
. If CMP sensor harness connector circuits are okay, but no voltage is present between
terminals No. 1 and 3 of CMP sensor 3-pin harness connector, replace ECM. See ENGINE CONTROL
MODULE REMOVAL & INSTALLATION
. Erase DTC memory. Verify repair. Test is complete.
Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

NOTE:

Manufacturer's alpha-numeric identification for CMP sensor for Beetle (engine
code AWV) is G40, for all other 1.8L turbo models it is (G163).



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:40 AM

Page 135

© 2004 Mitchell Repair Information Company, LLC.

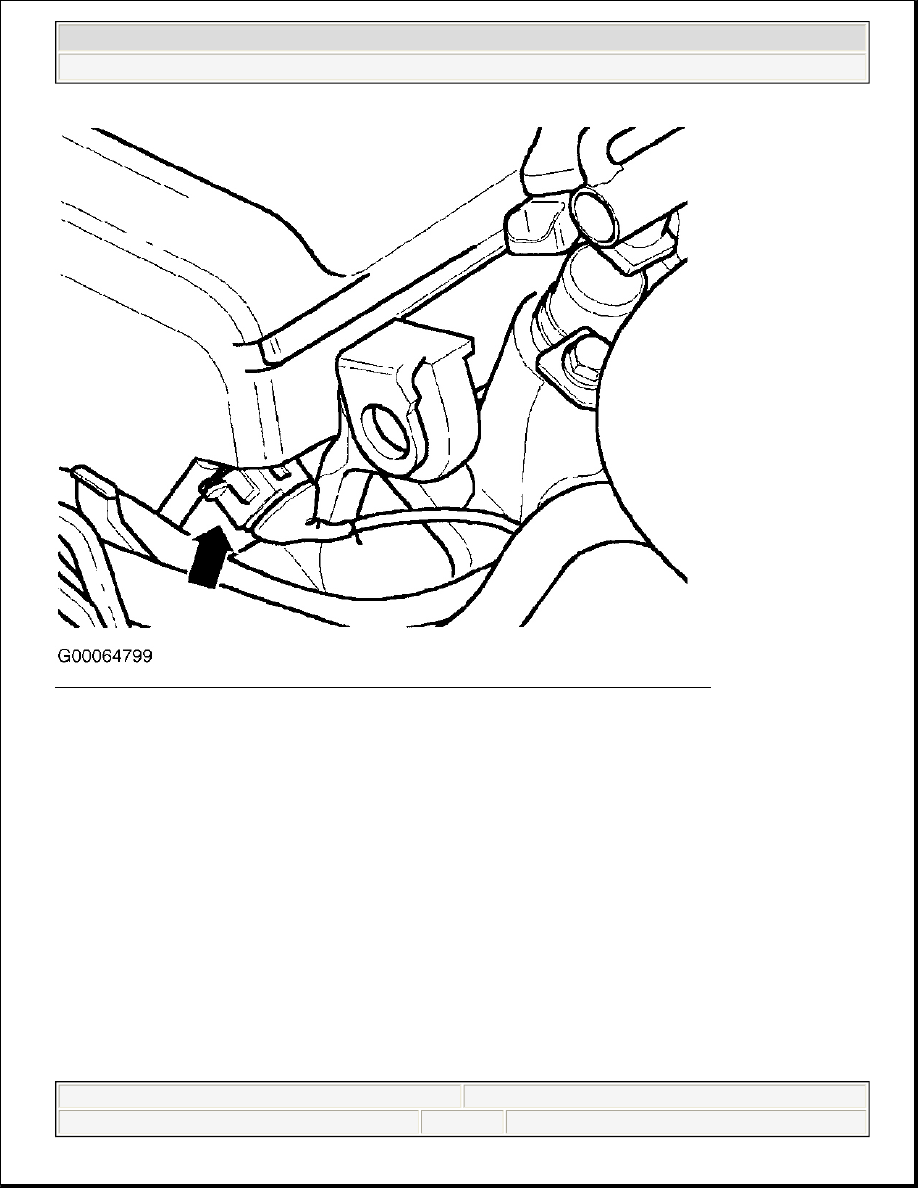

Fig. 48: Disconnecting CMP Sensor Harness Connector (Beetle, GTI, Jetta & Passat )
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:40 AM

Page 136

© 2004 Mitchell Repair Information Company, LLC.

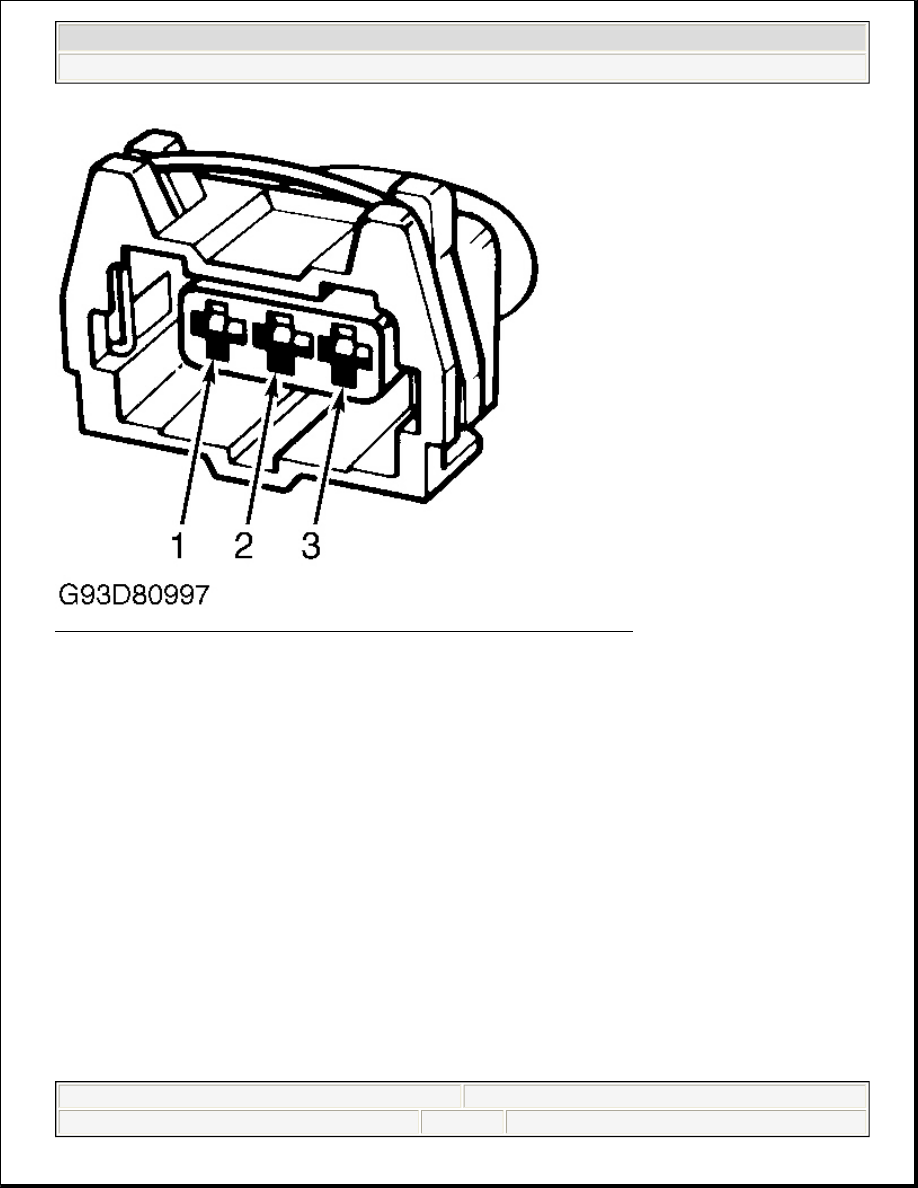

Fig. 49: Identifying Test Points On 3-Pin Harness Connector (Early Model)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:40 AM

Page 137

© 2004 Mitchell Repair Information Company, LLC.
