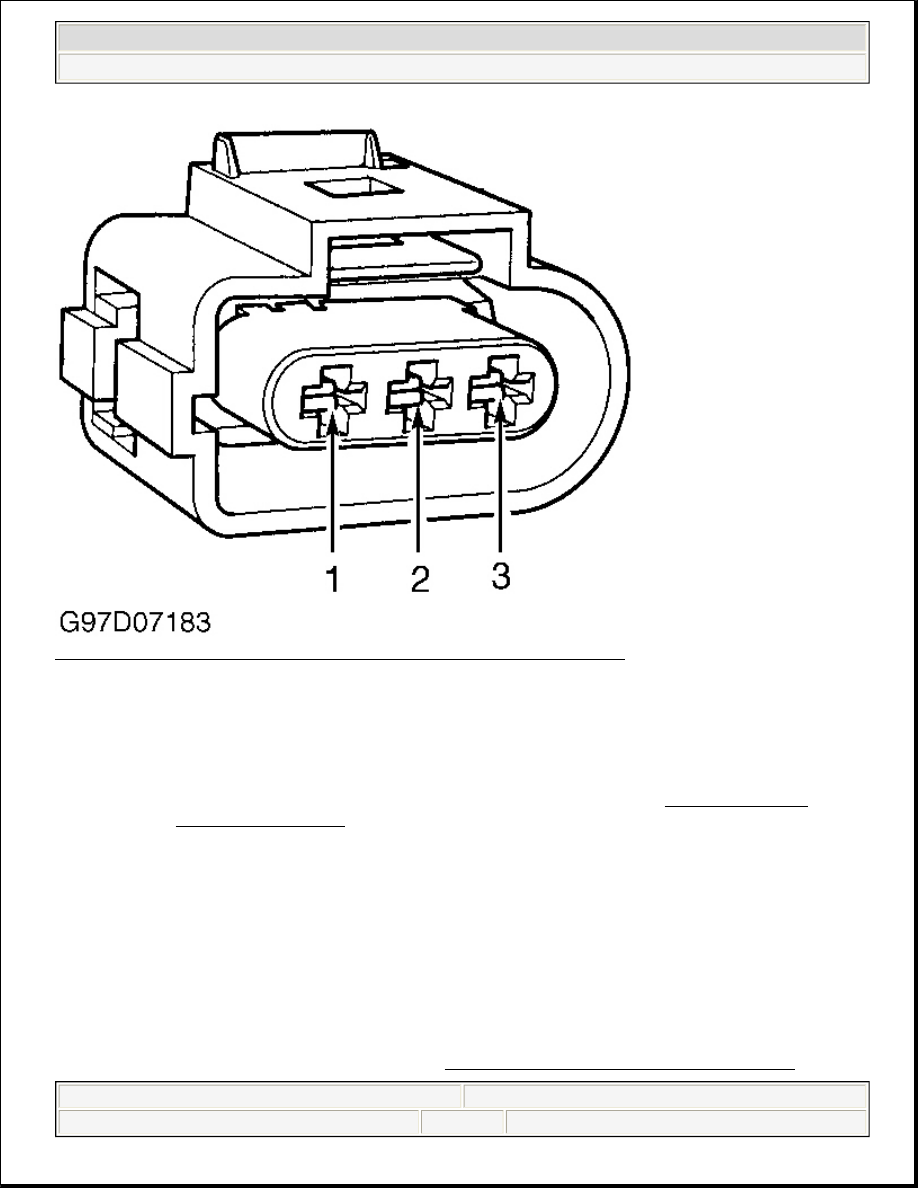

Fig. 50: Identifying Test Points On 3-Pin Harness Connector (Late Model)
Courtesy of VOLKSWAGON UNITED STATES, INC.

DTC P0351/16735, DTC P0352/16736, DTC P0353/16737 & DTC P0354/16738

Code Definition

z

DTC P0351/16735: Ignition Control Cylinder 1 - Malfunction

z

DTC P0352/16736: Ignition Control Cylinder 2 - Malfunction

z

DTC P0353/16737: Ignition Control Cylinder 3 - Malfunction

z

DTC P0354/16738: Ignition Control Cylinder 4 - Malfunction

Test Requirements

Ensure Camshaft Position sensor (G163) is okay. See DTC P1337/17745, DTC P1338/17746 & DTC

NOTE:

If a test ends with ECM replacement. Before replacing ECM be certain that, all
wiring, power and ground supplies are okay. See ENGINE PERFORMANCE in
SYSTEM WIRING DIAGRAMS article in ELECTRICAL and ECM GROUND &
VOLTAGE SUPPLY .



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:40 AM

Page 138

© 2004 Mitchell Repair Information Company, LLC.

P1340/17748 . Ensure Engine Speed (RPM) sensor (G28) is okay. See DTC P0321/16705 & DTC
P0322/16706
. Ensure all fuses are okay, battery voltage is at least 11.5 volts and fuel pump relay is okay.
Ensure all electrical accessories are off and A/C is off. Ensure engine is mechanically sound. Ensure no intake
or exhaust system leaks exist. Ensure engine coolant temperature is at least 176°F (80°C).

Test Procedure

1. Using DVOM, check voltage supply to ignition coil of cylinder indicated by DTC, (e.g. DTC

P0354/16738, check voltage supply to ignition coil/output stage at cylinder No. 4). Disconnect ignition
coil harness connector. Turn ignition on, engine off. Check voltage between harness connector terminals
No.1 and 2. See Fig. 41 . Check voltage between harness connector terminals No. 1 and 4, each voltage
reading should be a minimum of 11.5 volts. Turn ignition off. If no voltage is present, go to next step. If
voltage readings are okay, go to step 6 .

2. Using DVOM, check wiring for open circuits between ignition coil harness connector terminal No. 1 and

power supply relay using wiring diagram. See appropriate WIRING DIAGRAM under ENGINE
PERFORMANCE in SYSTEM WIRING DIAGRAMS. See Fig. 41 . Resistance reading should be a
maximum of 1.5 ohms. If resistance reading is okay, go to next step. If resistance reading is not okay,
repair as necessary. After repairs, erase DTC memory. Verify repair. Test is complete. Perform ECM
relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

3. Using DVOM, check wiring for open circuits between ignition coil harness connector terminal No. 2 and

ground, and harness connector terminal No. 4 ground. See Fig. 41 . Resistance should be a maximum of
1.5 ohms for each reading. If resistance readings are okay, go to next step. If resistance reading is not
okay, repair as necessary. After repairs, erase DTC memory. Verify repair. Test is complete. Perform
ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

4. Turn ignition off. Disconnect ECM harness connector, leave ECM disconnected from test box. Connect

Test Box (VAG 1598/31) to ECM harness connector. See CONNECTING VAG TEST BOX . Using
DVOM, check resistance between the following ignition coil/output stage harness connectors and VAG
test box sockets. See IGNITION COIL HARNESS CONNECTOR/TEST BOX SOCKET
IDENTIFICATION
table and Fig. 41 . Resistance should be a maximum of 1.5 ohms for each reading.
If resistance readings are okay, go to next step. If resistance reading is not okay, repair as necessary. After
repairs, erase DTC memory. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE

IGNITION COIL HARNESS CONNECTOR/TEST BOX SOCKET IDENTIFICATION

5. Check wiring in ignition coil harness connector for short circuits to one another and for short circuits to

ground and B+. If resistance measurements are okay and no short circuits exist. Replace faulty ECM. See
ENGINE CONTROL MODULE REMOVAL & INSTALLATION . Erase DTC memory. Verify
repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
.

Cylinder

Ignition Coil Harness Connector Terminal

VAG Test Box Socket

102

95

103

94



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:40 AM

Page 139

© 2004 Mitchell Repair Information Company, LLC.

6.

Remove fuse No. 32. Disconnect ignition coil harness connector. Connect LED equipped test light to
ignition coil harness connector terminals No. 2 and 3 of cylinder(s) indicated to be misfiring. See Fig.
41
 . Turn ignition on, engine off. Using ignition switch, operate starter, LED must illuminate. If test light
does not illuminate, go to step 4 . If test light illuminates, replace faulty ignition coil(s)/output stage(s).
After repairs, erase DTC memory. Verify repair. Test is complete. Perform ECM relearn procedure. See
TEST DRIVE RELEARN PROCEDURE .

DTC P0411/16795: SECONDARY AIR SYSTEM - INCORRECT FLOW DETECTED

Test Requirements

Ensure all fuses are okay, battery voltage is at least 11.5 volts, all electrical accessories are off, A/C is off.
Ensure engine is mechanically sound.

Test Procedure

1. Ensure fuse and secondary fuse (secondary fuse is 40 Amp and is located in fuse holder on top of battery)

are okay. Check hoses and components of Secondary Air Injection System, for damage, loose fit and
improper installation, check vacuum hoses for Secondary Air Injection System, repair as necessary, erase
DTC memory. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

2. Remove engine cover. Disconnect pressure hose from Secondary Air Pump Motor (V101), by pressing

buttons on hose connector. See Fig. 51 . Using scan tool, check Secondary Air Pump Motor (V101) in
scan tool Output Diagnostic Test Mode (Secondary Air Pump Relay activation mode). See OUTPUT
DIAGNOSTIC TEST MODE
. Secondary Air Pump Motor (V101) should run in intervals and air
should exit pump at hose connection. If Secondary Air Pump Motor (V101) is okay, go to step 6 . If
motor runs and no air exits secondary air pump motor, replace faulty Secondary Air Pump Motor (V101).
Erase DTC memory. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE

WARNING:

During following test do not touch ignition coils, ignition coil
harness connectors or test cables.

NOTE:

Removing fuse No. 32 disables fuel injectors. Ignition coils and final
output stages are one component and cannot be replaced individually.

NOTE:

Output Diagnostic Test Mode is used when using Scan Tools VAG 1551/1552 or
VAS 5051/5052, always continue with output diagnostic test mode until last
component in output diagnostic test mode test sequence has been checked. If
you are not using Scan Tools VAG 1551/1552 or VAS 5051/5052 follow scan tool
manufacturer's instructions.

NOTE:

Secondary air system is activated by ECM and blows air into exhaust pipe
upstream of catalytic converter for 100 seconds during a cold start, 41-91°F (5-
33°C). Engine must be cold to perform following test procedure.
