Volkswagen New Beetle. Manual - part 1835





PROCEDURE .

ECT SENSOR (G62) RESISTANCE

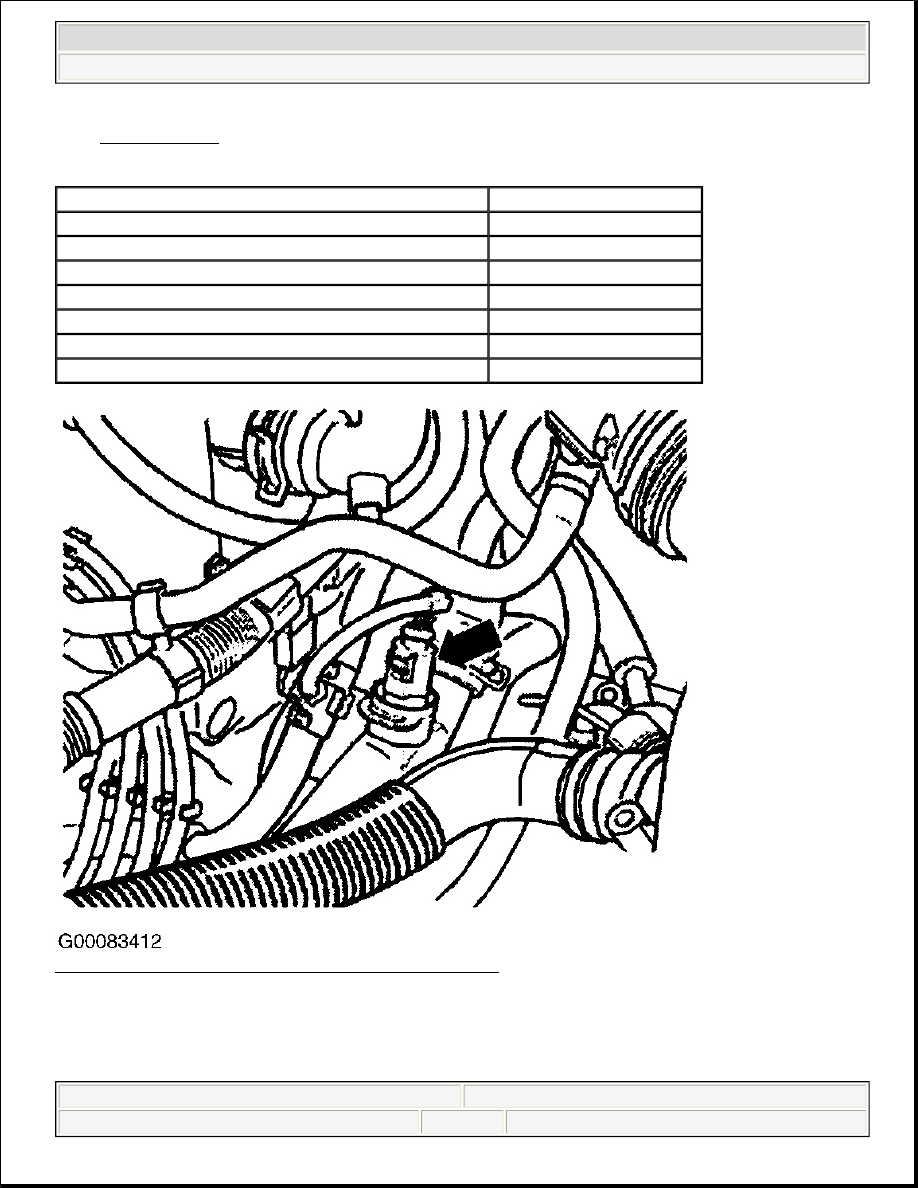

Fig. 46: Locating ECT Sensor (G62 - Beetle, Golf & Jetta)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Temperature °F (°C)

Ohms

86 (30)

1500-2000

104 (40)

1000-1500

122 (50)

800-1000

140 (60)

500-700

158 (70)

375-500

176 (80)

275-375

194 (90)

225-275



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:59 AM

Page 140

© 2004 Mitchell Repair Information Company, LLC.

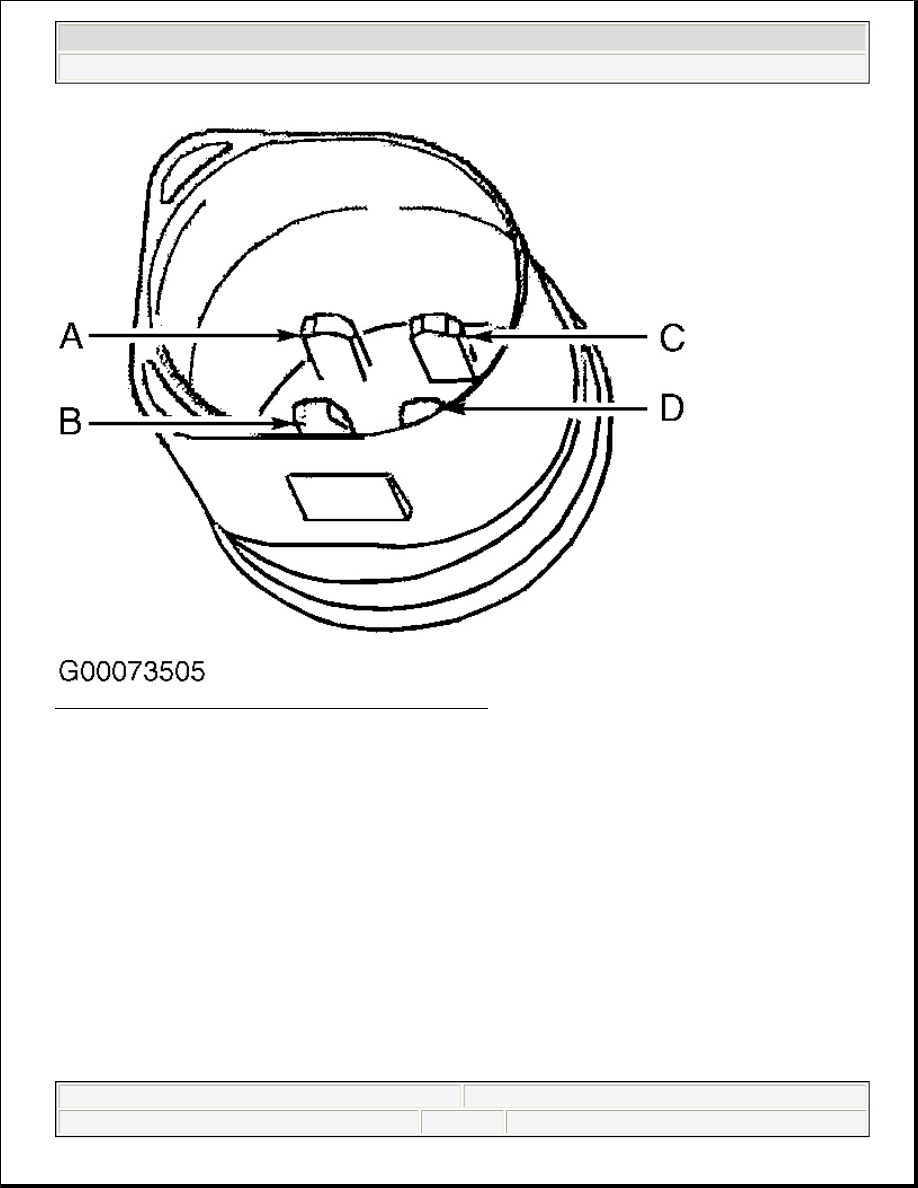

Fig. 47: Testing ECT Sensor (G62 - Beetle, Golf & Jetta)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:59 AM

Page 141

© 2004 Mitchell Repair Information Company, LLC.

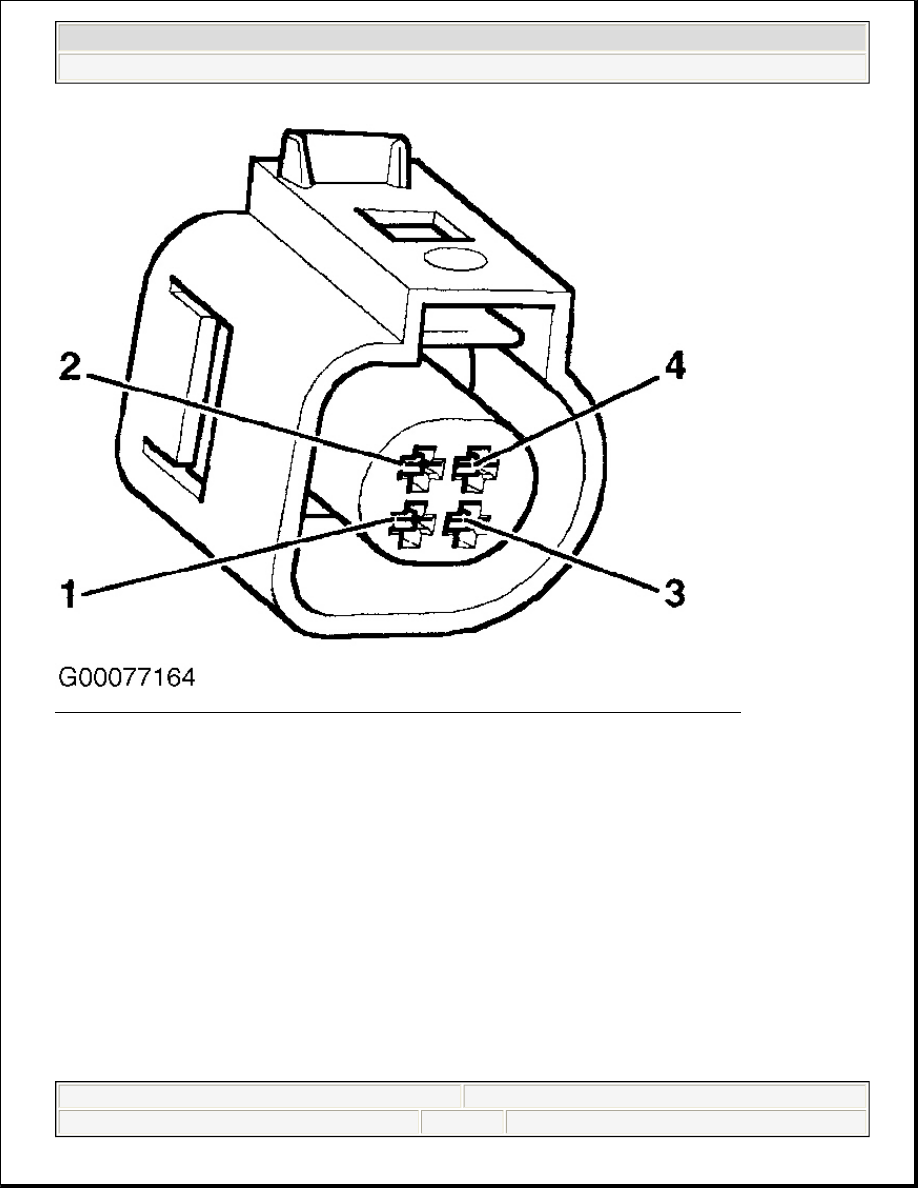

Fig. 48: Identifying Test Points On ECT Sensor Harness Connector (Beetle, Golf & Jetta)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC P1325/17733, P1326/17734, P1327/17735 & P1328/17736: KNOCK CONTROL - LIMIT
REACHED

Code Definition

DTC P1325/17733
Knock Control, Cylinder 1 - Limit Reached

DTC P1326/17734
Knock Control, Cylinder 2 - Limit Reached

DTC P1327/17735
Knock Control, Cylinder 3 - Limit Reached

DTC P1328/17736
Knock Control, Cylinder 4 - Limit Reached



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:59 AM

Page 142

© 2004 Mitchell Repair Information Company, LLC.

Test Requirements

Ensure battery is okay. Ensure all fuses are okay, battery voltage is at least 11.5 volts and fuel pump relay is
okay. Ensure all electrical accessories are off and A/C is off.

Test Procedure

1. Fill fuel tank with 91 RON gasoline. Check knock sensor harness connectors for corrosion, damage and

proper installation. Loosen knock sensors and tighten to 15 ft. lbs. (20 N.m). Erase DTC memory.
Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE . If DTC(s) do not
reset, test is complete. If DTC(s) resets, go to next step.

2. Check engine for mechanical noise, repair as necessary. If no mechanical noise is found, go to next step.

If repairs were made and mechanical noise eliminated, erase DTC memory. Perform ECM relearn
procedure. See TEST DRIVE RELEARN PROCEDURE . If DTC(s) do not reset, test is complete. If
DTC(s) resets, go to next step.

3. Turn ignition off. Disconnect knock sensor No. 1 and 2 harness connectors. Check resistance between

contacts at each knock sensor, resistance should be infinite (no continuity). If no continuity is present in
resistance reading, go to next step. If continuity is present in resistance reading, replace faulty knock
sensor(s). Erase DTC memory. Verify repair. Test is complete. Perform ECM relearn procedure. See
TEST DRIVE RELEARN PROCEDURE .

4. Turn ignition off. Disconnect ECM harness connector. Leave ECM disconnected from test box. Connect

Test Box (VAG 1598/31) to ECM harness connector. See CONNECTING VAG TEST BOX . Using
DVOM, check resistance between the following knock sensor harness connectors and VAG test box
sockets. Check wiring for short circuit to one another in Knock sensor No. 1 (G61) harness connector.
Check wiring for short circuit to one another in Knock sensor No. 2 (G66) harness connector. See
KNOCK SENSOR HARNESS CONNECTOR/TEST BOX SOCKET IDENTIFICATION table. See
Fig. 33 . Resistance should be a maximum of 1.5 ohms. If wiring is okay, go to next step. If wiring is not
okay, repair as necessary. After repairs, erase DTC memory. Verify repair. Test is complete. Perform
ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

5. Erase DTC memory. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE

If DTC(s) reset, replace faulty knock sensor(s). After repairs, erase DTC memory. Verify repair. Test is
complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

DTC P1335/17743 & P1336/17744: ENGINE TORQUE MONITORING

Code Definition

DTC P1335/17743
Engine Torque Monitoring 2 - Control Limit Exceeded

DTC P1336/17744
Engine Torque Monitoring - Control Limit Exceeded

NOTE:

To ensure knock sensors perform perfectly, it is extremely important that knock
sensors are tightened to 15 ft. lbs. (20 N.m). Contact surfaces between knock
sensor and cylinder block must be free of corrosion, dirt and grease.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:59 AM

Page 143

© 2004 Mitchell Repair Information Company, LLC.
