Volkswagen New Beetle. Manual - part 175

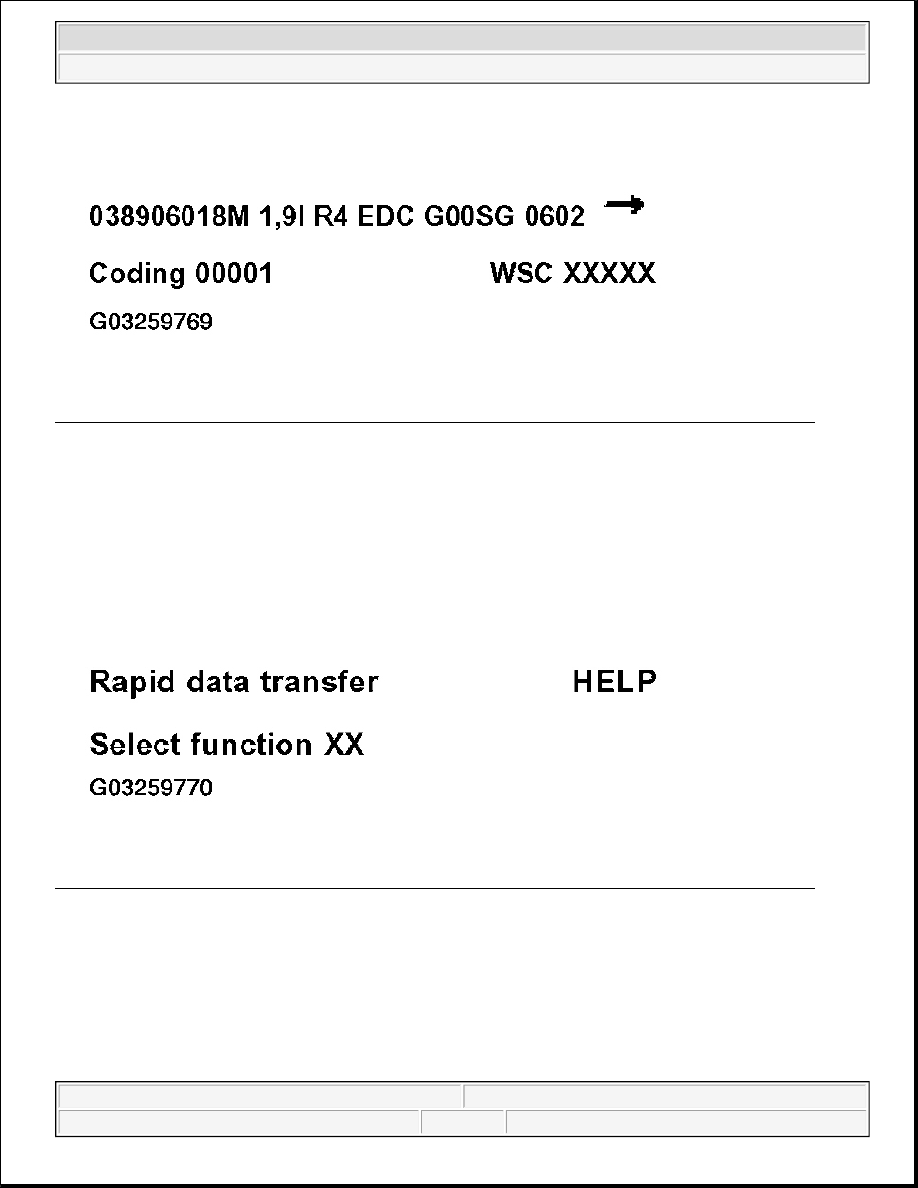

Fig. 5: Vag 1551/1552 Scan Tool Display - Cruise Control System - TDI Engines Activating (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

If display shows "G00SG", on top line, cruise control is activated.

z

If display shows "00SG", on top line, cruise control is not activated.

{

Press --> button to begin activation sequence.

Indicated on display

Fig. 6: Vag 1551/1552 Scan Tool Display - Cruise Control System - TDI Engines Activating (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons 1 and 1 to select "Login-Procedure" function 11.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Cruise Control - New Beetle

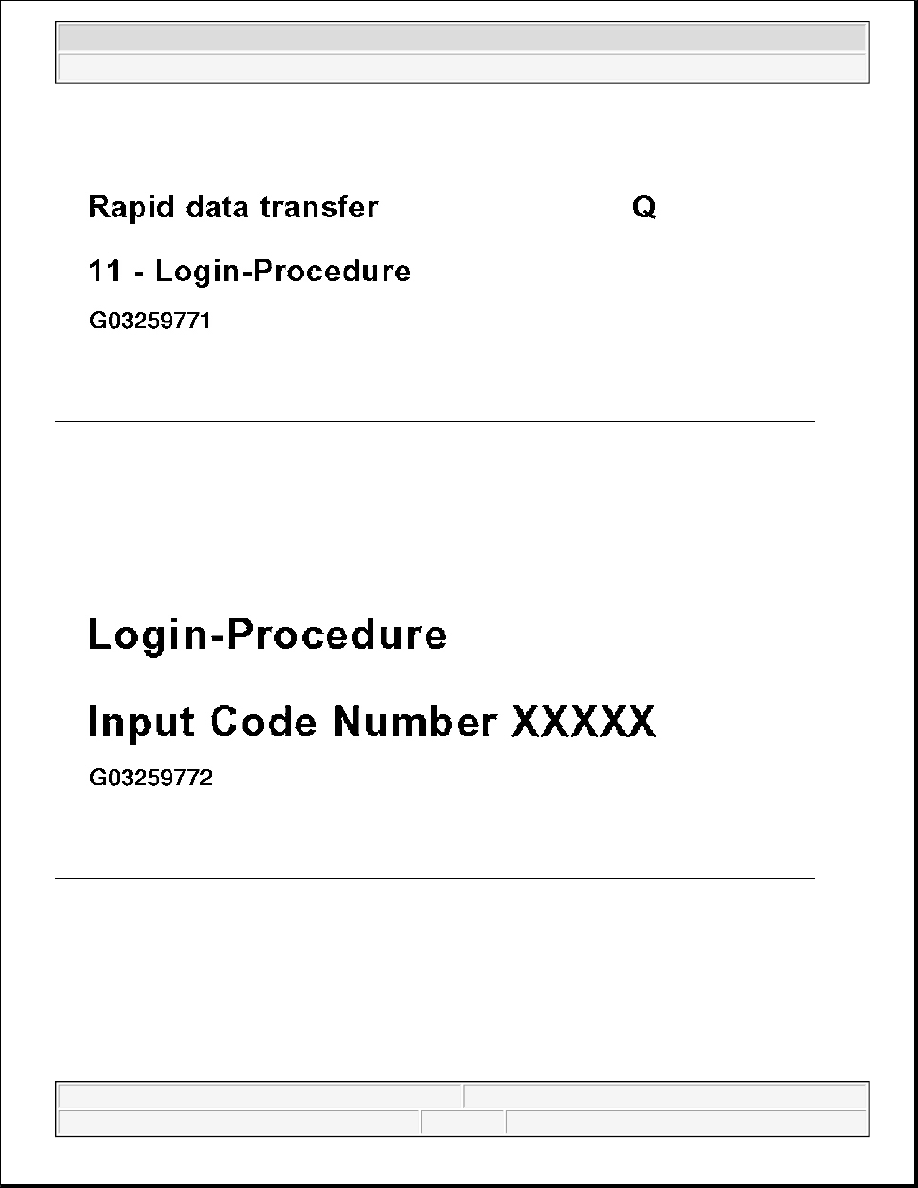

Fig. 7: Vag 1551/1552 Scan Tool Display - Cruise Control System - TDI Engines Activating (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press Q button to enter input.

Indicated on display

Fig. 8: Vag 1551/1552 Scan Tool Display - Cruise Control System - TDI Engines Activating (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

To activate cruise control, enter code number 11463 (to deactivate, enter 16167)

z

Press Q button to enter input.

z

End output (function 06) and perform test drive to confirm cruise control functions.

CRUISE CONTROL SYSTEM - GASOLINE ENGINES, ACTIVATING

If a Motronic Engine Control Module (ECM) or Diesel Direct Injection Control Module (DFI) has been



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Cruise Control - New Beetle



replaced, it may be necessary to activate the cruise control function in the new ECM. Activate/deactivate system
using the following procedure.

z

Connect VAG 1551/1552 Scan Tool.

See VAG 1551 SCAN TOOL (ST), CONNECTING, SELECTING FUNCTIONS & CHECKING
CONTROL MODULE VERSIONS
 .

z

Switch on ignition

z

Press buttons 0 and 1 to select "Engine electronics" address word 01.

Indicated on display (example only)

Fig. 9: Vag 1551/1552 Scan Tool Display - Cruise Control System - Gasoline Engines Activating (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Cruise Control - New Beetle

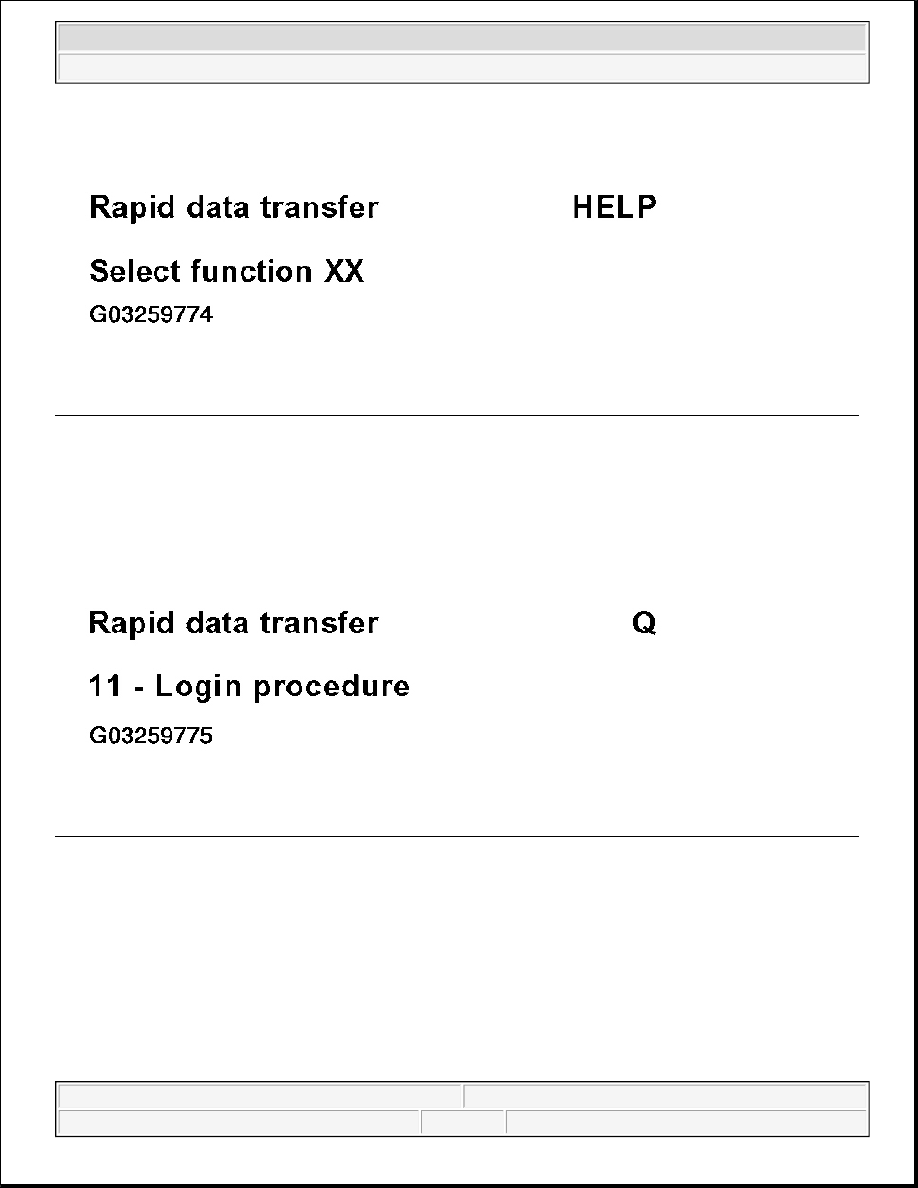

Fig. 10: Vag 1551/1552 Scan Tool Display - Cruise Control System - Gasoline Engines Activating (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press buttons 1 and 1 to select "Login procedure" function 11.

Indicated on display

Fig. 11: Vag 1551/1552 Scan Tool Display - Cruise Control System - Gasoline Engines Activating (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press Q button to enter input.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Cruise Control - New Beetle
