Volkswagen New Beetle. Manual - part 176

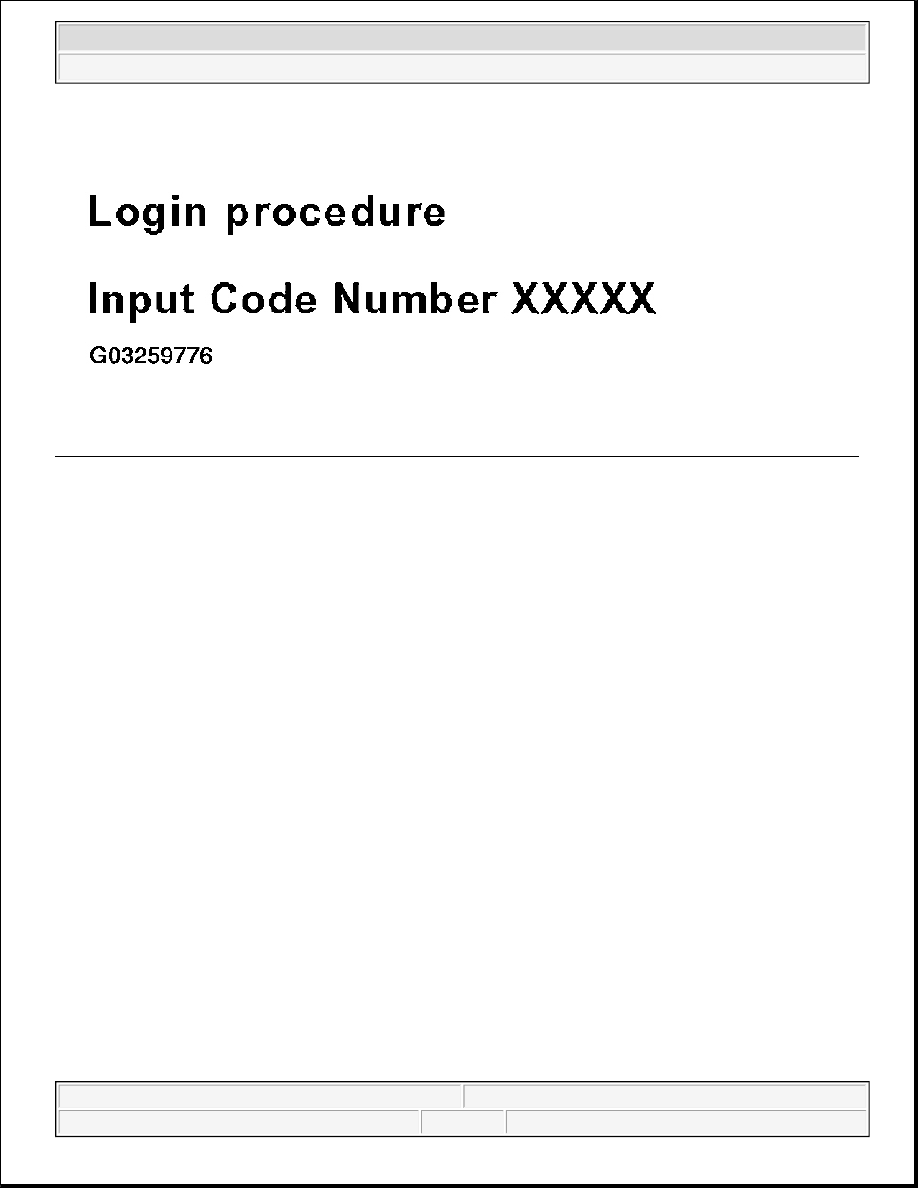

Fig. 12: Vag 1551/1552 Scan Tool Display - Cruise Control System - Gasoline Engines Activating (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

To activate cruise control, enter code number 11463 (to deactivate, enter 16167)

z

Press Q button to enter input.

z

End output (function 06) and perform test drive to confirm cruise control functions.

CRUISE CONTROL SYSTEM (CCS) FROM M.Y. 2002

GENERAL INFORMATION

All cruise control system functions are controlled by the applicable Engine Control Module (ECM). The
processing of electronic engine controls and cruise control functions are integrated in the ECM. Other than the
cruise control switches on the steering column/multifunction steering wheel, the clutch and brake pedal
switches and related wiring, there are no separate cruise control components to be serviced.

As all electronic throttle control operations are monitored by On Board Diagnostic (OBD), Diagnostic Trouble
Codes (DTC) pertaining to engine electronics that are stored in DTC memory may be relevant to cruise control
function.

Always check DTC memory first before troubleshooting.

All CCS troubleshooting and OBD program functions on vehicles from m.y. 2002 should be performed
using the VAS 5051 Vehicle Diagnostic Testing and Information System in operating mode "Guided
Fault Finding" or "Vehicle Self-Diagnosis".



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Cruise Control - New Beetle



1998-2004 ACCESSORIES & EQUIPMENT

Lights, Switches - Exterior - New Beetle

HEADLIGHTS

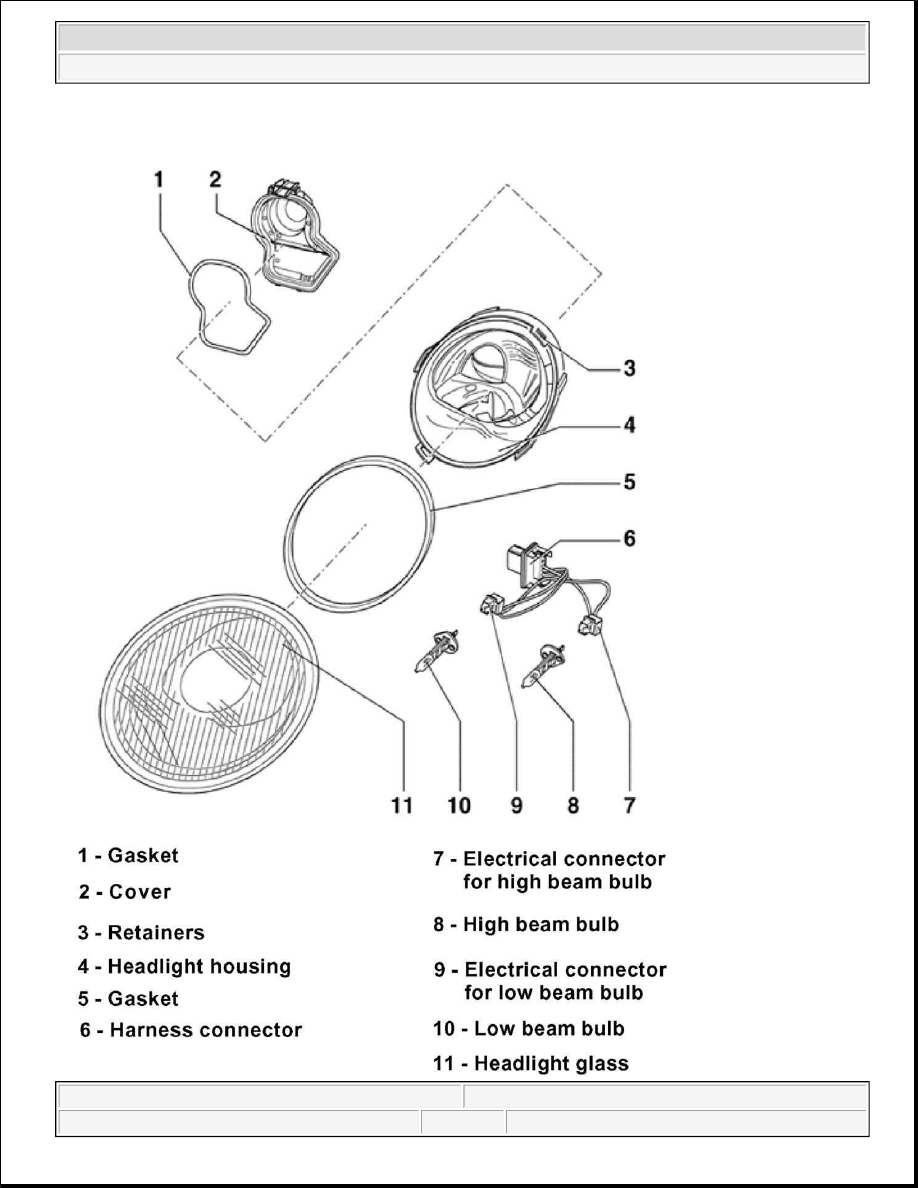

HEADLIGHTS, ASSEMBLY

1. Gasket

z

Replace if damaged

2. Cover

Removing

z

through 08.98, See HEADLIGHTS THROUGH 08.98, REMOVING AND INSTALLING

z

from 09.98, See HEADLIGHTS FROM 09.98, REMOVING AND INSTALLING

3. Retainers

z

Qty. 4

4. Headlight housing

Removing and installing

z

through 08.98, See HEADLIGHTS THROUGH 08.98, REMOVING AND INSTALLING

z

from 09.98, See HEADLIGHTS FROM 09.98, REMOVING AND INSTALLING

5. Gasket

z

Replace if damaged

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch off ignition and remove ignition key.

z

Disconnect negative (-) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified. See BATTERY, DISCONNECTING AND RECONNECTING .

NOTE:

After performing any repairs or service that could affect headlight aim,
check/adjust aim, See HEADLIGHTS, ADJUSTING .

NOTE:

The following list refers to items in Fig. 1 .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



6. Harness connector

z

Clipped into headlight housing

7. Electrical connector for high beam bulb

8. High beam bulb

z

H1 12 V, 55 Watt

z

Replacing, See HIGH BEAM BULB, REMOVING

9. Electrical connector for low beam bulb

10. Low beam bulb

z

H1 12 V, 55 Watt

z

Replacing, See HEADLIGHT BULBS, REPLACING

11. Headlight glass

z

Replace if gasket is faulty

z

Removing: unclip retainers Pos. 3



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
