Volkswagen New Beetle. Manual - part 173

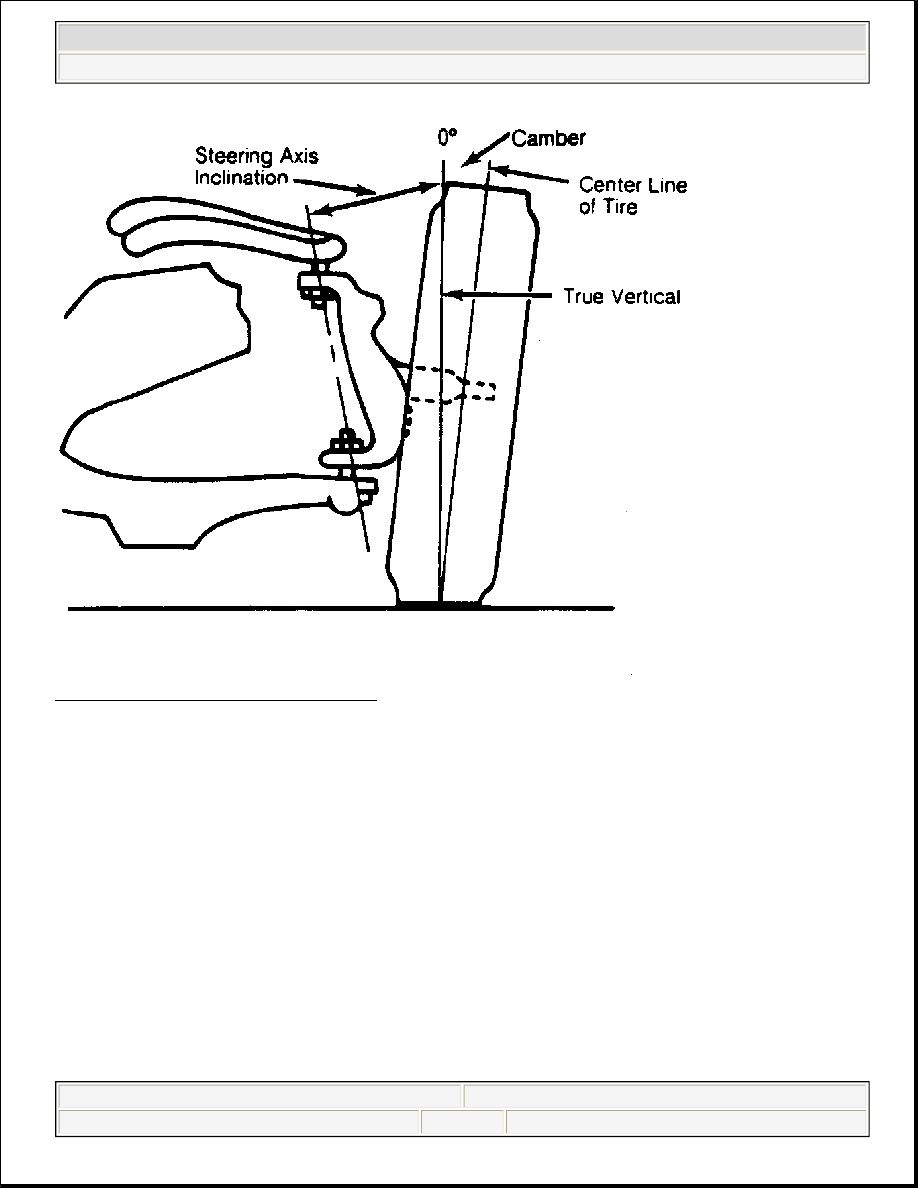

Fig. 6: Checking Steering Axis Inclination



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Wheel Alignment Theory & Operation



1998-2004 ACCESSORIES & EQUIPMENT

Cruise Control - New Beetle

CRUISE CONTROL SYSTEM (CCS) THROUGH M.Y. 2001

GENERAL INFORMATION

All cruise control system functions are controlled by the applicable Engine Control Module (ECM). The
processing of electronic engine controls and cruise control functions are integrated in the ECM. Other than the
cruise control switches on the steering column, the clutch and brake pedal switches and related wiring, there are
no separate cruise control components to be serviced.

As the electronic throttle control operations are monitored by On Board Diagnostic (OBD), Diagnostic Trouble
Codes (DTC) pertaining to engine electronics that are stored in DTC memory may be relevant to cruise control
function.

Always check DTC memory in ECM first before troubleshooting (Function 02).

CRUISE CONTROL SYSTEM (CCS) THROUGH M.Y. 2001, SERVICING

The operating status of the cruise control system, cruise control switches, brake and clutch switches can be
checked using the following procedure.

Special tools and equipment

z

VAG 1551/1552 Scan Tool (ST) with VAG 1551/3 adapter cable, or VAS 5051 Vehicle Diagnostic
Testing and Information System

z

Connector test kit VW 1594

z

Test box VAG 1598A

z

Multimeter Fluke 83

z

Wiring diagram

Test requirements

z

Battery (B+) voltage at least 11.5 V

z

Ground connections on engine, transmission and battery OK

z

Diagnostic Trouble Code (DTC) memory of Engine Control Module (ECM) checked and OK

z

Fuse S5 OK

z

Fuse S43 OK

Test sequence

NOTE:

z

On some 1998 model year vehicles with automatic transmission, the CCS



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Cruise Control - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Cruise Control - New Beetle



z

Connect VAG 1551/1552 Scan Tool

See VAG 1551 SCAN TOOL (ST), CONNECTING, SELECTING FUNCTIONS & CHECKING
CONTROL MODULE VERSIONS
 .

z

Switch on ignition

z

Press buttons 0 and 1 to select "Engine electronics" address word 01.

Indicated on display (example only)

z

Press --> button.

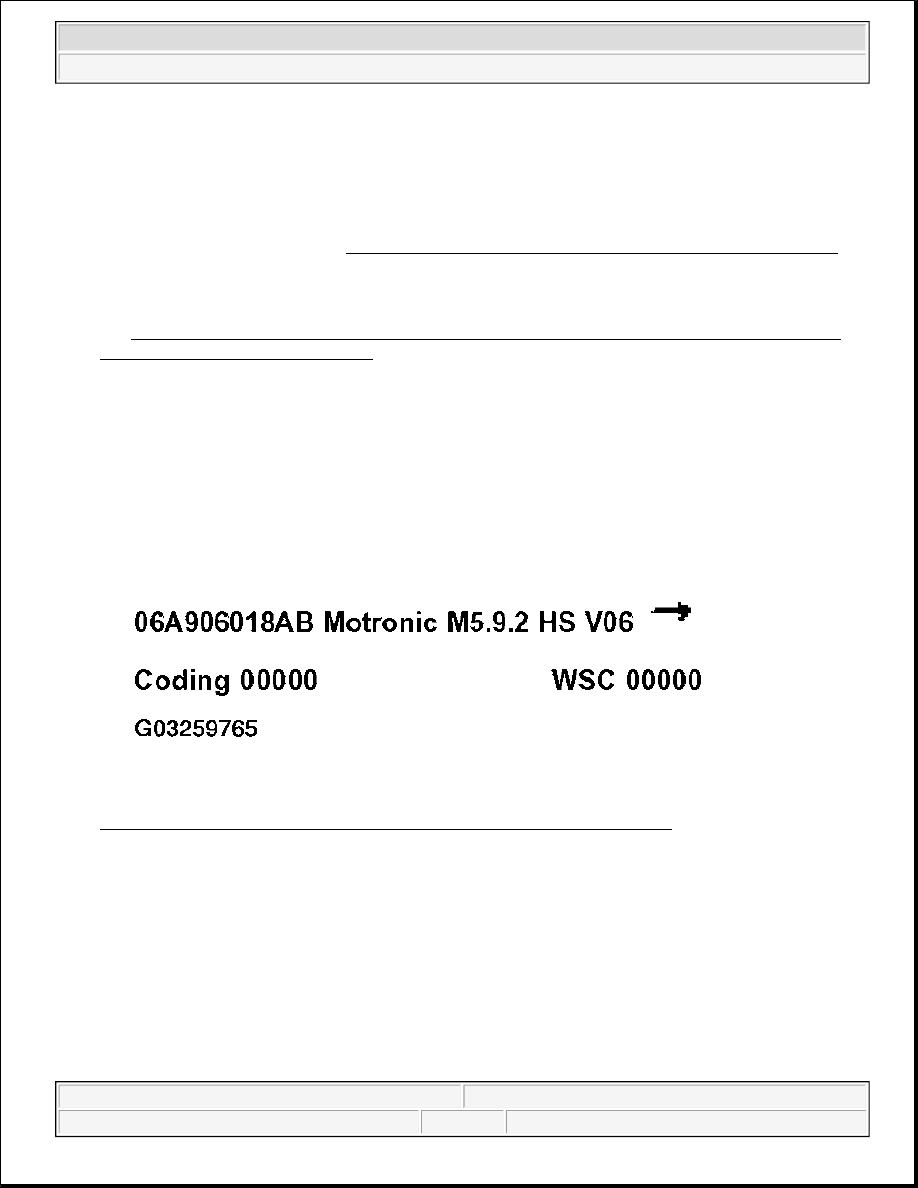

Fig. 1: VAG 1551/1552 Scan Tool Display - Cruise Control System (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Press buttons 0 and 8 to select function 08 "Read measuring value block".

z

Press Q button to enter input.

switch is not supplied with voltage until the vehicle speed exceeds 30
km/h (approx. 19 mph) and the selector lever is in position D, 3 or 2. Once
the switch has been supplied with voltage it will also remain live at idle,
provided a driving range other than 1 or R is selected.

z

If the cruise control is inoperative on 1.9L TDI models, check if system is
activated, See CRUISE CONTROL SYSTEM - TDI ENGINES, ACTIVATING .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Cruise Control - New Beetle

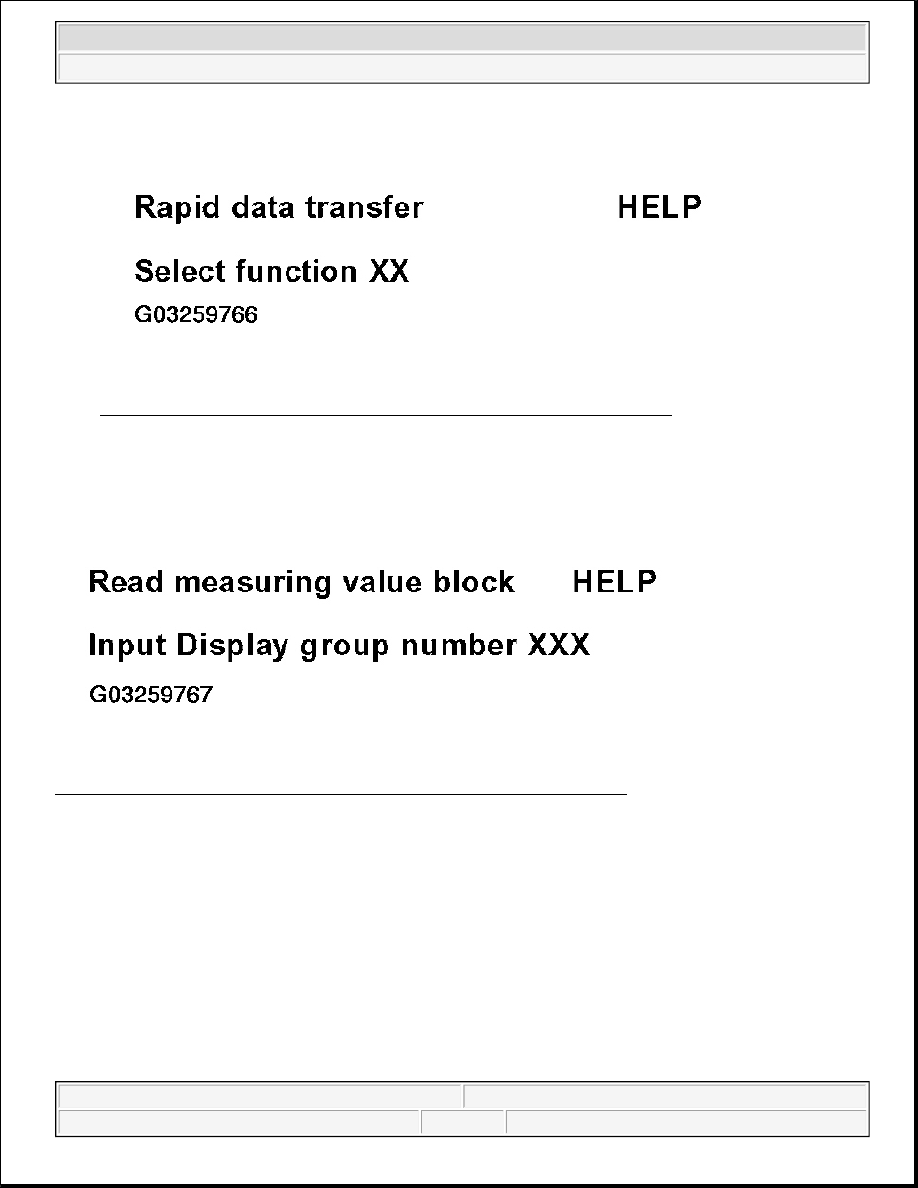

Fig. 2: VAG 1551/1552 Scan Tool Display - Cruise Control System (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

Fig. 3: VAG 1551/1552 Scan Tool Display - Cruise Control System (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

For all 1.8 Liter Turbo & 2.0 Liter engines:

z

Press 0, 6 and 6 buttons to select "Display group 66".

For 1.9 Liter TDI engine:

z

Press 0, 0 and 6 buttons to select "Display group 06".

z

Press Q button to enter input.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Cruise Control - New Beetle
