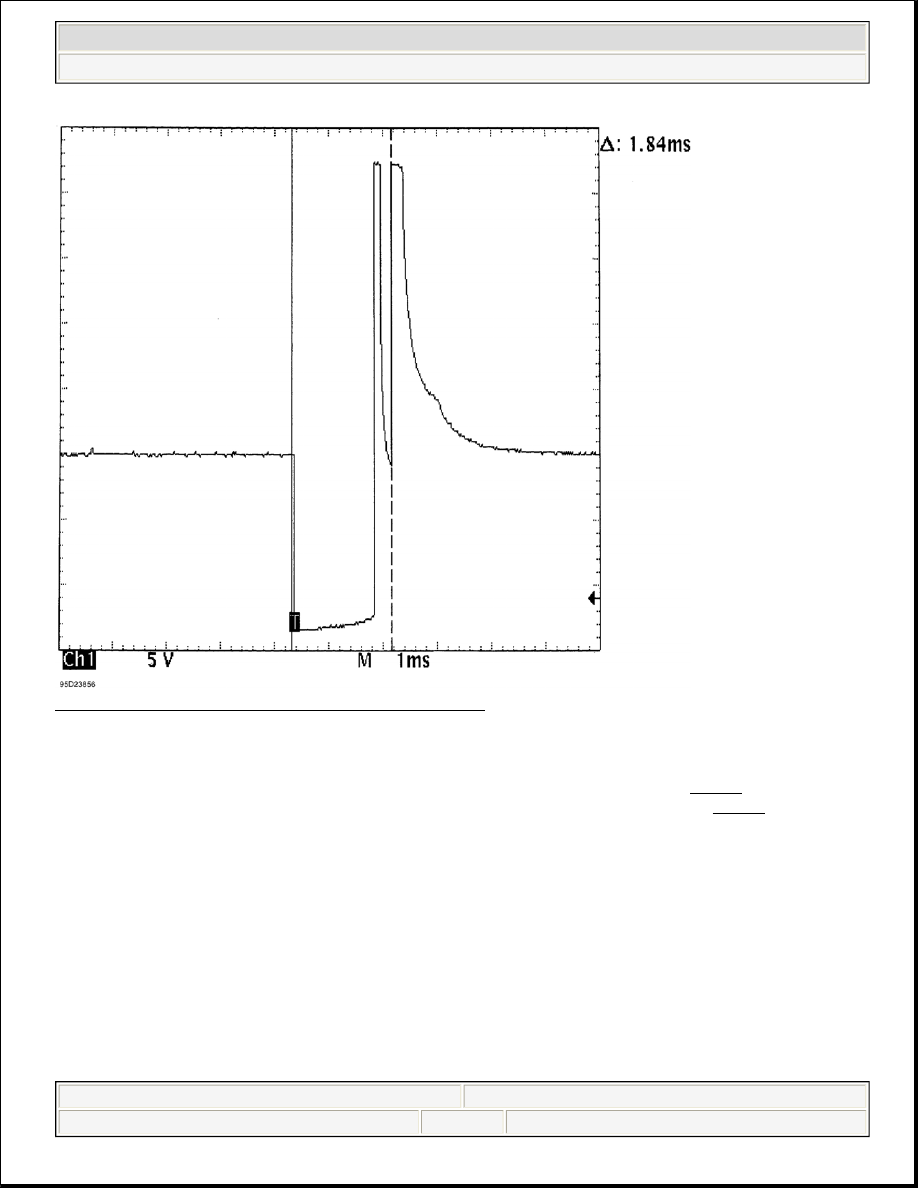

Fig. 26: Single Injector - Known Good - Voltage Pattern

EXAMPLE #8 - CURRENT CONTROLLED DRIVER

These two known-good waveform patterns are from a GM 2.0L In-Line 4 VIN [1]. Fig. Fig. 27 illustrates the
78 volt inductive spike that indicates a zener diode is not used. The second waveform, Fig. Fig. 28 , was taken
during hot idle, closed loop, and no load.



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Waveforms - Injector Pattern Tutorial



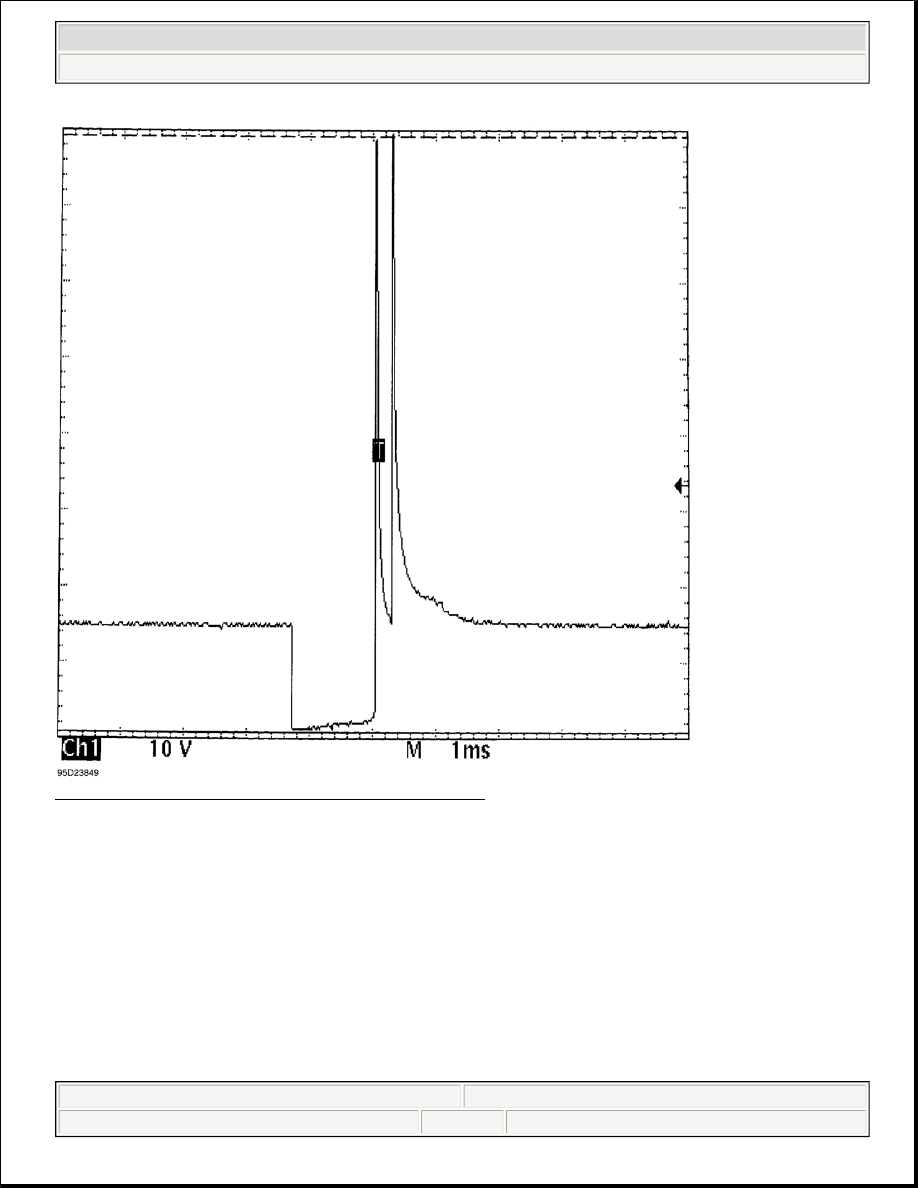

Fig. 27: Single Injector - Known Good - Voltage Pattern



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Waveforms - Injector Pattern Tutorial

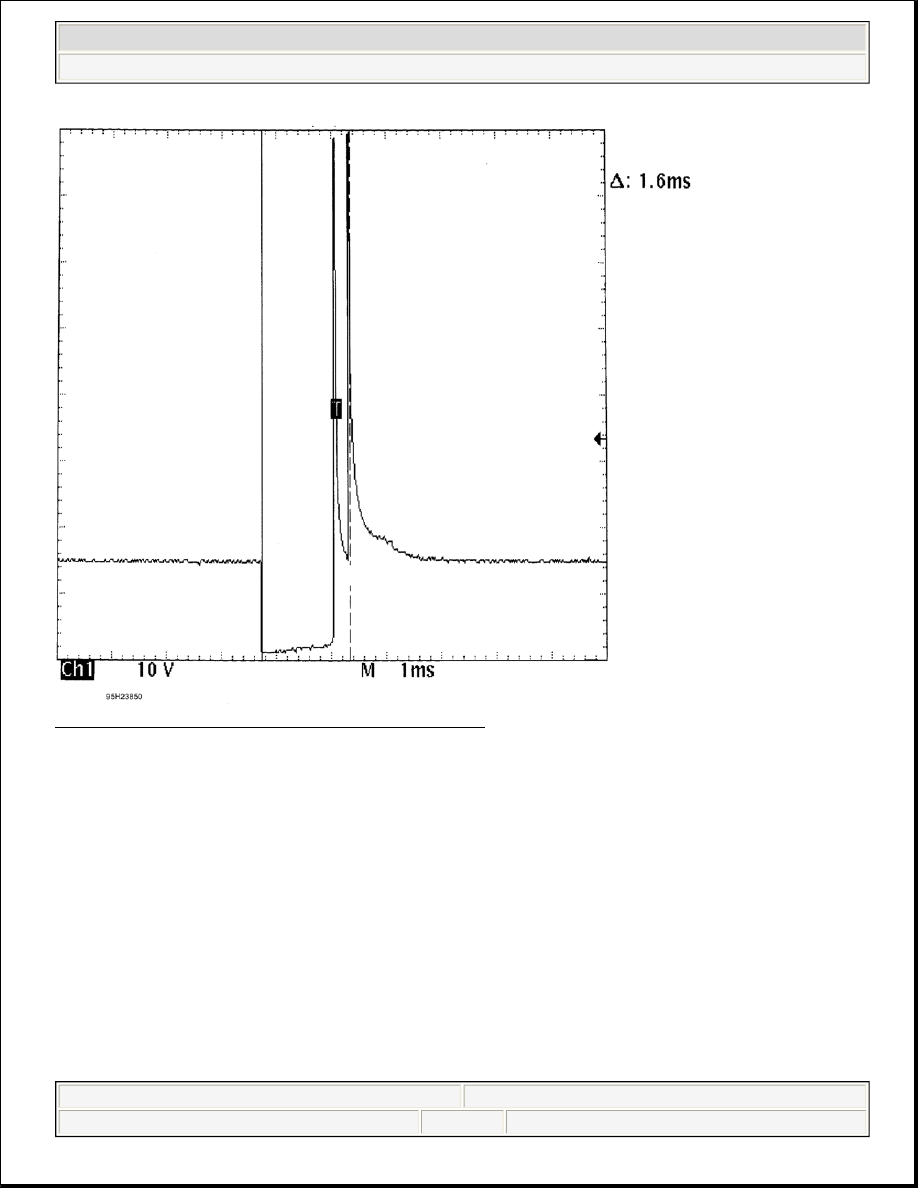

Fig. 28: Single Injector - Known Good - Voltage Pattern



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Waveforms - Injector Pattern Tutorial



GENERAL INFORMATION

Wheel Alignment Theory & Operation

ADJUSTMENTS

PRE-ALIGNMENT INSTRUCTIONS

GENERAL ALIGNMENT CHECKS

Before adjusting wheel alignment, check the following:

z

Each axle uses tires of same construction and tread style, equal in tread wear and overall diameter. Verify
that radial and axial runout is not excessive. Inflation should be at manufacturer's specifications.

z

Steering linkage and suspension must not have excessive play. Check for wear in tie rod ends and ball
joints. Springs must not be sagging. Control arm and strut rod bushings must not have excessive play. See
Fig. 1 .

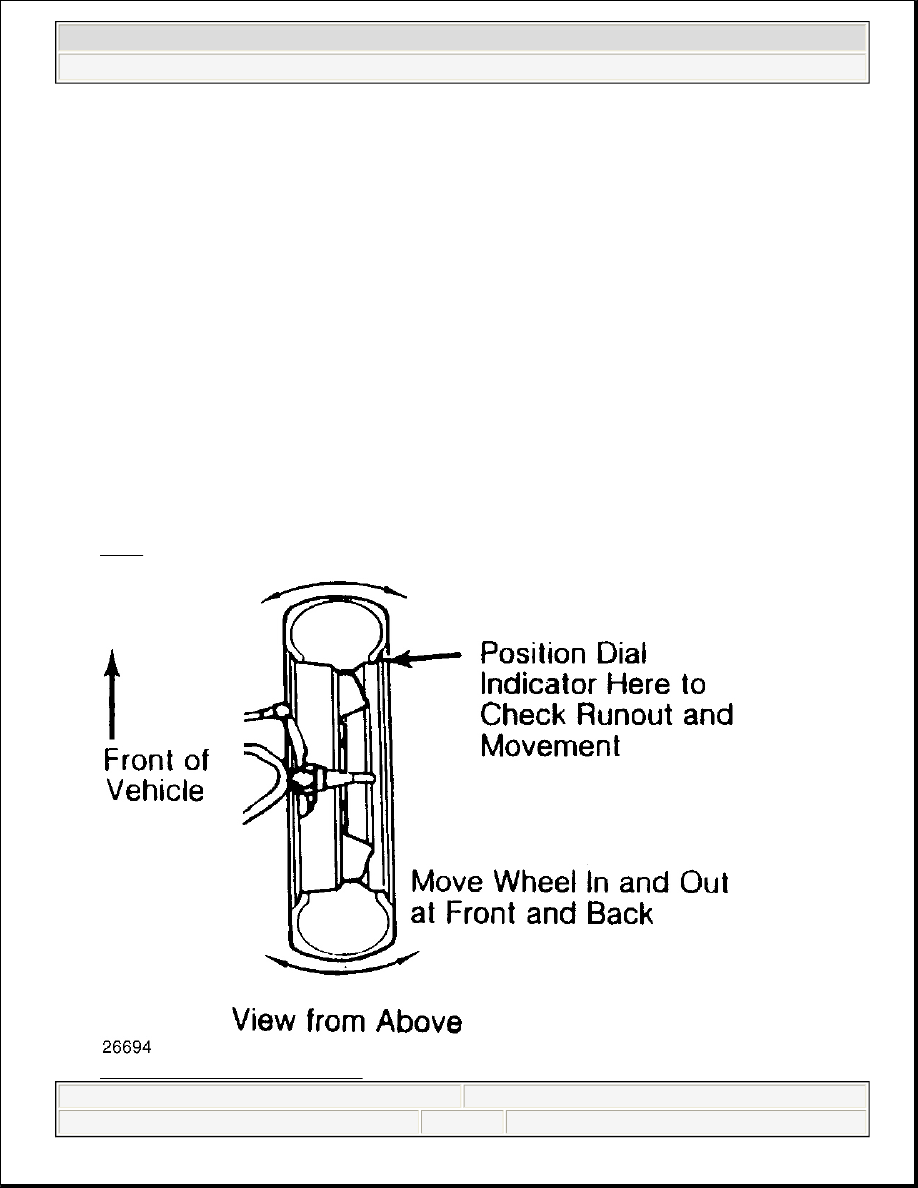

Fig. 1: Checking Steering Linkage

NOTE:

This article is intended for general information purposes only. This information
may not apply to all makes and models.



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Wheel Alignment Theory & Operation





1998 Chevrolet Pickup C1500

GENERAL INFORMATION Wheel Alignment Theory & Operation
