Volkswagen New Beetle. Manual - part 1667

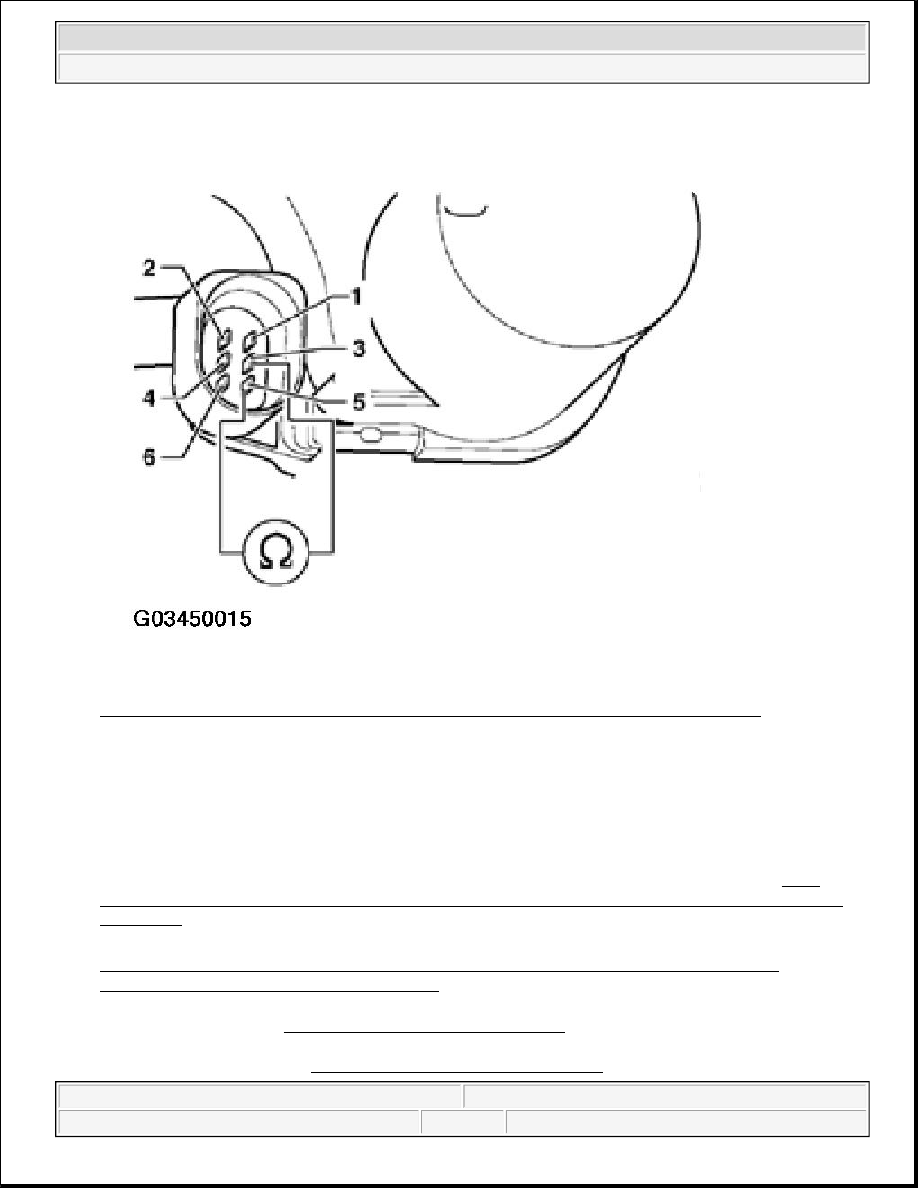

Fig. 40: Measuring Resistance From Throttle Valve Drive Between Terminals 3 And 5
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specification: 1.0 to 5.0

If the specification is not obtained:

z

Replace Throttle Valve Control Module -J338-, see item 22 .

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING .

z

Adapt Motronic Engine Control Module (ECM) -J220- to Throttle Valve Control Module -J338-, see
MOTRONIC ENGINE CONTROL MODULE (ECM) - J220- TO THROTTLE VALVE
CONTROL MODULE - J338-, ADAPTING .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



If the specification is obtained:

z

Check voltage supply of Throttle Valve Control Module -J338- and wiring to control module, see
CHECKING VOLTAGE SUPPLY AND WIRING TO CONTROL MODULE .

z

Check Throttle Position (TP) sensors (EPC).

See THROTTLE POSITION (TP) SENSOR, CHECKING

If the voltage supply and wiring is OK:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220-, REPLACING .

Checking voltage supply and wiring to control module

z

Disconnect 6-pin connector from Throttle Valve Control Module - J338- -arrow-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



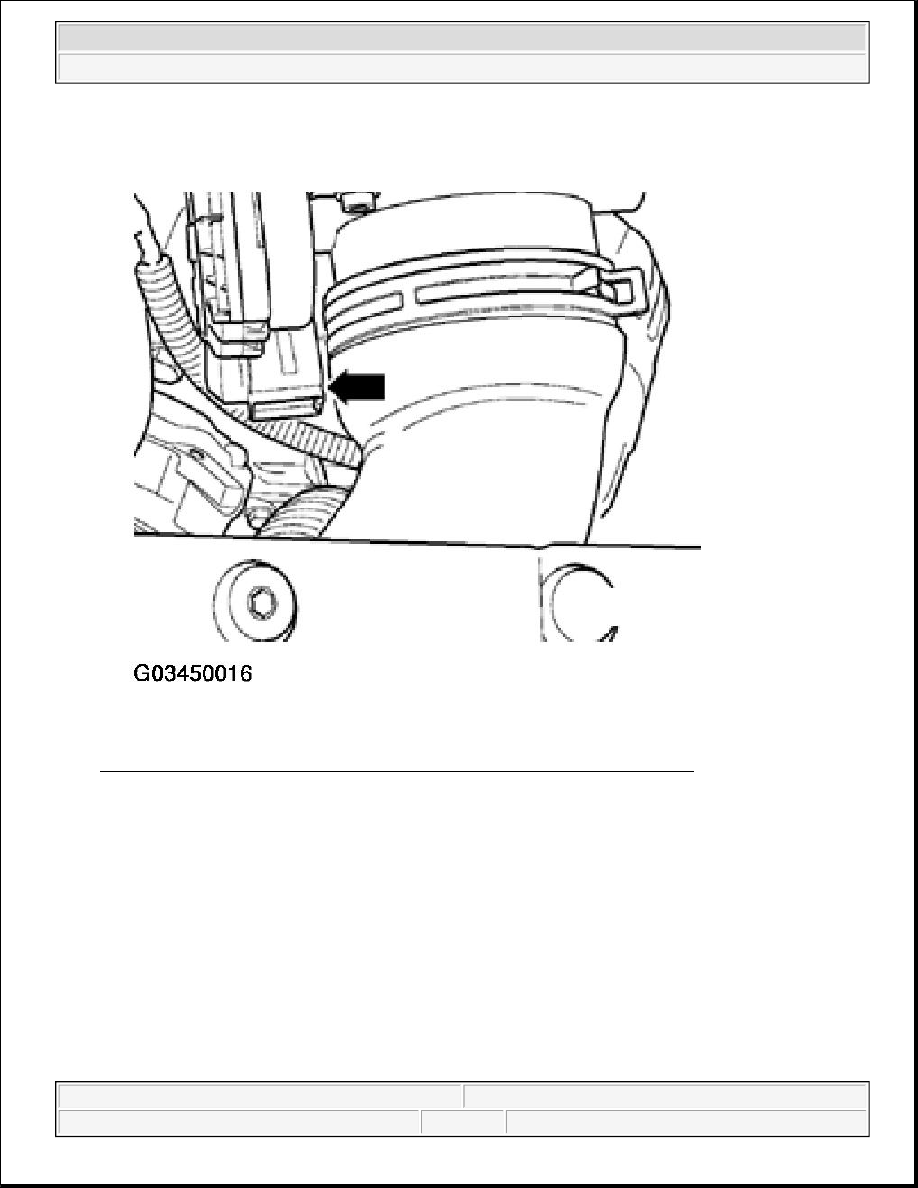

Fig. 41: Disconnecting 6-Pin Connector From Throttle Valve Control Module
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

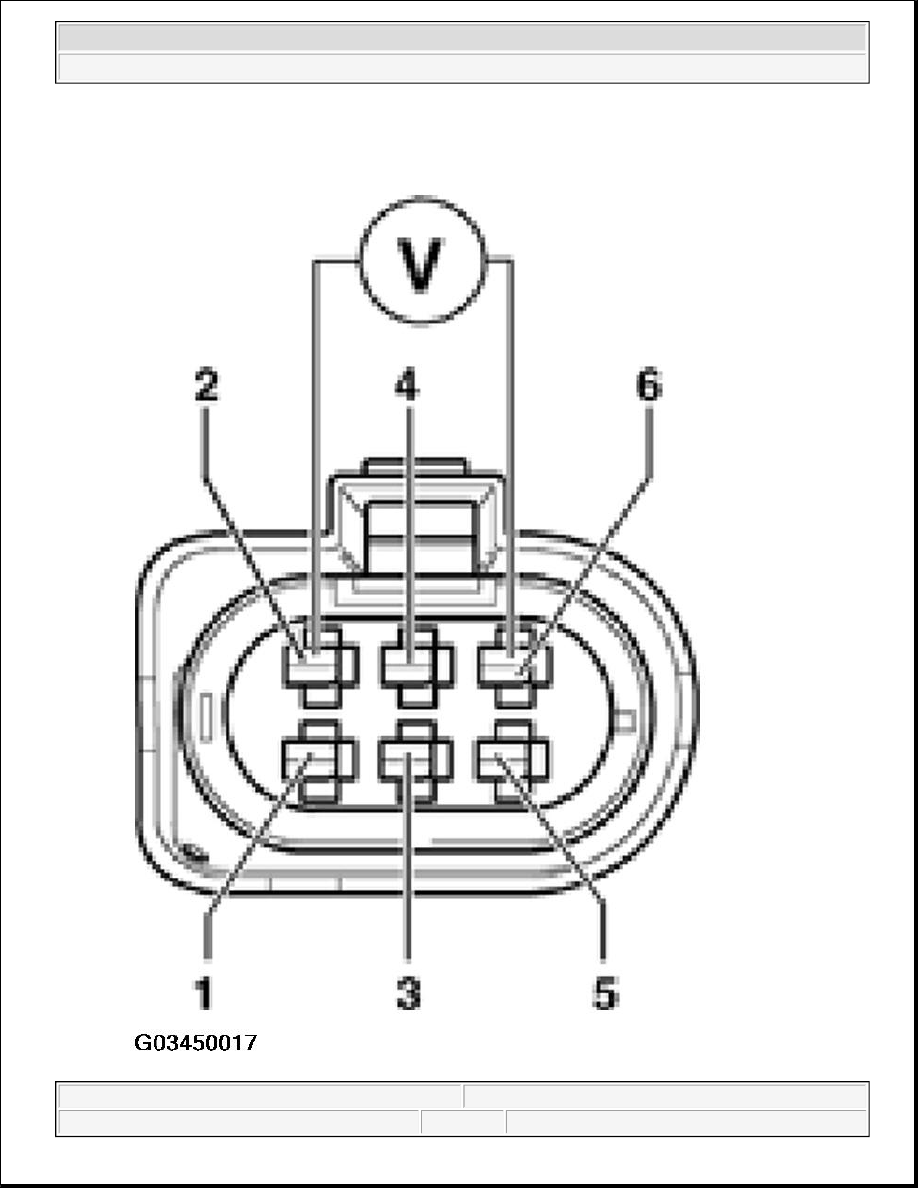

Connect multimeter to measure voltage to terminals 2 + 6 of connector.

z

Switch on ignition.

Specification: min. 4.5 V

z

Switch off ignition.
