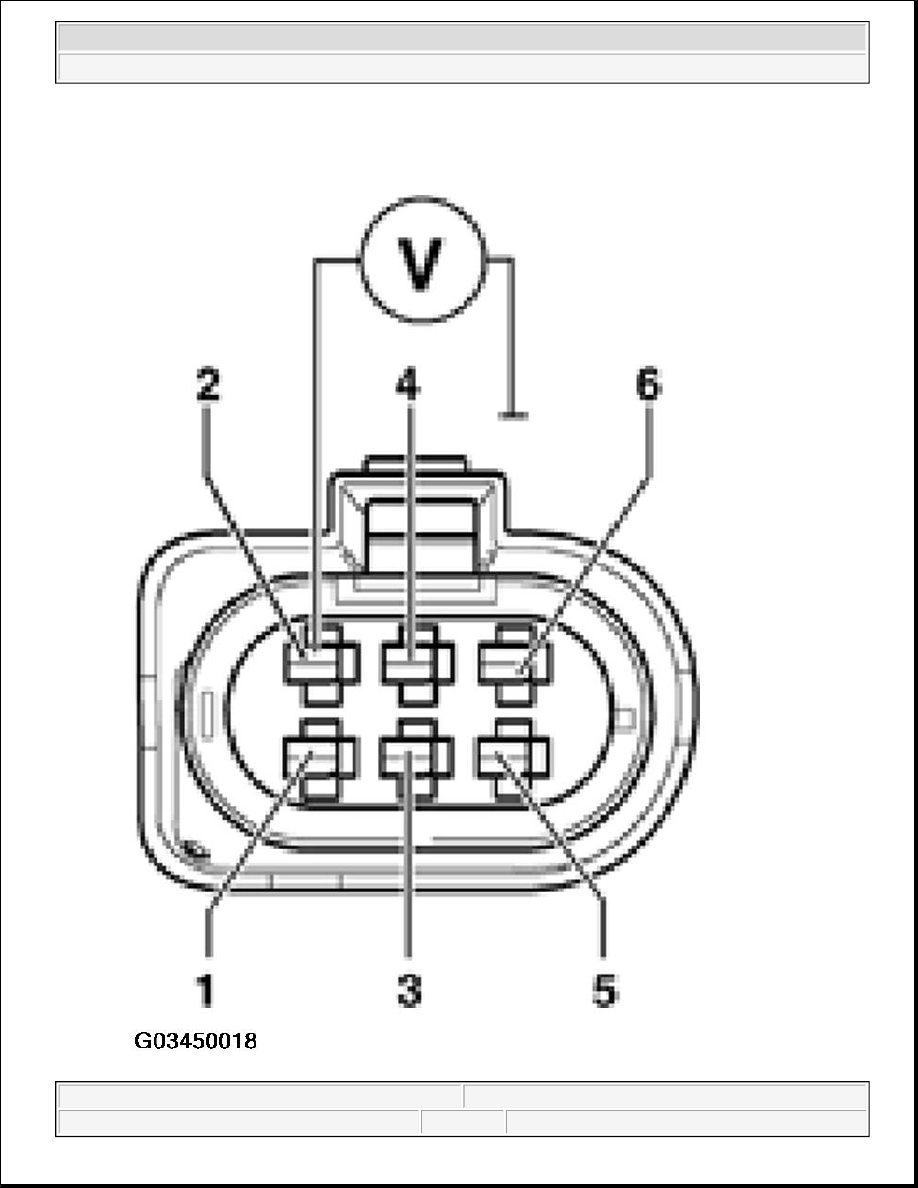

Fig. 42: Measuring Voltage Between Terminals 2 And 6 Of Throttle Valve Control Module Harness z Connect multimeter to measure voltage at connector terminal 2 and Ground (GND). z Switch on ignition. Specification: min. 4.5 V
2003 Volkswagen New Beetle GLS 1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
|
