Volkswagen New Beetle. Manual - part 1666





Indicated on display

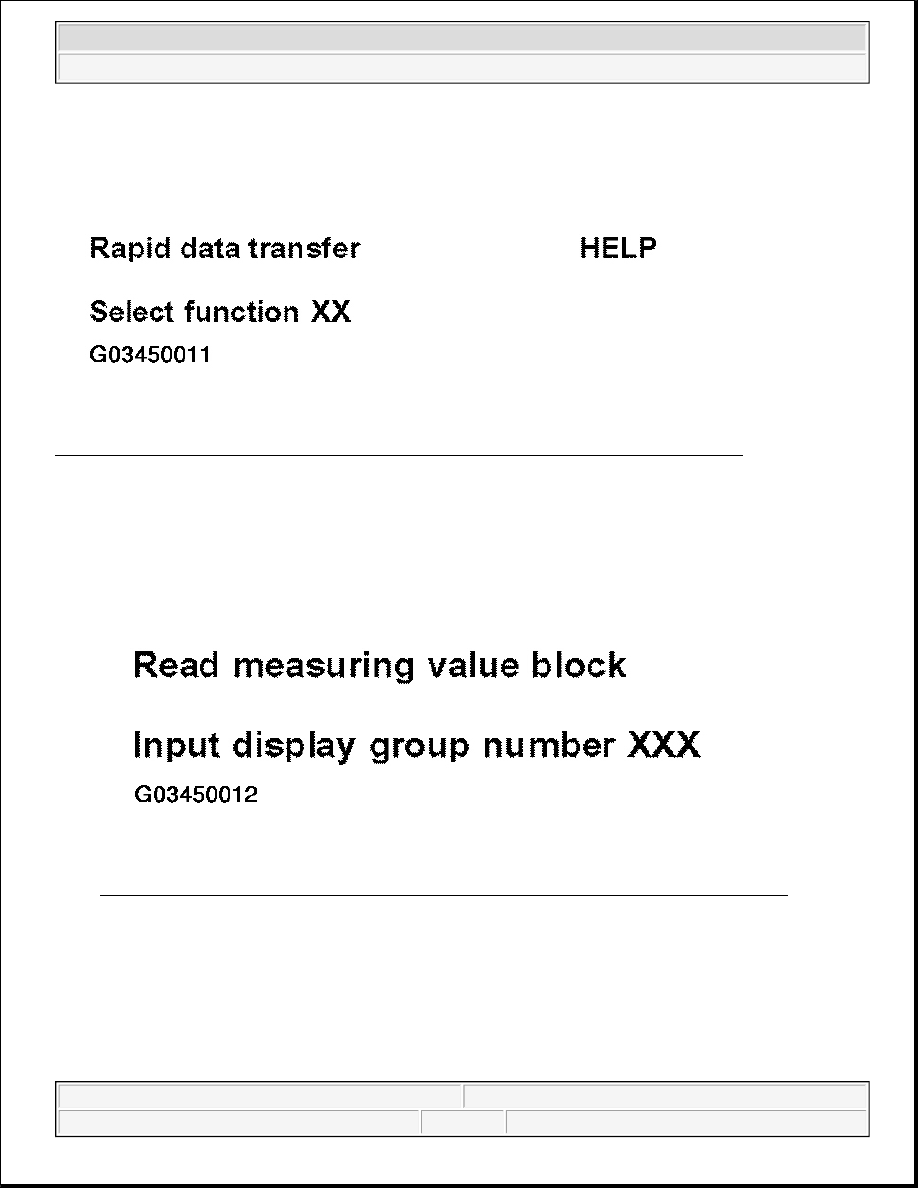

Fig. 36: Identifying Scan Tool Display - Checking Throttle Valve Control Module (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display

Fig. 37: Identifying Scan Tool Display - Checking Throttle Valve Control Module (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -6- and -2- for "Display group number 62" and confirm entry with -Q- button.

Indicated on display (1 to 4 Display zones)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



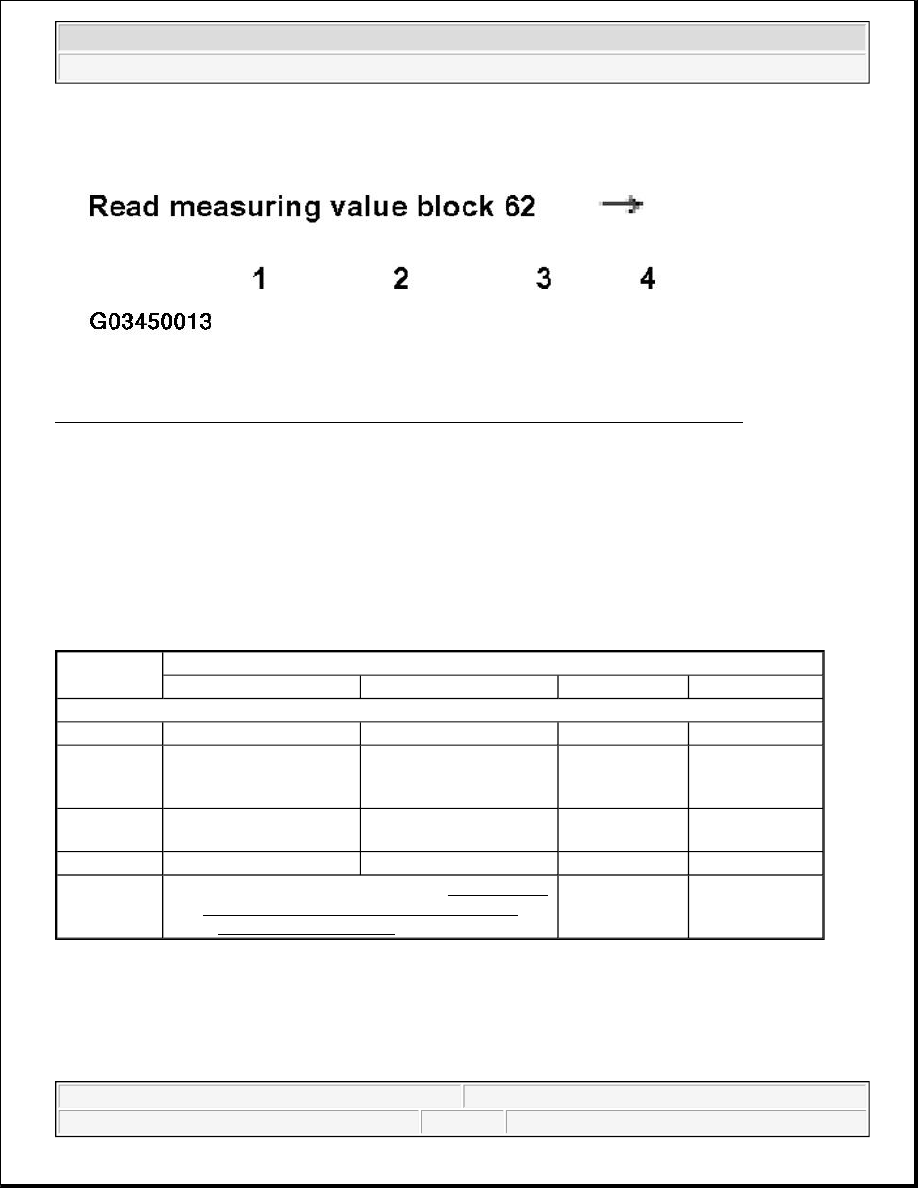

Fig. 38: Identifying Scan Tool Display - Checking Throttle Valve Control Module (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check throttle valve angle at idling stop from Throttle valve angle sensor 1 -G187- in display zone 1:

Specification: 10 to 88%

z

Check throttle valve at idling stop from Throttle valve angle sensor 2 -G188- in display zone 2:

Specification: 89 to 11%

DISPLAY GROUP 62: SPEED CONTROL, ELECTRONIC POWER CONTROL (EPC)

z

Depress accelerator slowly until full throttle position and observe angles displayed in display zones 1 and
2:

z

Percent figure in display zone 1 must rise continuously and evenly. Full tolerance range 10 to 88% is not
always displayed.



Display zones

1

2

3

4

Display group 62: Speed control, Electronic Power Control (EPC)
Display

xxx %

xxx %

xxx %

xxx %

Indicated

Throttle valve angle

sensor 1 -G187-

Throttle valve angle

sensor 2 -G188-

Throttle Position

(TP) sensor 1 -

G79-

Throttle Position

(TP) sensor 2 -

G185-

Working
range

0 to 100%

0 to 100%

0 to 100%

0 to 100%

Specification

10 to 88%

89 to 11%

10 to 18%

5 to 9%



If specifications are not achieved, see CHECKING

VOLTAGE SUPPLY AND WIRING TO

CONTROL MODULE , Continuation

-

-



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Percent figure in display zone 2 must fall continuously and evenly. Full tolerance range 89 to 11% is not
always displayed.

If the specifications are obtained:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

Continuation

If the displays do not indicate as described:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

z

Disconnect 6-pin connector from Throttle Valve Control Module - J338- -arrow-.

NOTE:

z

The reason why the display in display zone 1 rises and the display in
display zone 2 falls is because the potentiometers (angle sensors) in the
angle sensors run in opposite directions.

z

The voltage of angle sensor 1 moves toward 5 volts. (The more the throttle
valve is opened the higher the voltage; percentage increases).

z

While the voltage of angle sensor 2 drops from 5 volts toward 0 volt. (The
more the throttle valve is opened the lower the voltage; percentage falls).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

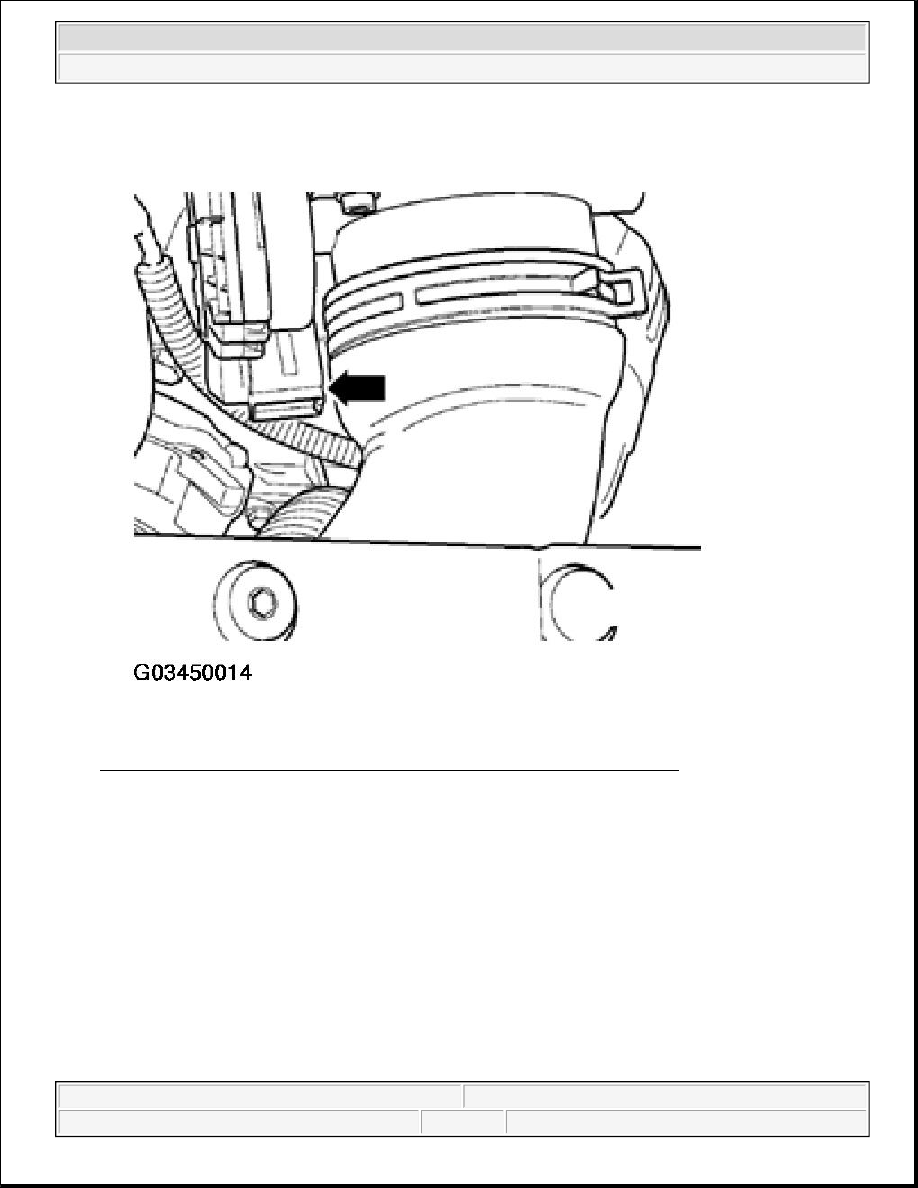

Fig. 39: Disconnecting Pin Connector From Throttle Valve Control Module
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure resistance from throttle valve drive between terminals 3 and 5



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
