z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

Testing power supply to Mass Air Flow (MAF) sensor -G70-

z

Disconnect 5-pin connector -1- from Mass Air Flow (MAF) sensor -G70- arrow.

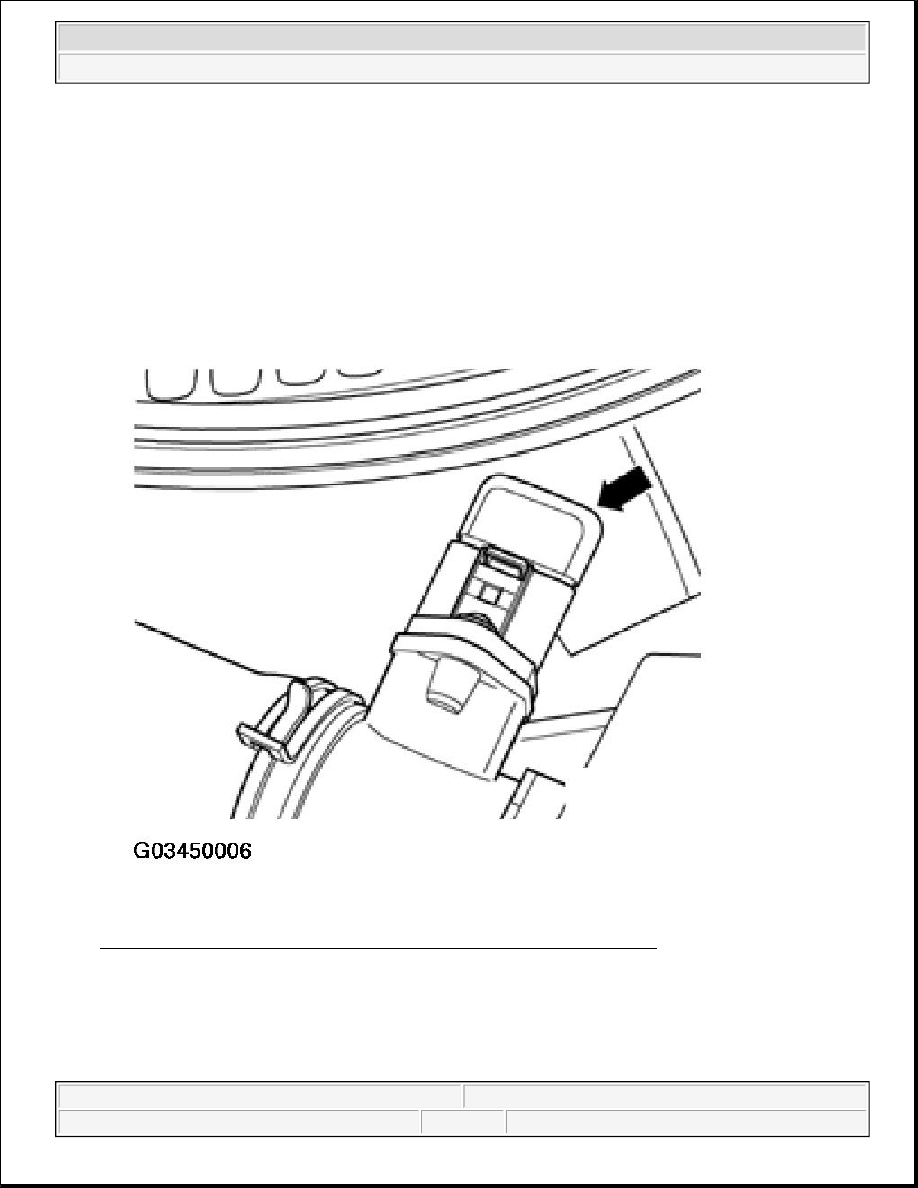

Fig. 31: Disconnecting Pin Connector From Mass Air Flow (Maf) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Connect multimeter to measure voltage on connector terminal 2 and engine Ground (GND).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

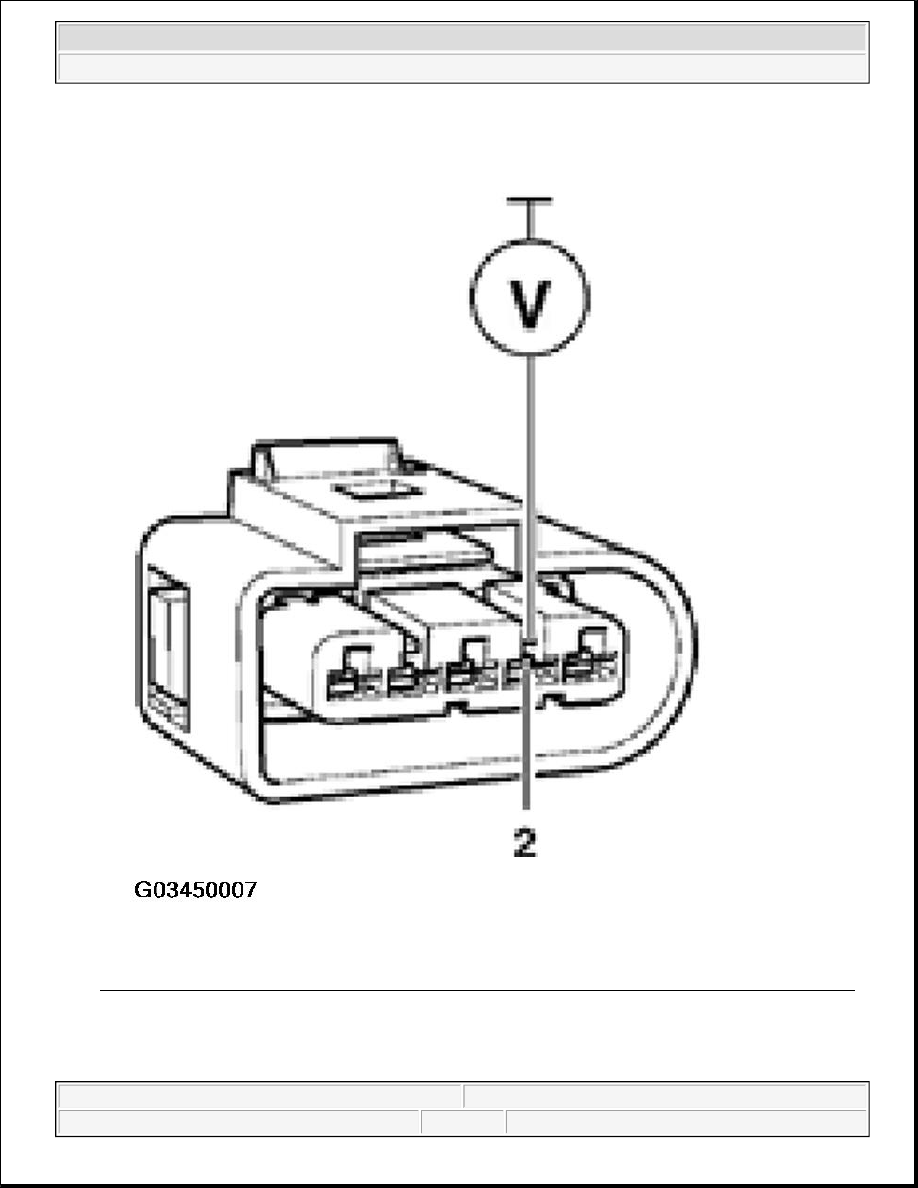

Fig. 32: Measuring Voltage Between Terminal 2 And Ground On MAF Sensor Harness Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Start engine and run at idle speed.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Specification: 11.0 to 15.0 V

If no voltage is present:

z

Switch off ignition.

z

Check wire between 5 -pin connector terminal 2 and Fuel Pump (FP) Relay -J17- for open circuit using
Electrical Wiring Diagram.

Wire resistance: max. 1.5

If the voltage supply and wiring is OK:

z

Connect multimeter to measure voltage on connector terminal 4 and engine Ground (GND).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

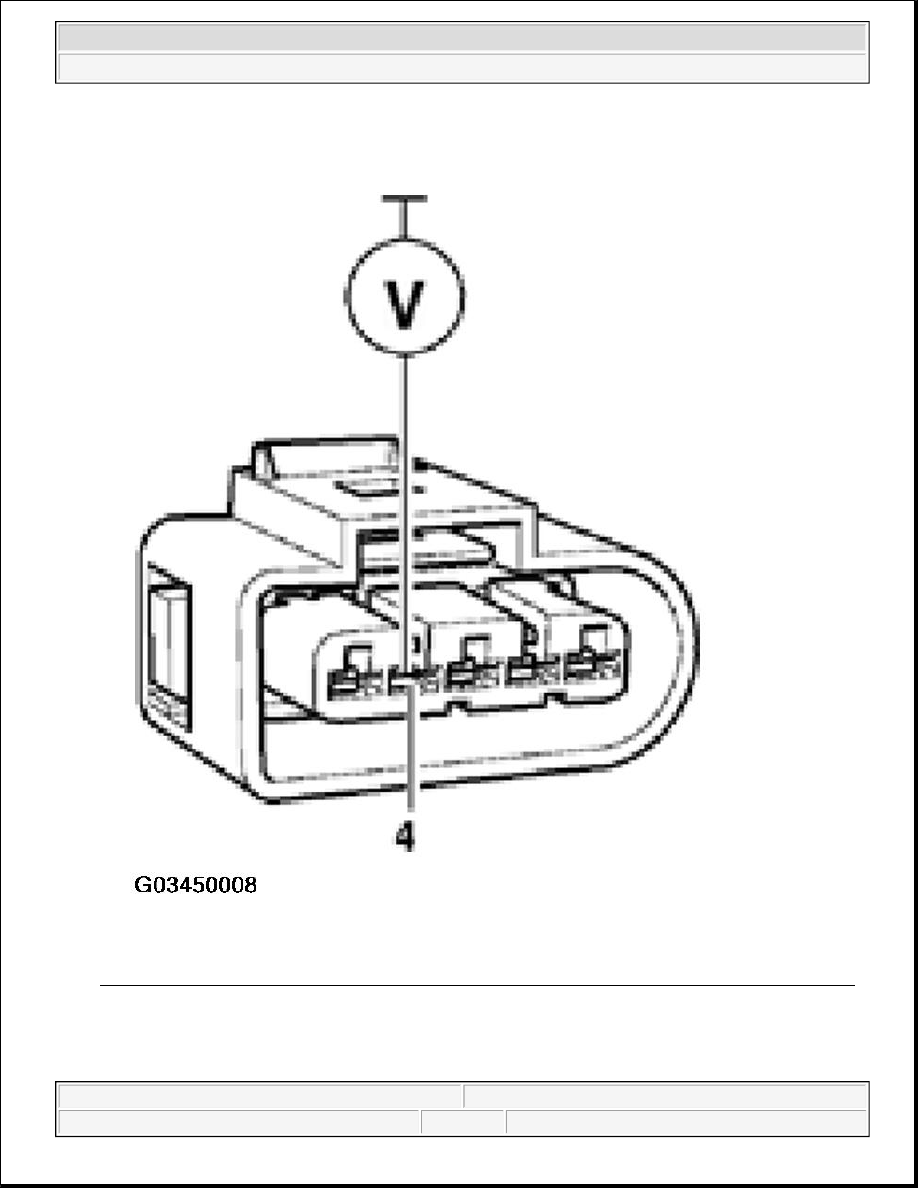

Fig. 33: Measuring Voltage Between Terminal 4 And Ground On MAF Sensor Harness Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Switch on ignition.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
