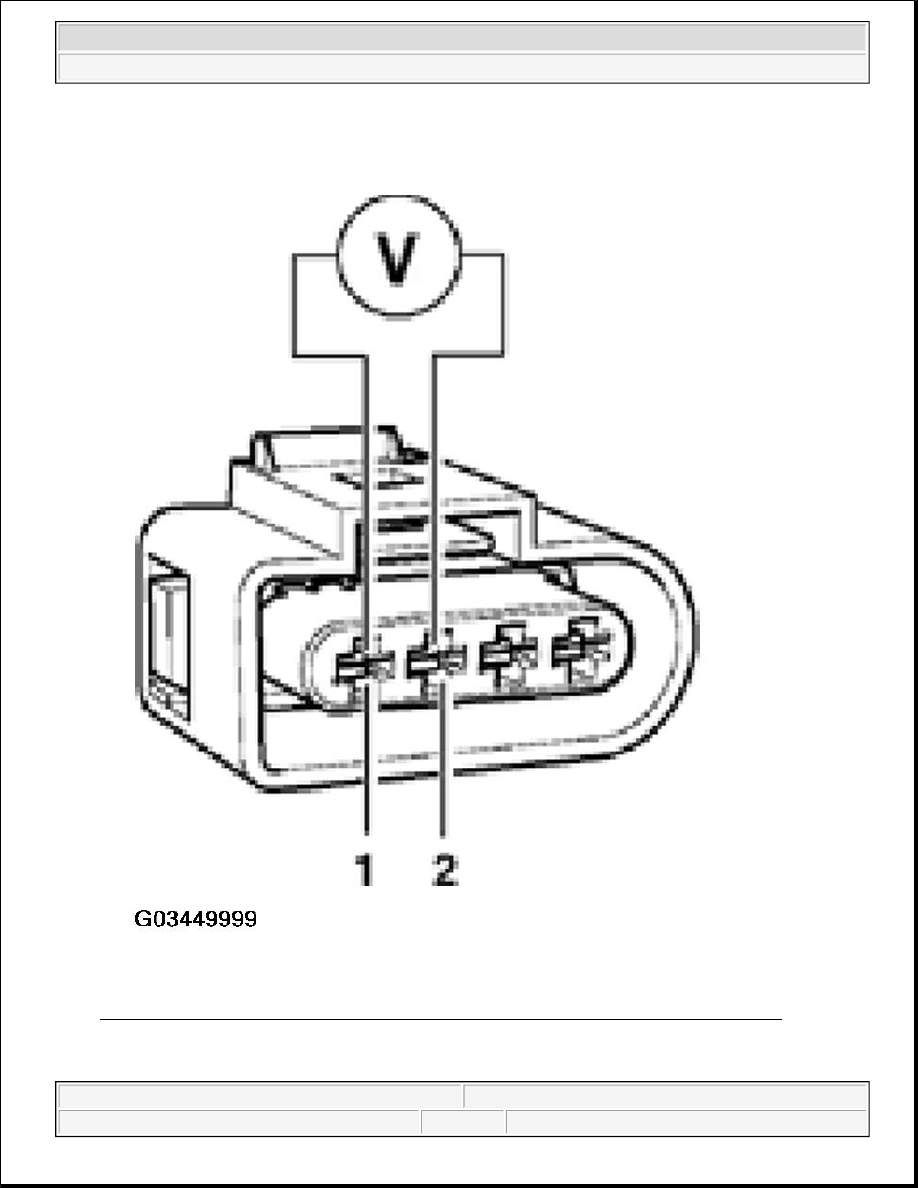

Fig. 24: Measuring Voltage Between HO2S -G130- Harness Connector Terminal 1 And 2
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure voltage supply and observe display group 41, display zone 4.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Display: Htg.aC.ON:

z

Specification: 11.0 to 14.5 V

Display: Htg. aC.ON/Htg.aC.OFF (alternating):

z

Specification: Between 0.0 to 12.0 V fluctuating

If no voltage is present:

z

Switch off ignition.

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fig. 25: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between test box and 4 -pin connector according to Electrical Wiring
Diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

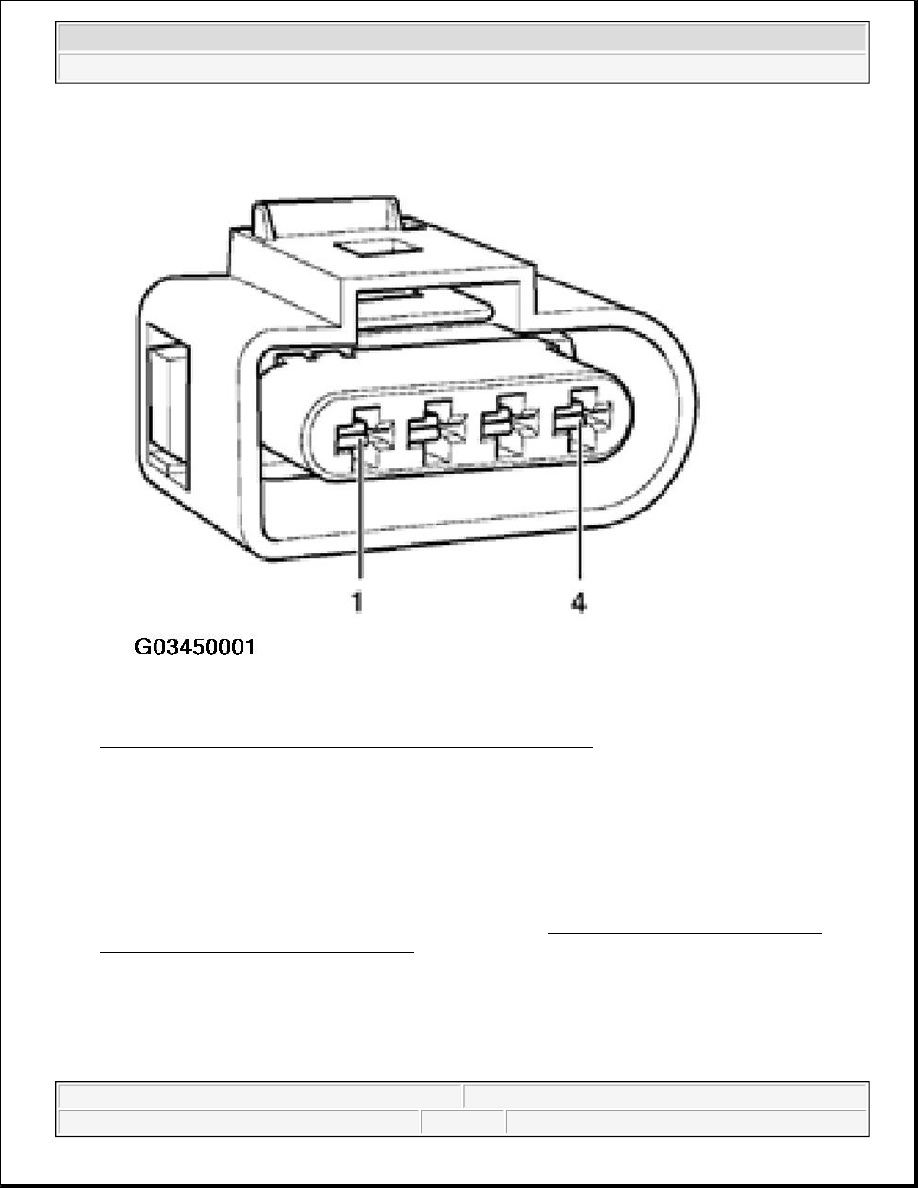

Fig. 26: Identifying HO2S -G130- Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

terminal 2 + socket 63:

z

Wire resistance: Max. 1.5

If no wiring malfunction is found:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220-, REPLACING
 .
