Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

All fuses must be OK

z

Battery voltage must be at least 11.5 V

z

Fuel pump relay must be OK. Fuse holder is located behind access panel at far left end of dash.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

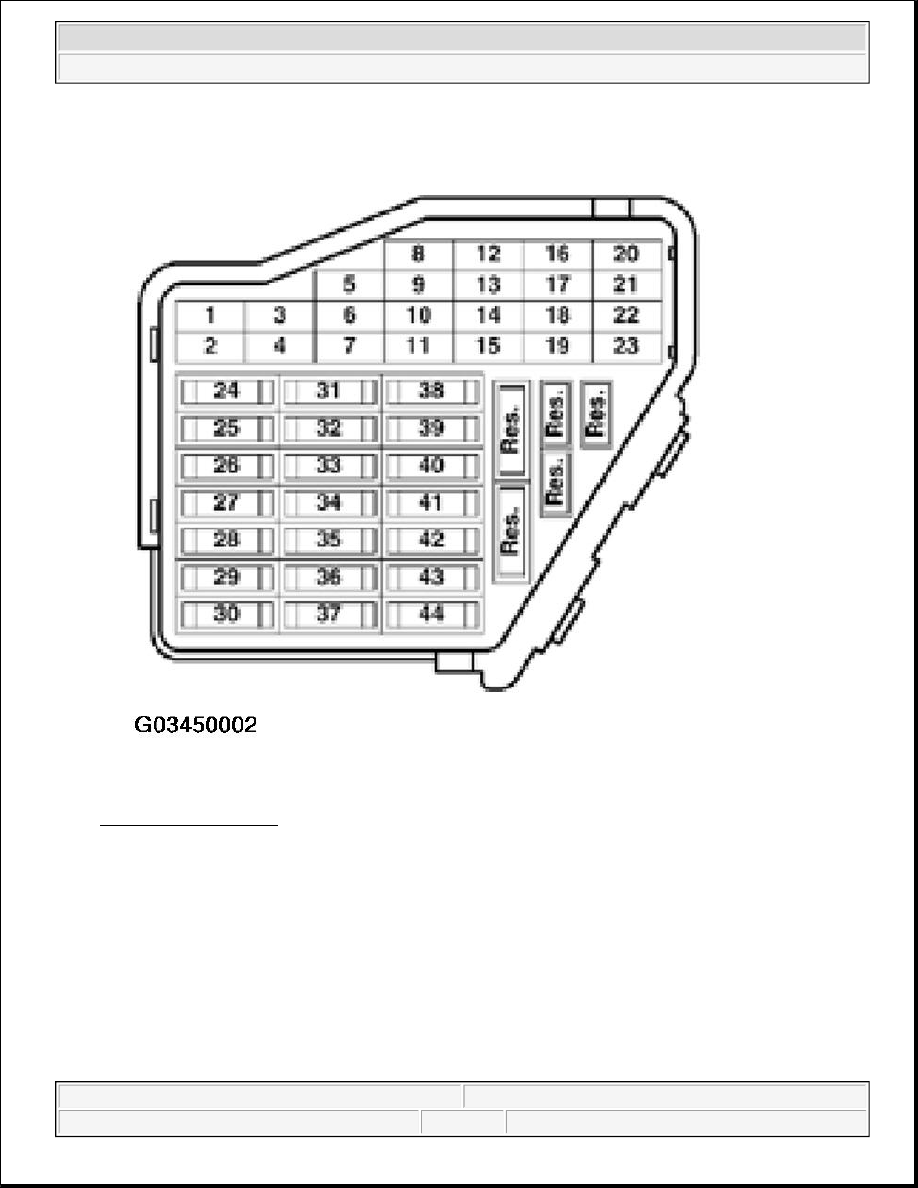

Fig. 27: Locating Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

All electrical accessories, e.g. lights and rear window defroster, must be switched off

z

If the vehicle is equipped with air conditioning, it must be turned off

z

On vehicles with automatic transmission: selector lever in "P" or "N" position

z

Engine Coolant Temperature (ECT) must be at least 80 °C, see display group 04, display zone 3

Test sequence

z

Connect VAG 1551 scan tool ((VAG 1552). Start engine and select "Address word" 01 of Motronic
Engine Control Module (ECM) -J220-. Engine must be running at idle speed. (Connecting scan tool and
selecting Motronic Engine Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



SELECTING MOTRONIC ENGINE CONTROL MODULE (ECM) -J220- ).

Indicated on display

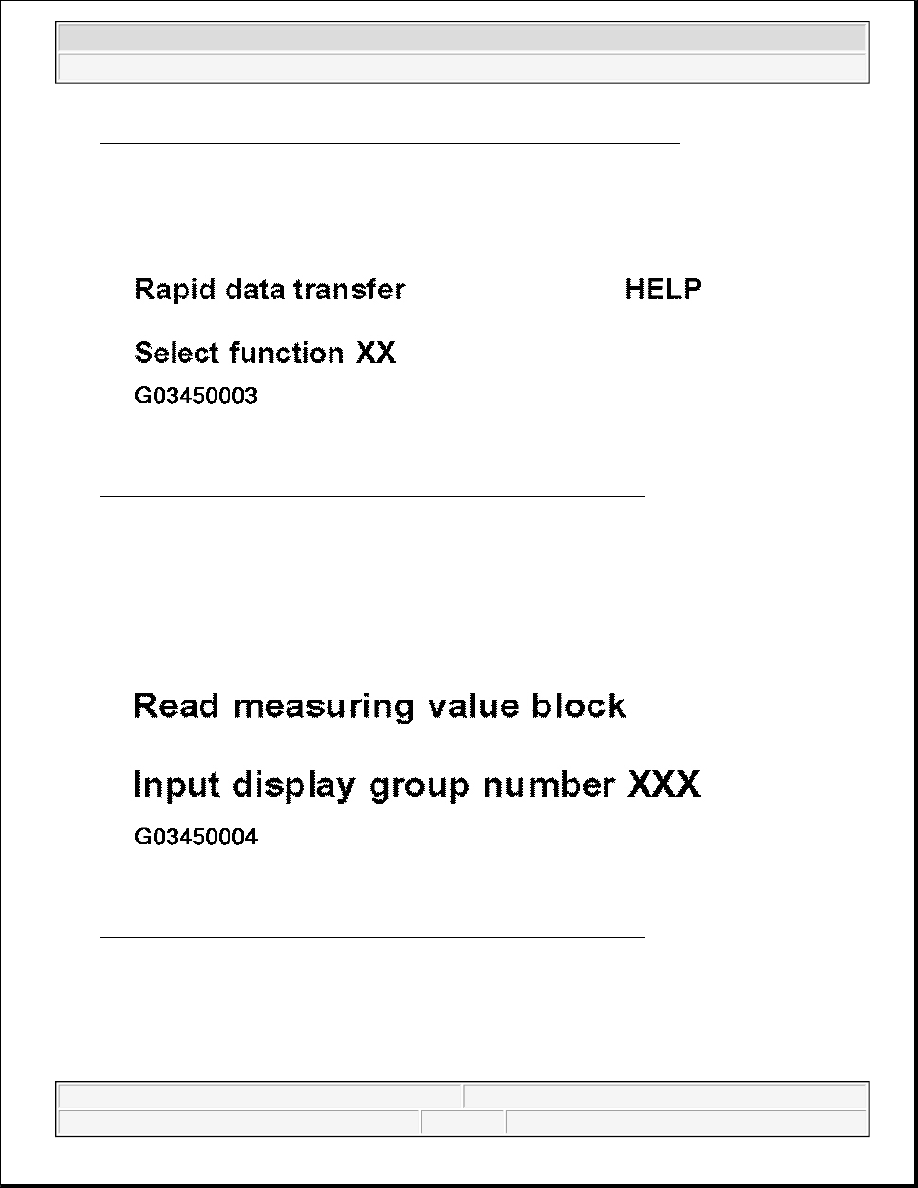

Fig. 28: Identifying Scan Tool Display - Checking MAF Sensor (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display

Fig. 29: Identifying Scan Tool Display - Checking MAF Sensor (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -2- for "Display group number 2" and confirm entry with -Q- button.

Indicated on display (1 to 4 Display zones)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fig. 30: Identifying Scan Tool Display - Checking MAF Sensor (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check Mass Air Flow drawn in display zone 4: Specification: 2.0 to 4.5 g/s

DISPLAY GROUP 2: LOAD REGISTRATION

z

If value is as specified but DTC memory has recorded a DTC relating to Mass Air Flow (MAF) sensor,
test power supply to Mass Air Flow (MAF) sensor, see TESTING POWER SUPPLY TO MASS AIR
FLOW (MAF) SENSOR -G70-
 .

If the specification is not obtained:

z

Check signal and Ground (GND) wires for Mass Air Flow (MAF) sensor, see TESTING SIGNAL AND
GROUND (GND) WIRES FOR MASS AIR FLOW (MAF) SENSOR -G70-
 .

If the specification is obtained:



Display zones

1

2

3

4

Display group 2: Load registration
Display

xxxx RPM

xxx.x %

xx.xx ms

xxx.x g/s

Indicated

Engine speed (in steps of

40)

Engine load

Injection

period

Mass Air Flow drawn

in

Operating
range

0 to 6800/min.

12.0 to

175.0%

0.0 to 2.0 ms

2.0 to 177.0 g/s

Specification

760--810 RPM

(1)



700-750 RPM

(2)

12.0 to 25.0%

1.5 to 4.0 ms

2.0 to 4.5 g/s

(1)

Engine idling at normal operating temperature for manual transmission

(2)

Engine idling at normal operating temperature for automatic transmission
