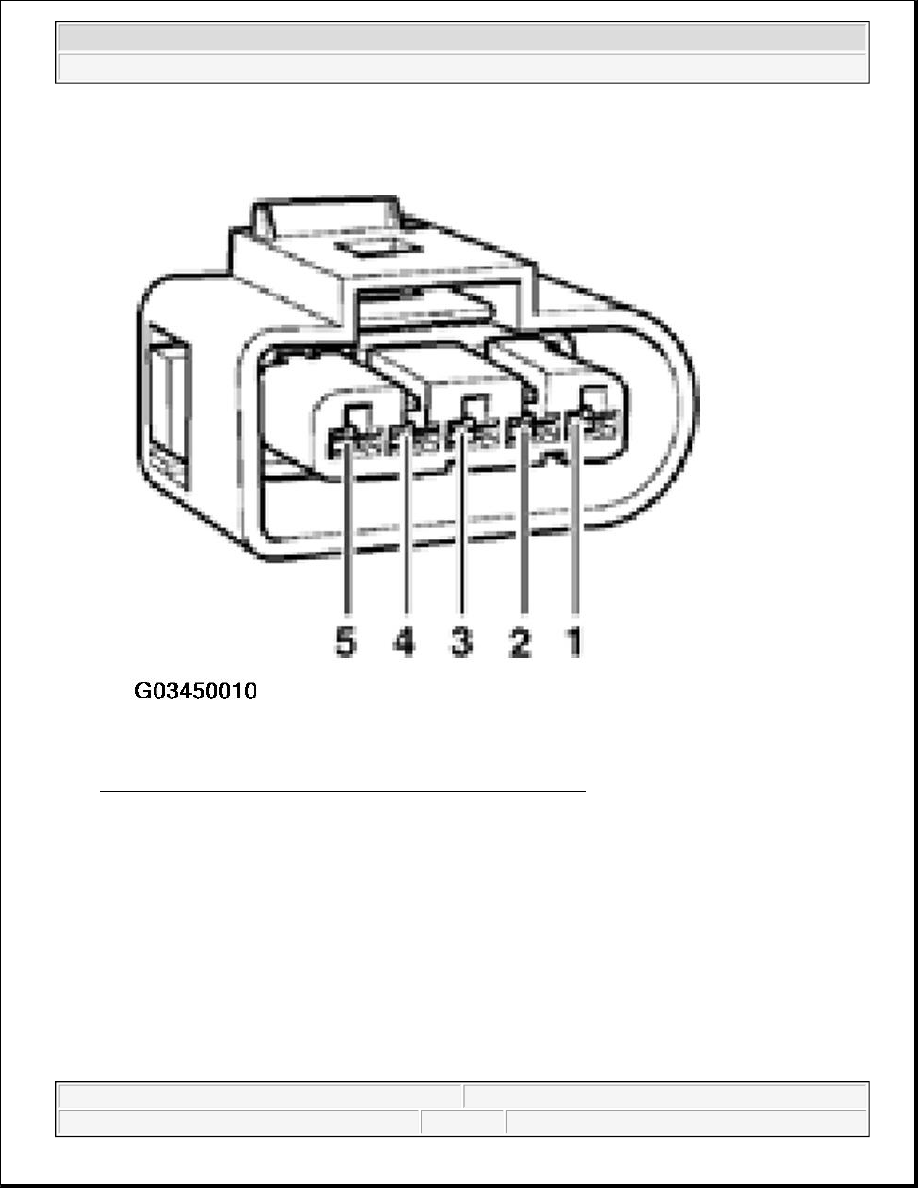

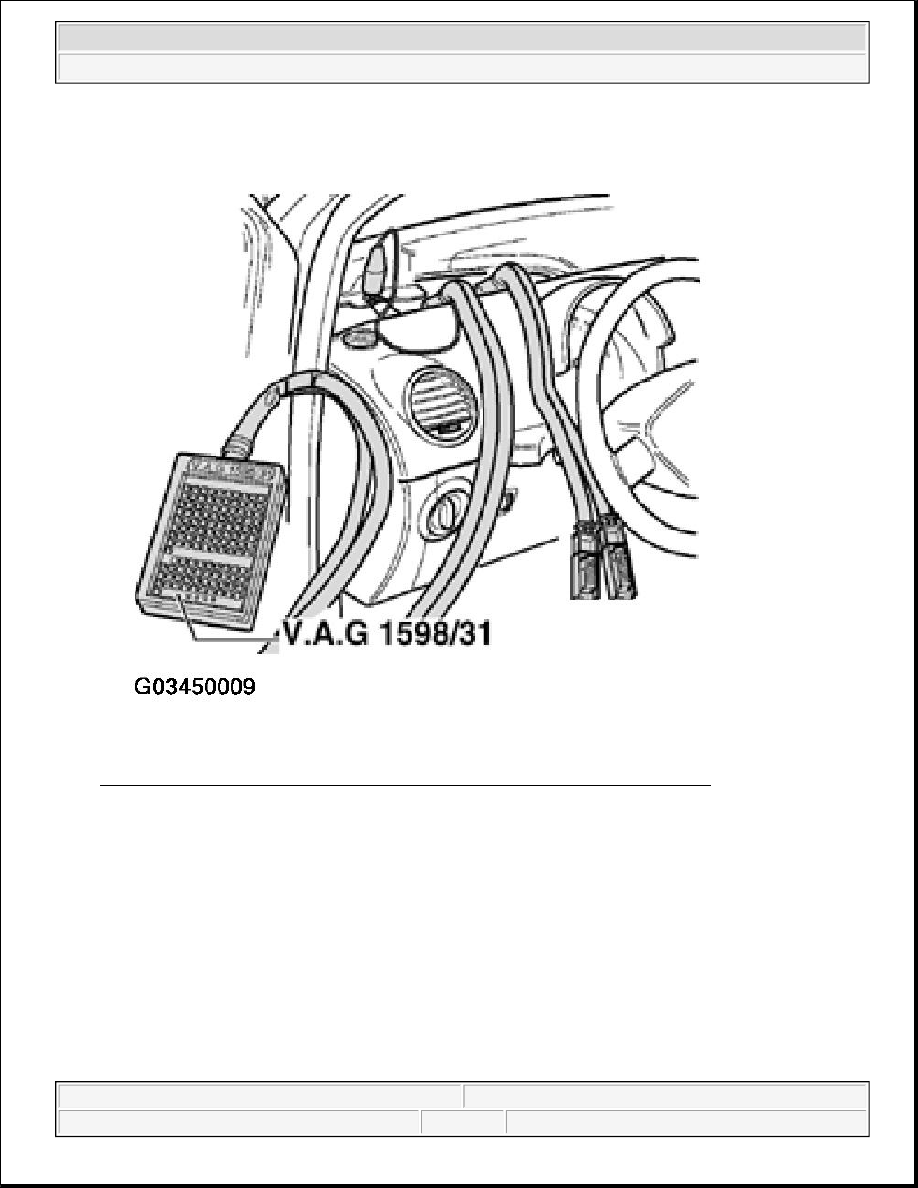

Specification: 4.5 to 5.5 V If no voltage is present: z Switch off ignition. z Check signal and Ground (GND) wires, see TESTING SIGNAL AND GROUND (GND) WIRES FOR Testing signal and Ground (GND) wires for Mass Air Flow (MAF) sensor -G70- z Remove inner plenum chamber cover, left: See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING z Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
2003 Volkswagen New Beetle GLS 1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
|
