Volkswagen New Beetle. Manual - part 1569





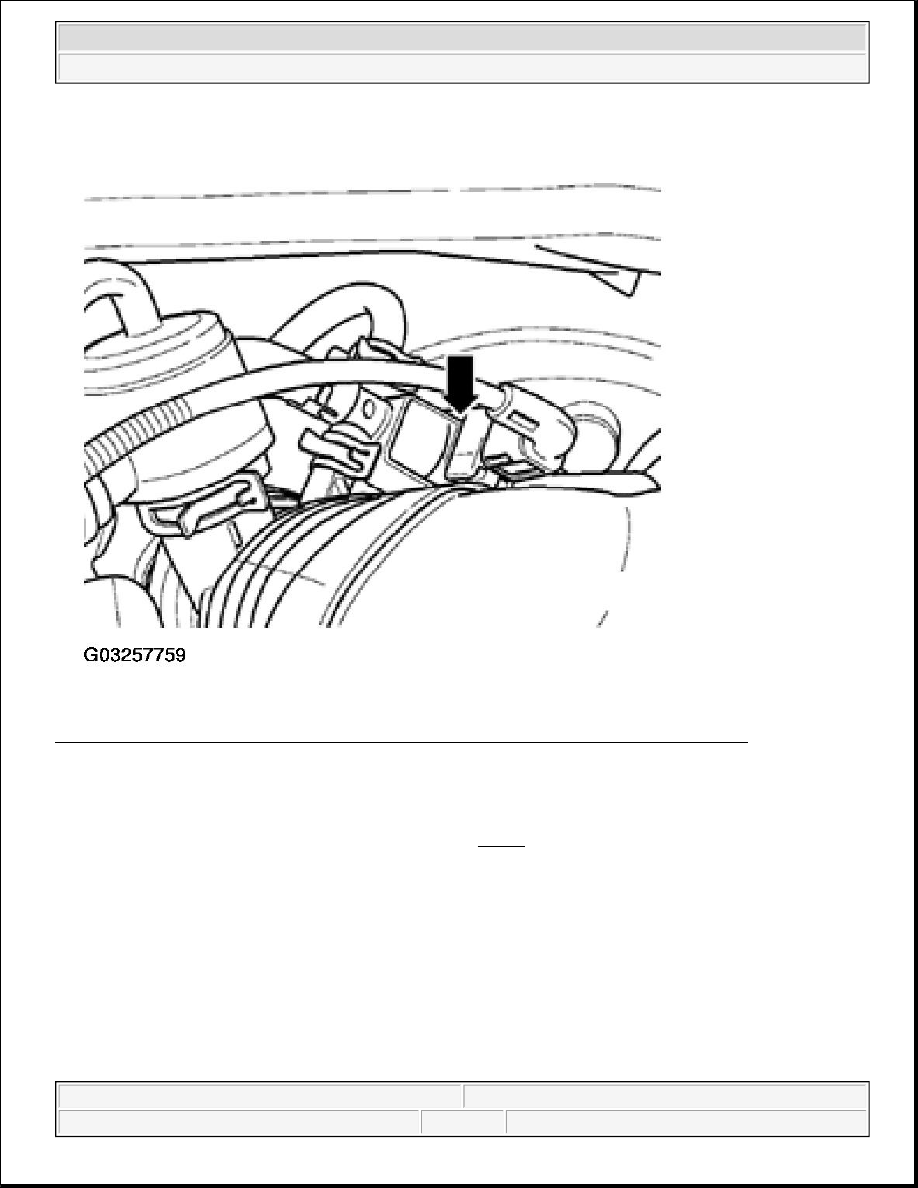

Fig. 2: Identifying Injection System Component Locations (Engine Codes AVH And AZG)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Engine codes BDC and BGD

The components A, B and C are not shown on the illustration.

A. Brake pedal switch -F47- or Brake light Switch -F-

z

Together in one housing in footwell

B. Throttle Position (TP) sensor -G79- and Sender -2- for accelerator pedal position -G185-

z

In footwell on accelerator pedal

C. Clutch vacuum vent valve switch -F36-

z

In footwell

NOTE:

The following list refers to items in Fig. 3 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)



1. EVAP canister purge regulator valve -N80-

z

EVAP system. See EVAP SYSTEM COMPONENTS, SERVICING

2. Return line

Only engine with engine code BDC:

z

Secure with spring-type clips

3. Supply line

z

Secure with spring-type clips

4. Camshaft Position (CMP) sensor -G40-

z

Below upper toothed belt guard

5. Intake manifold change-over valve -N156-

6. Intake manifold upper part

z

Disassembling and assembling. See INTAKE MANIFOLD UPPER PART, DISASSEMBLING
AND ASSEMBLING


z

Removing and installing. See INTAKE MANIFOLD UPPER PART, REMOVING AND
INSTALLING


7. Intake manifold lower part

z

Disassembling and assembling. See INTAKE MANIFOLD LOWER PART,
DISASSEMBLING AND ASSEMBLING


8. Combination valve

z

Secondary air system. See SECONDARY AIR SYSTEM

9. Throttle valve control module -J338-

z

When replacing, adapt (match) engine control module to throttle valve control module. See
COMPONENTS AND FUNCTIONS, ADAPTING .

z

Gold plated contacts

10. Positive Crankcase Ventilation (PCV) heating element -N79-

z

For crankcase breather

z

Check heating element voltage supply between contacts 1 and 2 with engine running, Specification:
min. 11.5V

11. 81-pin connector

z

Only disconnect or connect with ignition switched off

z

Release to disconnect

12. 12 - Motronic Engine Control Module (ECM) -J220-

z

On replacement, control module must be matched to electronic immobilizer. See COMPONENTS
AND FUNCTIONS, ADAPTING


z

Location: Under left side inner plenum chamber cover in passenger compartment

z

Replacing. See ENGINE CONTROL MODULE

NOTE:

The following list refers to items in Fig. 3 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)



13. 40-pin connector

z

Only disconnect or connect with ignition switched off

z

Release to disconnect

14. Protective housing for relays

z

Secondary Air Injection (AIR) pump relay -J299-

z

Motronic ECM power supply relay -J271-

z

Relay locations in protective housing Location of 6-pin connector -1- for heated oxygen sensor

15. Engine Coolant Temperature (ECT) sensor -G62-

z

Green

z

Gold plated contacts

z

For engine control module

z

With ECT sensor -G2-

z

Release pressure in cooling system if necessary before removing components

16. Air cleaner

z

Disassembling and assembling. See AIR CLEANER, DISASSEMBLING AND ASSEMBLING

17. Mass Air Flow (MAF) sensor -G70- with Intake Air Temperature (IAT) sensor -G42-

z

Gold plated contacts

18. 3-pin connector

z

For Engine speed (RPM) sensor -G28-

19. Ignition coils with final output stages -N70-, -N127-, -N291-, -N292-

z

See ENGINE CODES AVH, AZG, BDC, BEV, BGD , item - 2 -

20. 10 N.m

21. Engine speed (RPM) sensor -G28-

22. Secondary Air Injection (AIR) pump motor -V101-

z

Secondary air system. See SECONDARY AIR SYSTEM

23. Injector -N30-...-N33-

z

Checking quantity injected and for leaks. See COMPONENTS, CHECKING

z

Air shrouded

24. Knock Sensor (KS) 2 -G66-

z

Gold plated contacts

z

Next to ignition transformer

z

See ENGINE CODES AVH, AZG, BDC, BEV, BGD , item - 7 -

25. Knock Sensor (KS) 1 -G61-

z

Gold plated contacts

z

See ENGINE CODES AVH, AZG, BDC, BEV, BGD , item - 5 -

26. Intake Manifold Tuning (IMT) valve -2- -N261-

27. 4-pin connector



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)



z

Brown: for O2S Behind TWC -G130- and O2S heater 1 -Z29-

z

Location: On right underside of vehicle. See Location of 4-pin connector -1- for oxygen sensor
behind catalytic converter
 .

28. Oxygen Sensor (O2S) Behind Three Way Catalytic Converter -G130-, 50 N.m

z

Location: in rear of catalyst

z

When replacing erase fault memory. See ENGINE CONTROL MODULE FAULT MEMORY,
INTERROGATING AND ERASING


z

Grease only threads with hot bolt paste G 052 112 A3. Grease must not get into slots on sensor
body

z

Remove and install with 3337

29. 6-pin connector

z

Black: for HO2S -G39- and O2S heater -Z19-

z

Location: On right underside of vehicle. See Location of 6-pin connector -1- for heated oxygen
sensor


30. Heated Oxygen Sensor (HO2S) -G39-, 50 N.m

z

When replacing erase fault memory. See ENGINE CONTROL MODULE FAULT MEMORY,
INTERROGATING AND ERASING


z

Location: In exhaust manifold

z

Grease only threads with hot bolt paste G 052 112 A3. Grease must not get into slots on sensor
body

z

Remove and install with 3337

31. Fuel pressure regulator

Only engine with engine code BDC:

z

Checking. See FUEL PRESSURE REGULATOR AND HOLDING PRESSURE, CHECKING



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)
