Fig. 32: Identifying Ignition Coil 6-Pin Harness Connector Terminals (Engine Code AVH, AZG,
BDC)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Operate starter and test ignition signal from Engine Control Module (ECM). LED should flicker.

z

Switch ignition off.

If LED flickers and voltage supply is OK:

z

Replace ignition coil with power output stage (-N70-, -N127-, -N291-, -N292-). See item 2 .

z

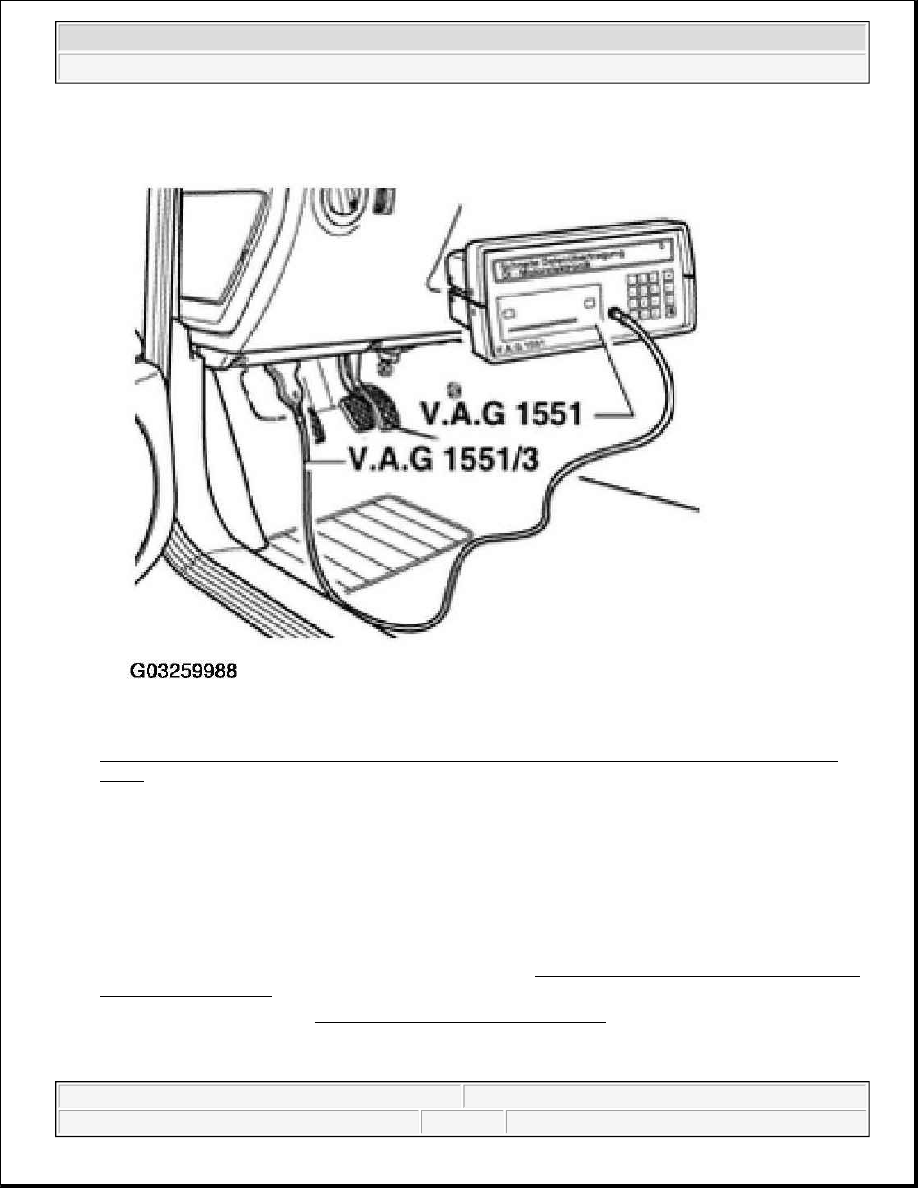

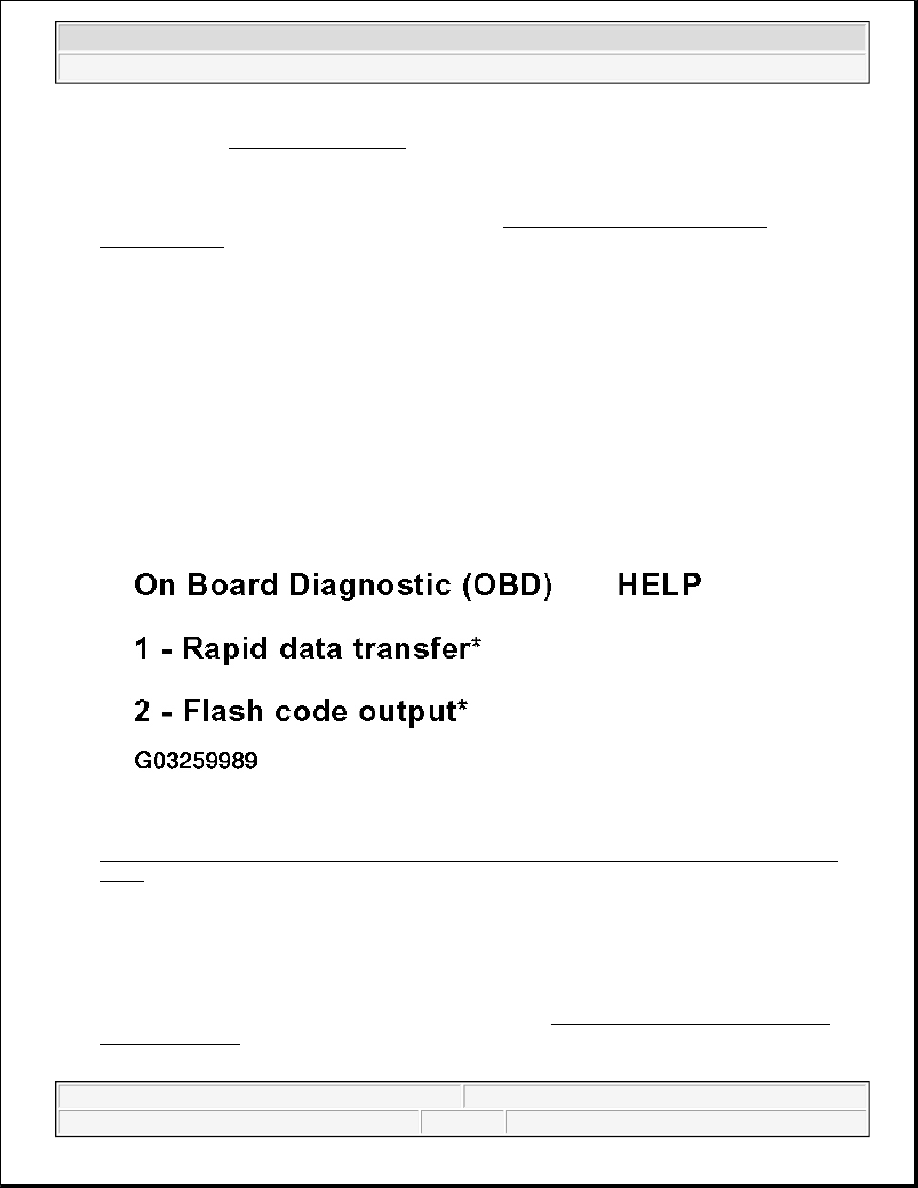

Erase DTC memory of Engine Control Module (ECM). See DIAGNOSTIC MODE 4: RESET/ERASE
DIAGNOSTIC DATA
 .

z

Generate readiness code. See READINESS CODE, GENERATING .

If LED does not flicker:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 2.0L Generic Scan Tool - New Beetle



z

Check wires. See CHECKING WIRING .

Checking wiring

z

Connect test box to control module wiring harness. See TEST BOX FOR WIRING TEST,
CONNECTING
 .

z

Check wires between test box and 6-pin connector for open circuit according to wiring diagram.

Cylinder 1 terminal 2 + socket 102

Cylinder 2 terminal 3 + socket 95

Cylinder 3 terminal 4 + socket 103

Cylinder 4 terminal 5 + socket 94

Wire resistance: max. 1.5ohm

Fig. 33: Identifying Ignition Coil 6-Pin Harness Connector Terminals (Engine Code AVH, AZG,
BDC)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Also check wires for short circuit to each other. Specified value: INFINITY ohm

If there is no malfunction in wire connections:

z

Replace Motronic Engine Control Module (ECM) -J220-. See REPLACING ENGINE CONTROL
MODULE (ECM)
 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 2.0L Generic Scan Tool - New Beetle



1998-2004 ENGINE

Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)

INJECTION SYSTEM, SERVICING

COMPONENT LOCATIONS OVERVIEW

Engine code AEG

z

Engine codes AVH, AZG. See ENGINE CODES AVH, AZG

z

Engine codes BDC, BGD. See ENGINE CODES BDC AND BGD

z

Engine code BEV. See ENGINE CODE BEV

1. EVAP canister purge regulator valve -N80-

z

EVAP system. See EVAP SYSTEM COMPONENTS, SERVICING :

2. 4-pin harness connector

z

Black

z

For Heated Oxygen Sensor (HO2S) -G39- and Oxygen Sensor (O2S) heater -Z19-

z

Connector terminals 3 and 4 are gold-plated

z

Right underside of vehicle

3. 4-pin harness connector

z

Brown

z

for Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130- and Oxygen
Sensor (O2S) heater 1 Behind Three Way Catalytic Converter (TWC) -Z29-

z

Connector terminals 3 and 4 are gold-plated

z

Right underside of vehicle

4. Throttle valve control module -J338-

z

When replacing, adapt (match) engine control module to throttle valve control module and to
electronic immobilizer. See COMPONENTS AND FUNCTIONS, ADAPTING

5. Motronic Engine Control Module (ECM) -J220-

z

Installed location: Under left side inner plenum chamber cover in passenger compartment

z

On replacement, control module must be matched to electronic immobilizer. See COMPONENTS
AND FUNCTIONS, ADAPTING
 , Adapting components

z

Replacing. See ENGINE CONTROL MODULE

6. Mass Air Flow (MAF) sensor -G70-, with Intake Air Temperature (IAT) sensor -G42-

7. Secondary Air Injection (AIR) solenoid valve -N112-

z

Removing and installing. See SECONDARY AIR SYSTEM COMPONENTS, REMOVING

NOTE:

The following list refers to items in Fig. 1 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)



AND INSTALLING

8. Engine Coolant Temperature (ECT) sensor -G62-

z

For engine control module

z

With ECT sensor -G2-

z

If necessary, release pressure in cooling system before removing

9. Secondary Air Injection (AIR) pump motor -V101-

z

Removing and installing. See SECONDARY AIR SYSTEM COMPONENTS, REMOVING
AND INSTALLING


10. Injectors -N30- to -N33-

z

Air shrouded

z

Checking injectors for leaks and quantity injected. See COMPONENTS, CHECKING

11. Engine Speed (RPM) sensor -G28-

z

Inductive type sensor

12. Ignition coils -N-, -N128-

z

With Power output stage -N122-. See ENGINE CODE AEG (item - 12 -).

13. 3-pin harness connector

z

Gray

z

For Engine speed sensor -G28-

14. Knock Sensor (KS) 2 -G66-

z

See ENGINE CODE AEG (item - 5 -)

15. Knock Sensor (KS) 1 -G61-

z

See ENGINE CODE AEG (item - 7 -)

16. Fuel pressure regulator

17. Camshaft Position (CMP) sensor -G40-

z

See ENGINE CODE AEG (item - 9 -)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Multiport Fuel Injection (MFI) - New Beetle, 2.0L (AEG, AVH, AZG, BDC, BEV & BGD)
