Volkswagen New Beetle. Manual - part 1371





Example:

Value 90 in Display zone 9 (B) corresponds to a numerical range from 35 to 74 in Display zone 2 (A).

If Start of injection is outside specification, adjust as follows:

z

Remove connecting line between charge air cooler and intake manifold.

z

Remove upper toothed belt guard.

z

Loosen two injection pump sprocket mounting bolts -1-.

Fig. 25: Locating Injection Pump Sprocket Mounting Bolts & Hub Nut
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Place 22 mm box wrench onto hub nut -2- to counter-hold pump shaft. DO NOT loosen hub nut.

z

Loosen 3rd injection pump sprocket mounting bolt and slightly turn pump shaft

z

Left = advance Start of injection

z

Right = retard Start of injection

z

Tighten new mounting bolts for injection pump sprocket.

z

20 Nm (15 ft lb)

NOTE:

If, when checking Start of injection, the specifications are within zone -C-, no
adjustment is required. After repairs, e.g. removing and installing injection
pump or adjusting timing, Start of injection must be set to the mean value
(dashed line) in zone -C-.

CAUTION: Do not loosen hub nut -2- for ANY reason. Otherwise, the Diesel injection

pump basic setting will be altered and cannot be reset with normal
workshop equipment.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



If injection pump has not previously been removed and installed

z

Screw in new injection pump sprocket mounting bolts one after the other.

z

Observe values in zone 2 and adjust again, if necessary, until the mean value for specification zone -C- is
displayed.

z

Tighten injection pump sprockets 1/ 4 turn (90 °) additional.

z

Press --> button.

Display will appear as shown:

Fig. 26: Scan Tool Display - Start Of Injection (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

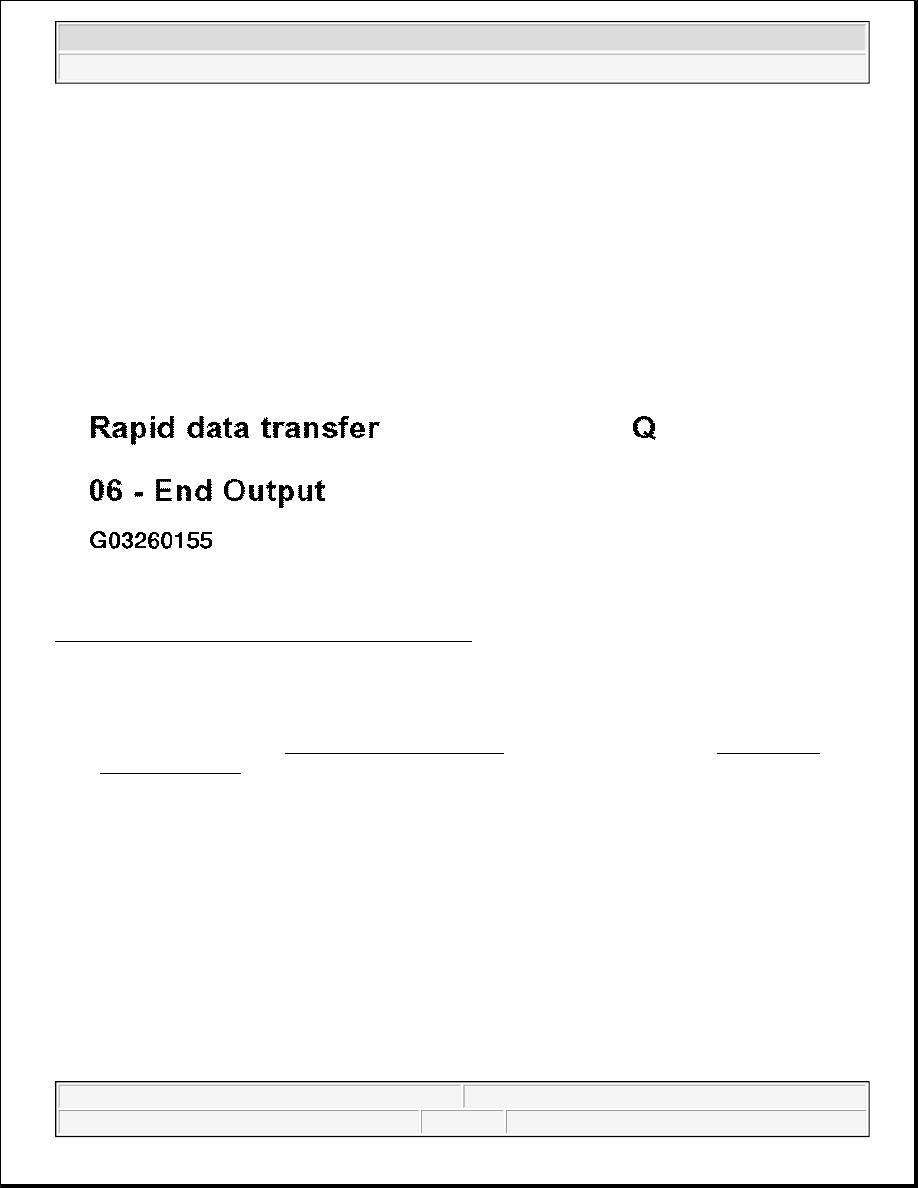

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.

z

Erase DTC memory. See DTC MEMORY, ERASING . Set the readiness code. See READINESS
CODE, SETTING
 .

Fuel injectors, removing and installing

Special tools

z

VAG1331 Torque wrench (5 to 50 Nm) or equivalent



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 27: Identifying VAG 1331 Torque Wrench
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

3035 Injector line wrench

Fig. 28: Identifying 3035 Injector Line Wrench
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Faulty injectors can cause the following malfunctions:

z

Misfiring

z

Knocking in one or more cylinders

z

Engine over-heating

z

Loss of power

z

Excessive black exhaust smoke

z

Higher fuel consumption

z

Excessive blue smoke when starting with cold engine



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fuel Injectors, removing

z

Remove injection lines using 3035 tubing wrench.

z

Remove mounting nut, retainer and pull out fuel injector.

Fuel injectors, installing

z

Insert fuel injector.

z

Make sure mount is seated correctly in cylinder head and install retainer.

Tightening torques:

z

Injection lines = 25 Nm (18 ft lb)

z

Retainer screw = 20 Nm (15 ft lb)

z

Erase DTC memory. See DTC MEMORY, ERASING . Set the readiness code. See READINESS
CODE, SETTING
 .

Fuel injectors, servicing

The AHL engine is equipped with dual spring design injectors. Fuel is injected in 2 stages. These fuel injectors
must be replaced if malfunctions occur because neither servicing nor pressure adjustment is possible.

Special tools

z

VAG1322 Injector test stand with VAG1322/2 pressure line

Checking requirements

z

Pressure gauge on

Fuel injection pressure, checking

NOTE:

Faulty injectors can be located by loosening the high pressure line connection
on each injector in turn with the engine running at a fast idle. If engine speed
remains constant after loosening a line connection, this would indicate a faulty
injector.

NOTE:

Always remove fuel lines in a complete set. Do not alter line shape.

NOTE:

Always replace heat shield between cylinder head and fuel injectors.

WARNING:

When testing fuel injectors, make sure that the stream of fuel does not
contact your hands. The high pressure fuel delivery can penetrate skin



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
