Volkswagen New Beetle. Manual - part 1370





Fig. 18: Connecting VAG1390 Hand Vacuum Pump To Injection Pump
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Operate vacuum pump until fuel flows out of return/supply opening.

z

Do not draw fuel into vacuum pump.

z

Remove adapter and connect return/supply line.

z

Install valve cover and vacuum pump.

z

Dynamically check Start of injection and adjust if necessary. See START OF INJECTION,
DYNAMICALLY CHECKING AND ADJUSTING
 .

Start of injection, dynamically checking and adjusting

Special tools

z

VAG1331 Torque wrench 5 to 50 Nm (3.7 to 37 ft lb) or equivalent

Fig. 19: Identifying Special Tool VAG 1331
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



z

VAG1551/1552 Scan Tool using VAG1551/3 Adapter cable

z

3035 Injection line wrench

Checking and adjustment conditions

z

Mechanical engine settings OK.

z

Toothed belt tension OK.

Work sequence

z

Connect VAG1551/1552 Scan Tool. See VAG1551/1552 SCAN TOOL, CONNECTING .

z

Start engine and let idle.

z

Press -0- and -1- buttons to select Address word 01: "Engine electronics"

Display will appear as shown (example only)

Fig. 20: Scan Tool Display - Start Of Injection (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Display will appear as shown

NOTE:

z

Dynamically checking and correcting Start of injection is only possible in
Function 04, "Basic setting".

z

Start of injection must always be checked after replacing the toothed belt
or loosening the injection pump bolts or toothed belt sprockets and if
necessary, adjusted.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



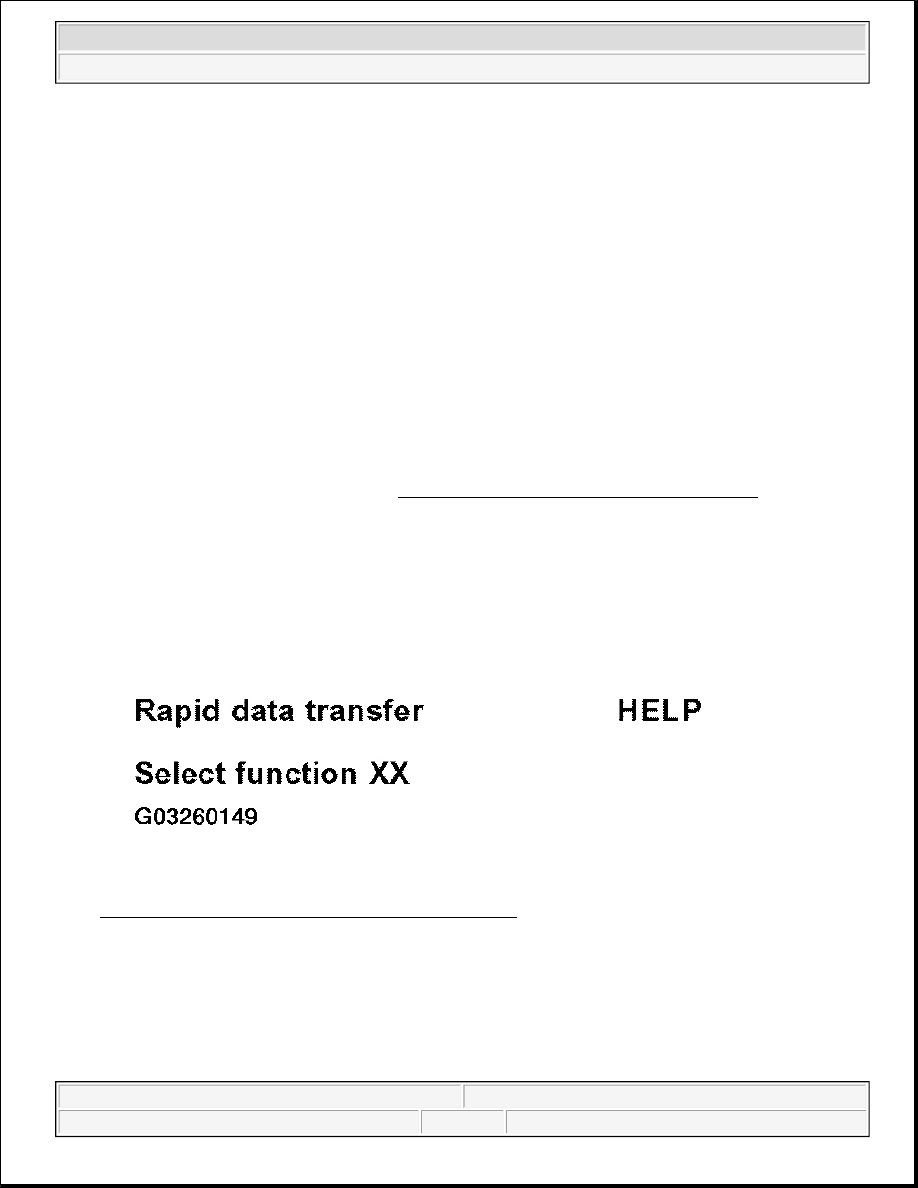

Fig. 21: Scan Tool Display - Start Of Injection (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -4- buttons to select Function 04: "Basic setting"

z

Press -Q- button to enter input.

Display will appear as shown

Fig. 22: Scan Tool Display - Start Of Injection (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0-, -0-, -0- button to select "Display group 0".

z

Press -Q- button to enter input.

Display will appear as shown (1 to 10 = Display zones)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 23: Scan Tool Display - Start Of Injection (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check Engine Coolant Temperature in Display zone 7.

z

Specification: less than 73 (equates to 85 °C)

Continue check only when Engine Coolant Temperature is obtained:.

Start of injection (in Display zone 2) is dependent on the Fuel temperature in Display zone 9.

A. Display zone 2 Start of injection

B. Display zone 9 Fuel temperature

C. Specified range for Start of injection

Fig. 24: Specification Range For Start Of Injection Graph
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
