Volkswagen New Beetle. Manual - part 1339





Fig. 122: Scan Tool Display - Mass Air Flow Sensor (5 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If specification not obtained:

z

Repeat test and accelerate vehicle under Wide Open Throttle.

z

Specification in Display zone 1: above 800 mg/H



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 123: Scan Tool Display - Mass Air Flow Sensor (6 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If specification not obtained:

z

Replace Mass Air Flow Sensor -G70-.

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:

z

Set the readiness code. See READINESS CODE, SETTING .

If 550 mg/H is constantly displayed in zone 1.

z

Press --> button.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Display will appear as shown:

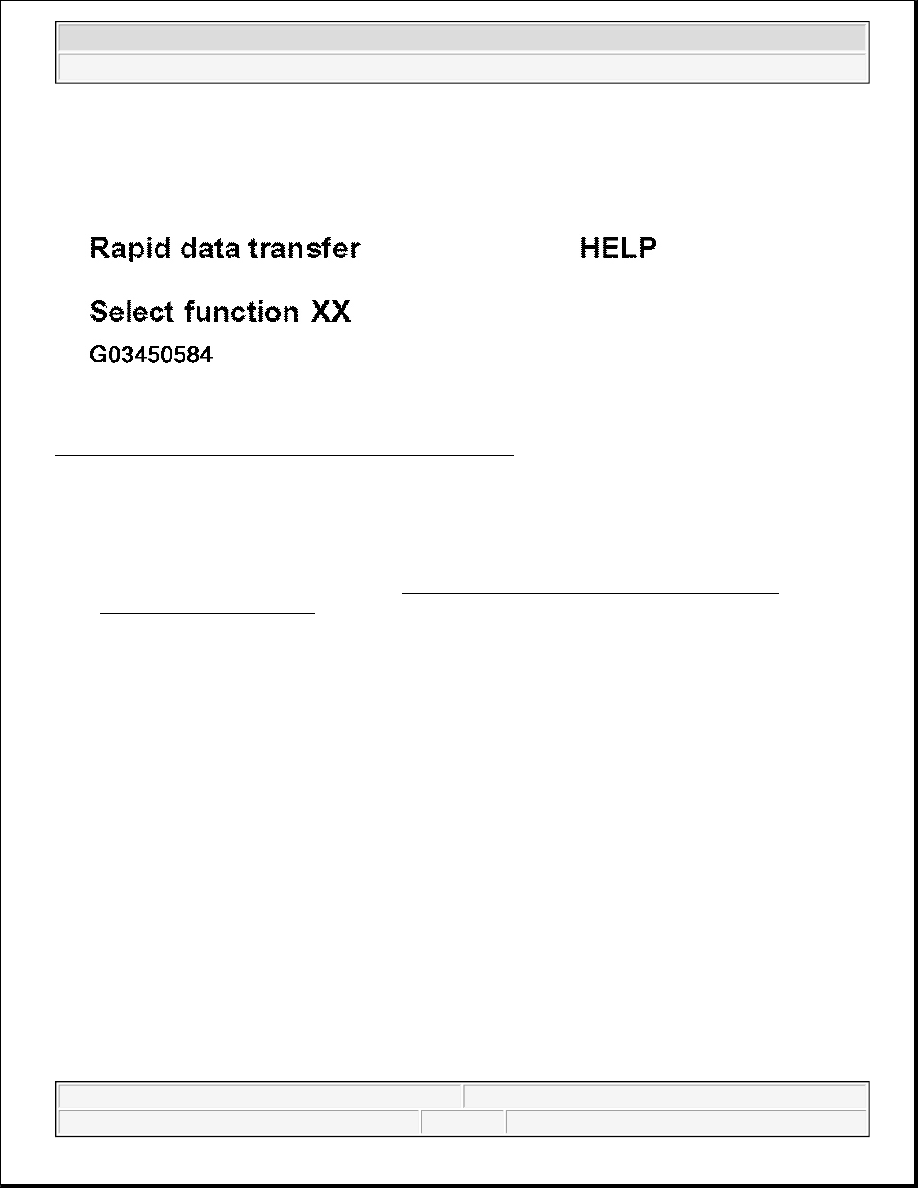

Fig. 124: Scan Tool Display - Mass Air Flow Sensor (7 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.

z

Switch OFF ignition.

z

Disconnect -G70- harness connector. See DIESEL INJECTION SYSTEM, COMPONENT
LOCATIONS OVERVIEW
 .

z

Switch ON ignition.

z

Switch multimeter to 20 Volt range.

z

Measure -G70- voltage supply between the following connector terminals:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



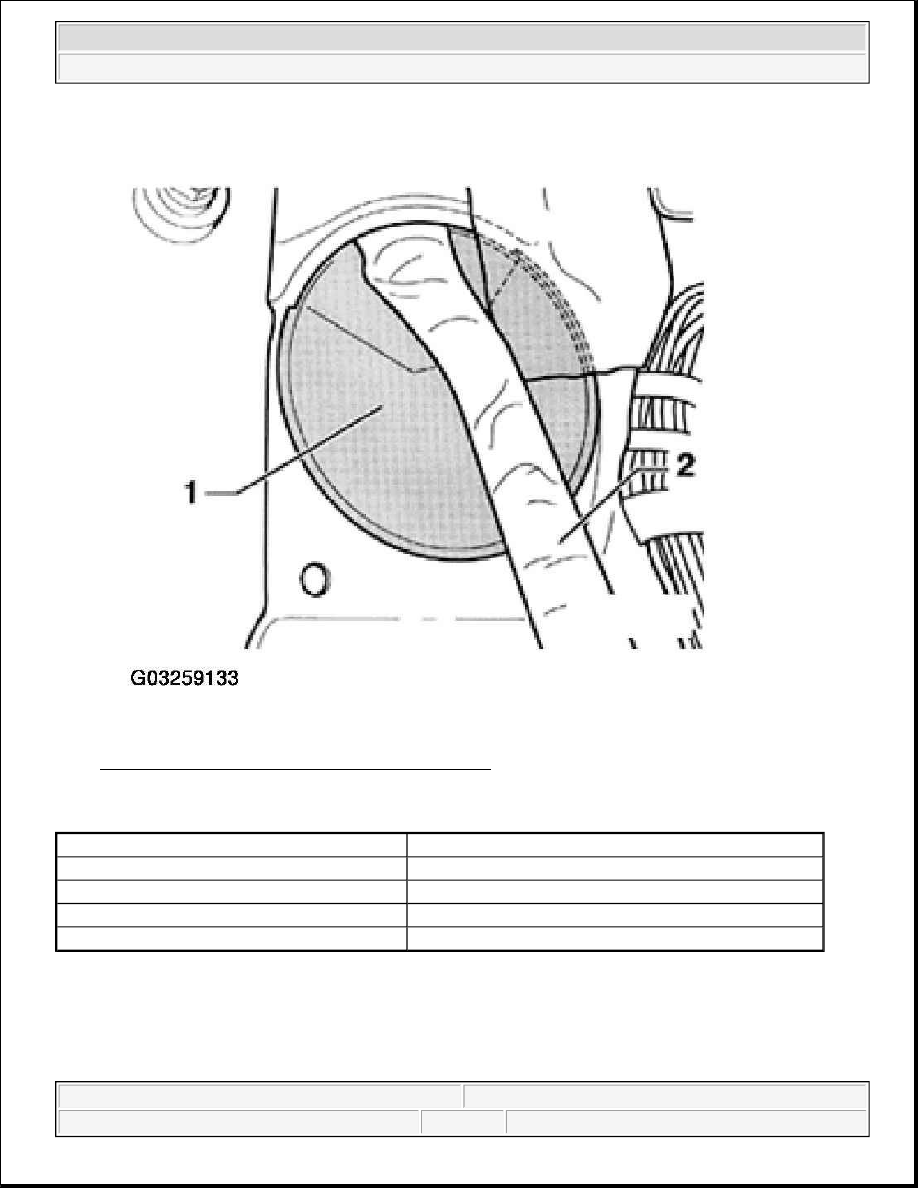

Fig. 125: Identifying MAF Sensor -G70- Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

MAF SENSOR TERMINAL SPECIFICATION CHART

If specifications not obtained:

z

Switch OFF ignition.

z

Connect VAG1598/22 (or 1598/31) Test Box to ECM wiring harness.

Terminal: -G70-

Specification

2 + Ground

App. battery Voltage

2 + 3

App. battery Voltage

4 + Ground

Approx. 5 Volts

4 + 3

Approx. 5 Volts



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
