Volkswagen New Beetle. Manual - part 1338





z

Check wires for shorting to: one another, Ground and Battery +.

z

Specification: INFINITY ohm

z

Correct any open/short circuit as necessary.

If no open or short circuits exist:

z

Replace Engine Control Module.

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:

z

Set the readiness code. See READINESS CODE, SETTING .

Mass Air Flow (MAF) Sensor -G70-, checking

ECM uses MAF Sensor -G70- signal to calculate injection quantity and for regulating EGR. The smaller the -
G70- signal; the smaller the quantity of injected fuel.

Special tools

z

VAG1551/1552 Scan Tool using VAG1551/3 Adapter cable

z

VAG1598/22 Test Box (MY 1999)

z

VAG1598/31 Test Box (from MY 2000)

z

Fluke 83 multimeter

z

VW 1594 Adapter kit

z

Wiring diagram

Test sequence

z

Connect VAG1551/1552 Scan Tool. See VAG1551/1552 SCAN TOOL, CONNECTING and start
engine and let idle.

z

Press -0- and -1- buttons to select Address word 01: "Engine electronics"

Display will appear as shown (example only):

WARNING:

For safe operation, use a second technician to operate test equipment
and take readings from back seat, during test drive.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 118: Scan Tool Display - Mass Air Flow Sensor (1 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle

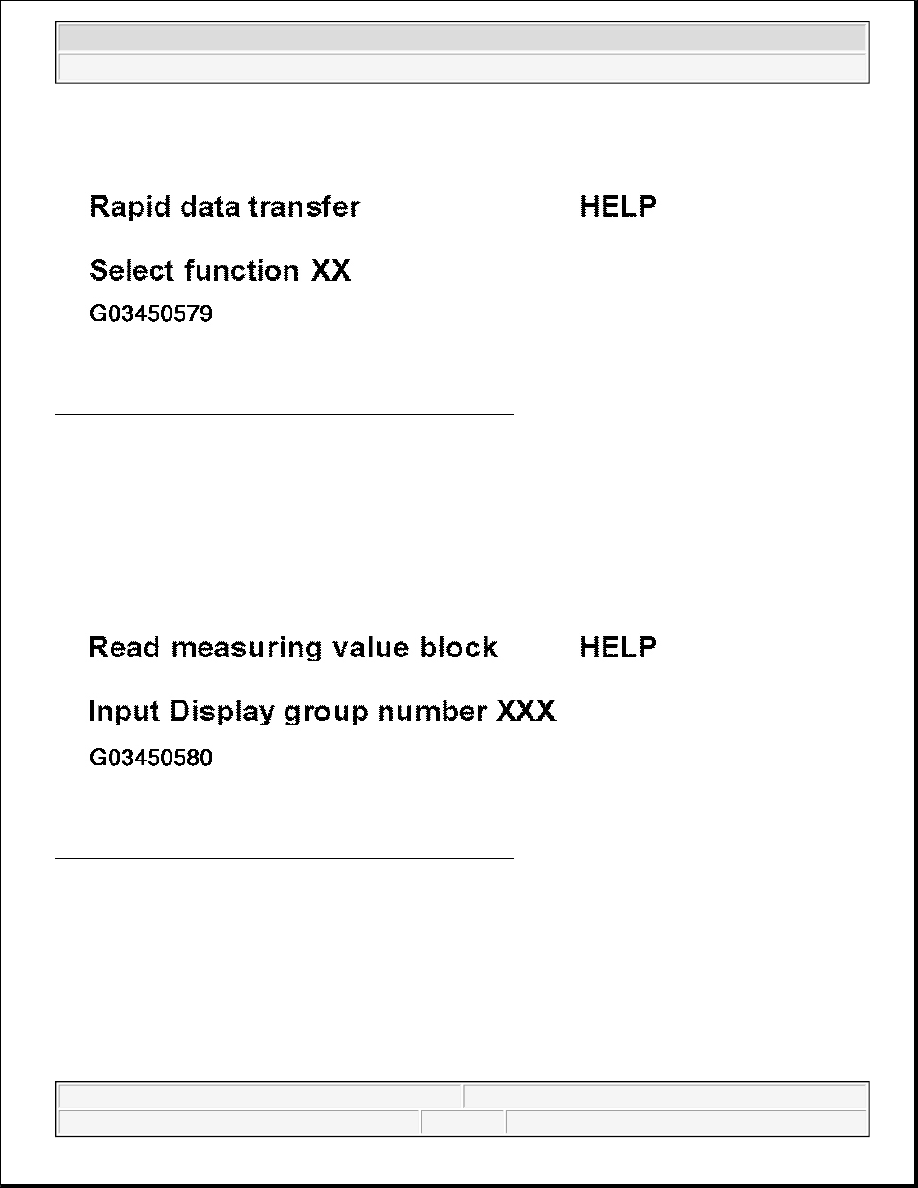

Fig. 119: Scan Tool Display - Mass Air Flow Sensor (2 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -8- buttons to select Function 08: "Read measuring value block".

z

Press -Q- button to enter input.

Display will appear as shown:

Fig. 120: Scan Tool Display - Mass Air Flow Sensor (3 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0-, -1- and -0- buttons to select "Display group 10".

z

Observe display in Display zone 1.

z

Specified Value: 200 to 450 mg/H



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 121: Scan Tool Display - Mass Air Flow Sensor (4 Of 7)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If specification not obtained:

z

Check Exhaust Gas Recirculation system

See EXHAUST GAS RECIRCULATION (EGR), CHECKING .

If specification obtained:

z

Accelerate vehicle in 3rd gear from about 1500 RPM under Wide Open Throttle (WOT).

z

Press PRINT button on VAG1551 at approx. 3000 RPM.

z

Specification in Display zone 4: 100% (Throttle position)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
