z

Press -0- and -1- buttons to select Address word 01: "Engine electronics"

Display will appear as shown (example only):



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 109: Scan Tool Display - Boost Pressure Control (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Press --> button.

Display will appear as shown:

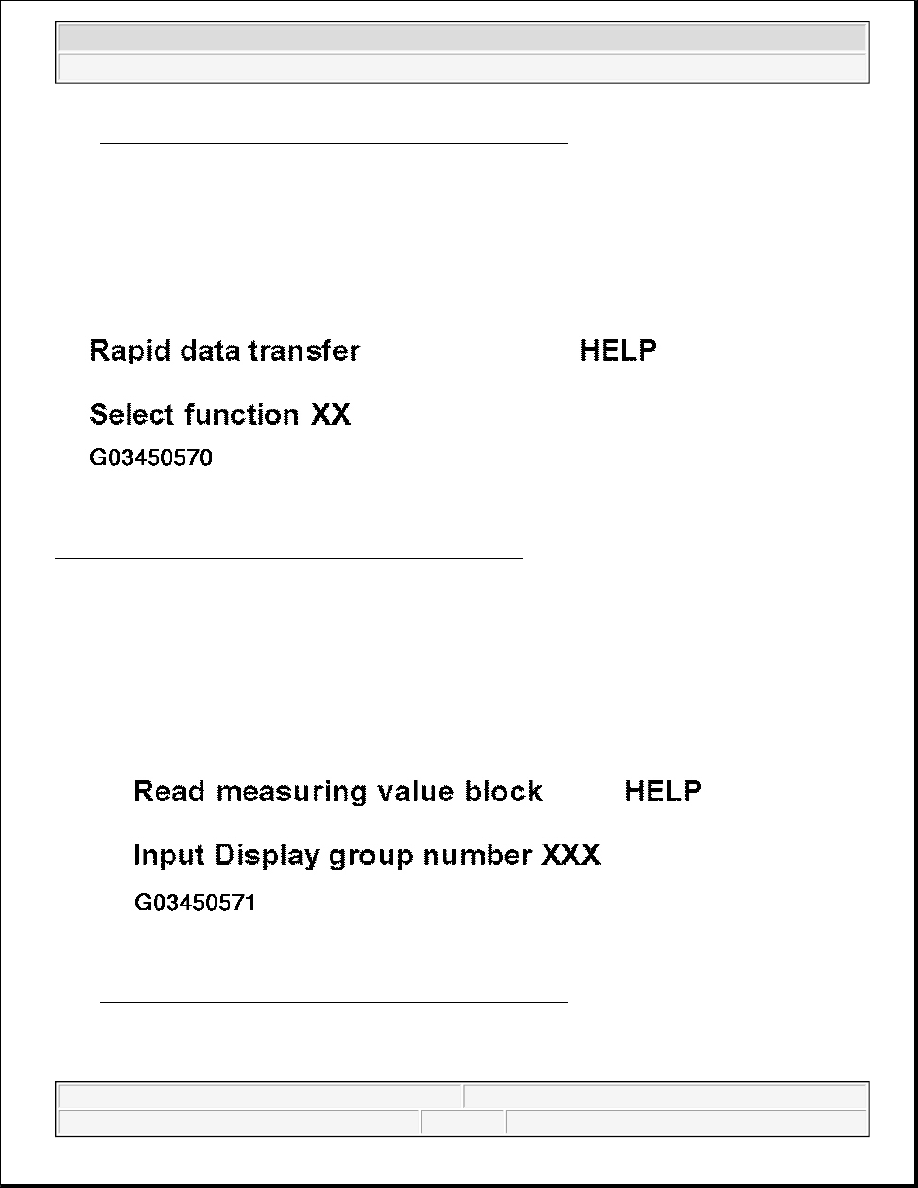

Fig. 110: Scan Tool Display - Boost Pressure Control (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -8- buttons to select Function 08: "Read measuring value block".

z

Press -Q- button to enter input.

Display will appear as shown:

Fig. 111: Scan Tool Display - Boost Pressure Control (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0-, -1- and -1- buttons to select "Display group 11"



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



z

Press -Q- button to enter input.

Display will appear as shown

Fig. 112: Scan Tool Display - Boost Pressure Control (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Accelerate vehicle in 3rd gear from about 1500 RPM under Wide Open Throttle.

z

Press PRINT button on VAG1551 at about 3000 RPM.

z

Specification on VAG1551: 1720 to 2300 mbar (Display zone 3)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 113: Scan Tool Display - Boost Pressure Control (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If measured Boost pressure is too low

z

Check -N75- as follows:

Wastegate bypass regulator valve -N75-, electrically checking

z

Switch OFF ignition.

z

Disconnect -N75- harness connector. See DIESEL INJECTION SYSTEM, COMPONENT
LOCATIONS OVERVIEW
 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
