Fig. 105: Scan Tool Display - Diesel Injection Timing Control Range (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Specification (Display zone 3): 3.0 to 5.0° BTDC

If specifications not obtained:

z

Check Cold Start injector as follows:

z

Press --> button.

z

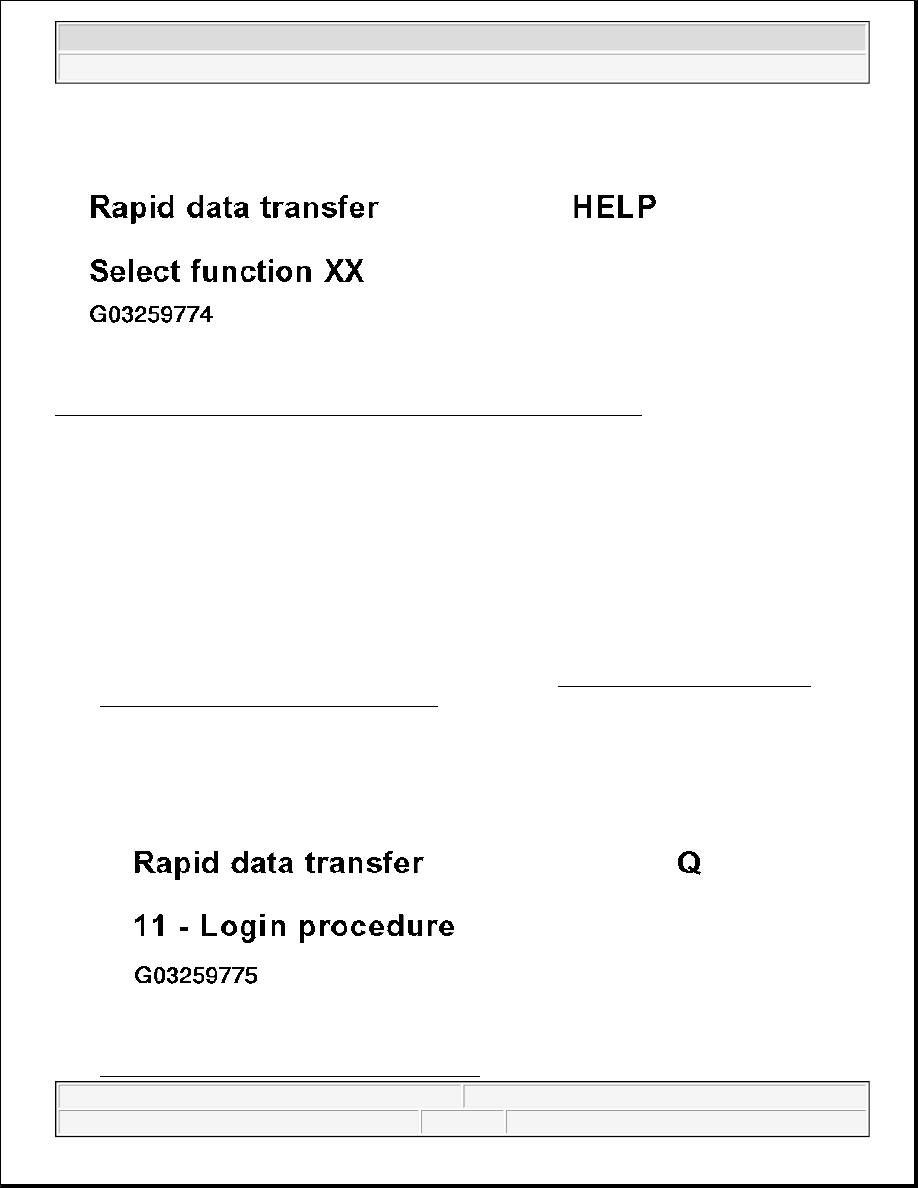

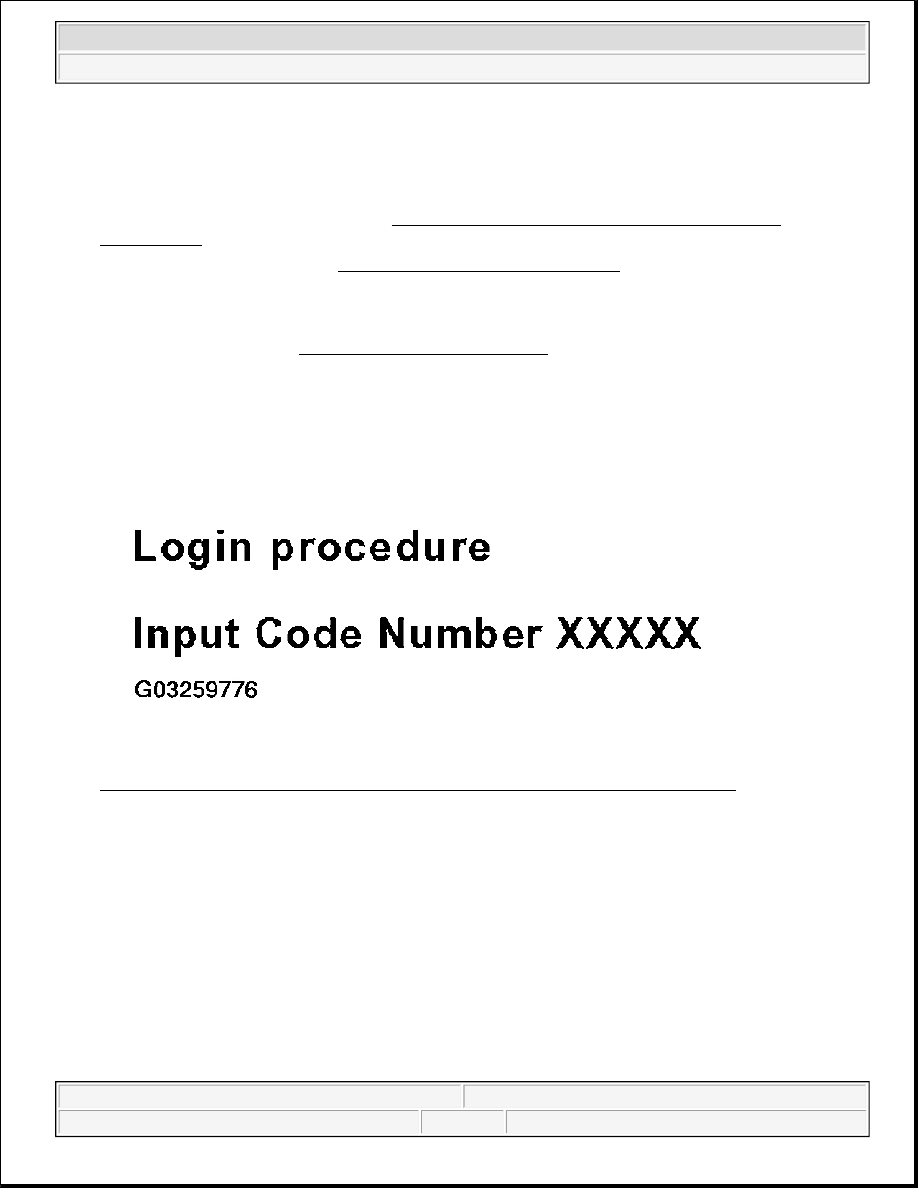

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.

z

Switch OFF ignition.

z

Disconnect harness connector from Diesel injection pump. See DIESEL INJECTION SYSTEM,
COMPONENT LOCATIONS OVERVIEW
 .

z

Measure resistance between connector terminals 9 + 10.

z

Specification: 12 to 20 ohm

Fig. 106: Identifying 10-Pin Connector Terminals



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

If specification not obtained:

z

Replace Cold Start injector -N108-. See INTAKE MANIFOLD CHANGE-OVER VALVE,
SERVICING
 .

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:

z

Set the readiness code. See READINESS CODE, SETTING .

If specification obtained:

z

Connect VAG1598/22 (or 1598/31) Test Box to ECM wiring harness.

Fig. 107: Connecting VAG1598/22 (Or 1598/31) Test Box To ECM Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between Test Box and 10-pin harness connector using Wiring diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 108: Identifying 10-Pin Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Up to MY 1999

z

Terminal 9 + socket 79

z

Terminal 10 + sockets 2 + 28

From MY 2000

z

Terminal 9 + socket 114

z

Terminal 10 + sockets 1 + 2

z

Wire resistance: 1.5ohm maximum



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



z

Check wires for shorting to: one another, Ground and Battery +

z

Specification: INFINITY ohm

If wiring OK

z

Replace Engine Control Module -J248-. See Engine Control Module (ECM), replacing .

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:

z

Set the readiness code. See READINESS CODE, SETTING .

Boost pressure control, checking

Special tools

z

VAG1551/1552 Scan Tool using VAG1551/3 Adapter cable

z

VAG1598/22 Test Box (MY 1999)

z

VAG1598/31 Test Box (from MY 2000)

z

Fluke 83 multimeter

z

VW 1594 Adapter kit

z

Wiring diagram

See CHARGE AIR PRESSURE SYSTEM, CHECKING .

Test requirements

z

Fuse 34 OK

Test sequence

z

Boost pressure using VAG1551/1552 Scan Tool during a test drive.

z

Make sure Wastegate Bypass Regulator valve - N75- harness connector is connected.

z

Connect VAG1551/1552 Scan Tool. See VAG1551/1552 SCAN TOOL, CONNECTING .

z

Start engine and let idle.

NOTE:

To check Boost pressure control it is essential to first know the actual Boost
pressure value independent of the Boost pressure control limits.

WARNING:

For safe operation, use a second technician to operate test equipment
and take readings from back seat, during test drive.
