Volkswagen New Beetle. Manual - part 1301





All vehicles

z

Lock camshaft with setting bar.

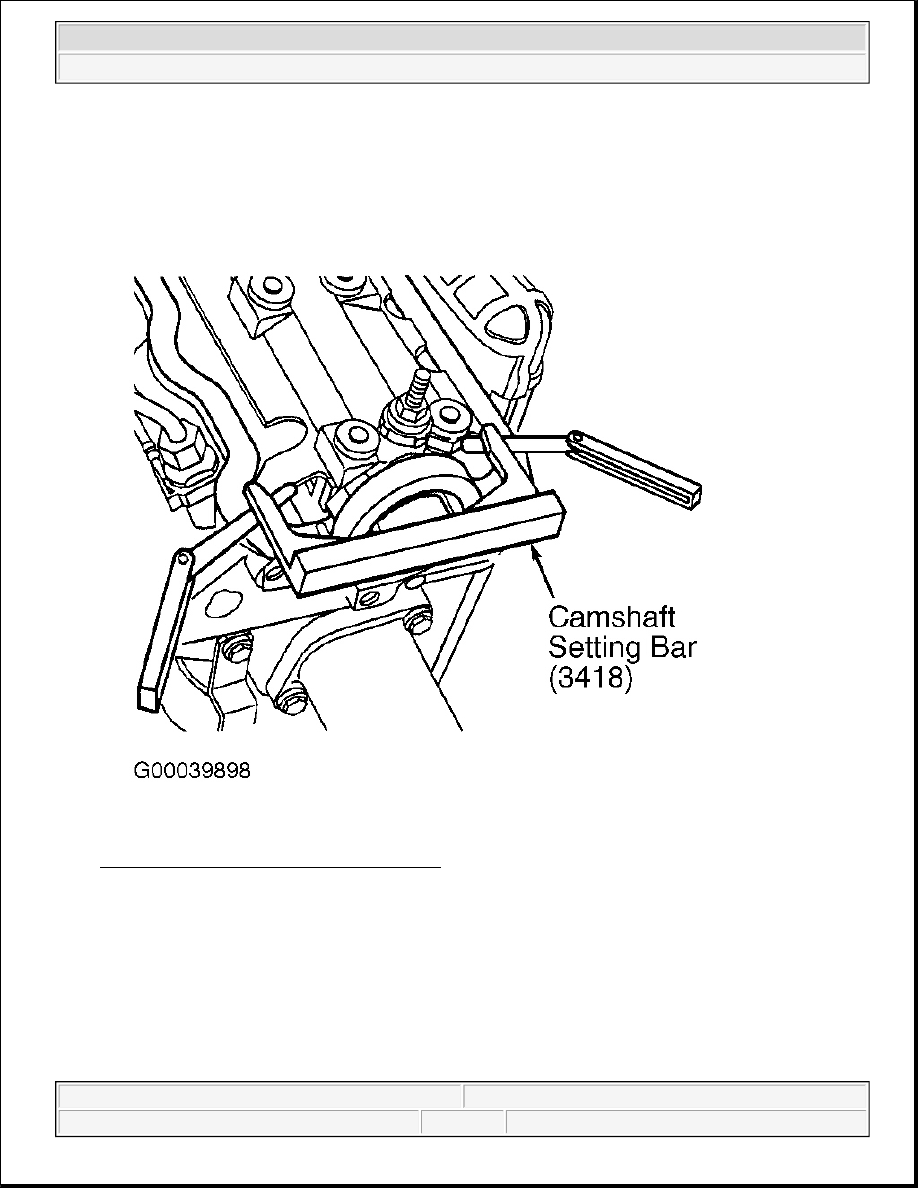

Fig. 10: Locking Camshaft With Setting Bar
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Centralize setting bar as follows:

Turn camshaft so that one end of setting bar contacts the cylinder head. Using feeler gauge, establish the
gap at the other end of the setting bar. Place a feeler gauge corresponding to half the gap between setting
bar and cylinder head. Turn camshaft until the setting bar contacts the feeler gauge. Place a 2nd feeler
gauge, of same thickness, at the other end between the setting bar and cylinder head.

z

Remove injection pump sprocket mounting bolts -1-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH

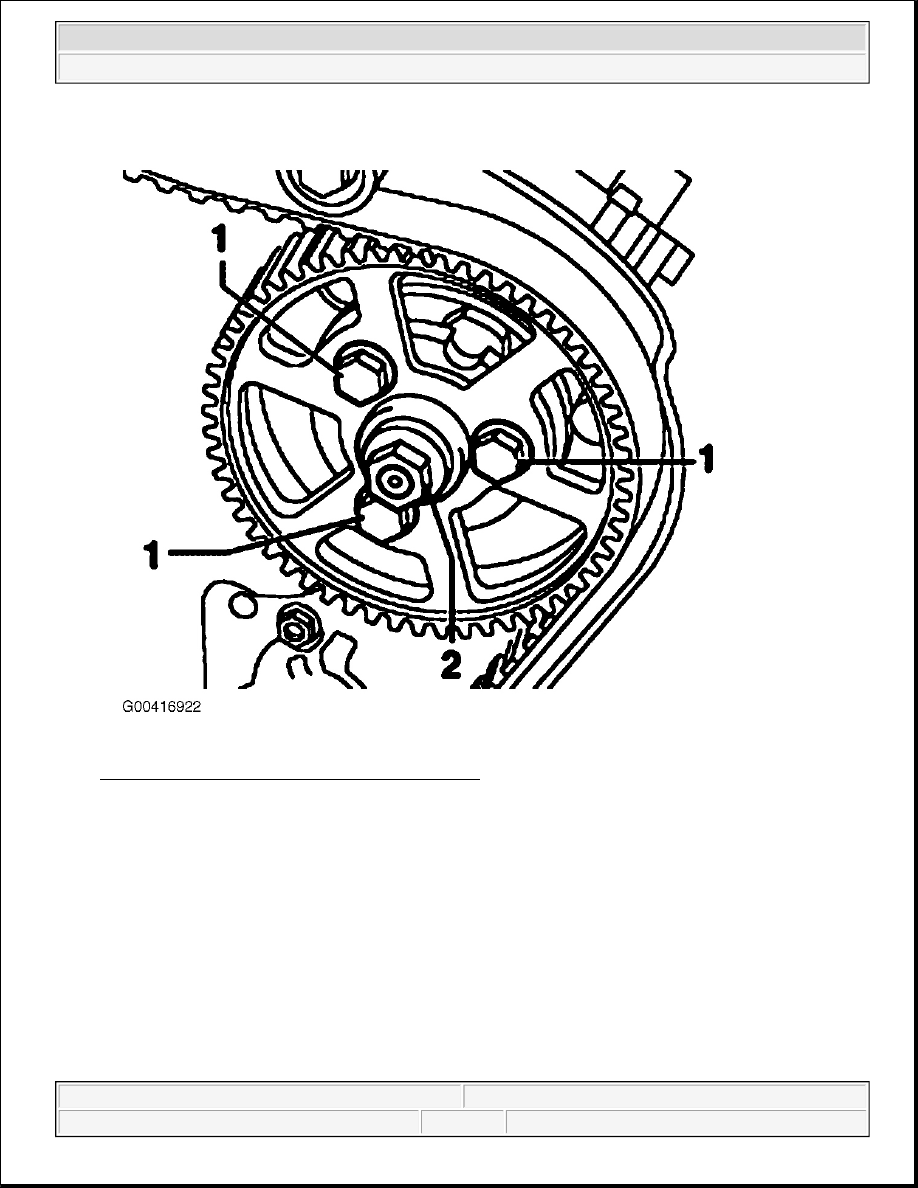

Fig. 11: Injection Pump Sprocket Mounting Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Remove tensioning roller nut.

z

Relieve tooth belt tension then remove camshaft and injection pump sprockets.

z

Disconnect Quantity adjuster harness connector and unclip connector from retainer.

z

Remove mounting bolts from assembly bracket -1-.

CAUTION: Do not loosen hub nut -2- for ANY reason. Otherwise, the Diesel

injection pump basic setting will be altered and cannot be reset with
normal workshop equipment.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH



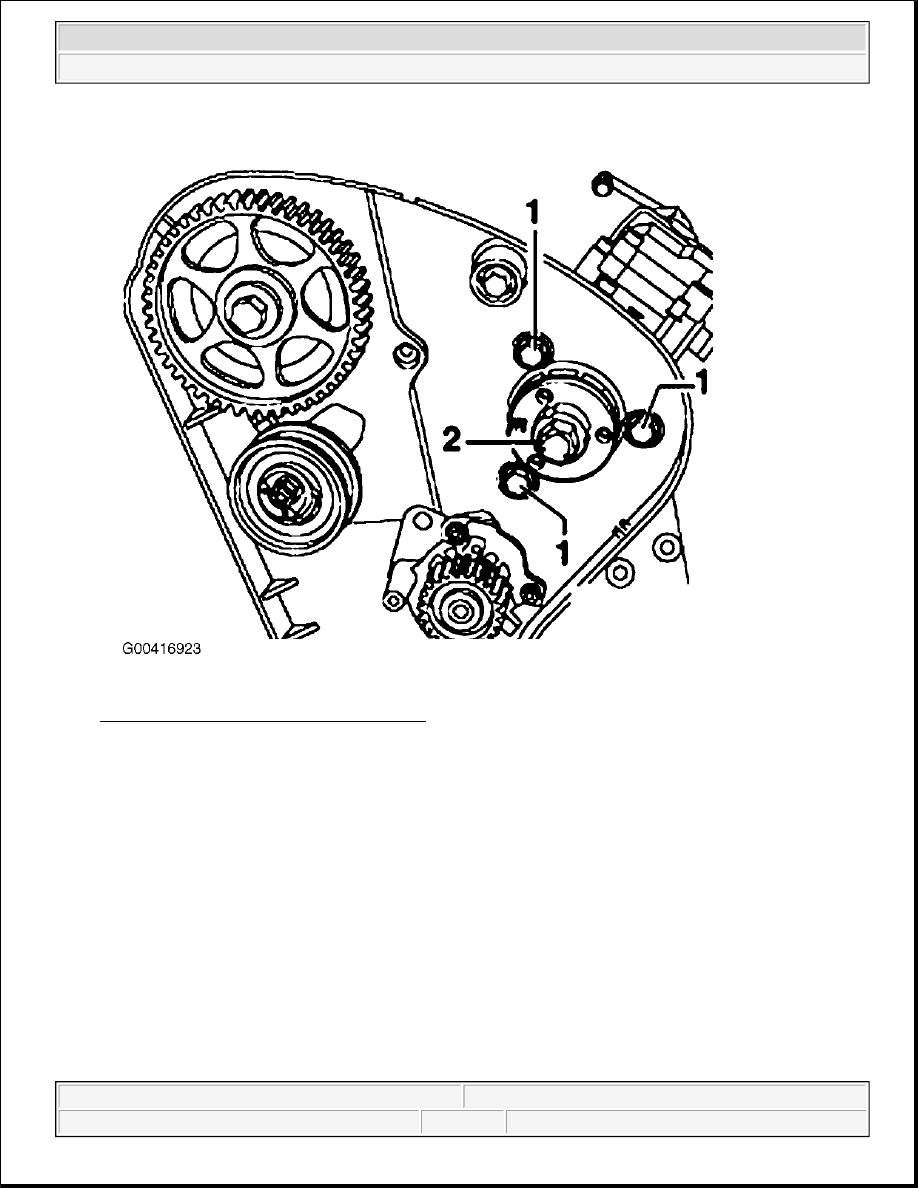

Fig. 12: Assembly Bracket Mounting Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Remove bolt from rear support (arrow).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH

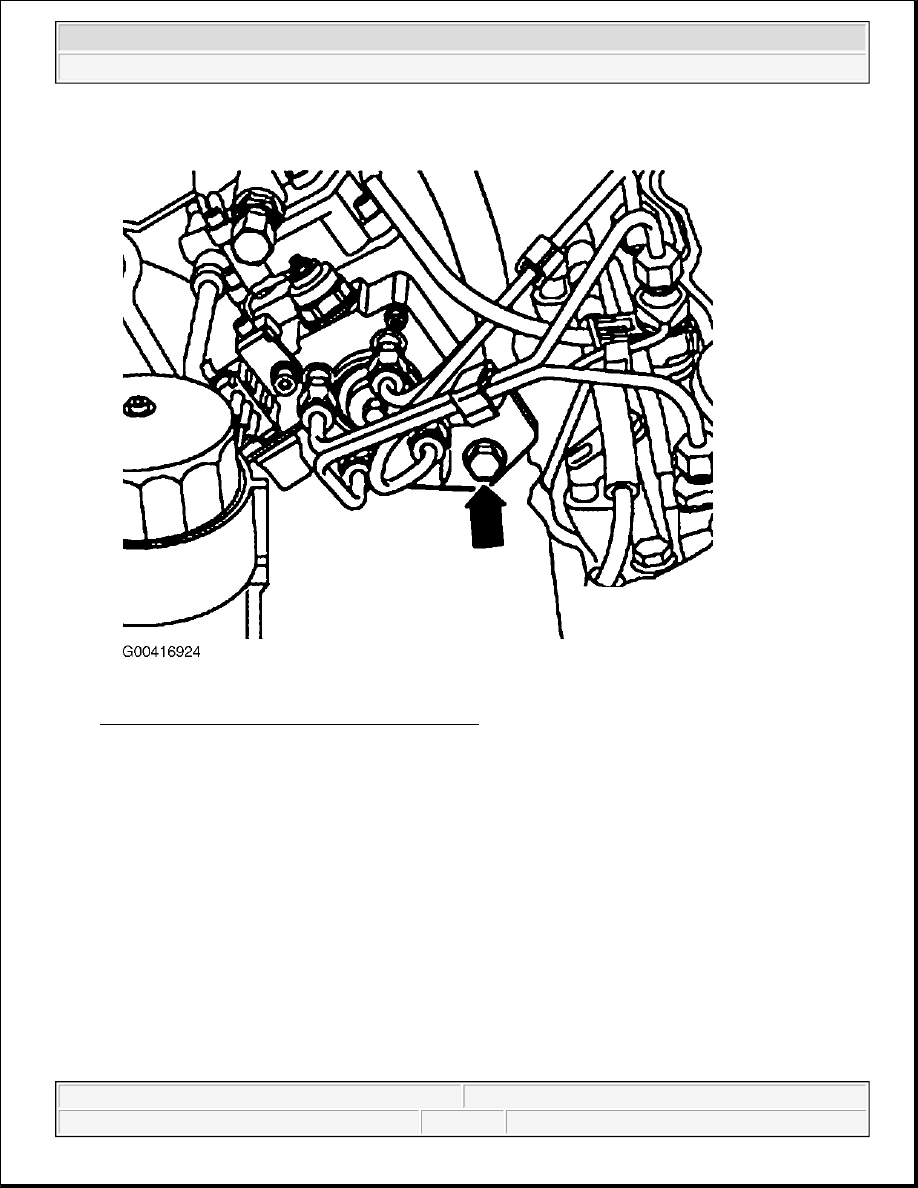

Fig. 13: Diesel Injection Pump Rear Support Bolt
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Remove Diesel injection pump.

DIESEL INJECTION PUMP, INSTALLING

z

Insert injection pump into assembly bracket then tighten mounting bolt on rear support with conical nut
first.

z

Insert front mounting bolts.

z

tighten to 25 Nm (18 ft lb)

z

Install new bolts (arrows) to mount injection pump sprocket to hub but do not tighten.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH
