Volkswagen New Beetle. Manual - part 1302

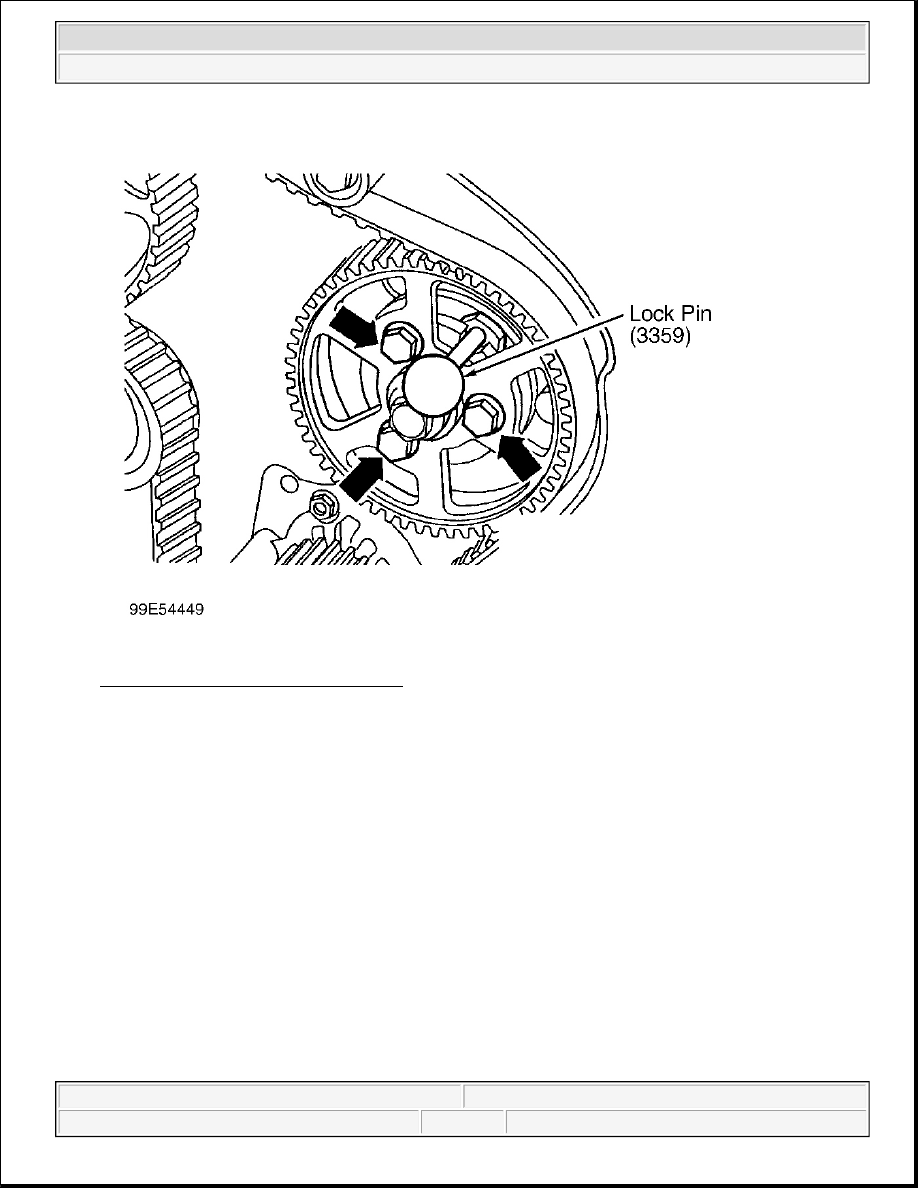

Fig. 14: Installing Injection Pump Bolts
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Align injection pump sprocket to central position in elongated holes.

z

Lock injection pump sprocket using 3359 pin.

z

Loosen camshaft sprocket mounting bolt a half turn.

z

Place a drift through hole in rear of toothed belt guard and release camshaft sprocket from camshaft taper
with blow from hammer.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH



Fig. 15: Installing Drift Through Hole In Rear Of Toothed Belt Guard
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove camshaft sprocket.

z

Check whether TDC mark on flywheel and reference mark are aligned.

z

Place tooth belt on injection pump sprocket and tensioning roller.

z

Install camshaft sprocket into toothed belt and secure sprocket such that the camshaft can still turn.

z

Tension toothed belt using pin wrench (e.g. Matra V159) on eccentric and turning clockwise until notch
and raised mark align (arrows).

Fig. 16: Tightening Lock Nut On Tensioning Roller
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Make sure retaining hook is correctly seated in toothed belt guard.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH

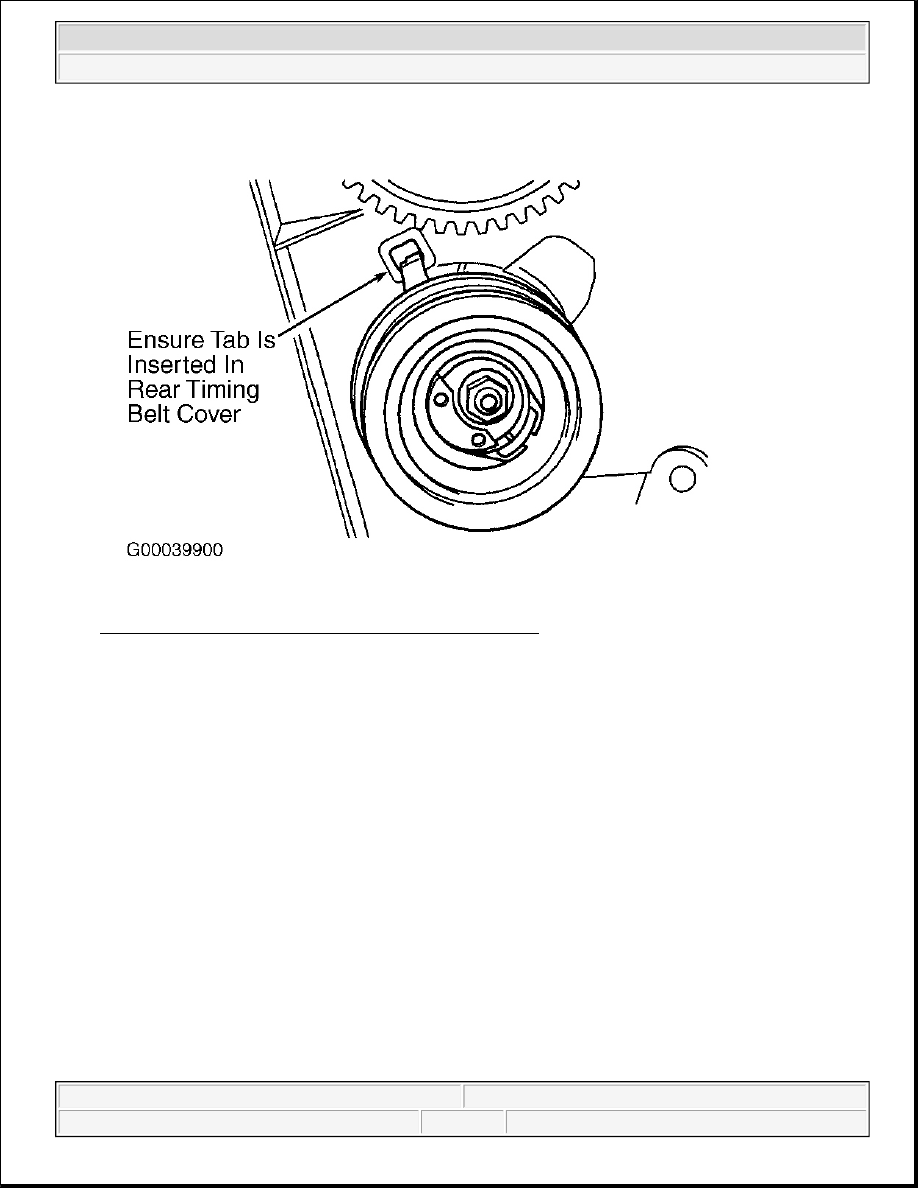

Fig. 17: Installing Timing Belt Tensioner Retaining Hook
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Tighten mounting nut.

z

20 Nm (15 ft lb)

z

Check TDC mark on flywheel again.

z

Tighten new mounting bolts for injection pump sprocket.

z

20 Nm (15 ft lb)

z

Tighten camshaft sprocket mounting bolt.

z

45 Nm (33 ft lb)

z

Remove 3359 locking pin.

z

Remove 3418 setting bar from camshaft.

z

Turn crankshaft two rotations in direction of engine rotation until crankshaft is set to cyl. 1 TDC again.

z

Reconnect injection lines, fuel supply line and electrical wiring.

NOTE:

z

After dynamically checking the injection timing, tighten the bolts an
additional 1/4 turn (90°).

z

The mounting bolts (stretch design) may only be used once.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH



Fill injection pump with Diesel fuel as follows.

z

Screw 1318/10 adapter into injection pump return/supply opening.

z

Connect VAG1390 hand vacuum pump to adapter using approx. 40 inches of transparent plastic hose.
