VAG1331 Torque wrench 5 to 50 Nm (3.7 to 37 ft lb) or equivalent

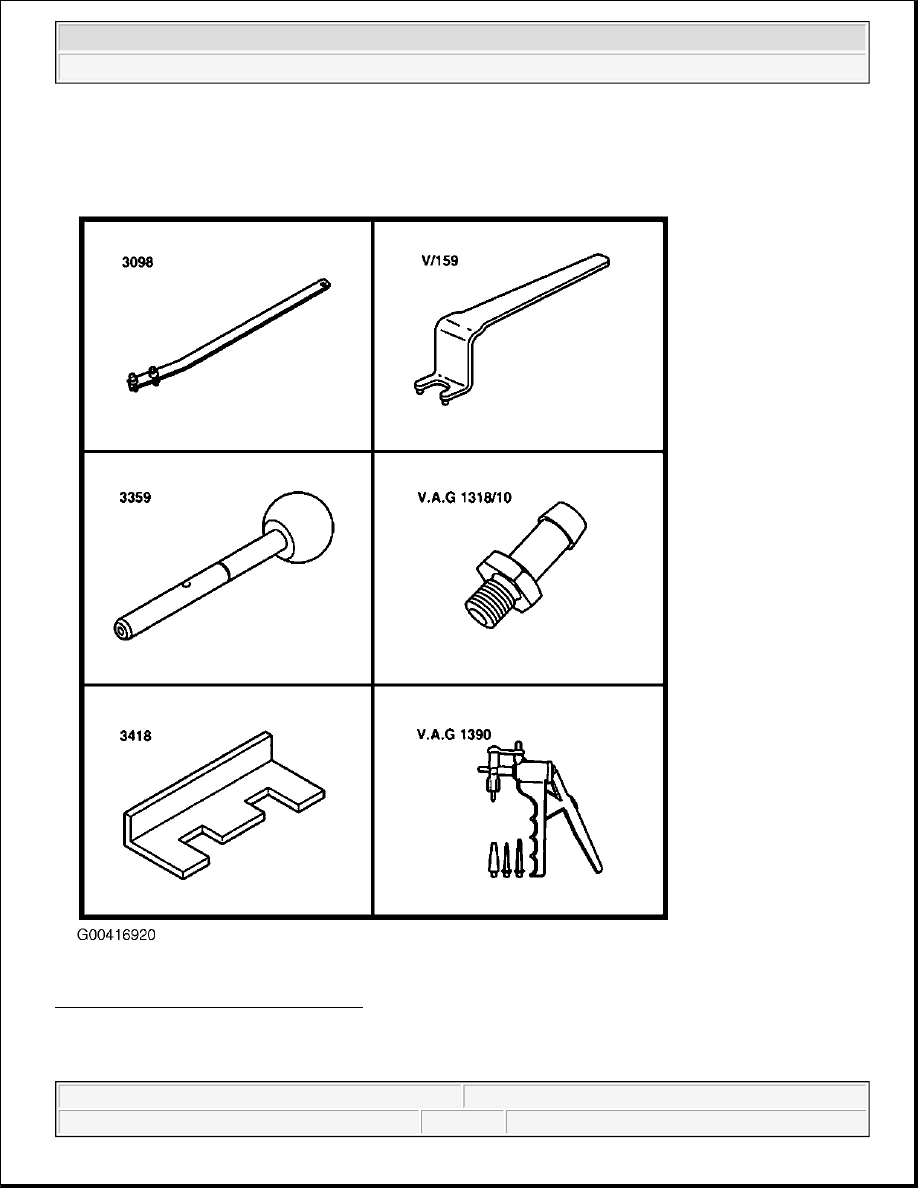

Fig. 4: Identifying Special Tools (1 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH



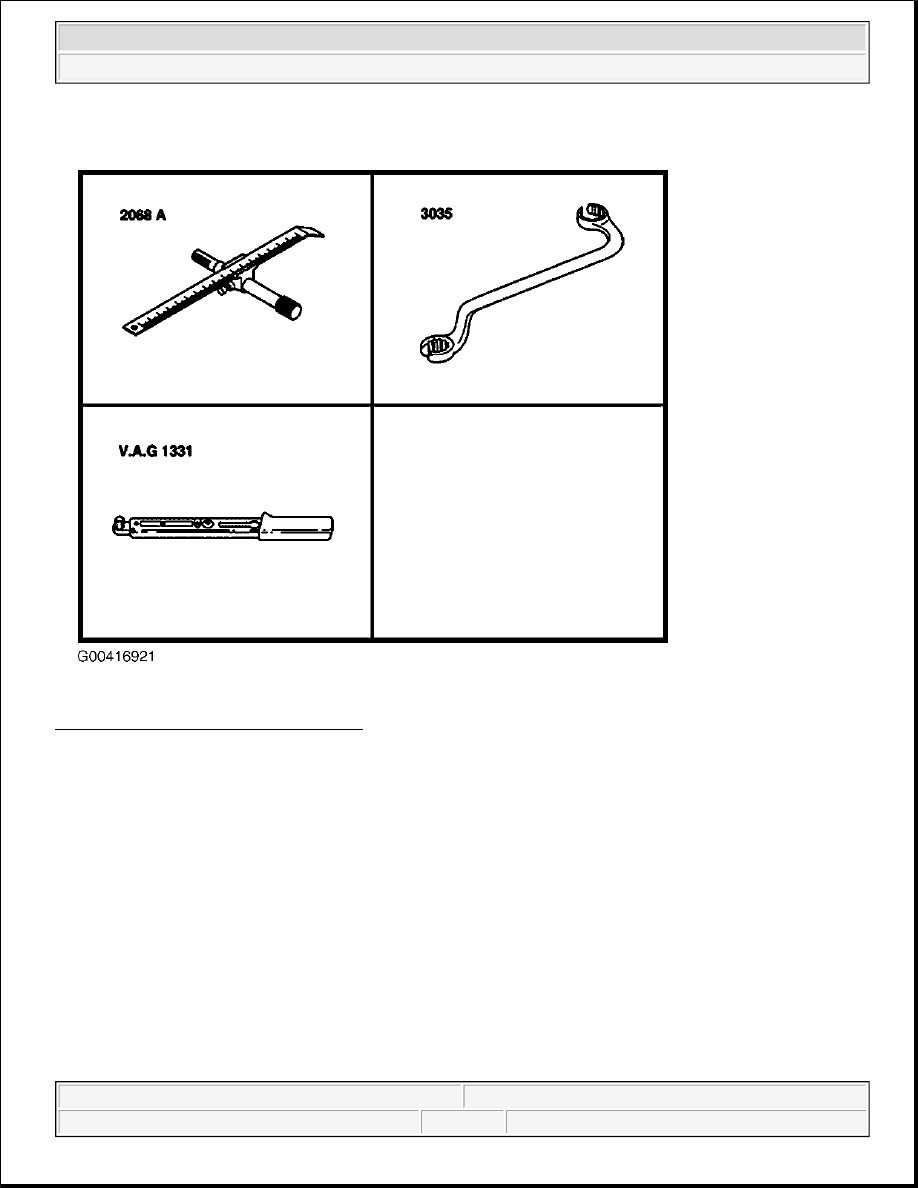

Fig. 5: Identifying Special Tools (2 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DIESEL INJECTION PUMP, REMOVING

z

Unbolt all fuel lines at fuel pump.

z

Cover openings with a clean cloth.

z

Remove connecting line between charge air cooler and intake manifold.

z

Remove upper toothed belt guard and valve cover.

z

Remove vacuum pump for brake servo.

WARNING:

Fire hazard! Do NOT have anything in the area that can ignite Diesel fuel.

NOTE:

Use 3035 tubing wrench to loosen the high pressure fuel lines.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH



z

Turn crankshaft to cyl. 1 TDC (arrow).

Fig. 6: Identifying Crankshaft At Cyl. 1 TDC (Manual Transmission)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Turn crankshaft to cyl. 1 TDC (arrow)

z

for automatic transmission

Fig. 7: Identifying Crankshaft At Cyl. 1 TDC (Automatic Transmission)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

With engine removed

Vehicles with manual transmission

z

Install 2068 A TDC gauge as shown.

z

Set adjustment device to 96 mm (arrow -A-).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH



z

Left-hand notch of the vernier scale is the reference point.

Fig. 8: Installing 2068 A TDC Gauge On Flywheel
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Turn crankshaft until flywheel TDC marking aligns with point of setting device (arrow -B-).

Vehicles with automatic transmission

z

Install 2068 A TDC gauge as shown.

z

Set adjustment device to 30 mm (arrow -A-).

z

Left-hand notch of the vernier scale is the reference point.

Fig. 9: Installing Adjustment Device On Flywheel
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Turn crankshaft until TDC marking on drive plate aligns with point of setting device (arrow -B-).
