Volkswagen New Beetle. Manual - part 1299





14. 20 Nm (15 ft lb)

15. Retainer

16. Mounting

17. Heat shield

z

Always replace

18. 10 Nm (7 ft lb)

19. Cold Start injector -N108-, see OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03).

20. Strainer

21. O-ring

z

Always replace

22. 25 Nm (18 ft lb)

23. Timing cover

z

Replace O-ring if leaking. See DIESEL INJECTION PUMP TIMING COVER O-RING,
REPLACING
 .

24. Sleeve

z

with nut

25. Assembly bracket

z

Removing and installing. See 1.9L4-CYLINDER TDI ENGINE .

26. 25 Nm (18 ft lb)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH



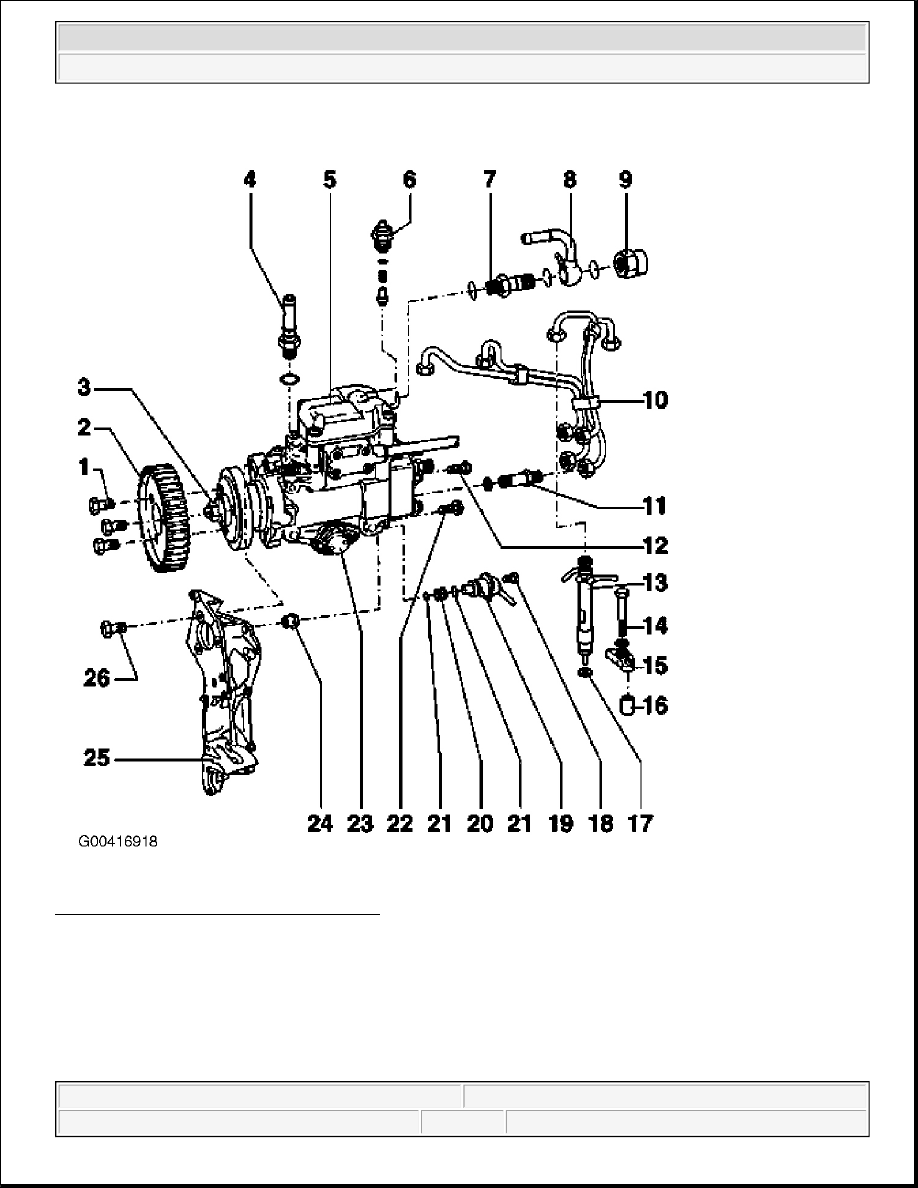

Fig. 2: Diesel Injection Pump Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.

INTAKE MANIFOLD CHANGE-OVER VALVE, SERVICING

The intake manifold change-over flap is closed for approx. 3 seconds when engine stops and then opens again
which reduces the stop jolt.

Intake manifold change-over valve.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH



1. Intake manifold

2. 10 Nm (7 ft lb)

3. O-ring

z

Always replace

4. Connecting flange

z

with EGR valve and change-over flap

5. 10 Nm (7 ft lb)

6. Gasket

z

Always replace

7. Connecting line

z

to exhaust manifold

8. 25 Nm (18 ft lb)

9. Vacuum control element

10. Intake Manifold Flap Change-over valve -N239-

z

Checking

11. Vacuum supply

z

from vacuum pump

NOTE:

The following list refers to items in Fig. 3 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH

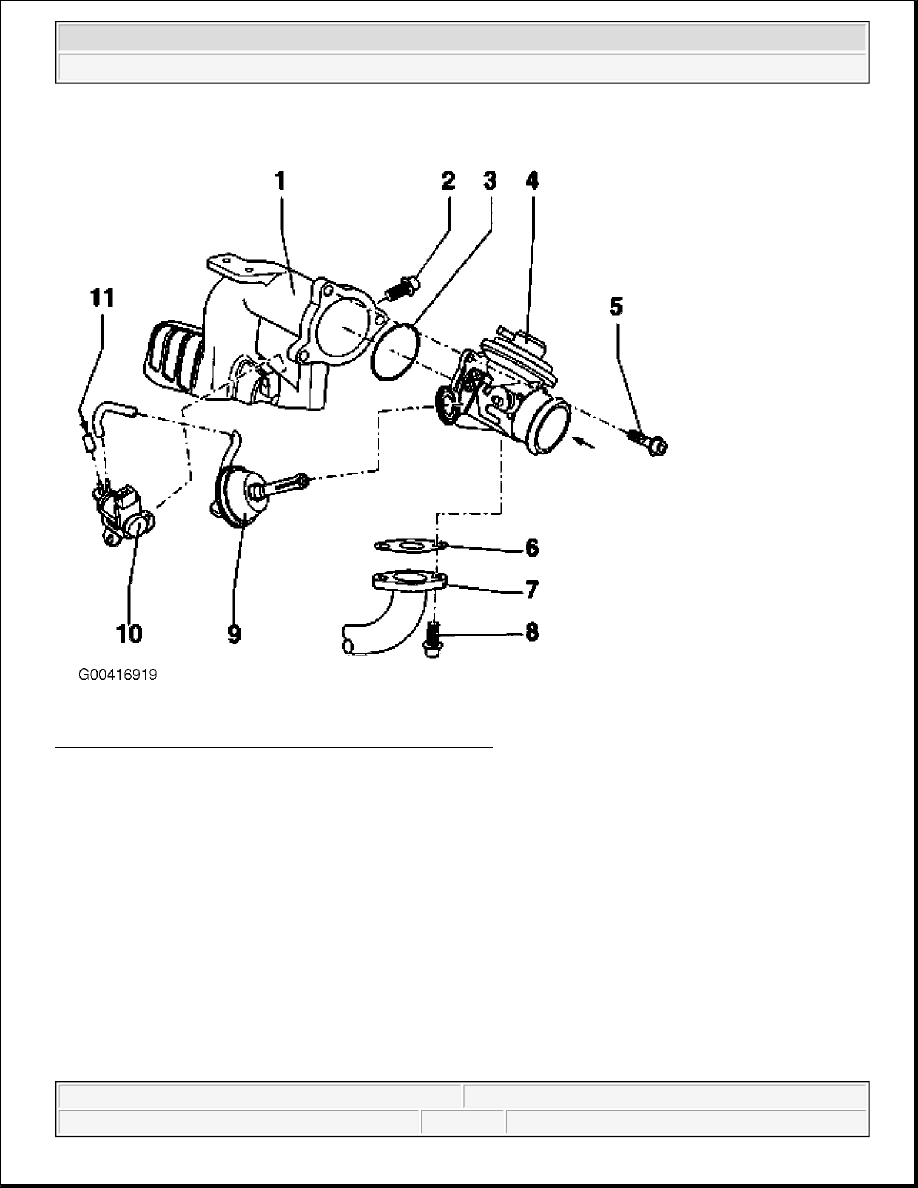

Fig. 3: Intake Manifold Change-Over Valve Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DIESEL INJECTION PUMP, REMOVING AND INSTALLING

Special Tools

z

3098 Lever camber adjustment

z

V159 Pin wrench

z

3359 Rig pin

z

VAG1318/10 Adapter

z

3418 Adjustment guide

z

VAG1390 Hand vacuum pump

z

2068A Adj. gauge TDC

z

3035 Injector line wrench



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH
