Volkswagen New Beetle. Manual - part 1297





z

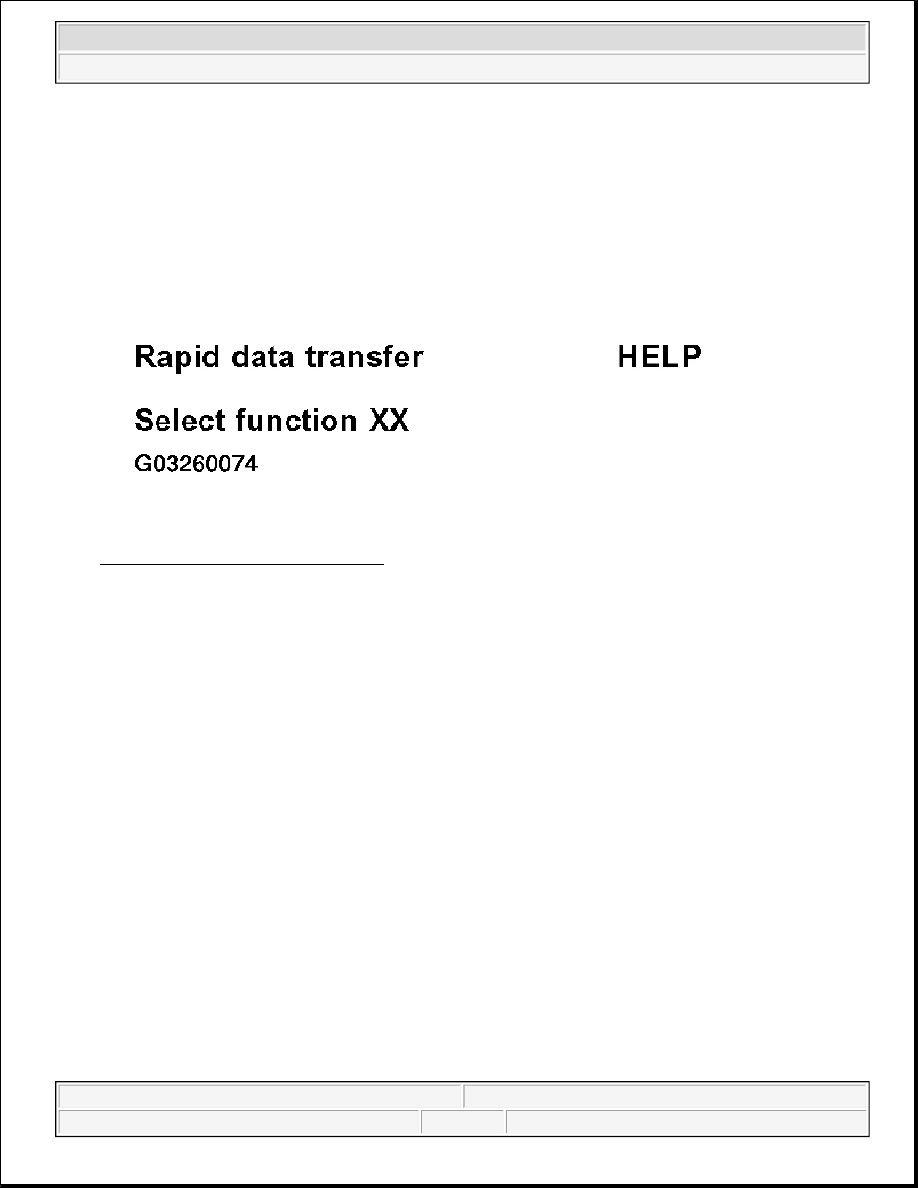

Press --> button.

z

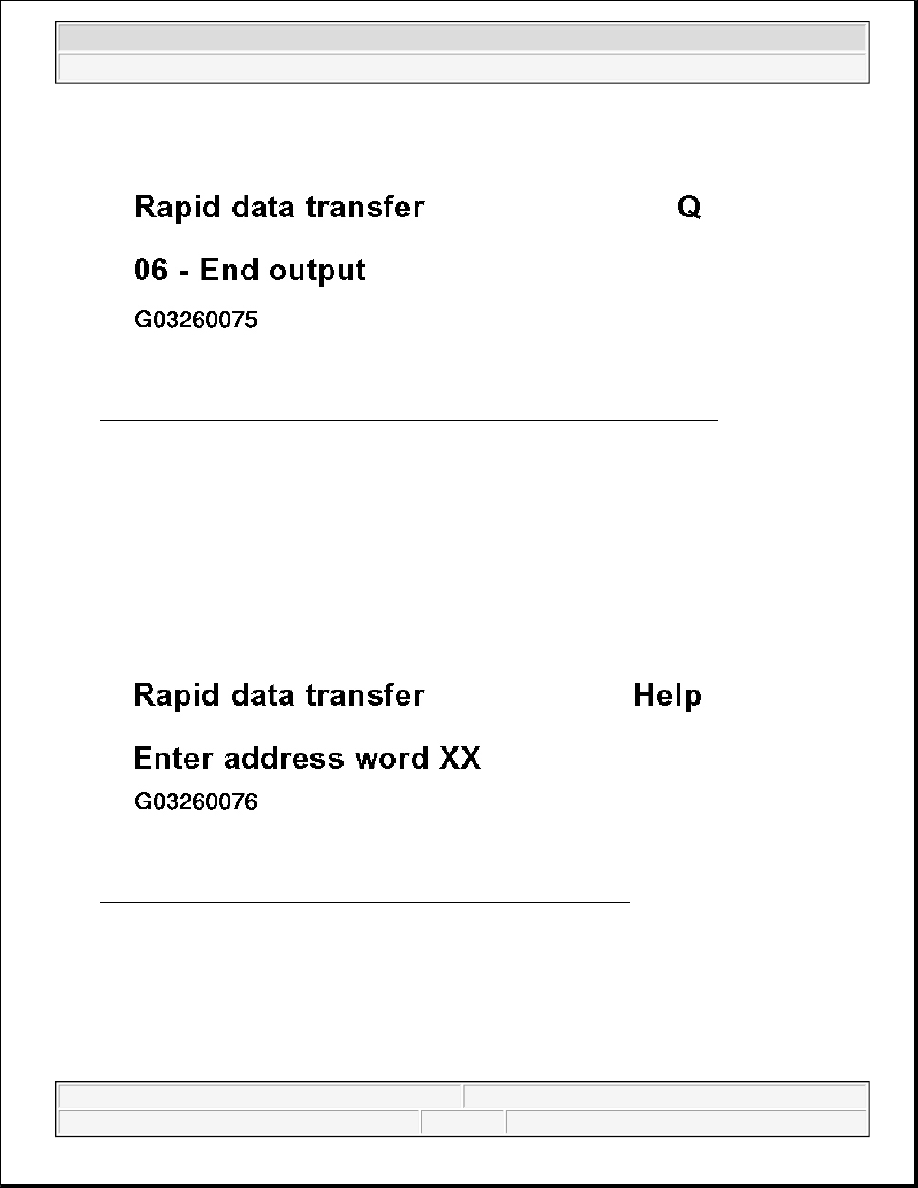

Press 0 and 6 buttons to select Function 06: "End transfer"

z

Press Q button to enter input.

z

Switch ignition off.

z

Disconnect harness connector -1- from EGR valve -2-.

Fig. 26: Locating Harness Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure resistance across valve.

Specification: 14 to 20 ohms

If specification not obtained:

z

Replace EGR Vacuum Regulator solenoid valve -N18-.

If specification obtained:

z

Switch ignition on.

z

Measure supply voltage at valve connector terminal 1 and at engine Ground.

NOTE:

At room temperature, resistance lies in the lower tolerance range and in
the upper range at operating temperature.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



Fig. 27: Identifying EGr Vacuum Regulator Solenoid Valve Connector Terminal
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specification: approx. battery voltage

If specification not obtained:

z

Switch ignition off.

z

Connect Test Box VAG 1598/22 to ECM wiring harness.

Fig. 28: Connecting Test Box VAG 1598/22 To ECM Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between Test Box and harness connector using wiring diagram.

Up to MY 1999

z

Socket 1 + terminals 2 + 28

z

Socket 2 + terminal 29



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



From MY 2000

z

Socket 1 + terminals 1 + 2

z

Socket 2 + terminal 61

Wire resistance: 1.5 ohms maximum

z

Check wires for short to one another, to vehicle Ground and to battery Positive (+).

Specification: "INFINITE" ohms

If wiring OK:

z

Replace Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) -J248:

See Engine Control Module (ECM), Replacing .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



1998-2004 ENGINE

Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH

GENERAL INFORMATION

The Diesel direct injection system Engine Control Module (ECM) is equipped with a Diagnostic Trouble Code
(DTC) memory. Before starting repairs, adjustments and troubleshooting, check DTC memory to see if there are
any stored DTCs and make sure that Function 03: Output Diagnostic Test Mode (DTM) has been performed.

SAFETY PRECAUTIONS

To prevent injuries to persons and/or damage to the Diesel direct fuel injection and glow plug system, observe
the following:

z

Switch OFF the ignition before connecting or disconnecting Diesel fuel injection or glow plug system
wiring or test cables.

z

If the engine requires cranking at starter speed, without starting, e.g. when checking compression,
disconnect the N109 Fuel cut-off valve harness connector from the Diesel injection pump.

z

Obtain the radio Anti-theft code from the customer BEFORE disconnecting the Battery Ground strap.

z

Always make sure that the ignition is switched OFF before disconnecting and connecting the battery.
Otherwise, the Diesel direct injection system Engine Control Module could be damaged.

Safety precautions during Test drives

Always attach Test and measuring instruments to the rear seat and operate them using a second technician from
this location.

If test and measuring instruments are operated from the front passenger's seat and the vehicle is involved in an
accident, there is a possibility that the person sitting in this seat could receive serious injuries if the airbag is
triggered.

RULES FOR CLEANLINESS

When working on the fuel supply/injection system, pay careful attention to the following "6 rules":

z

Thoroughly clean all unions and the adjacent areas before disconnecting.

NOTE:

Some checking and adjustment procedures can cause DTCs to be stored in
DTC memory. For this reason, always erase DTC memory after completing all
checking and adjustment procedures to Set the Readiness code.

WARNING:

Secure Scan Tool to rear seat and operate from this position using a
second technician.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH
