Place removed parts on a clean surface and cover over but do NOT use fluffy cloths (lint contamination)!

z

Carefully cover opened components or seal over, if the repair cannot be carried out immediately.

z

Only install clean components: Only unpack replacement parts immediately prior to installation. Do not
use parts that have been stored loose e.g. in tool boxes.

z

When the system is open: Do not work with compressed air if it can be avoided. Do not move the vehicle
unless absolutely necessary.

z

Make sure that no Diesel fuel runs onto the coolant hoses. Clean contaminated hoses immediately.
Always replace affected hoses.

DIESEL INJECTION SYSTEM, COMPONENT LOCATIONS OVERVIEW

Components A, B and C are not shown in Fig. 1 .

A. Brake vacuum vent valve switch for cruise control/diesel fuel injection -F47- and Brake light switch -

F63-

z

Together in one housing in footwell on brake pedal

B. Throttle Position (TP) Sensor -G79-

z

in footwell on throttle pedal. See THROTTLE POSITION SENSOR, CHECKING .

z

In case of malfunction it is displayed as Throttle Position sensor -G69-

C. Clutch vacuum vent valve switch -F36-

z

in footwell on throttle pedal

1. EGR Valve

2. Change-over valve for intake manifold flap -N239-

3. Needle Lift Sensor -G80-

4. EGR vacuum regulator solenoid valve -N18-

5. Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) -J248-

z

with Barometric Pressure (BARO) sensor -F96-

z

tighten nut for ground wire (located forward of ECM) to 9 +/- 1 Nm (80 +/- 9 in. lb)

6. Wastegate bypass regulator valve -N75-

7. Mass Air Flow (MAF) Sensor -G70-

8. Engine Coolant Temperature (ECT) Sensor -G62-

9. Engine speed (RPM) sensor -G28-

10. Harness connector

z

for Needle lift sensor -G80-

11. Harness connector

NOTE:

The following list refers to items in Fig. 1 .

NOTE:

The following list refers to items in Fig. 1 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH



z

for Engine Speed sensor- G28-

z

for Cold Start injector -N108-

12. Harness connector

z

for Fuel temperature sensor -G81-

z

for Quantity adjuster -N146-

z

for Modulating piston displacement sensor -G149-

z

for Fuel shut-off valve -N109-

13. Cold start injector -N108-

14. Fuel shut-off valve -N109-

15. Injection pump Quantity adjuster -N146-

z

with Fuel temperature sensor

z

with Quantity adjuster -N146-

z

with Modulating piston displacement sensor -G149-

16. Manifold Absolute Pressure (MAP) sensor -G71- and Intake Air Temperature (IAT) sensor -G72-



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH

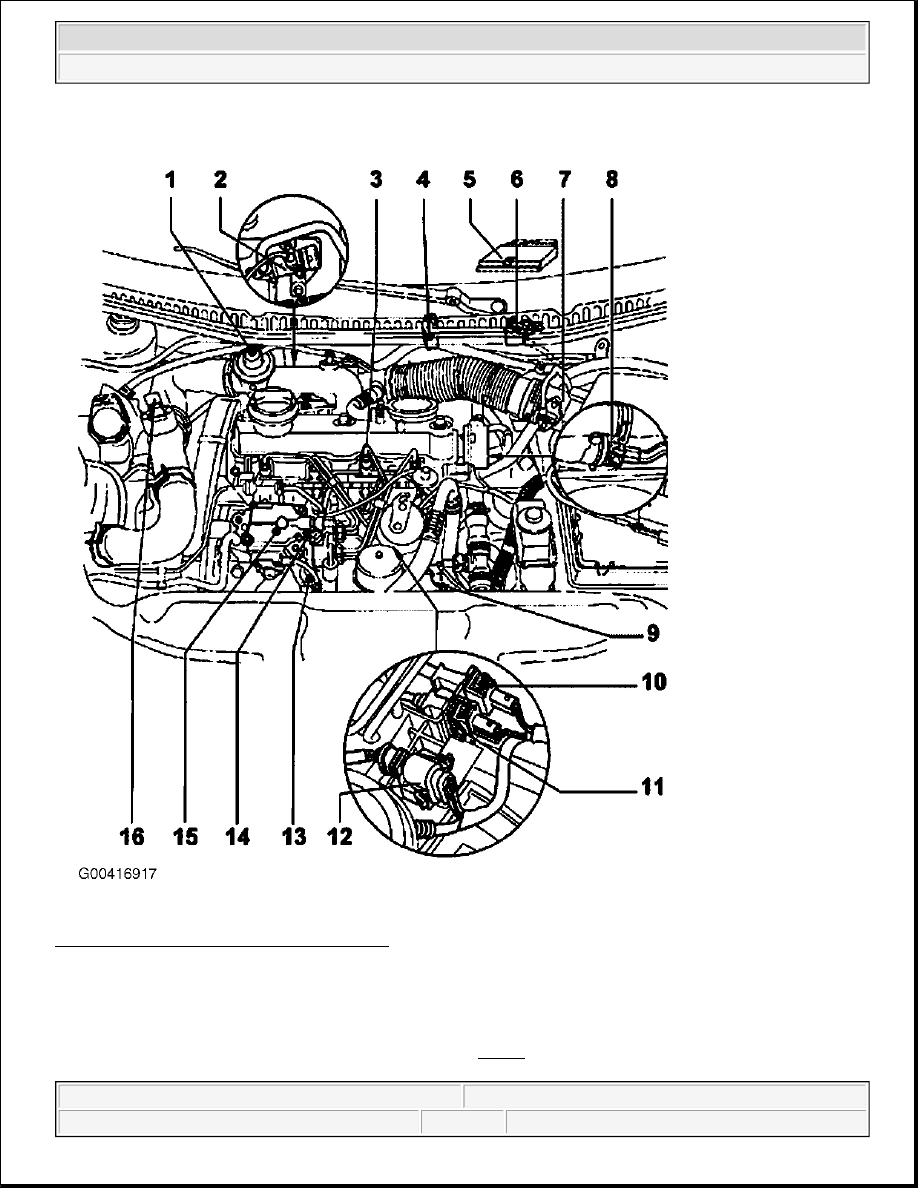

Fig. 1: Diesel Injection System Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DIESEL INJECTION PUMP, SERVICING

NOTE:

The following list refers to items in Fig. 2 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH



1. 20 Nm (15 ft lb) + 1/4 turn (90°) further

{

Always replace

2. Injection pump sprocket

3. Nut

4. Union

z

25 Nm (18 ft lb)

z

for supply line

z

from fuel filter

5. Diesel injection pump

z

with Quantity adjuster (metering)

z

with Quantity adjuster -N146-

z

with Modulating piston displacement sensor -G149-

z

with Fuel temperature sensor

6. Fuel shut off valve

z

40 Nm (30 ft lb)

7. Union

z

for return line

8. Return line

z

to control valve/fuel filter

9. 25 Nm (18 ft lb)

10. Fuel injector lines

z

25 Nm (18 ft lb)

„

Remove with 3035

„

Always remove fuel line cluster as an assembly

„

Do not bend, kink or alter shape

11. Union

z

45 Nm (33 ft lb)

z

with pressure valve

12. 25 Nm (18 ft lb)

13. 3rd cylinder Fuel injector

z

includes Needle lift sensor -G80-

z

Removing and installing, see FUEL INJECTORS, REMOVING AND INSTALLING .

z

Servicing, see FUEL INJECTORS, SERVICING .

CAUTION: Do not loosen nut or basic setting of pump may change. This cannot

be reset using normal workshop equipment.
