Terminal 3 + socket 98

Terminal 4 + socket 101

Wire resistance: Max. 1.5 ohm

z

Additionally, check wires for short to one another.

If no wiring malfunction is detected and voltage was present between terminals 1 + 3:

z

Check function. See CHECKING FUNCTION .

If no wiring malfunction is detected and no voltage was present between terminals 1 + 3:

z

Replace engine control module.

See Engine Control Module (ECM), Replacing .

Checking function

z

Remove inner plenum chamber cover, left side.

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING .

z

Connect VAG 1598/31 test box to wiring harness for control module and to control module.

z

Re-connect connector at Charge Air Pressure Sensor -G31-.

z

Connect multimeter to measure voltage to sockets 101 (positive) and 108 (Ground) using adapter cables
from VAG 1594.

z

Start engine and measure basic voltage.

Specification: 1.80 to 2.00 V

z

Bring engine to specified RPM by quickly depressing accelerator pedal.

Specification: 2.00 to 3.00 V

If the specifications are not obtained:

z

Replace Charge Air Pressure Sensor -G31-.

z

Check DTC memory.

See Diagnostic Trouble Code (DTC) Memory, Checking And Erasing .

z

Read readiness code.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



See Readiness Code, Displaying .

If the DTC memory has been erased or the engine control module separated from the permanent positive, the
readiness code must be generated again.

See Readiness Code, Displaying .

Recirculating valve for turbocharger -N249-, checking

Special tools and equipment

z

VAG 1551 Scan Tool (or vehicle system tester VAG 1552 with cable VAG 1551/3B)

z

VAG 1526 Hand multimeter or VAG 1715 multimeter

z

VAG 1594A Adapter set

Test conditions

z

Output Diagnostic Test Mode (DTM) completed

See Output Diagnostic Test Mode (DTM) .

Test sequence

z

Switch ignition off.

z

Disconnect connector from Recirculating valve for turbocharger -N249-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



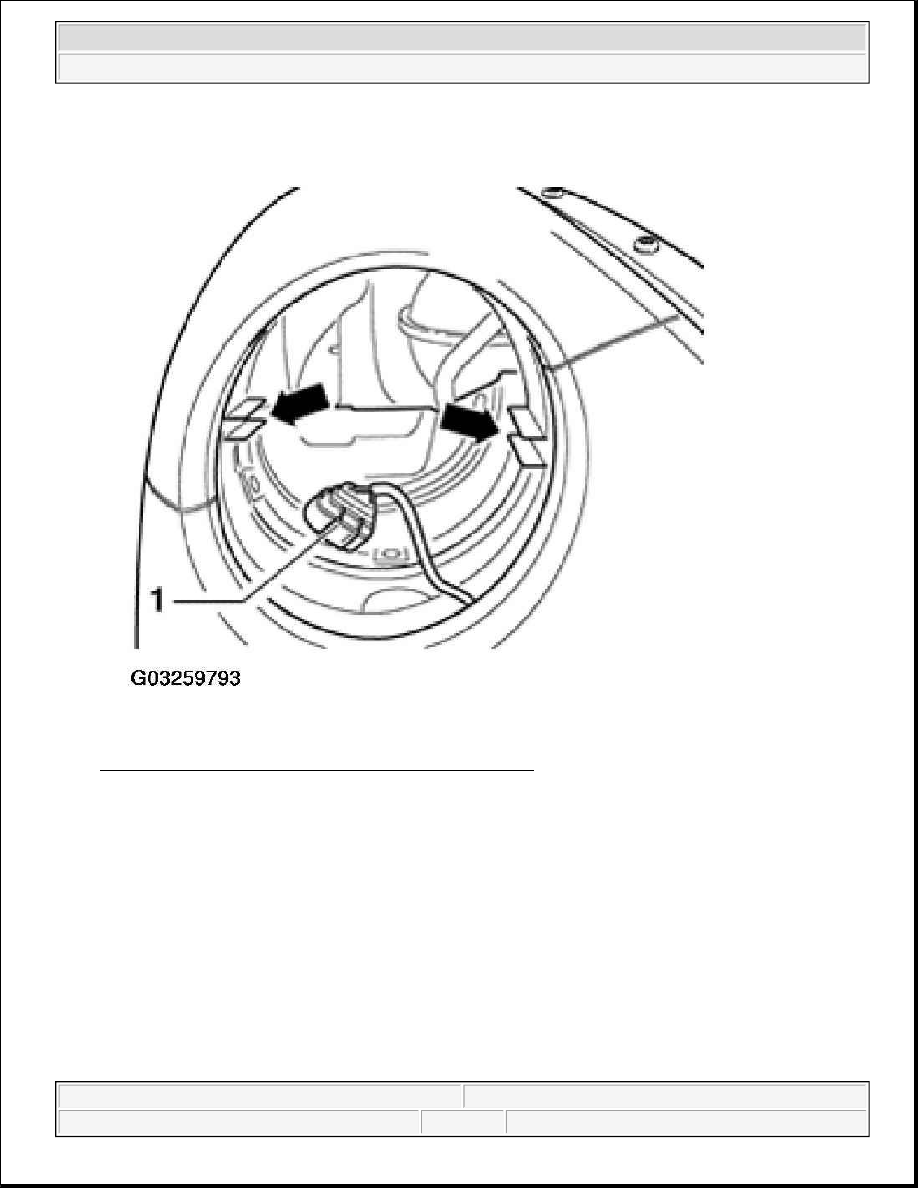

Fig. 23: Locating Recirculating Valve For Turbocharger
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure resistance between valve terminals.

Specification: 27 to 30 ohm

If the specification is not obtained:

z

Replace Recirculating valve for turbocharger -N249-.

z

Check DTC memory.

See Diagnostic Trouble Code (DTC) Memory, Checking And Erasing .

z

Read readiness code.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



See Readiness Code, Displaying .

If the DTC memory has been erased or the Engine Control Module separated from permanent (battery) positive,
the readiness code must be generated again.

See Readiness Code, Displaying .

z

Repeat test sequence.

If the specification is not obtained:

z

Check wiring for open circuit or short to positive according to wiring diagram.

See appropriate SYSTEM WIRING DIAGRAM article.

If no wiring problem is detected:

z

Replace Engine Control Module (ECM).

See Engine Control Module (ECM), Replacing .

z

Check activation of Recirculating valve for turbocharger -N249-.

See Output Diagnostic Test Mode (DTM) .

Pressure unit for Wastegate Bypass Regulator Valve -N75-, checking

Special tools and equipment

z

VAG 1551 Scan Tool (or VAG 1552 vehicle system tester with VAG 1551/3B cable)

Test conditions

z

Engine oil temperature min. 60° C

z

No leaks on intake and exhaust systems.

Test sequence

z

Disconnect connector -2- from Wastegate Bypass Regulator Valve -N75- -1-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)
