Removing

z

Remove ribbed belt. See RIBBED BELT TENSIONER, REMOVING AND INSTALLING

z

Remove toothed belt. See TOOTHED BELTS, REMOVING, INSTALLING, TENSIONING

z

Remove crankshaft toothed belt sprocket by counter-holding sprocket with 3415.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - 1.9L 4-Cyl. - ALH, New Beetle



Fig. 52: Removing Crankshaft Toothed Belt Sprocket
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Drain engine oil.

z

Remove oil pan. See OIL PAN, REMOVING AND INSTALLING

z

Unbolt front sealing flange.

z

Remove sealing flange and if necessary, release using light blows with a rubber hammer.

z

Remove sealant residue on engine block with a flat scraper.

z

Remove sealant remains on sealing flange with a rotating plastic brush (wear protective goggles).

Fig. 53: Removing Sealant Remains On Sealing Flange
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Clean sealing surface.

Installing

NOTE:

Surface must be free of oil and grease



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - 1.9L 4-Cyl. - ALH, New Beetle



z

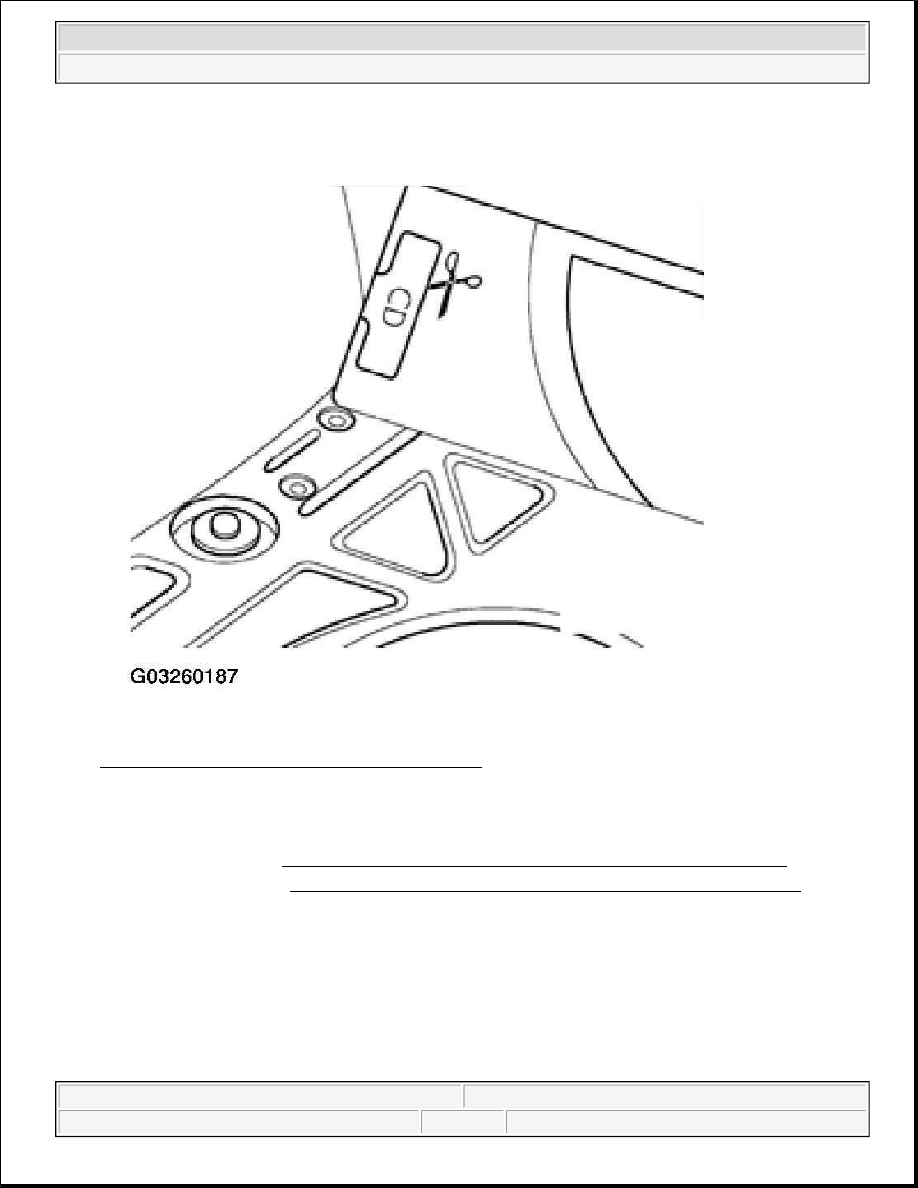

Cut off tube nozzle at forward mark (nozzle approx. 3 mm diameter)

z

Apply silicone sealing compound, as shown, to a clean oil pan sealing surface.

z

Thickness of sealant bead must be (arrows): 2 to 3 mm

Fig. 54: Applying Silicone Sealant Bead To Clean Sealing Surface
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Apply silicone sealant bead as shown to the clean sealing surface of the sealing flange.

z

Install sealing flange immediately, then lightly tighten all bolts.

NOTE:

z

Observe the "must be used by" date on the sealant tube.

z

Oil pan must be installed within 5 minutes after applying silicone sealing
compound.

CAUTION: The sealing compound bead thickness specification must NOT be

thicker, otherwise excess sealing compound will enter the oil pan
and could block the oil suction pipe strainer.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - 1.9L 4-Cyl. - ALH, New Beetle



Fig. 55: Applying Silicone Sealant Bead To Clean Sealing Surface
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Tighten sealing flange mounting bolts using a staggered tightening pattern.

z

Tightening torque: 15 N.m (11 ft lb)

z

Install oil pan. See OIL PAN, REMOVING AND INSTALLING

z

Install toothed belt and adjust timing. See TOOTHED BELTS, REMOVING, INSTALLING,
TENSIONING


z

Install ribbed belt. See RIBBED BELT TENSIONER, REMOVING AND INSTALLING

CRANKSHAFT, REMOVING AND INSTALLING

1. Bearing shells:1, 2, 4 and 5

z

For bearing caps without oil groove

z

For engine block with oil groove

z

Do NOT interchange used bearing shells (mark)

2. 65 N.m (48 ft lb) plus additional 1/4 turn (90°)

z

Replace

z

Threaded along complete length of screw

z

To measure radial clearance tighten to 65 N.m (48 ft lb) but no further

3. Bearing cap

z

Bearing cap 1: Pulley end

z

Bearing cap 3 with recesses for thrust washers

z

Bearing shell retaining lugs engine block/bearing cap must be on the same side

4. Bearing shell 3

z

Bearing cap w/o oil groove

z

For engine block with oil groove

5. Thrust washer

z

For bearing cap 3

z

Note fixing arrangement

6. Sensor wheel

NOTE:

Use guide sleeve from 2080A to install the sealing flange if the oil seal is
already installed.

NOTE:

After installing; allow the sealant to dry for approx. 30 minutes before
adding engine oil.

NOTE:

The following list refers to items in Fig. 56 .
