Volkswagen Golf Variant / Jetta. Manual - part 573

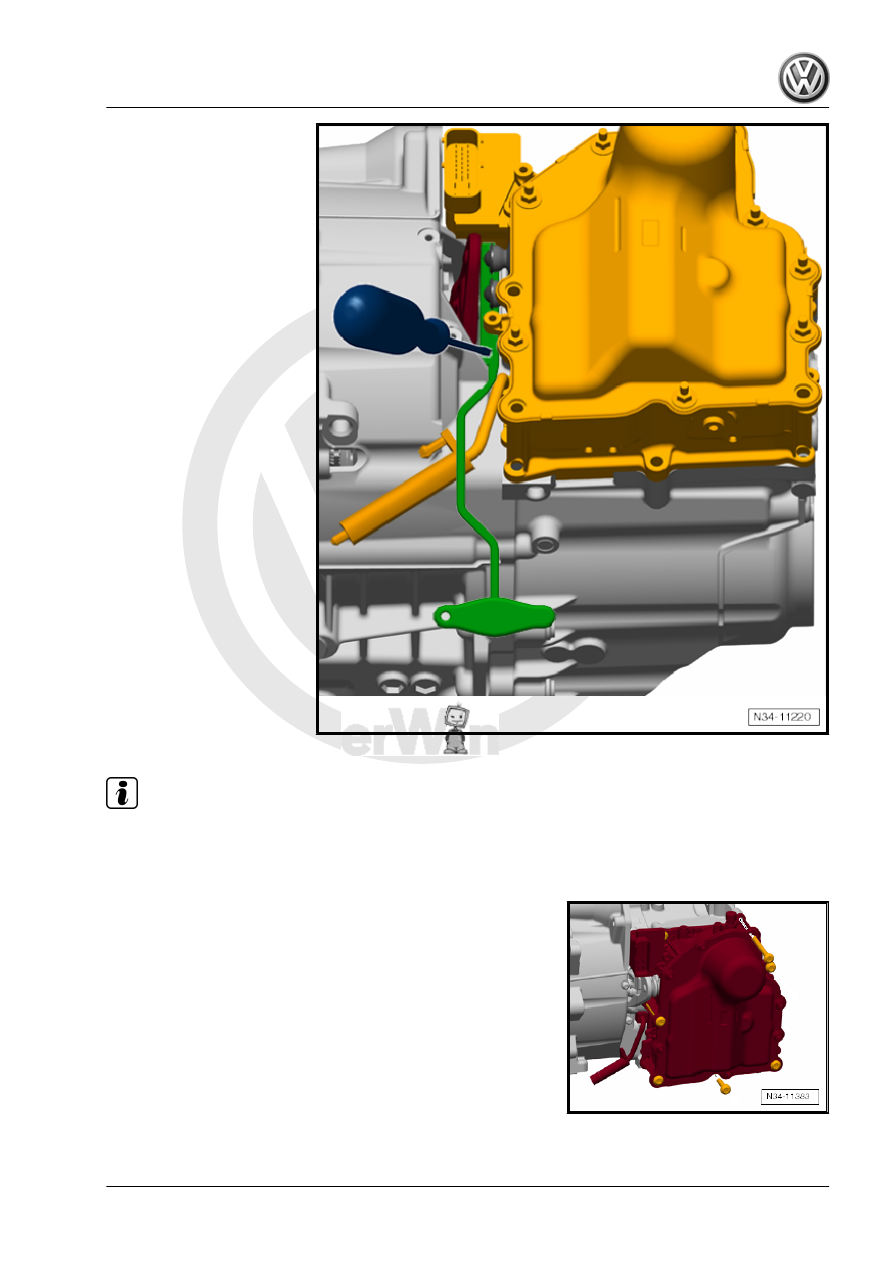

Leave the Assembly Lever - Mechatronic - T10407- inserted be‐

tween the engaging lever and transmission housing after remov‐

ing the Mechatronic. Removing the assembly lever could have a

negative effect on the clutch adjusting tool.

– Remove the DSG Transmission Mechatronic - J743- bolts »in

a diagonal sequence«.

»There are 4 long and three short bolts.«
Do Not Remove More than 7 Bolts.
– Pay attention to exactly which bolts are removed. Do not re‐

move any bolts from the cover.

3. DSG Transmission Mechatronic J743

113

moved.
Therefore Do Not Remove More Than 7 Bolts.

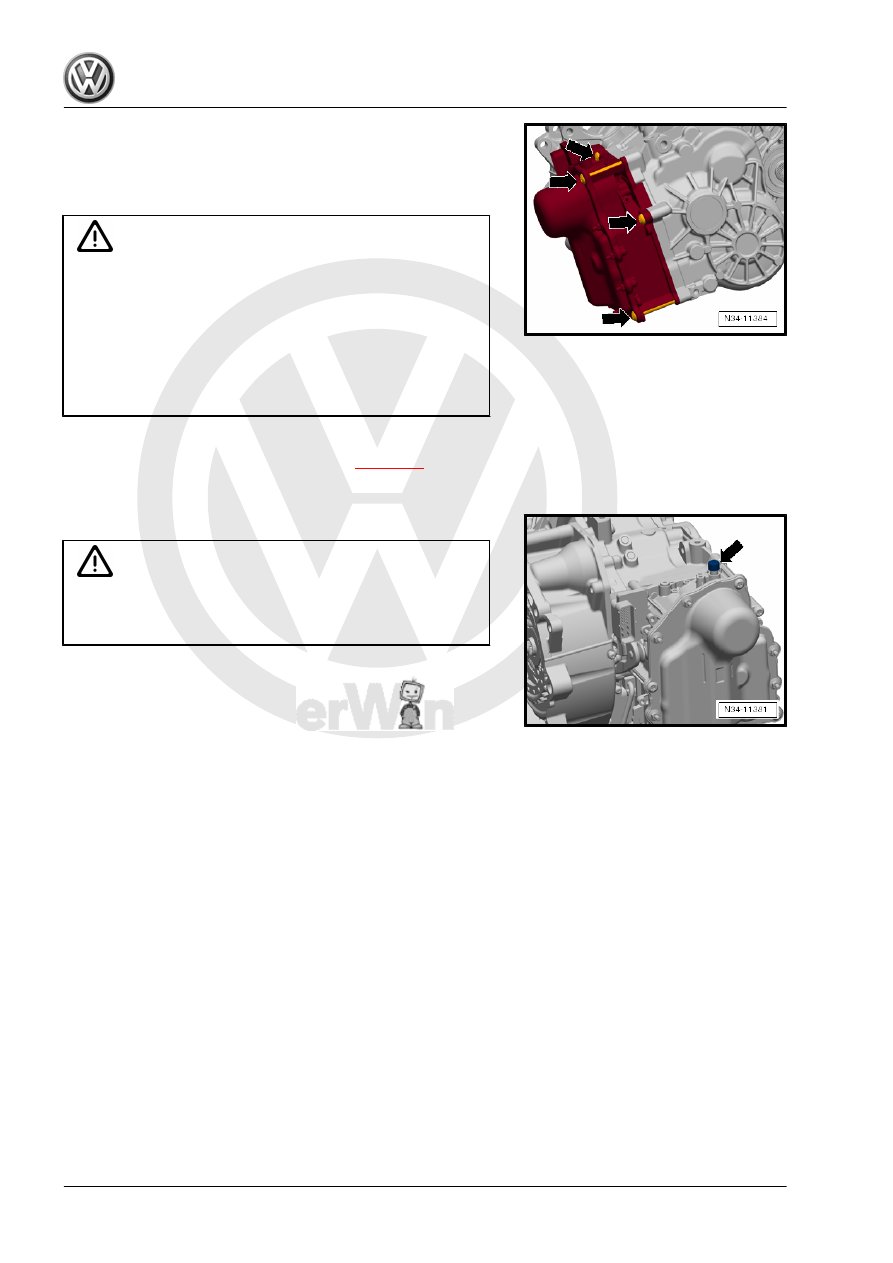

Caution

Risk of damaging transmission components.

♦ Only touch or remove the DSG Transmission Mechatronic

- J743- after having discharged any static electricity by

touching a grounded object (for example, contact ground

with skin).

♦ Never touch the contacts in the transmission connector.

The control module as well as the Mechatronic can be‐

come damaged by the static discharge.

– To discharge any static electricity, touch vehicle ground with

hand (without wearing a glove). Refer to

⇒ page 12

 .

– Remove the Mechatronic.

– Make sure that no fluid comes out of the vent.

Caution

Fluid that has leaked out of the Mechatronic hydraulic area may

not be refilled or checked. Replace the Mechatronic if fluid is

leaking.

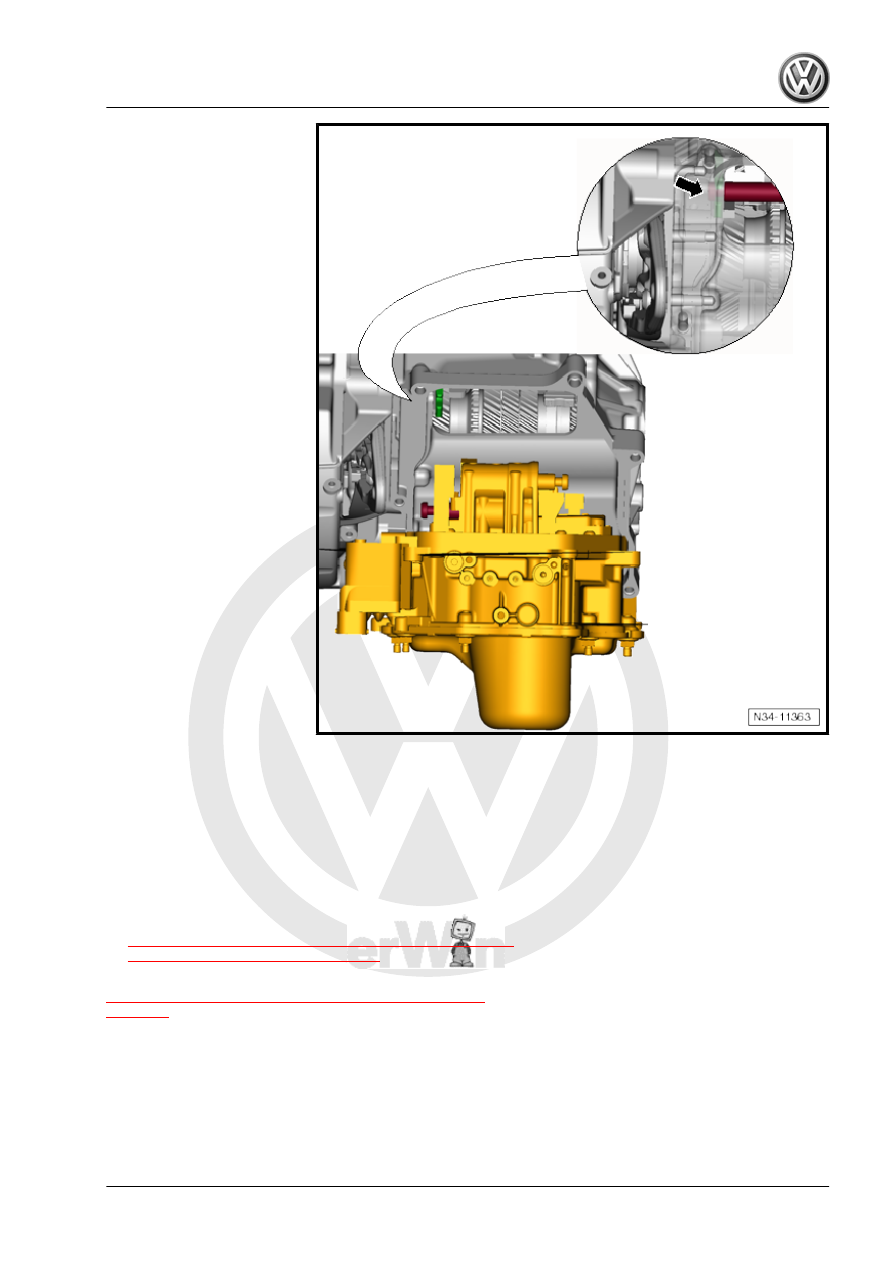

If the Mechatronic »gets stuck« and Cannot Be Removed

114

the gear selector is »caught« at the »upper left side« on the trans‐

mission housing.
In this situation, the Mechatronic must not be removed with strong

force.
– Place the Mechatronic back on the transmission housing and

secure the Mechatronic with a screw.

– Move the Mechatronic by hand into the »Removal position«.

Refer to

⇒ “3.4  DSG Transmission Mechatronic J743 , Moving into

Removal Position by Hand”, page 115

 .

Install the Mechatronic. Refer to

⇒ “3.5  DSG Transmission Mechatronic J743 , Installing”,

page 119

 .

3.4

DSG Transmission Mechatronic -

J743- , Moving into »Removal Position«

by Hand

Special tools and workshop equipment required
♦ Pry Lever - 80-200-

3. DSG Transmission Mechatronic J743

115

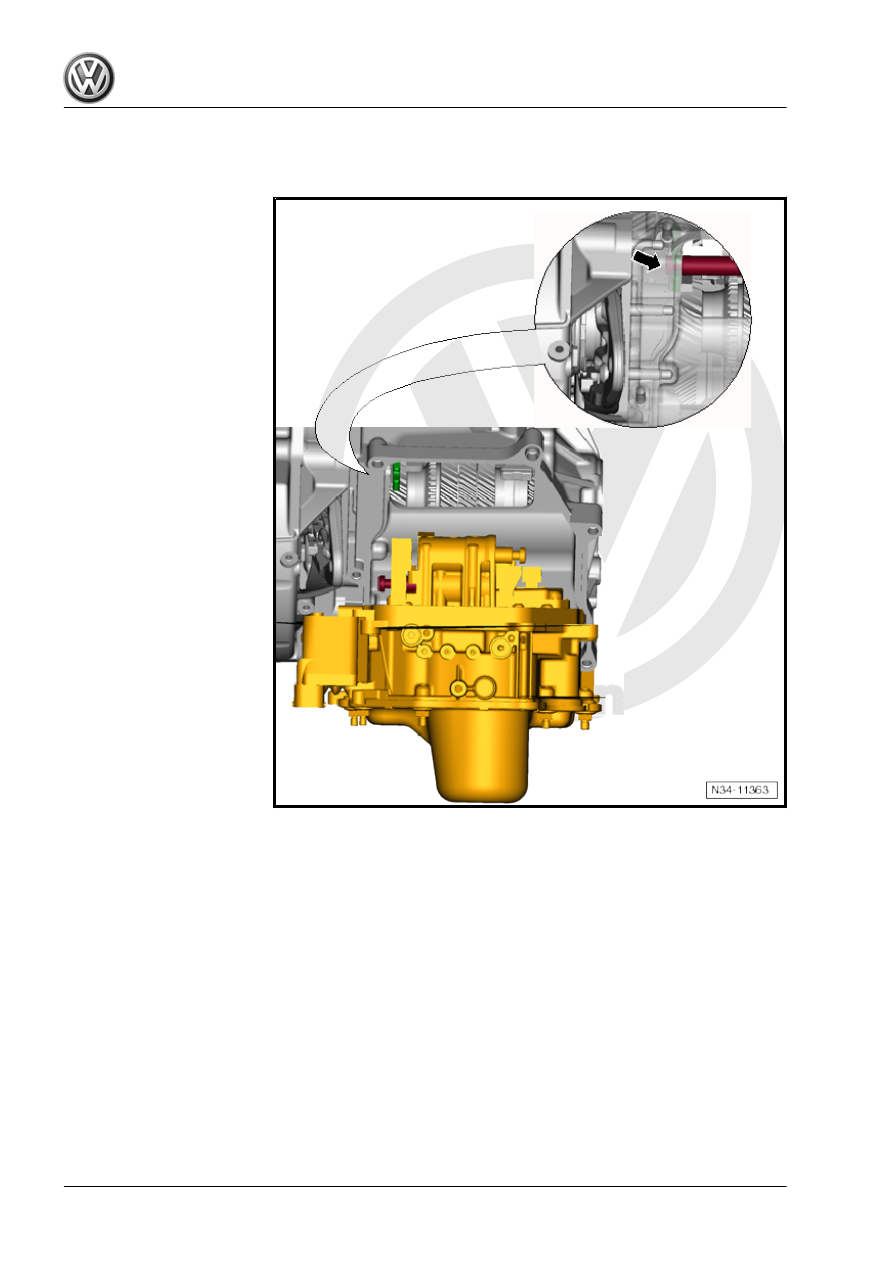

this case, the gear selector will get »caught« at the »top left side«

on the transmission housing -arrow-.

The gear selector that is »caught« -arrow- can be pushed into a

»removal position« by hand. Slide a shift fork behind the parking

lock cover to do this. Do this according to the following procedure:
– Place the Mechatronic back on the transmission housing and

secure the Mechatronic with a screw.

– Move the selector lever into “P”.

116
