Use pliers to remove the lock washer. Do not use a sharp-

edged lever. Otherwise the selector lever cable could get

damaged.

Remove the cable bracket -A- and selector lever cable from

the transmission, if necessary. To do this, remove the bolts

-arrows-. These bolts must be replaced.

Bolt tightening specification -arrows-: 8 Nm +90° additional

turn.

– Remove the selector lever cable from the ball head on the se‐

lector lever using, for example, a Pry Lever - 80-200- .

– Raise the vehicle.
To remove the selector level cable or the selector mechanism, the

heat shield under the selector mechanism must be removed as

follows:

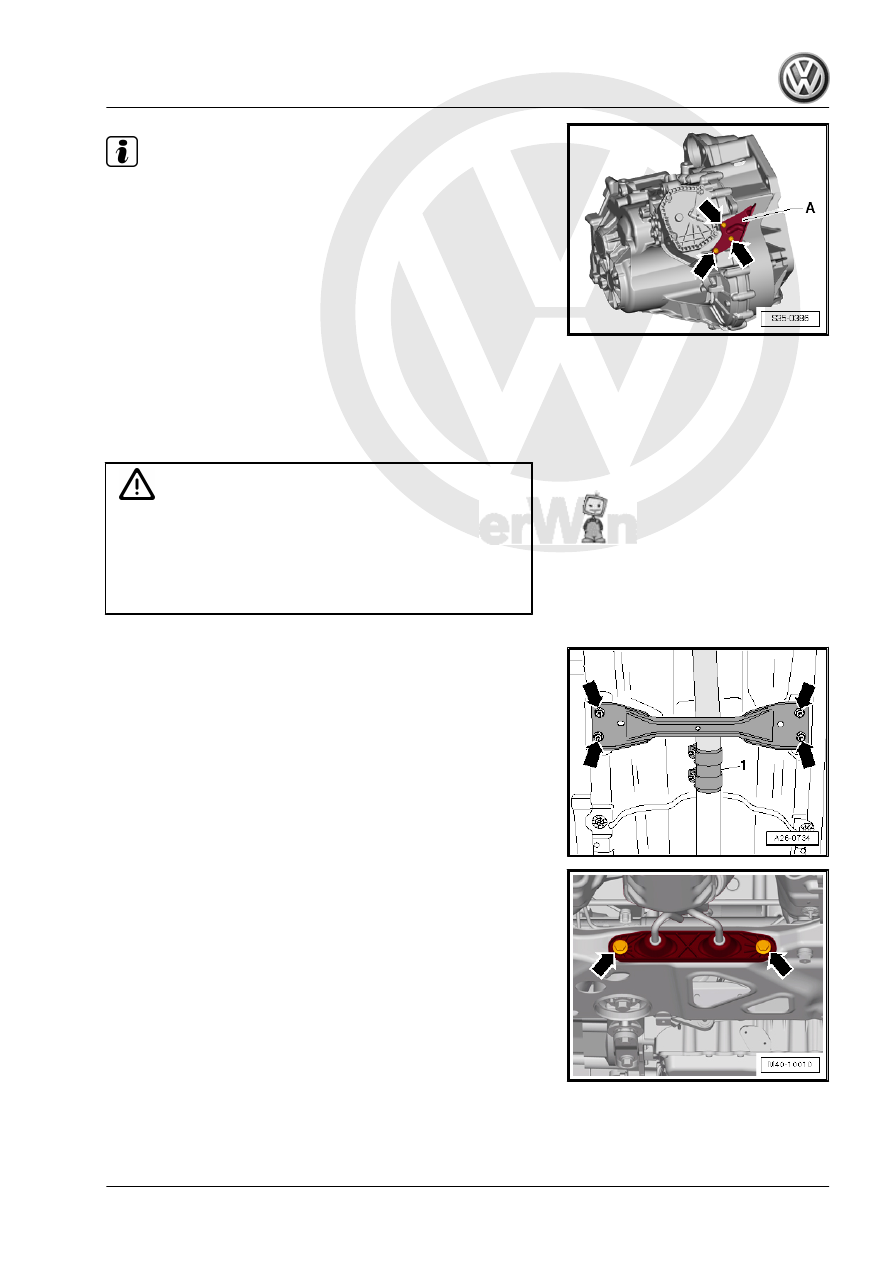

Caution

Risk of damaging the decoupling element.

♦ Do not bend the decoupling element more than 10°.
♦ Do not load the decoupling element.
♦ Do not damage the wire mesh on the decoupling element.

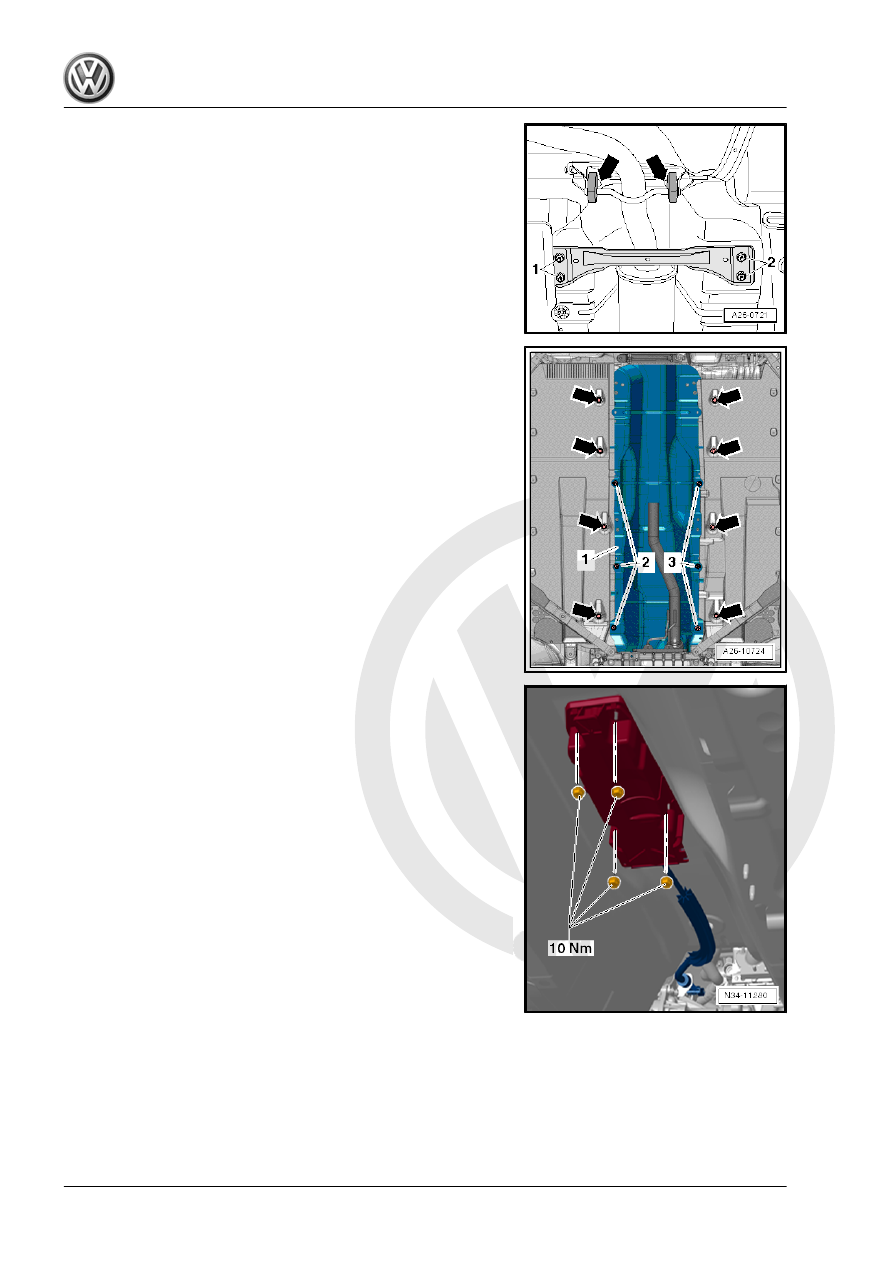

– Loosen the nuts on the clamping sleeve -1- and then slide it

toward the rear.

– Remove the front tunnel brace -arrows- from the underbody.

– If necessary remove the exhaust system bracket from the

subframe -arrows-.

– Tie up the front exhaust pipe.

2. Selector Mechanism

77

brace.

– Disengage the center muffler and the rear muffler from the re‐

taining loops -arrows- and tie them to the body for example

with a wire. Remove the exhaust system rear section, if nec‐

essary.

– Remove the underbody trim panel nuts -arrows-.
– Remove the lock washers -2 and 3-.
– Lower the underbody trim panel on the inside just enough until

the heat shield -1- for the center tunnel can be removed.

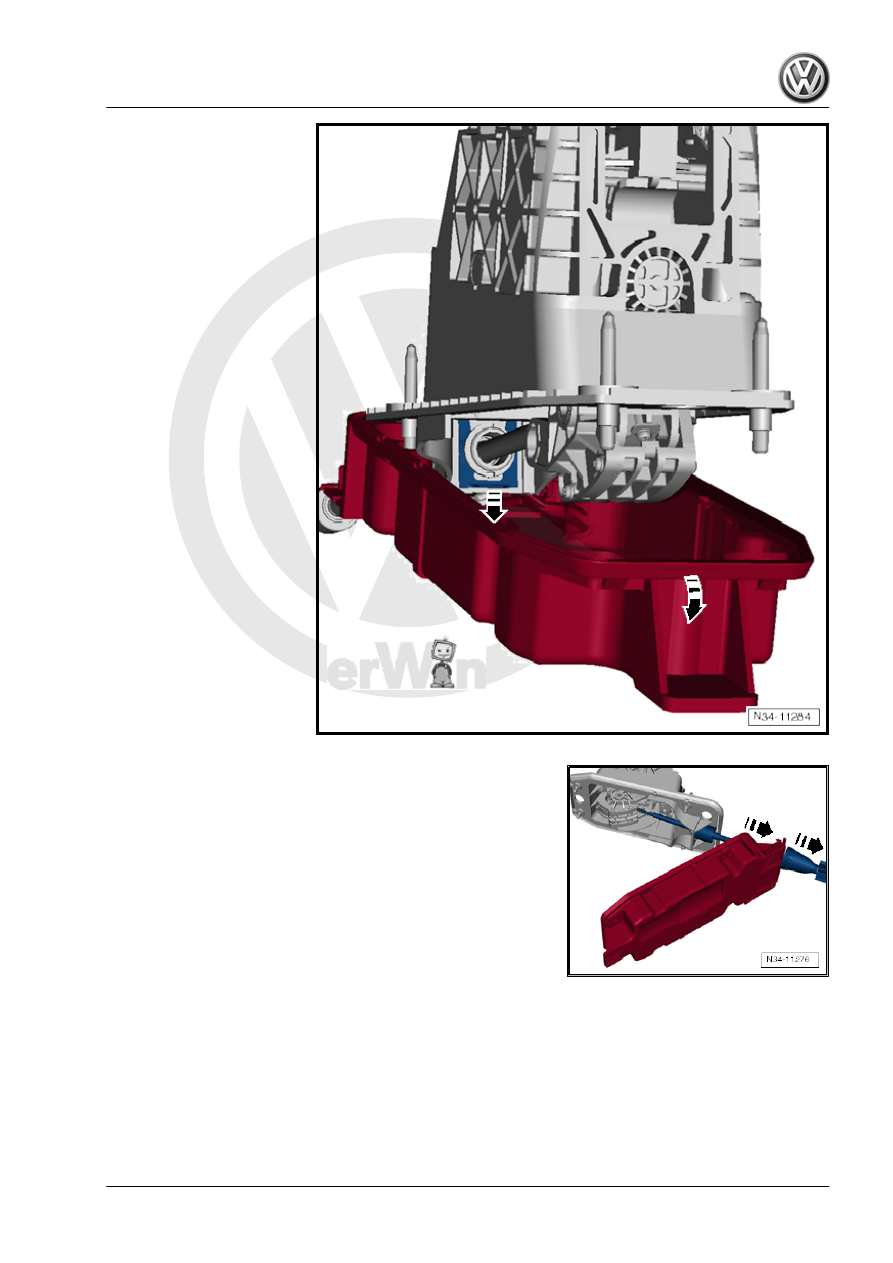

– Remove the -selector housing- from under the selector lever.

– Remove the locking plate on the cable mounting bracket. Al‐

ways replace the locking plate.

78

cable.

2. Selector Mechanism

79

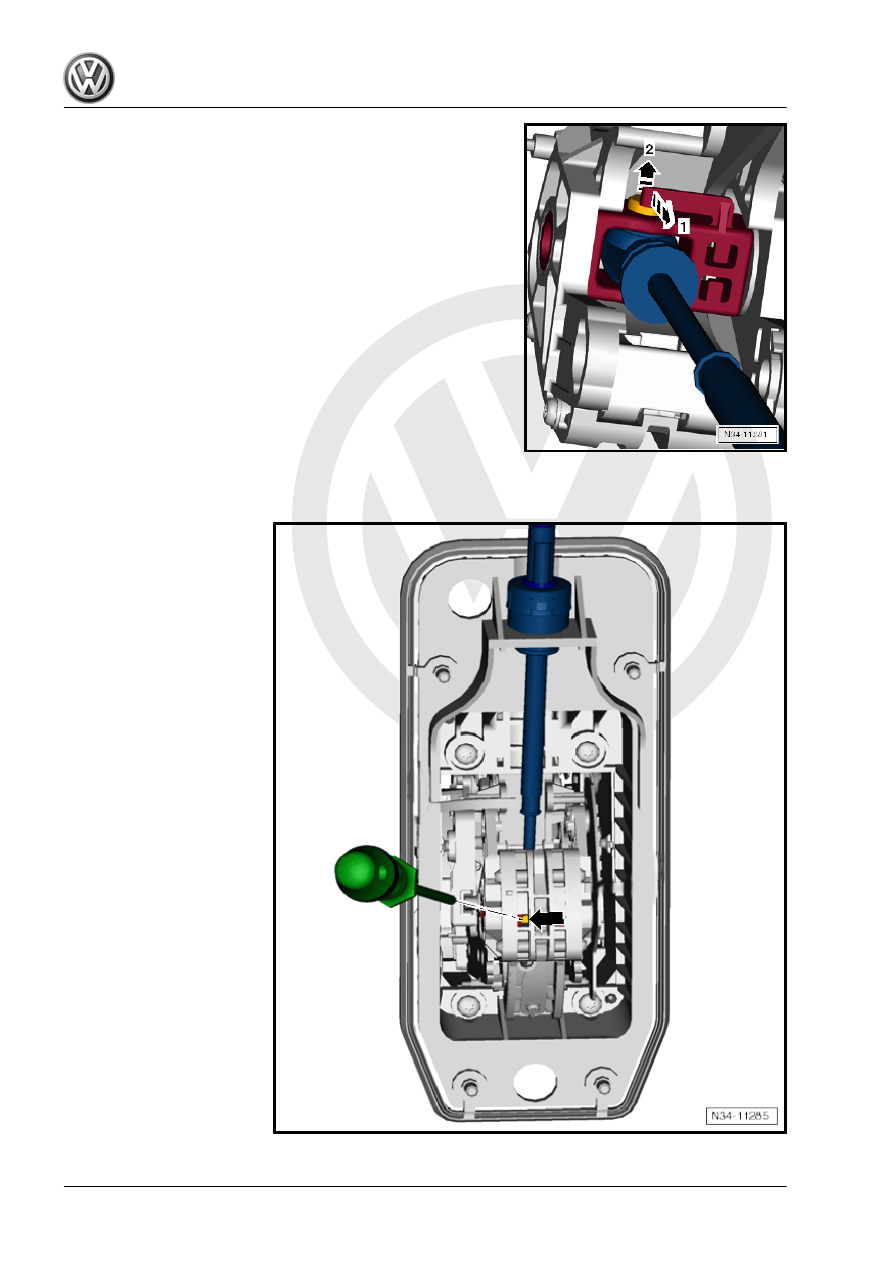

selector lever cable -arrow 1-.
– Push the -pin- upward with a screwdriver at the same time

-arrow 2-.

– Insert the -screwdriver- from underneath while pushing the

securing tab forward.
