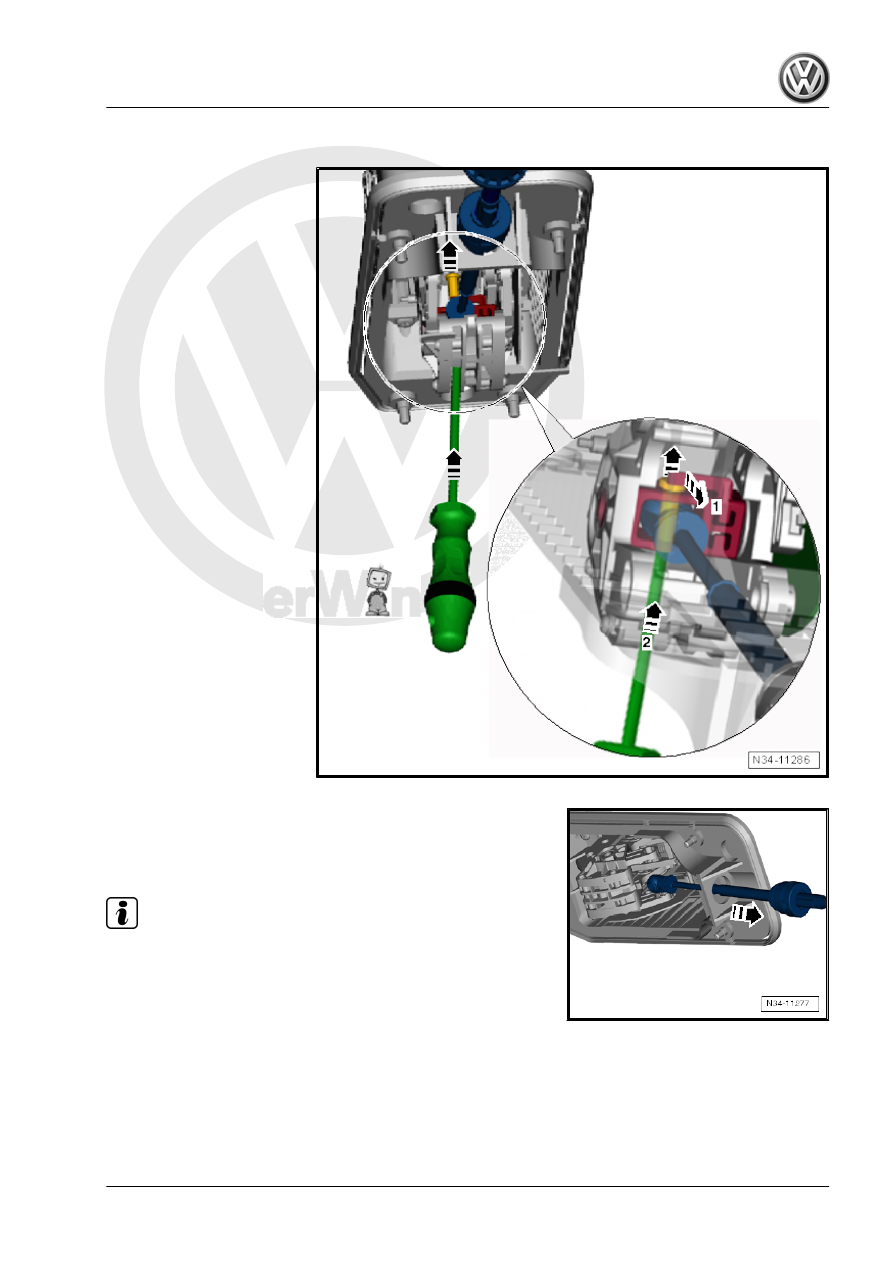

– Remove the selector lever cable.
Remove the selector lever cable from the selector housing.
Installing

Note

Do not lubricate the selector lever cable.

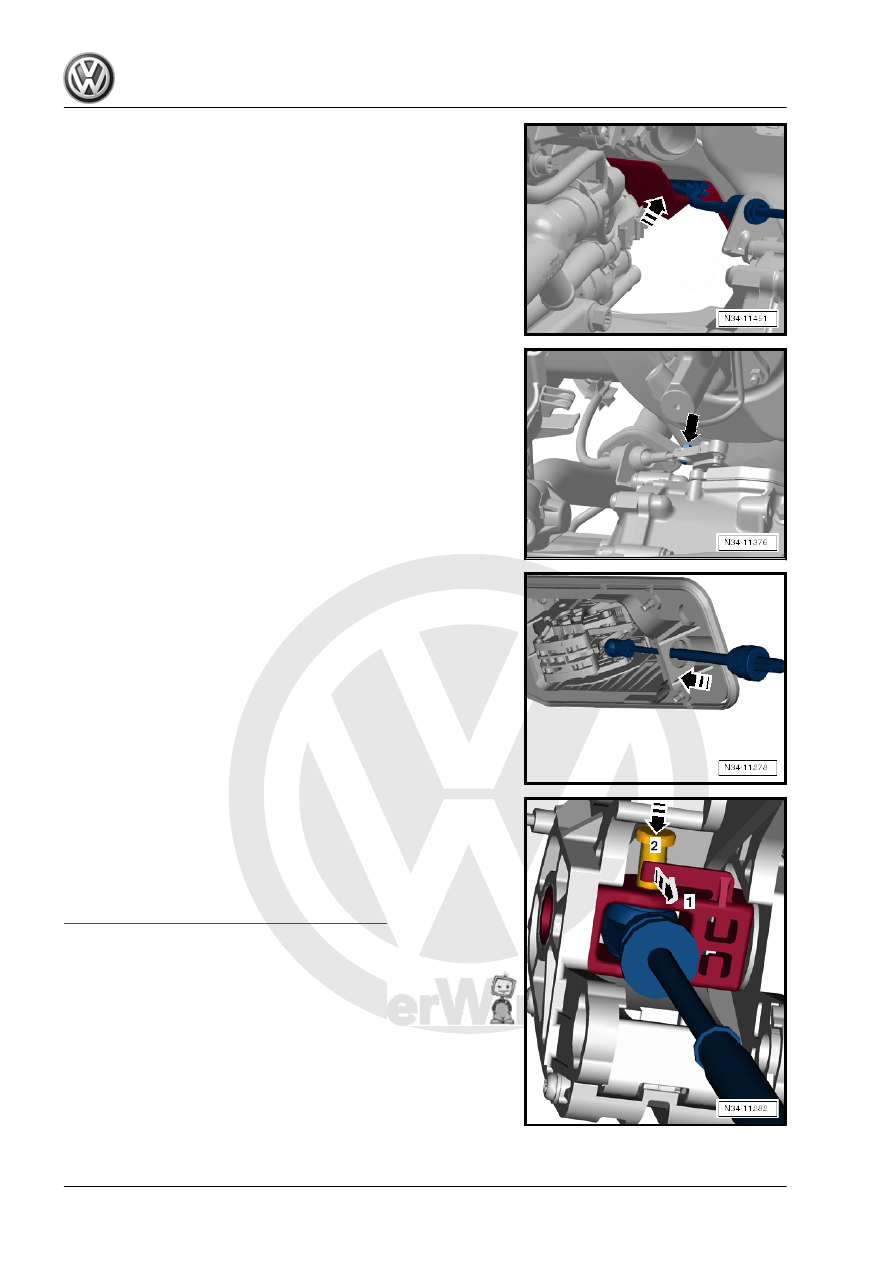

– Route the selector lever cable making sure it is free of tension.

Install is also into the cable bracket on the transmission. Do

not secure yet with the lock washers. Do not install the ball

head.

2. Selector Mechanism

81

correctly.

If the heat shield underneath is bent, there will be noises. The

selector lever cable will then »flap« on the heat shield.
– Pay attention to the heat shield. Push it upward into the tunnel

direction of -arrow-.

Loosen the adjusting screw -arrow-.

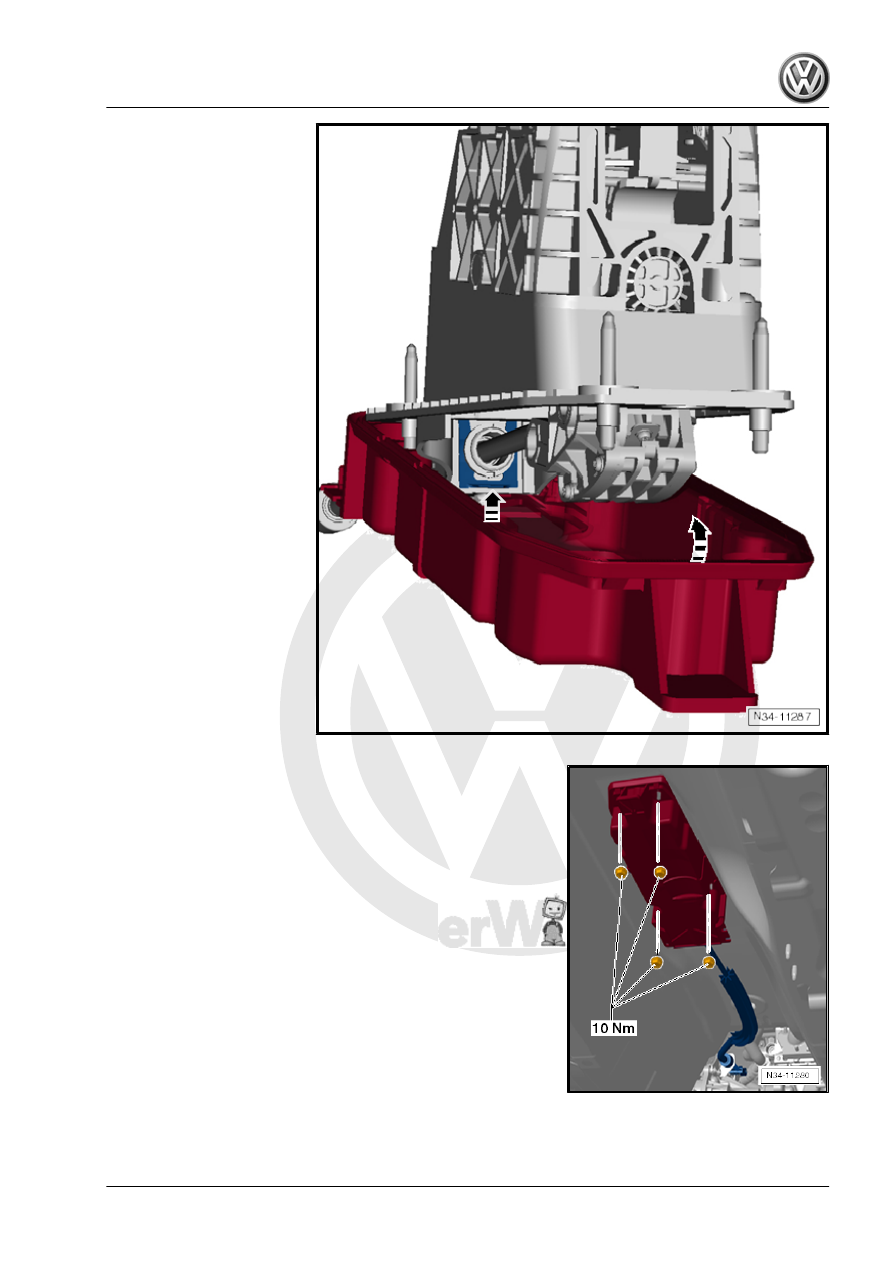

– Position the selector housing on the selector lever cable.

– Install the selector lever cable into the selector mechanism.
– Insert the selector lever cable into the bracket and then insert

the bolt through the eye from the top in the direction of the

-arrow 2-.

Install the locking plate only after having checked the selector

lever cable for ease of movement. Refer to

⇒ “2.5 Selector Lever Cable, Checking”, page 93

 .

– Secure the selector lever cable with a new securing plate to

the cable bracket on the selector mechanism.

82

2. Selector Mechanism

83

attach with the lock washers -2 and 3-.

– Attach the underbody trim panel to the body -arrows-.
– Install the exhaust system and align free of tension. Refer to

Pipes/Mufflers .

– Install the tunnel braces under the exhaust system. Refer to

⇒  Body Exterior; Rep. Gr.  50 ; Tunnel Brace .

– Adjust the selector lever cable after installing. Refer to

⇒ “2.6 Selector Lever Cable, Adjusting”, page 94

 .

2.3

Selector Mechanism Overview, from 03/2009

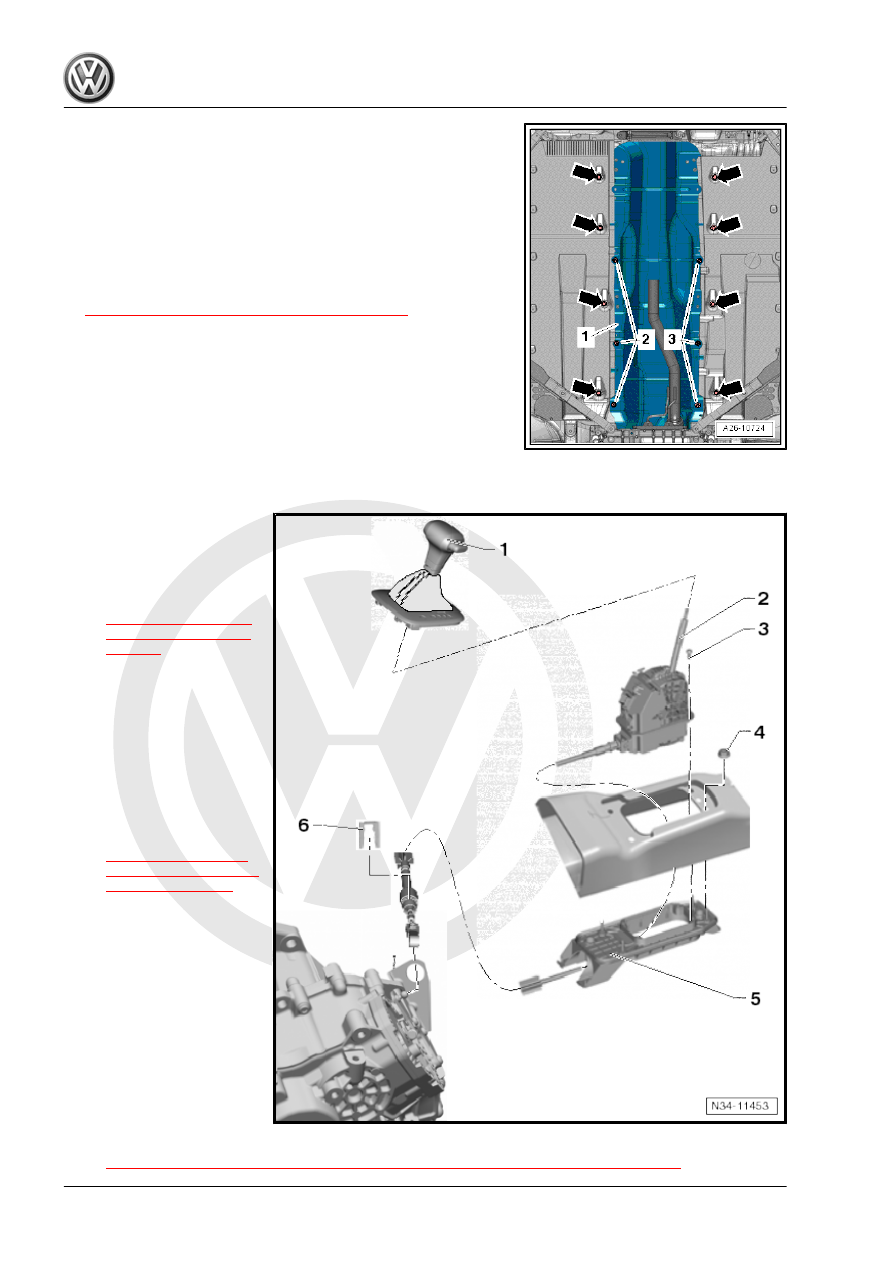

1 - Shift Cover with Handle

❑ Do not remove the han‐

dle unnecessarily. Only

the cover must be un‐

clipped for the emergen‐

cy release. Refer to

⇒ “2.7 Selector Lever,

Emergency Release”,

page 96

 .

❑ Pull the button past its

pressure point before

removing the handle.

Secure the button with a

cable tie or some suita‐

ble wire. This prevents

the locking button from

being pushed back into

knob accidentally.

❑ Selector lever handle,

removing and installing.

Refer to

⇒ “2.8 Selector Lever

Handle, Removing and

Installing”, page 96

 .

2 - Selector Mechanism with

Selector Lever and Selector

Lever Cable

❑ With integrated Selector

Lever Sensor System

Control Module - J587-

with Selector Lever -

E313- , Tiptronic Switch

- F189- , Selector Lever

Park Position Lock

Switch - F319- and Shift

Lock Solenoid - N110- .

❑ The selector lever cable

can only be replaced to‐

gether with the selector

mechanism. Refer to

⇒ “2.4 Selector Mechanism, Removing and Installing, Vehicles from 03/2009”, page 85

 .

84
