Volkswagen Golf Variant / Jetta. Manual - part 563





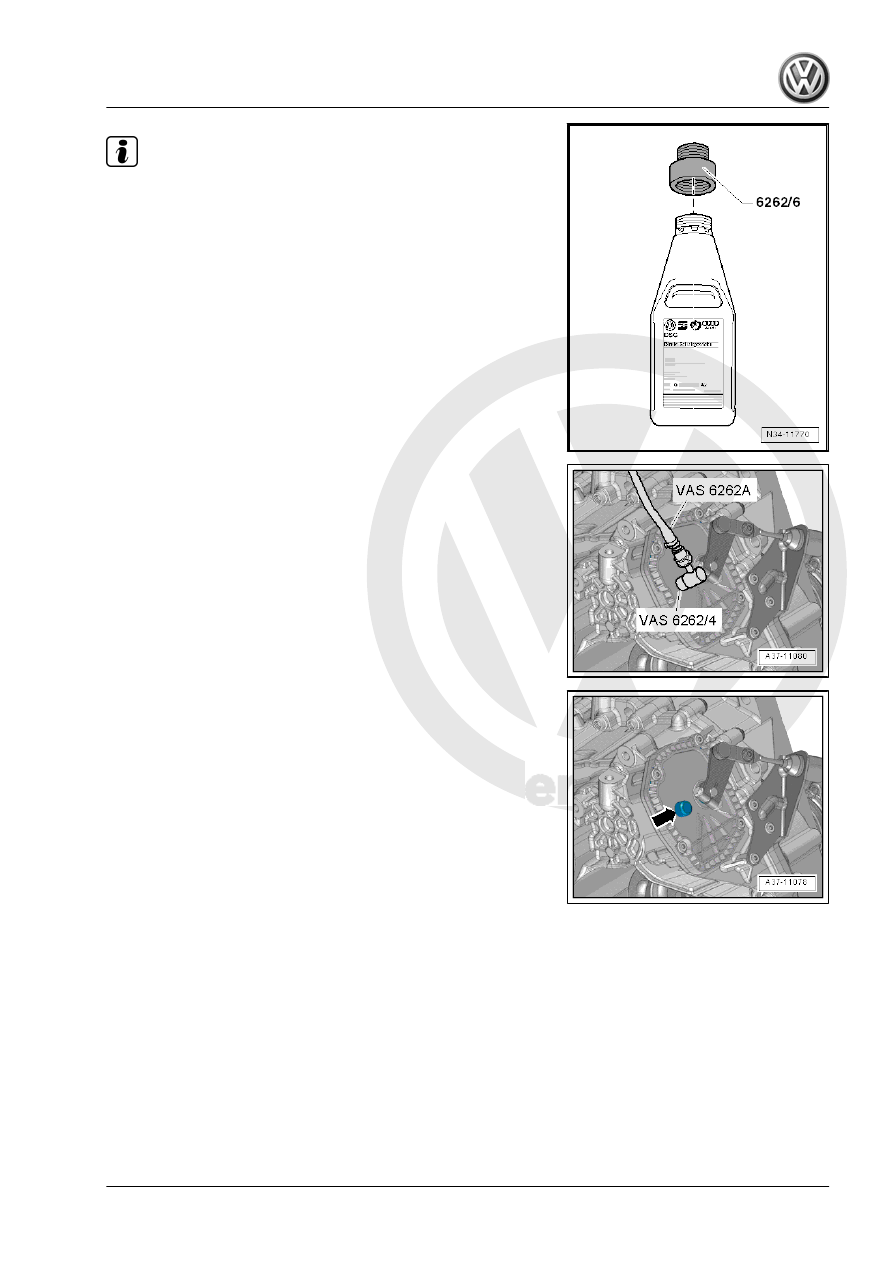

Use the Oil Filler - Adapter 6 - VAS6262/6- if the container thread

does not fit on the Adapter For Oil Filling - VAS6262A- .

– Hold the container so that no fluid can run into the filling hose.

– Connect the Oil Filler - Adapter 4 - VAS6262/4- to the filling

hose and mount it on the bleeder on the transmission.

– Screw in the container and fill 1.7 liters (1.79 quarts) of trans‐

mission fluid.

– Remove the Oil Filler - VAS6262A- after filling. Wipe the area

around the bleed hole with a clean cloth and install the bleeder

cap -arrow-.

– Install the battery tray and the battery -arrows-. Refer to ⇒

Electrical Equipment; Rep. Gr.  27 ; Battery; Battery, Remov‐

ing and Installing .

50 ; Noise Insulation .

1. Transmission Fluid, Replacing

73

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

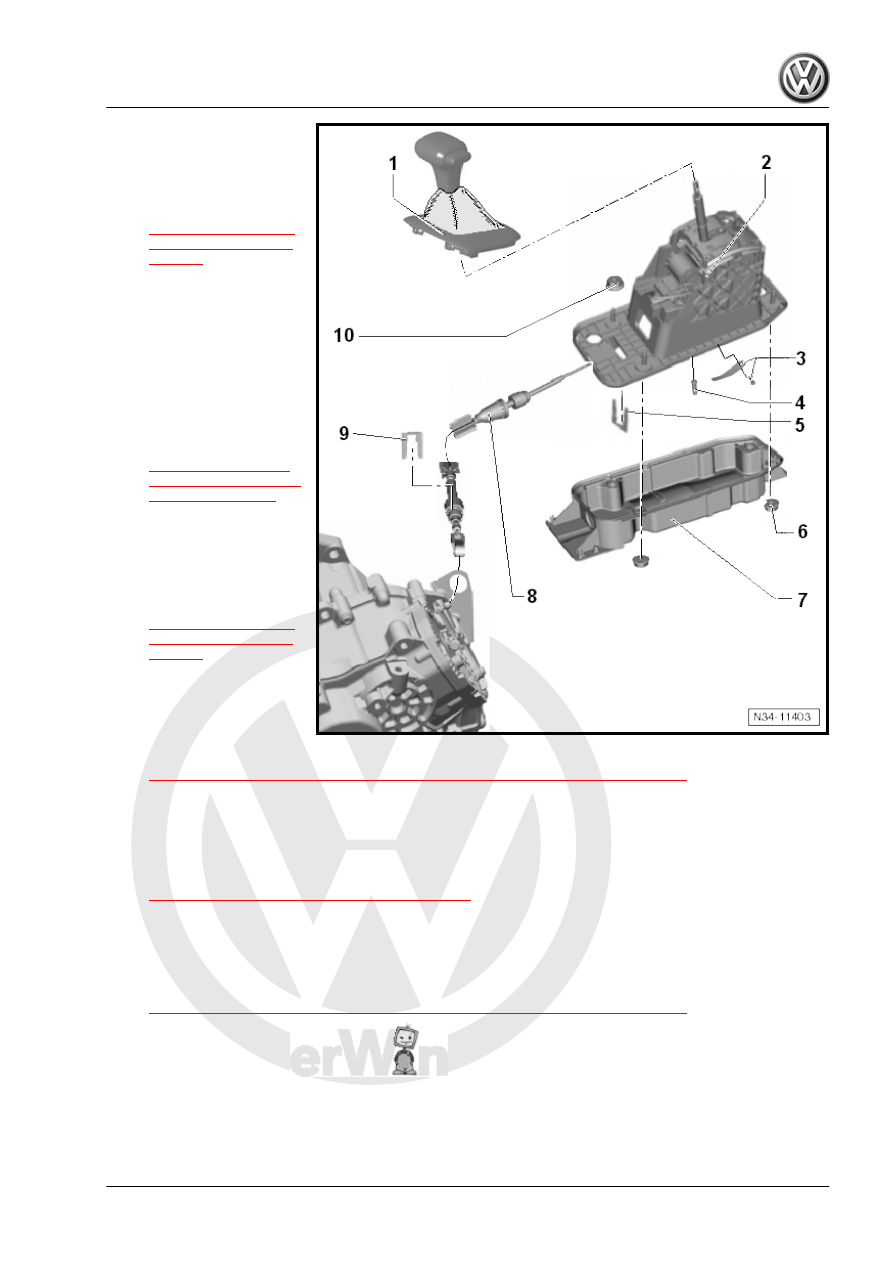

1 - Shift Cover with Handle

❑ Do not remove the han‐

dle unnecessarily. Only

the cover must be un‐

clipped for the emergen‐

cy release. Refer to

⇒ “2.7 Selector Lever,

Emergency Release”,

page 96

 .

❑ Pull the button past its

pressure point before

removing the handle.

Secure the button with a

cable tie or some suita‐

ble wire. This can pre‐

vent the button from be‐

ing accidentally pushed

back into the handle.

❑ Selector lever handle,

removing and installing.

Refer to

⇒ “2.8 Selector Lever

Handle, Removing and

Installing”, page 96

 .

2 - Selector Mechanism with

Selector Lever

❑ With Shift Lock Solenoid

- N110-

❑ Emergency release.

Refer to

⇒ “2.7 Selector Lever,

Emergency Release”,

page 96

 .

❑ Short description for re‐

moval and installation:

– Remove the center

bracket.

– Remove the selector lever cable from the transmission. Refer to

⇒ “2.2 Selector Lever Cable, Removing and Installing, through 02/2009”, page 76

 .

– Remove the heat shield under the selector mechanism.

– Adjust the selector lever cable after installing. Refer to

⇒ “2.6 Selector Lever Cable, Adjusting”, page 94

 .

3 - Bolt with Spring

❑ 3 Nm

4 - Pin

❑ Removing. Refer to

⇒ “2.2 Selector Lever Cable, Removing and Installing, through 02/2009”, page 76

 .

❑ Do not lubricate

5 - Locking Plate

❑ Always replace after removing

6 - Nut

❑ 9 Nm
❑ Quantity: 4

2. Selector Mechanism

75

❑ With seal

8 - Selector Lever Cable

❑ Do not grease the selector lever cable.
❑ Removing and Installing. Refer to

⇒ “2.2 Selector Lever Cable, Removing and Installing, through 02/2009”, page 76

 .

❑ Checking. Refer to

⇒ “2.5 Selector Lever Cable, Checking”, page 93

 .

❑ Adjusting. Refer to

⇒ “2.6 Selector Lever Cable, Adjusting”, page 94

 .

9 - Lock Washer

❑ Always replace after removing

10 - Hex Nut with Collar

❑ 8 Nm
❑ Quantity: 4

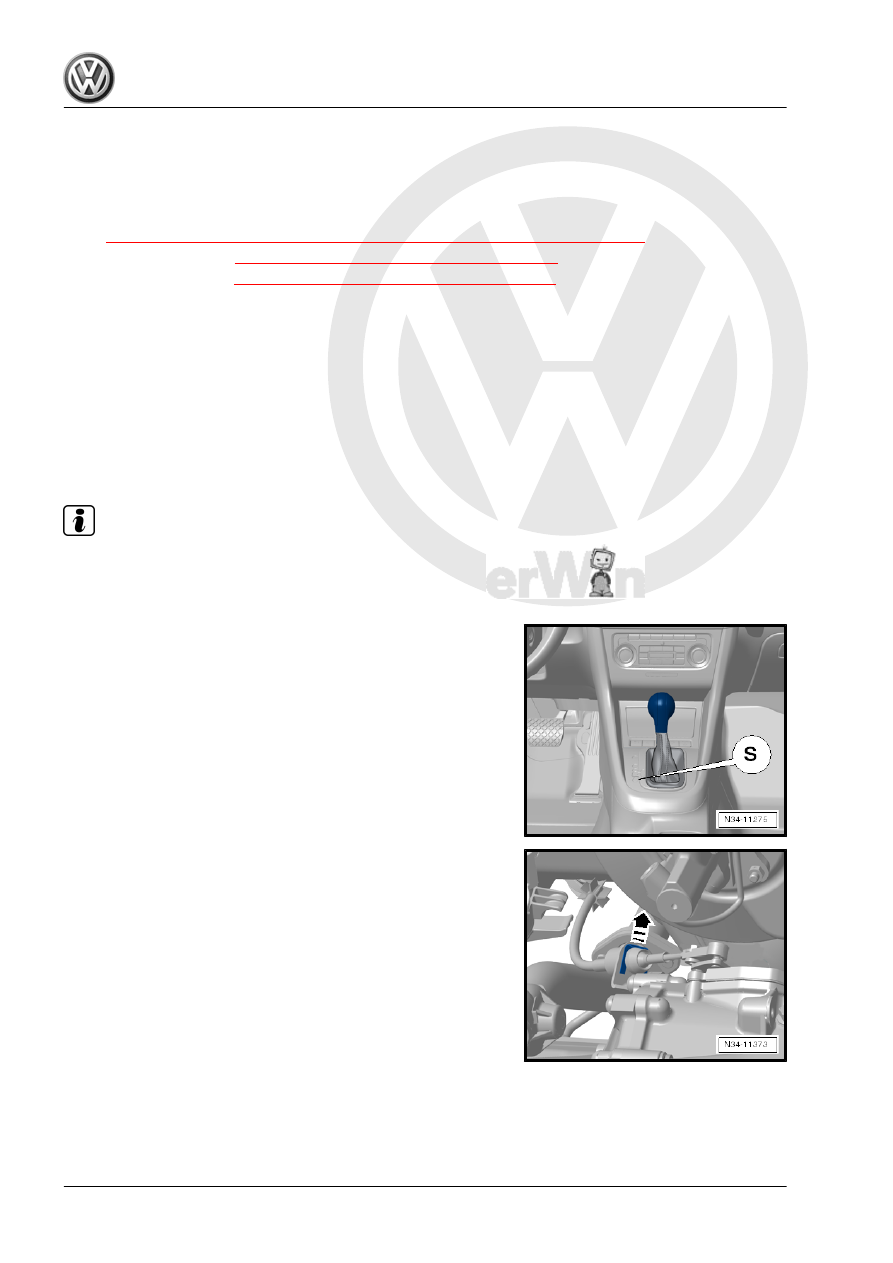

2.2

Selector Lever Cable, Removing and In‐

stalling, through 02/2009

Note

After installation, the selector lever cable must be checked for

ease of movement and adjusted.

Removing
– Move the selector lever into “S”.

– Remove the lock washer in the direction of the -arrow-.
Always replace the circlip on the selector lever cable.

76
