Volkswagen Golf Variant / Jetta. Manual - part 361





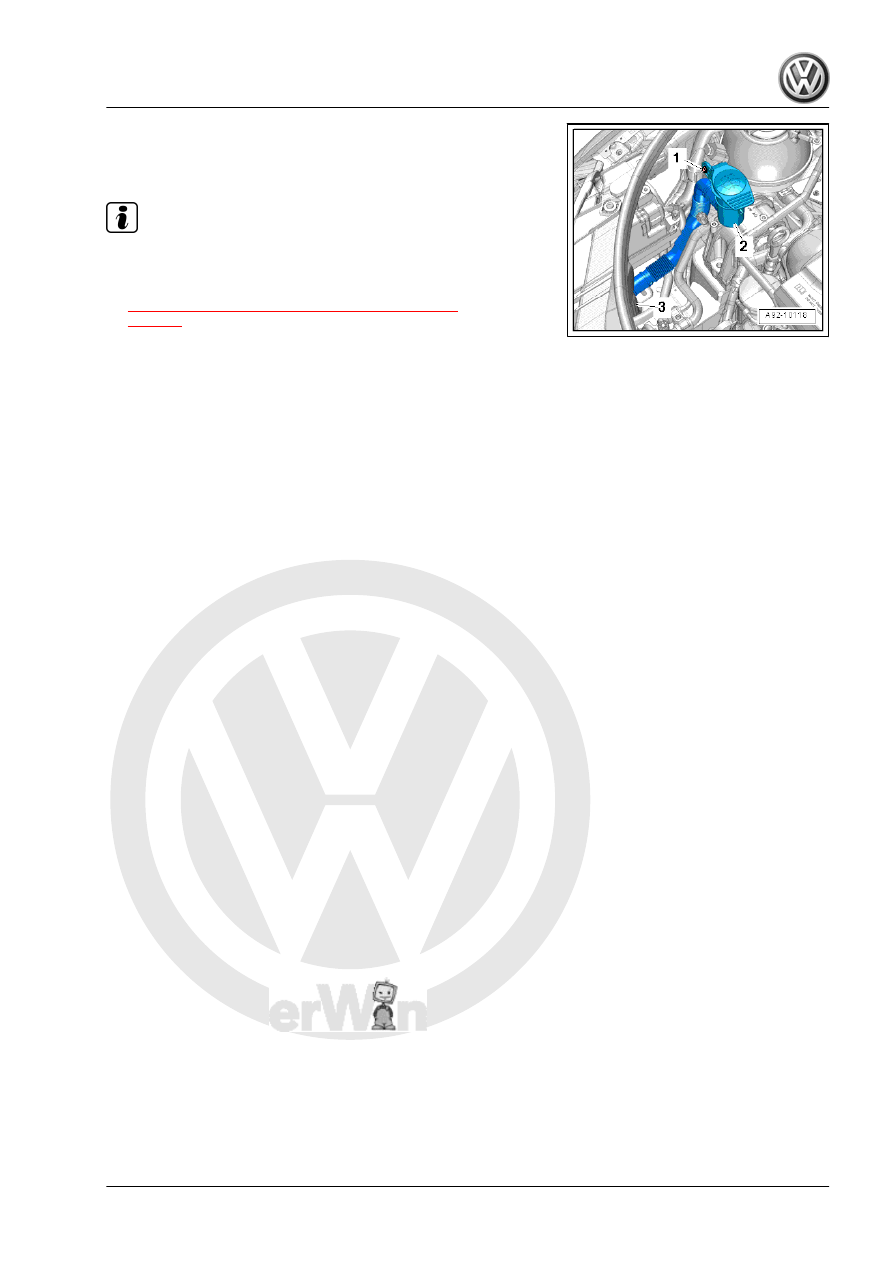

tube -2- to the side.

Note

Ignore -3-.

– Support the engine in the installation position. Refer to

⇒ “3.5 Engine, Supporting in Installation Position”,

page 31

 .

– Tension the engine slightly via the spindles do not lift it.

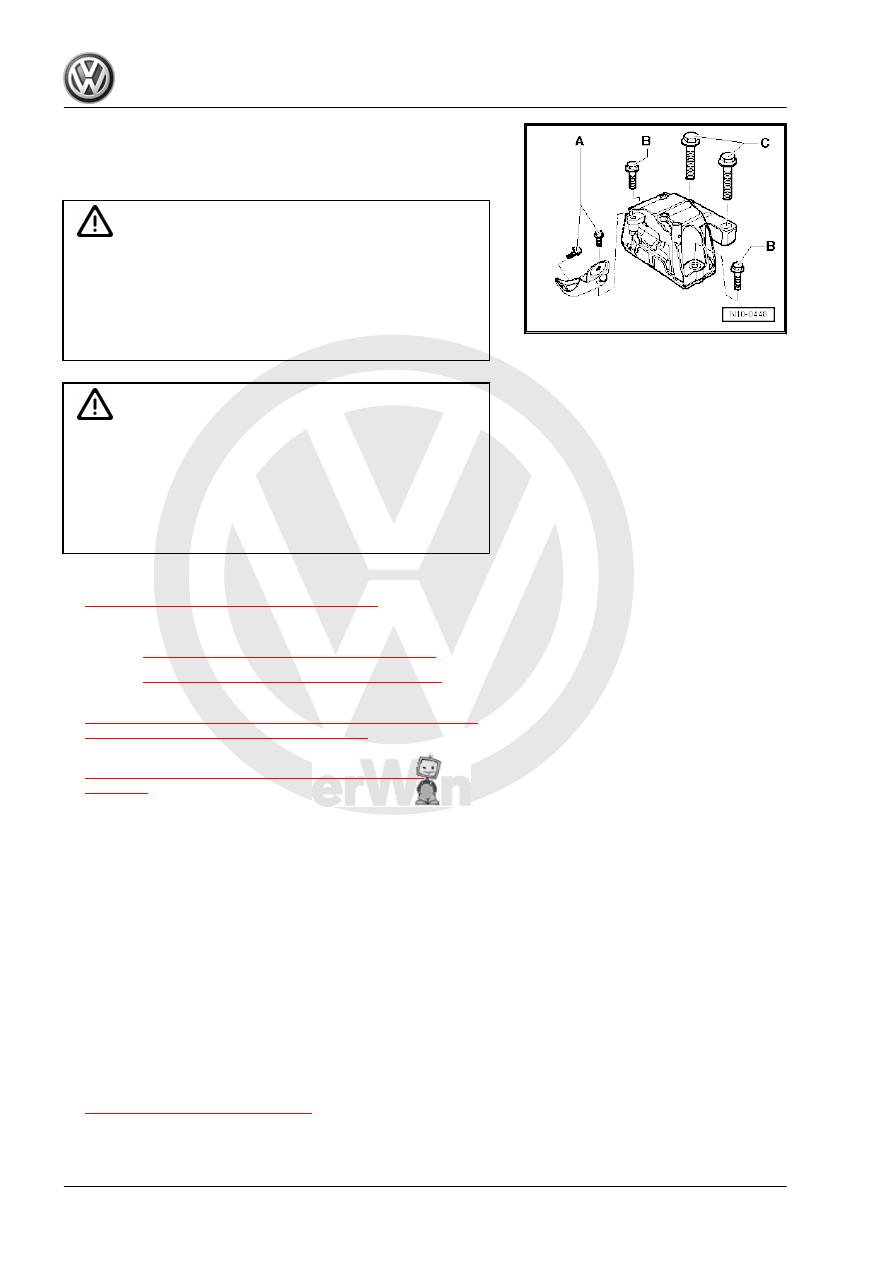

– Remove the bolts -A- and the bracket.
– Remove the bolts -B and C-.

3. Assembly Mounts, Jetta from 2011

27

Caution

Risk of damaging threads in transmission support by inserting

bolts at an angle.

♦ The transmission support and the transmission mount

support arm must be absolutely parallel to each other be‐

fore installing the bolts. Push the rear of the transmission

upward using a floor jack if necessary.

Caution

When doing any assembly work, especially in the engine com‐

partment,  pay  attention  to  the  following  due  to  the  limited

space.

♦ Route all lines in their original locations.
♦ To prevent damage to the lines, make sure there is suffi‐

cient clearance to all moving or hot components.

– Adjust the subframe mount. Refer to

⇒ “3.6 Subframe Mount, Adjusting”, page 35

 .

Tightening Specifications
♦ Refer to

⇒ “3.6 Subframe Mount, Adjusting”, page 35

♦ Refer to

⇒ “3.1 Overview - Subframe Mount”, page 23

♦ Refer to

⇒ “1.4 Particulate Filter with NOx Absorption Catalytic Con‐

verter, Removing and Installing”, page 369

♦ Refer to

⇒ “4.2 Overview - Charge Air Cooler Components”,

page 290

20 ; Fuel Filter .

tery; Battery Tray, Removing and Installing .

♦ Plenum chamber cover. Refer to ⇒  Body Exterior; Rep. Gr.

50 ; Plenum Chamber Cover; Plenum Chamber Cover, Re‐

moving and Installing .

3.3

Transmission Mount, Removing and In‐

stalling

Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-
Removing
– Remove the engine cover. Refer to

⇒ “1.1 Engine, Removing”, page 3

 .

– Remove the plenum chamber cover. Refer to ⇒  Body Exterior;

Rep. Gr.  50 ; Plenum Chamber Cover; Plenum Chamber

Cover, Removing and Installing .

28

System; Rep. Gr.  27 ; Battery; Battery Tray, Removing and

Installing .

– Remove the air filter housing with the Mass Airflow Sensor -

G70- and connecting pipe. Refer to

⇒ “3.15 Air Filter Housing, Removing and Installing”,

page 338

 .

– Support the engine mount in the installed position. Refer to

⇒ “3.5 Engine, Supporting in Installation Position”,

page 31

 .

– Free up the wires at the cable guide.

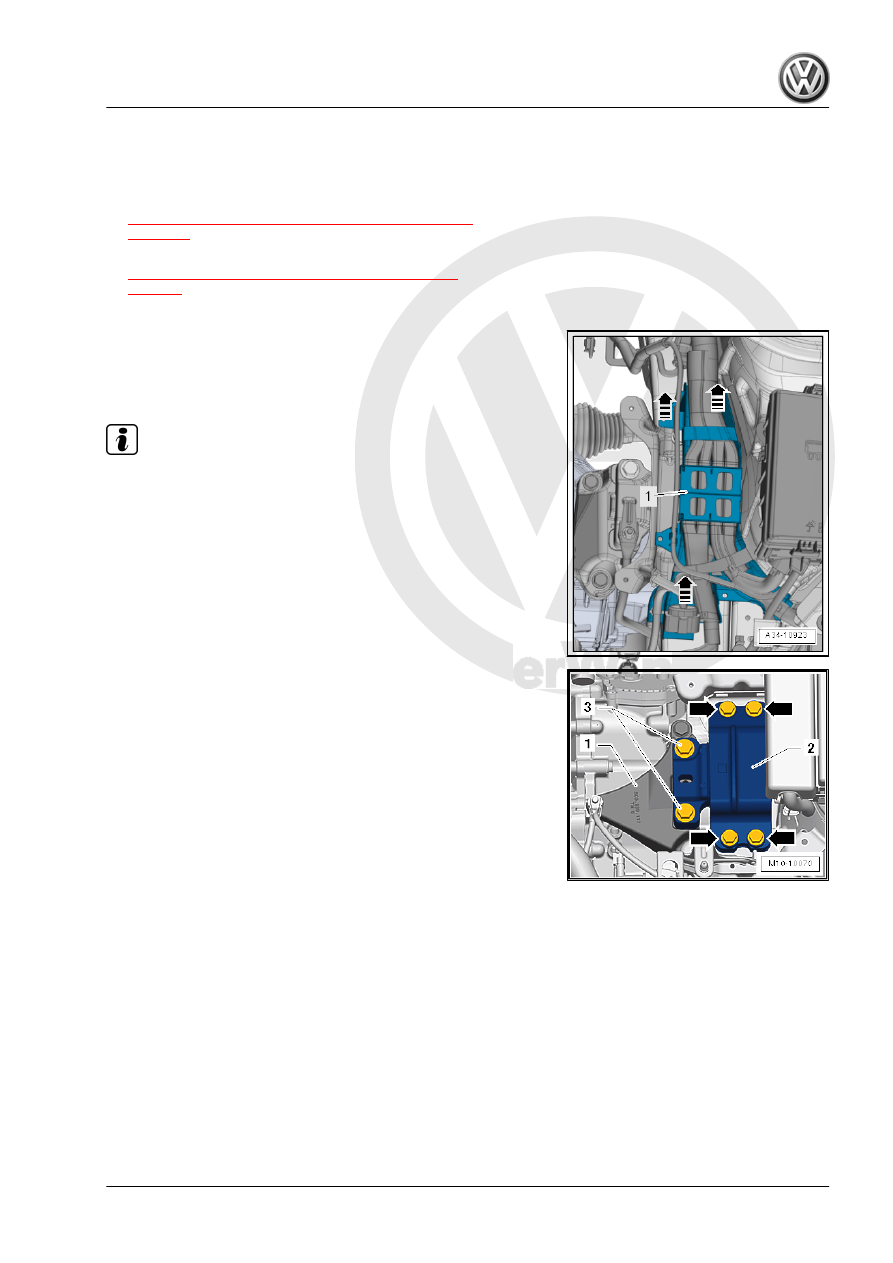

– Unclip the wiring guide -1- upward in direction of -arrows- and

move it slightly to the side.

– Pretension the engine/transmission sub-assembly using the

spindles, but do not lift it.

Note

Ignore -1 and 3-.

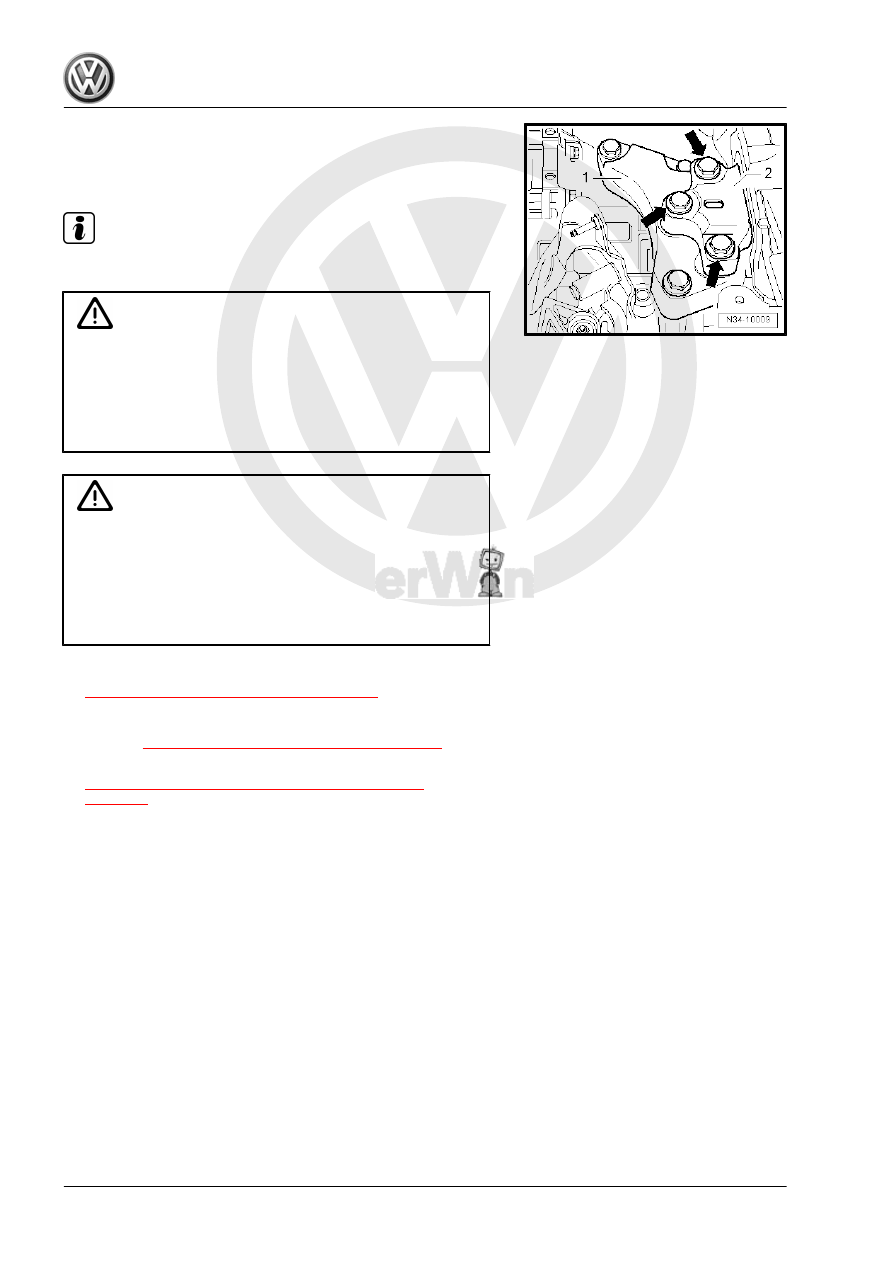

– Remove the bolts -arrows-.
– Remove the bolts -arrows-.

3. Assembly Mounts, Jetta from 2011

29

Note

Replace the bolts that were tightened with an additional turn.

Caution

Risk of damaging threads in transmission support by inserting

bolts at an angle.

♦ The transmission support and the transmission mount

support arm must be absolutely parallel to each other be‐

fore installing the bolts. Push the rear of the transmission

upward using a floor jack if necessary.

Caution

When doing any assembly work, especially in the engine com‐

partment,  pay  attention  to  the  following  due  to  the  limited

space.

♦ Route all lines in their original locations.
♦ To prevent damage to the lines, make sure there is suffi‐

cient clearance to all moving or hot components.

– Adjust the subframe mount. Refer to

⇒ “3.6 Subframe Mount, Adjusting”, page 35

 .

Tightening Specifications
♦ Refer to

⇒ “3.1 Overview - Subframe Mount”, page 23

♦ Refer to

⇒ “4.2 Overview - Charge Air Cooler Components”,

page 290

tery; Battery Tray, Removing and Installing .

♦ Plenum chamber cover. Refer to ⇒  Body Exterior; Rep. Gr.

50 ; Plenum Chamber Cover; Plenum Chamber Cover, Re‐

moving and Installing .

3.4

Pendulum Support, Removing and In‐

stalling

Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-
Removing
– Remove the noise insulation. Refer to ⇒  Body Exterior; Rep.

Gr.  50 ; Noise Insulation .

– Remove the bolt -1-.
– Remove the bolts -2 and 3-.

30
