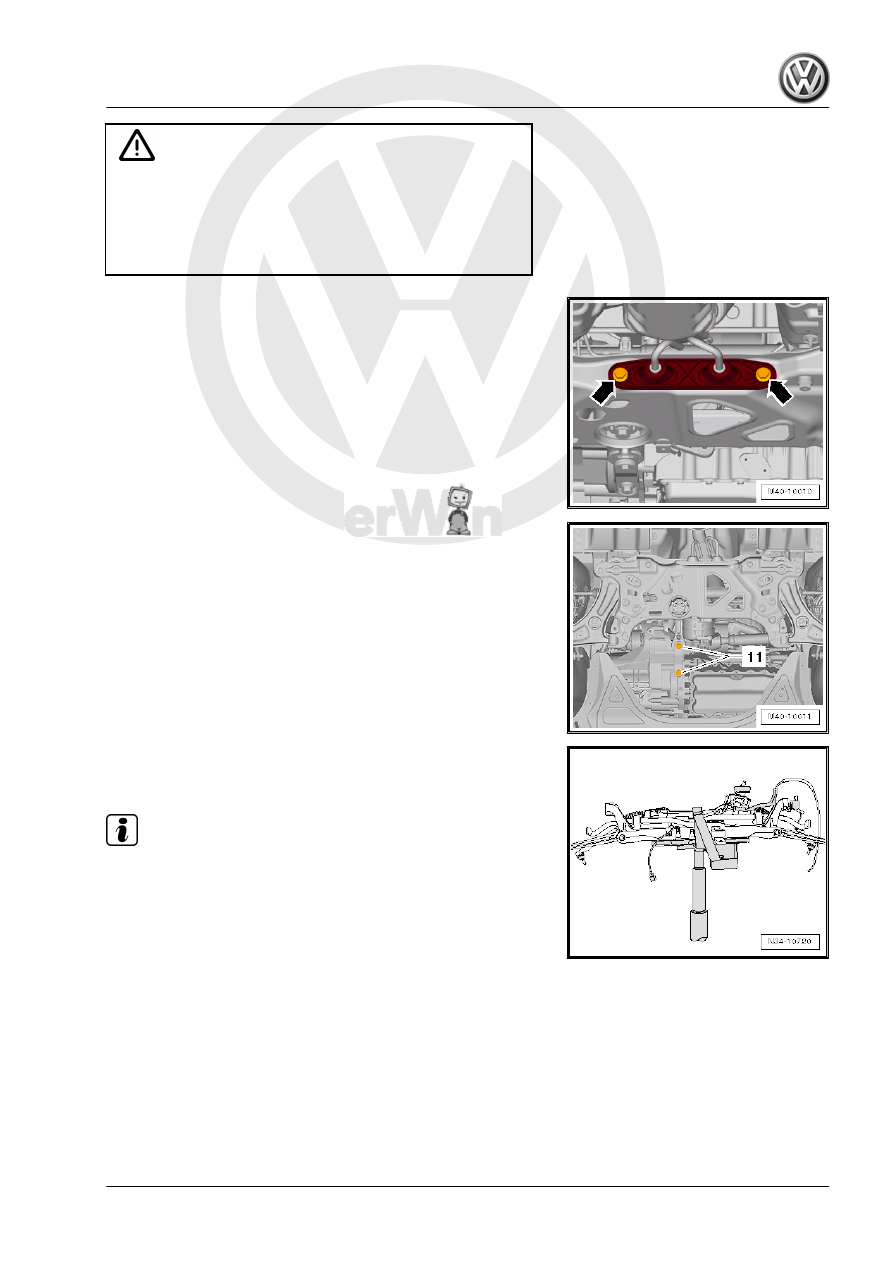

Risk of damaging the decoupling element.

♦ Do not bend the decoupling element more than 10°.
♦ Do not load the decoupling element.
♦ Do not damage the wire mesh on the decoupling element.

– Separate the exhaust system at the clamping sleeve and re‐

Gr.  26 .

– Tie up the front exhaust pipe.

– Remove the bolts -11- and then remove the pendulum support

from the transmission.

– Secure the subframe before removing. Refer to ⇒  Suspen‐

sion, Wheels, Steering; Rep. Gr.  40 ; Subframe; Subframe,

Securing .

Note

If the -subframe- is not secured, a vehicle alignment must be per‐

formed later.

– Remove the subframe and steering gear. Refer to ⇒  Suspen‐

sion, Wheels, Steering; Rep. Gr.  40 ; Subframe .

7. Transmission, Removing and Installing, Jetta from MY 2011

123

moving and Installing .

– Tie the right drive axle as high up as possible.
– Move the left drive axle to the rear and secure it. Be careful

not to damage the surface protection.

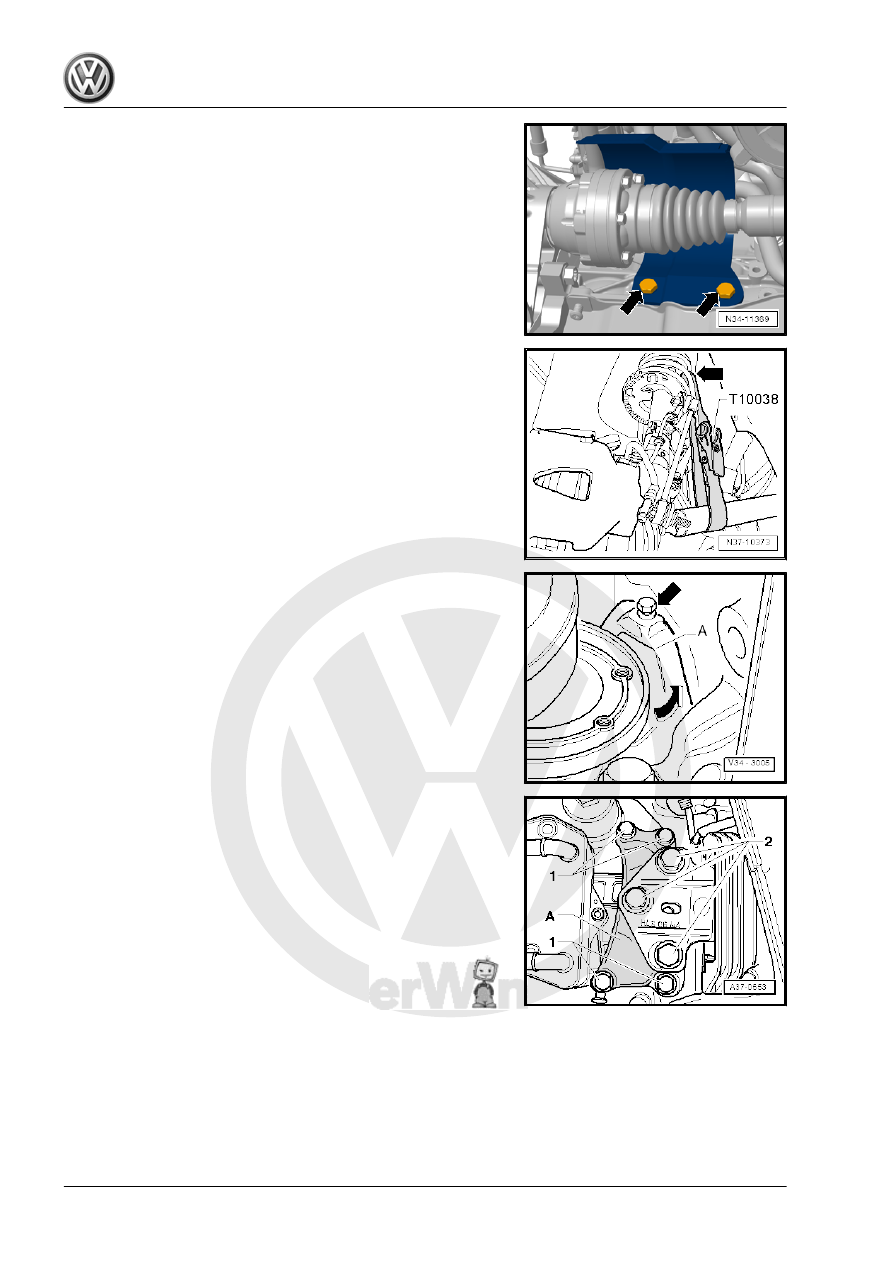

– There may be a small cover plate on the plate between the

engine and transmission above the right flange shaft. Remove

this cover plate -A-, if equipped.

– Remove the bolts -1 and 2- from the transmission bracket

-A-.

– Then lower the engine/transmission slightly using the Engine

Support Bridge - 10-222A- spindle so that the transmission

bracket can be removed.

124

7. Transmission, Removing and Installing, Jetta from MY 2011

125

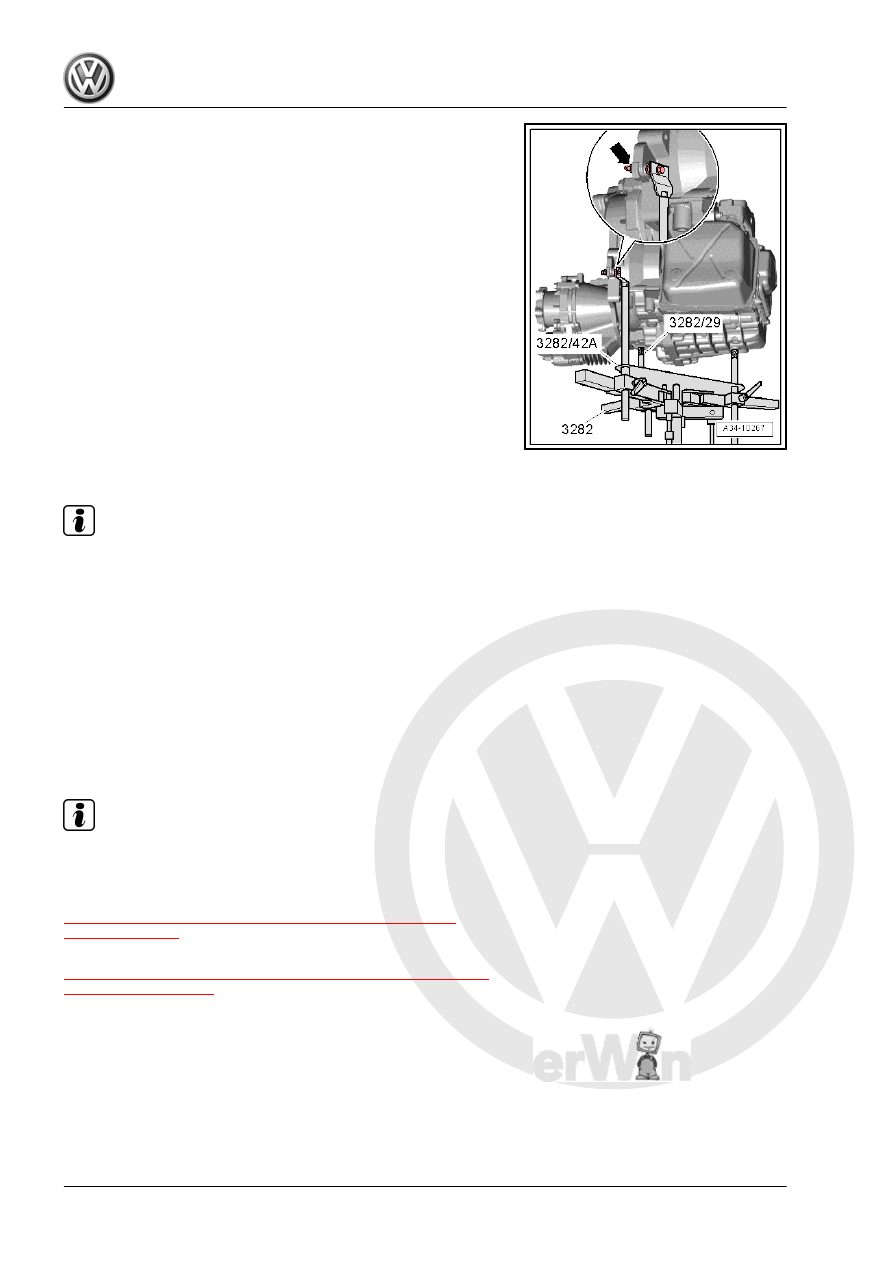

3282- is equipped with the Transmission Support - Mounting Plate

- 3282/42A- and positioned on the Engine and Gearbox Jack -

VAS6931- .
– Align the arms of the Transmission Support so that they match

up with the holes in the Transmission Support - Mounting Plate

42A - 3282/42A- .

– Install the mounting element as illustrated on the Transmission

Support - Mounting Plate 42A - 3282/42A- .

– Place the Engine and Gearbox Jack - VAS6931- under the

vehicle.

• The arrow symbol on the Transmission Support - Mounting

Plate 42A - 3282/42A- points in the direction of travel.

– Align the Transmission Support - 3282- so that it is parallel to

the transmission.

– Install the Transmission Support - Pins 29 - 3282/29- in the

transmission.

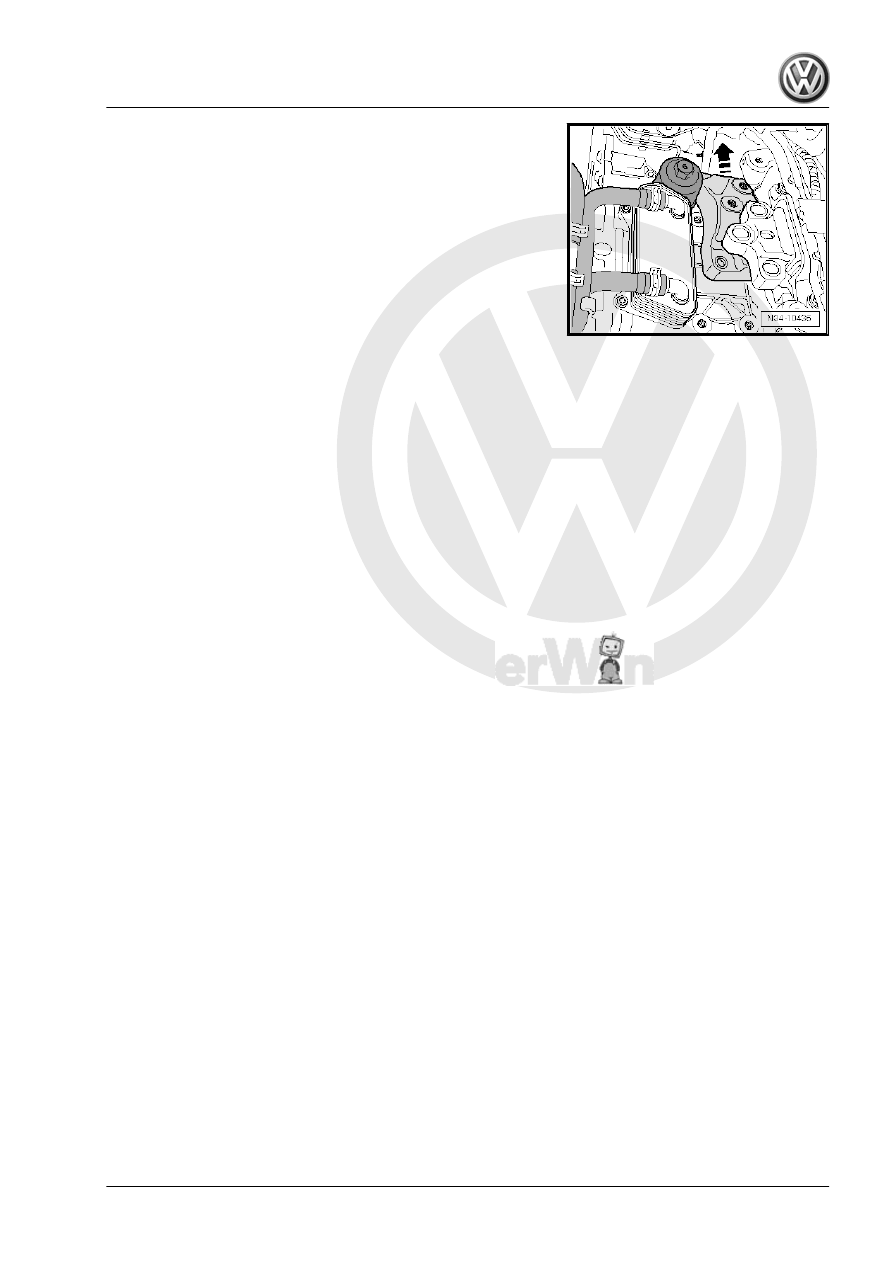

– Secure both the other support elements to the transmission as

shown.

Note

Deviating from the illustration of the Adjusting Plate the front

transmission support is illustrated mounted to the transmission

-arrow-.

DSG® transmission 02E “AWD” is shown in the illustration.

The mounting elements on the “FWD” are identical.

– Support the transmission by lifting it from underneath using the

Engine and Gearbox Jack - VAS6931- .

The transmission is disconnected from the engine in this position.
– Remove the remaining engine/transmission connecting bolts.
– Remove transmission from engine »while being careful of se‐

lector lever cable« and lower the transmission.

Note

Pay attention to all of the lines when lowering the transmission.

Transport the transmission and secure to the assembly stand.
