Volkswagen Golf Variant / Jetta. Manual - part 336

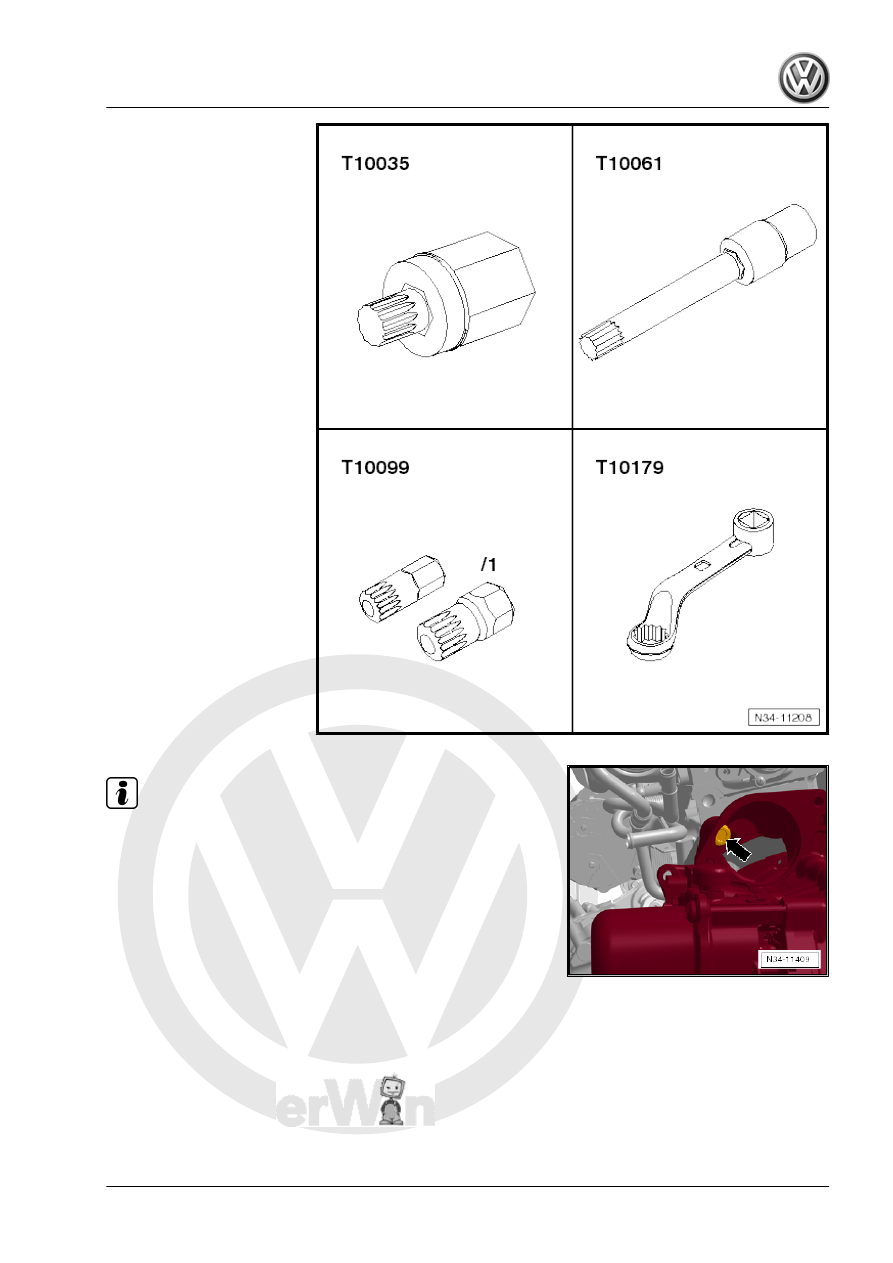

On some transmissions a bolt is located in the starter hole

-arrow-.

– Remove both filler pieces from the left and right fender upper

edges.

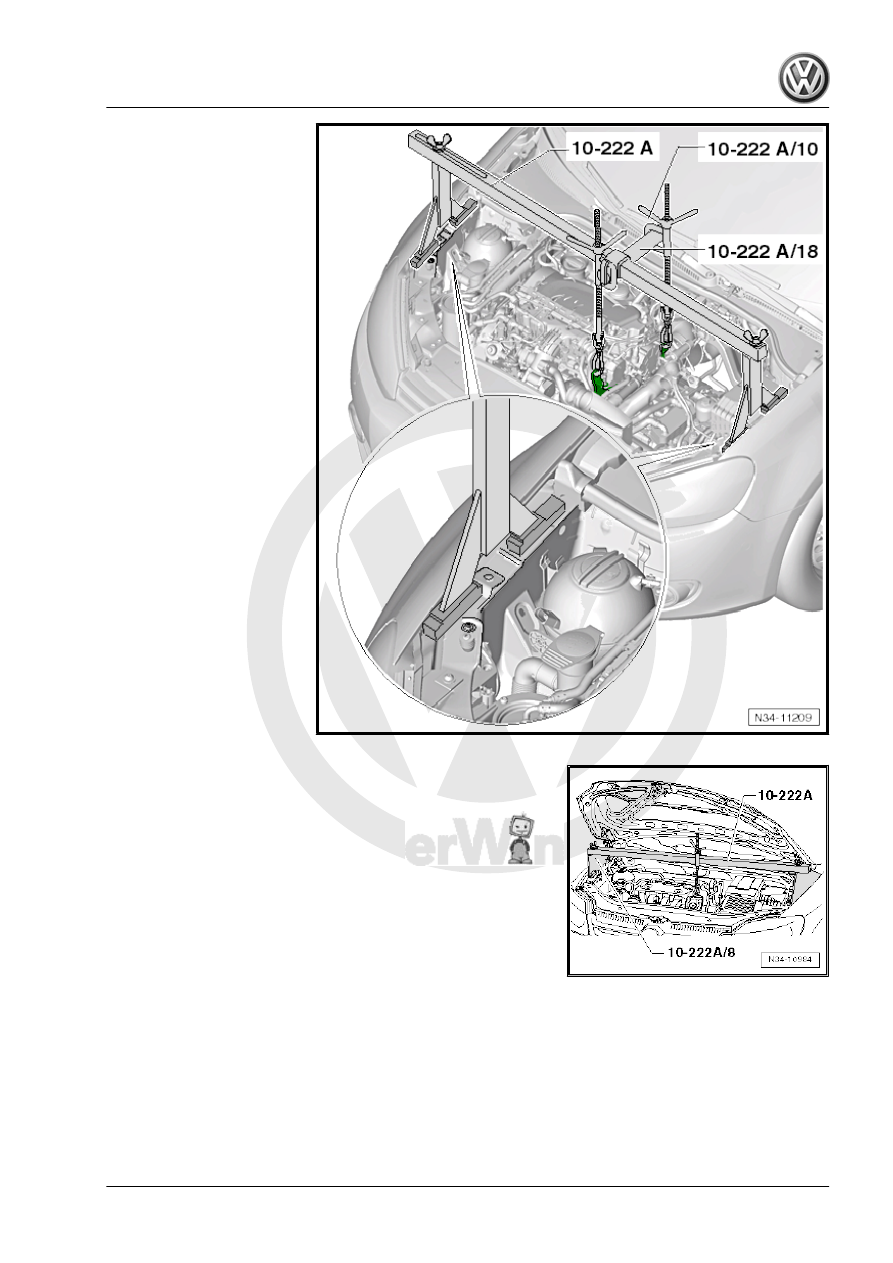

– If there are hose and cable connections located near the en‐

gine lifting eyes for the Engine Support Bridge - 10-222A- ,

these must now be removed.

Check in following engine types which tool is needed to support

the engine.

6. Transmission, Removing and Installing, Jetta from MY 2005 , Golf Wagon from MY 2007 and Golf Wagon from MY 2010

91

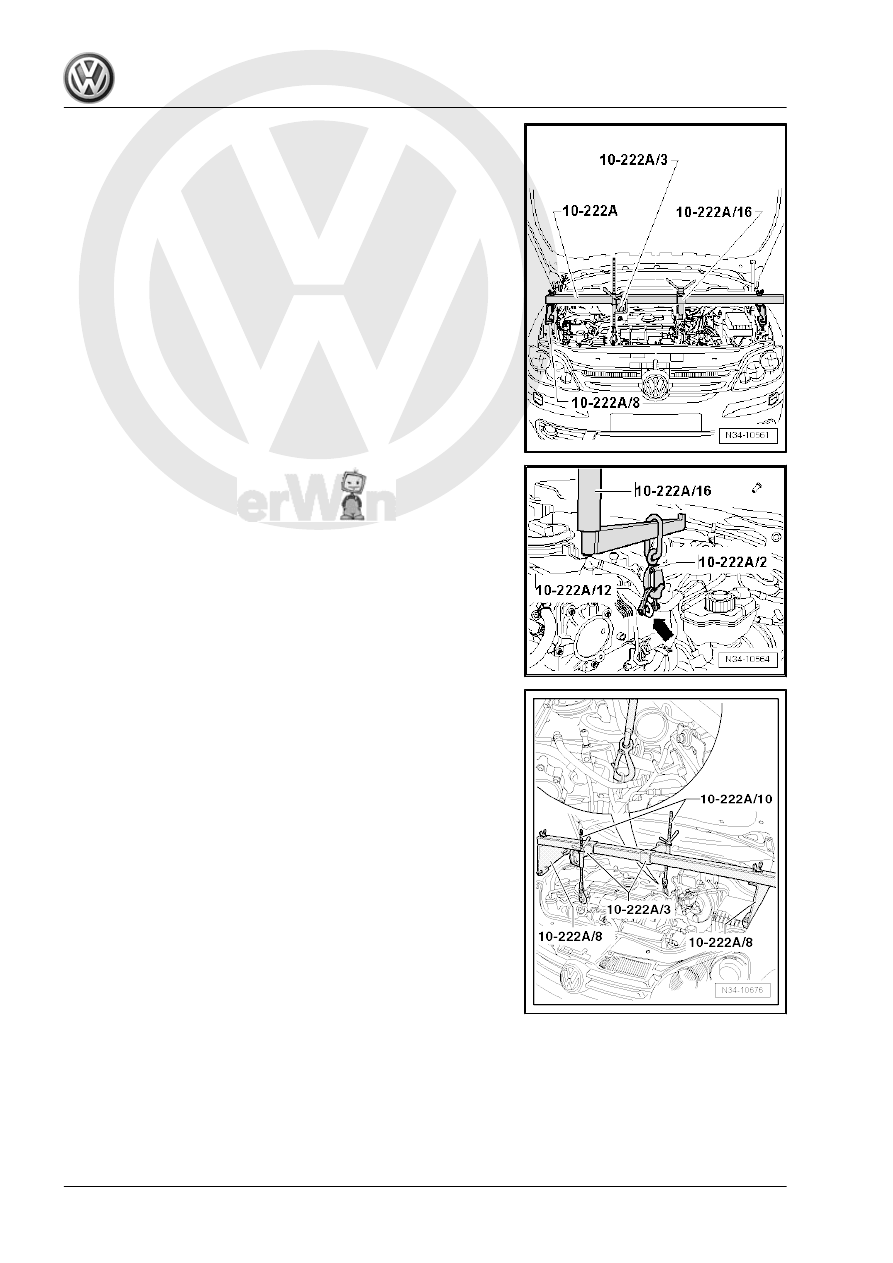

Engine Support - Automatic Transmission Adapter - 10-222A/16-
♦ Engine Support Bridge - Additional Hooks (2 pc.) - 10-222A/

2-

♦ Engine/Gearbox Support Shackle (2 pc.) - 10-222A/12-

2.0L TDI Engine - Jetta from MY 2005 and Golf Wagon from MY

2007
– Support the engine and transmission. Do not raise them.
♦ Engine Support Bridge - 10-222A-
♦ Engine Support Bridge - Engine Support 3 - 10-222A/3-
♦ Engine Support Bridge - Engine Support Feet - 10-222A/8-
♦ Engine Support - Bracket w/Spindle and Hook - 10-222A/10-

2.0L TDI Engine - Golf Wagon from MY 2010
– Support the engine and transmission. Do not raise them.

92

6. Transmission, Removing and Installing, Jetta from MY 2005 , Golf Wagon from MY 2007 and Golf Wagon from MY 2010

93

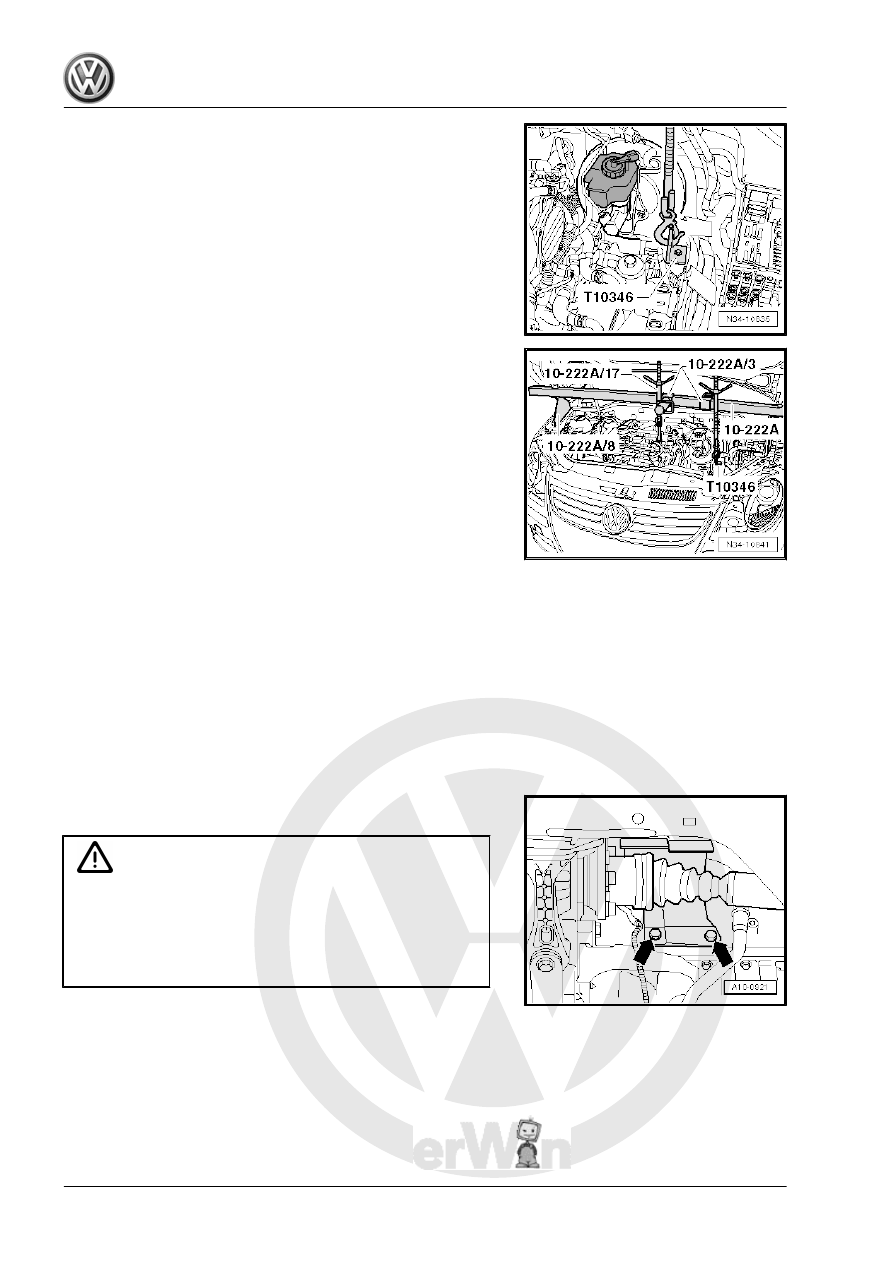

T10346- to the rear hole of the three locating holes for the

battery tray.

– Use a M6 collar bolt or one of the bolts for the battery tray.

– Support the engine and transmission. Do not raise them.
♦ Engine Support Bridge - 10-222A-
♦ Engine Support Bridge - Engine Support 3 - 10-222A/3-
♦ Engine Support Bridge - Engine Support Feet - 10-222A/8-

»flat side« toward engine compartment

♦ Engine Support Bridge - Gearbox Bracket - T10346-
♦ Use the Engine Support Bridge - Spindle Spacer - 10-222A/

17- on the »front« spindle.

Continuation for All Engines
– Pretension the engine/transmission assembly with the spin‐

dles, but do not lift.

– Loosen left and right front wheel bolts.
– Lift the vehicle, all four mounts from lifting platform at the same

height.

– Remove the front wheels.
– Remove the noise insulation. Refer to ⇒  Body Exterior; Rep.

Gr.  50 ; Noise Insulation .

– Remove the lower section of the left front wheel housing liner.

Overview - Front Wheel Housing Liner .

– Remove the heat shield above the right drive axle -arrows-, if

equipped.

Caution

Risk of damaging the decoupling element.

♦ Do not bend the decoupling element more than 10°.
♦ Do not load the decoupling element.
♦ Do not damage the wire mesh on the decoupling element.

94
